Old Apr 6, 2015 | 03:24 PM
  #49276
Hopalong's Avatar
Newbie

Joined: Mar 2015
Posts: 29
Likes: 0
Model: Cherokee
Default

Originally Posted by NewKindOfClown
I think anything from '84-96 would work, but I haven't swapped one myself

Thought let you know you were right on the years, in '97 they changed the hinges on the lift gate. To report, hit the JY today and had 5 Jeeps as options from '91-'96. I pulled from a '96, it was in the best shape. No cracks, clean as a whistle. So I took it and ran, came with the rear wiper motor, glass (defrost) which mine never had(knew mine was equipped with the proper wiring and spaces for the defrost and rear wiper switch, so grabbed them as well) out the door spent 100.00. More than happy and thanks for the reply.
Old Apr 6, 2015 | 03:38 PM
  #49277
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by Hopalong

Thought let you know you were right on the years, in '97 they changed the hinges on the lift gate. To report, hit the JY today and had 5 Jeeps as options from '91-'96. I pulled from a '96, it was in the best shape. No cracks, clean as a whistle. So I took it and ran, came with the rear wiper motor, glass (defrost) which mine never had(knew mine was equipped with the proper wiring and spaces for the defrost and rear wiper switch, so grabbed them as well) out the door spent 100.00. More than happy and thanks for the reply.
Glad it went well for you, buddy
Old Apr 6, 2015 | 05:54 PM
  #49278
unidentifiedbomb's Avatar
CF Veteran

Joined: May 2011
Posts: 6,098
Likes: 250
From: DE
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

is it safe to say that being lifted 4"s will allow me to use my stock D35 driveshaft when swapping in a 8.25? I've heard mixed things but most that I have read in discussion were around or under 3"s and it was still hit/miss.
Old Apr 6, 2015 | 05:55 PM
  #49279
a_shirey's Avatar
CF Veteran

Joined: Jan 2012
Posts: 8,272
Likes: 1
From: Baltimore, MD
Year: 1999
Model: Cherokee
Engine: 4.0 I6 HO
Default

Originally Posted by unidentifiedbomb
is it safe to say that being lifted 4"s will allow me to use my stock D35 driveshaft when swapping in a 8.25? I've heard mixed things but most that I have read in discussion were around or under 3"s and it was still hit/miss.
I went from a dana 35 to a Chrysler 8.25 at 2" and my stock driveshaft fit 100% perfectly.
Old Apr 6, 2015 | 08:13 PM
  #49280
ITTs_Cole's Avatar
CF Veteran

Joined: Apr 2014
Posts: 1,028
Likes: 0
From: Hagerstown MD
Year: 93
Model: Cherokee
Engine: 4.0 I6 w/Flux Capacitor
Default

Will 3 1/8th inch u bolts be ok to run on an 8.25? I know the axle is 3'' was wondering if that 1/8th inch would ruin it.
Old Apr 6, 2015 | 08:22 PM
  #49281
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Originally Posted by ITTs_Cole
Will 3 1/8th inch u bolts be ok to run on an 8.25? I know the axle is 3'' was wondering if that 1/8th inch would ruin it.
I highly doubt it but I don't know
Old Apr 6, 2015 | 10:53 PM
  #49282
Muddz's Avatar
Seasoned Member

Joined: Nov 2013
Posts: 290
Likes: 1
From: USA
Year: 1995
Model: Grand Cherokee (ZJ)
Engine: 4.0L
Default Front end bushings & sway bar links

I purchased the Moog's. went on really smooth. The thermoplastic is part rubber.

Last edited by Muddz; Apr 18, 2015 at 09:22 AM.
Old Apr 7, 2015 | 05:39 AM
  #49283
jdjonesdr's Avatar
Seasoned Member
10 Year Member
Liked

Joined: Oct 2012
Posts: 328
Likes: 5
From: Dominican Republic
Year: 1990
Model: Cherokee
Engine: inline 6
Default

Originally Posted by cruiser54
No. It's done because what they did in the manufacturing of the distributors was wrong!!! It caused so many issues that they put out a TSB on it. paying the dealers to index the distributors correctly.

.Distributor indexing explained

Tip 13 gets the thing right. Use Tip 12 first to guarantee you're on #1 TDC.
Makes sense to me. Easy enough to do as well.

But to clarify a little more... I had a guy tell me the other day the truck would still run if the Dist. gear was off by one tooth. (we were talking about the upcoming dist. switch from old to new.

My response was I didn't think it would still run, because of how far off one gear tooth would place the timing, hence the original question.

And, for what it's worth, the truck has always "felt" like the timing wasn't quite right. I'm betting it will after I do the switch.
Old Apr 7, 2015 | 10:41 AM
  #49284
handrick's Avatar
Newbie

Joined: Apr 2015
Posts: 1
Likes: 0
Model: Cherokee
Default 1977 Cherokee sport

Can anyone help me with options to replace the front bench seat in a 1977 Cherokee. Either something available to purchase that could be installed with little or no modifications or some place that could make something custom. I'm in Delaware.

Last edited by handrick; Apr 8, 2015 at 02:11 PM. Reason: error in text
Old Apr 7, 2015 | 02:47 PM
  #49285
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by jdjonesdr
Makes sense to me. Easy enough to do as well.

But to clarify a little more... I had a guy tell me the other day the truck would still run if the Dist. gear was off by one tooth. (we were talking about the upcoming dist. switch from old to new.

My response was I didn't think it would still run, because of how far off one gear tooth would place the timing, hence the original question.

And, for what it's worth, the truck has always "felt" like the timing wasn't quite right. I'm betting it will after I do the switch.
He's thinking old school I bet. Just do it right.
Old Apr 7, 2015 | 06:13 PM
  #49286
CCTX98XJ's Avatar
Junior Member

Joined: Dec 2014
Posts: 30
Likes: 0
From: texas
Year: 1998
Model: Cherokee
Engine: 4.0 L (242 cu in) PowerTech I6 (gasoline
Default

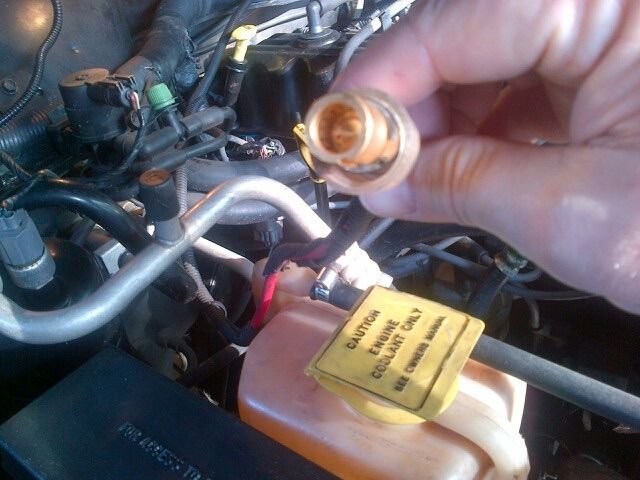

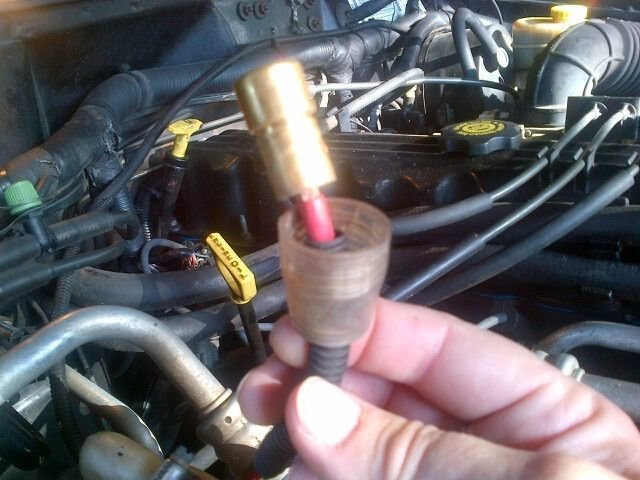

can anyone please help by explaining what this is, what it does and where it is supposed to be fastened to? thanks




Old Apr 7, 2015 | 06:17 PM
  #49287
a_shirey's Avatar
CF Veteran

Joined: Jan 2012
Posts: 8,272
Likes: 1
From: Baltimore, MD
Year: 1999
Model: Cherokee
Engine: 4.0 I6 HO
Default

Originally Posted by CCTX98XJ
can anyone please help by explaining what this is, what it does and where it is supposed to be fastened to? thanks





Judging by the size, location, and where it is heading: It is a power wire for an amplifier. Right where the inline fuse should be.
Old Apr 7, 2015 | 06:20 PM
  #49288
CCTX98XJ's Avatar
Junior Member

Joined: Dec 2014
Posts: 30
Likes: 0
From: texas
Year: 1998
Model: Cherokee
Engine: 4.0 L (242 cu in) PowerTech I6 (gasoline
Default

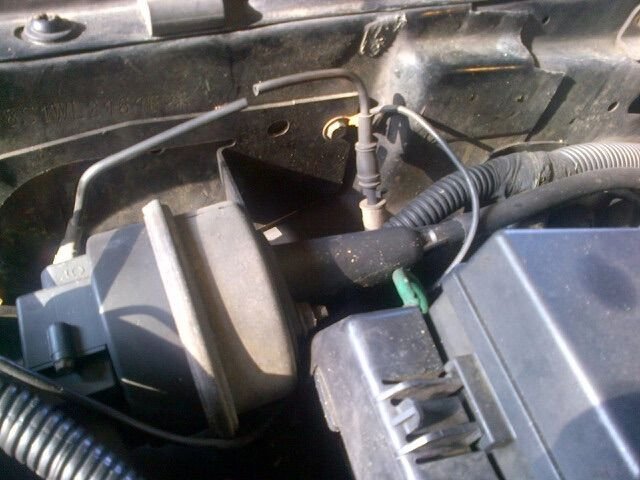

and what is going on here??







Old Apr 7, 2015 | 06:25 PM
  #49289
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by CCTX98XJ
and what is going on here??
vac line for cruise control and vac ball. Needs to be connected
Old Apr 7, 2015 | 06:31 PM
  #49290
CCTX98XJ's Avatar
Junior Member

Joined: Dec 2014
Posts: 30
Likes: 0
From: texas
Year: 1998
Model: Cherokee
Engine: 4.0 L (242 cu in) PowerTech I6 (gasoline
Default

thanks. haven't had this one long and just noticed these today. cruise was setting , now is not. so, thanks for the help.
