You're off to a good start in my opinion. Get the Felpro blue pricey gasket. Use no sealer.

While the valve cover is off:

http://cruiser54.com/?p=131

Oil Filter Adapter O-Ring Sizes


87-90 Renix Model O-rings

0.799 x 0.103 AS568 size -117
1.296 x 0.139 AS568 size -219
2.484 x 0.139 AS568 size –230

Dealer Part Numbers for Renix. Sold individually:

33002970, 33002971, 33002972

Renix kit from Crown Automotive-33002970K

91-01 HO Model Orings

0.676 x 0.070 AS568 size -017
0.859 x 0.139 AS568 size -212
2.484 x 0.139 AS568 size -230



^^Rule #1 - Always listen to Cruiser!!! Bad things happen when you don't! No seriously.

Definitely definitely definitely spring for the Fel-pro permadry when you can. I've had my valve cover on and off probably half a dozen times since I put the Fel-pro on a few years back. Thing still seals without leaking a drop from the cover! Pretty cheap investment to keep the oil IN the engine!



Haha! Thanks Basslicks, will do!



Thanks a bunch cruiser, I will document my findings and share for sure. Much appreciated!



Start the engine and let it idle / shaking.

Put on a heavy rubber glove

Pull off one sparkplug wire at a time. If the shaking gets worse - put it back on and pull the next one. If the shaking stays the same with one of the sparkplug wires off - that is the cylinder causing the problem.

PHM
------------



Air dam, eh?

I re-ask because this particular item is not in any possible air flow pattern. It is above and behind the large plastic front bumper. No air flow could ever strike it.

Unless it directs the cooling fan's air flow rearward possibly?

PHM
---------------

"Quoted reply" - Air dam. It is supposed to aid in aerodynamics. But 'aerodynamics' and 'jeep' do not fit well together.


Originally Posted by Poodle Head Mikey
1998 GC 4.0 w/auto

Behind and above the front bumper is a plastic 'air dam' looking thing.

Why is it there?
What does it do?
What will happen if I leave it off?

PHM
-------



This could also be done with the fuel injectors in the event you don't have a rubber glove or are chicken about being shocked.

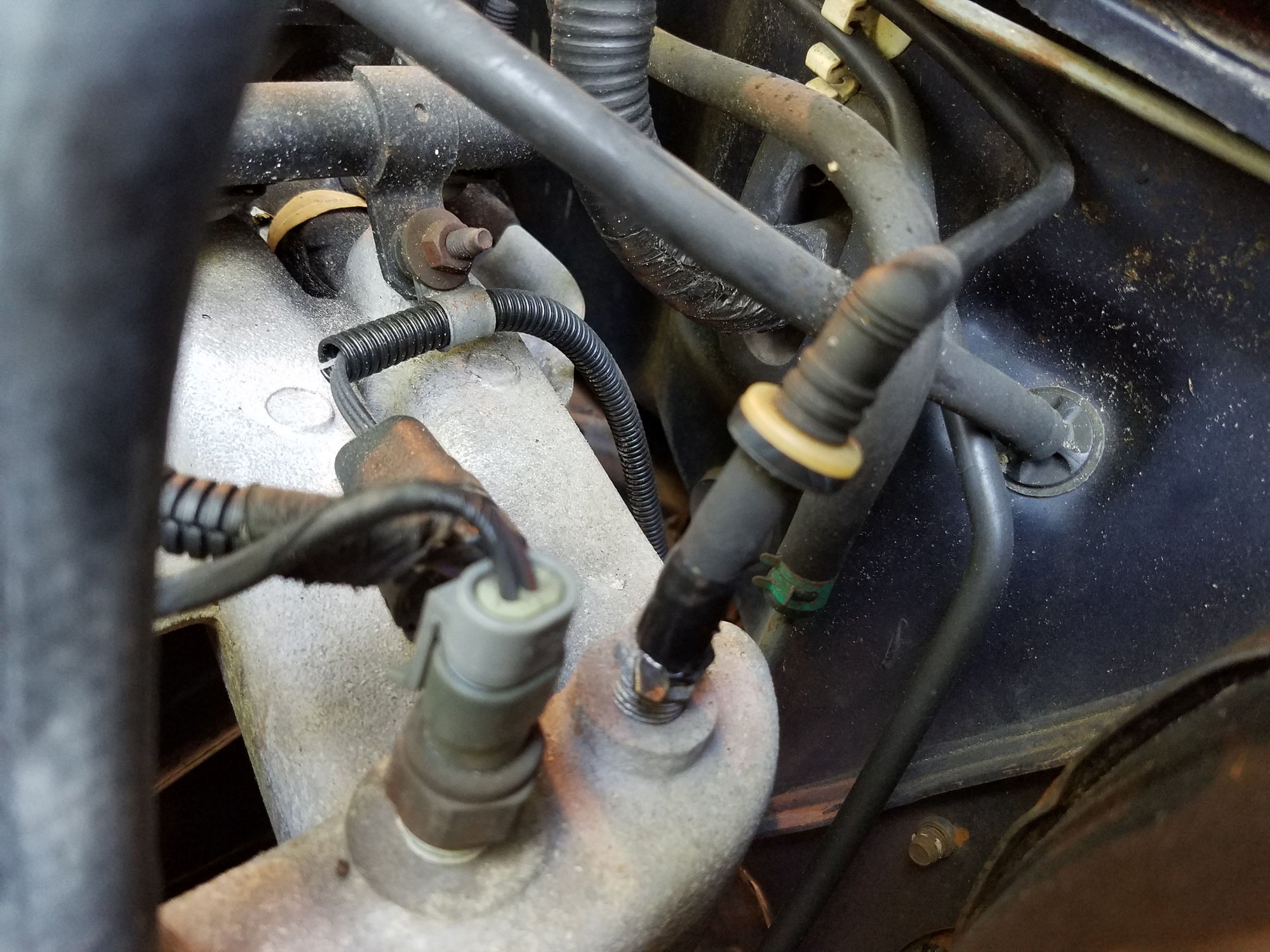

96 XJ 4.0. Rubbery fitting about 2 inches long, attaches at one end to a nipple on the manifold and then to a vacuum hose that runs along the firewall (held together with tape in photo). I'd like to order one and replace it but can't find what it's called; it's not one of the ones that goes to the crankcase vent elbows.



Intake Manifold Vacuum Fitting? <g>

If this isn't going to be a Restoration - with all original parts - you can just use a vacuum hose with the right ID I think. Over above the RF tire is a tee to the cruise-control and from there mine goes to a vacuum reservoir under the battery shelf.

PHM
--------



Originally Posted by Cect_cajc_jdct View Post
I'm new here so forgive me if I'm doing this wrong. I recently bought a 94 jeep cherokee laredo runs and drives fine but few things wrong with it.. as the jeep sits in park it doesn't shake bad at all but as soon as I put it in drive it's really shakey as I accelerate it stops but as soon as I take my foot off the gas it shakes. In neutral it also doesn't shake as bad. Few days ago I looked it up on Google and this website came across, I read a few different things from spark plugs to motor mounts. It has 240 k and it was previously owned by a young teenager who probably didn't keep up with all its maintenance. Any ideas of whats going on with it ?

****EDITED. TODAY I'VE NOTICE IT'S FOR SURE LEAKING COOLANT AND DIES OCCASIONALLY. ANY IDEAS ON THAT ? Sorry 4 all the caps



That's a check valve. The line goes to the HVAC system, cruise control, and a little reservoir in the bumper. It ensures that cruise and the blend doors have enough vacuum to operate when you floor the accelerator.

Yup I'd start with the engine/transmission mounts. Get under there with a jack and see how easy it is to move the transmission.



It also dies occasionally and for sure it's the coolant. The only thing missing that I know of is the cover for the fan.



Question for those that know 4.0 motors. If coolant has leaked into motor through cracked head, could this cause both banks of oxygen sensors to throw CEL codes, even when replaced with new ones?



just a couple of questions.first,despite the handle i own 2 wj's one with 130k and the other around 163k.both with the 4.0 atm(any other?)and selectrac.question 1,in user experience is amsoil as good as they say and are their products worth the price?second has to deal with rock auto.have used them a couple of times mostly small stuff and been happy with the pricing and delivery so far.the question is with as many choices that you are given are there any product lines to steer away from?any input much appreciated.



Hey; Live & Learn - Thanks!

PHM
--------
