the rotational play is to be expected, what you're looking for is lateral movement.
from the video the joint seems fine, you could always try to disconnect the driveshaft and play around with the output yoke. same thing on your transfer case (remove the driveshaft and try to wiggle the output shaft and look for any left-right-top-bottom play)
when's the last time you greased your slip yoke? i wasn't aware you had to grease it and it was dry when I first greased it. doesn't hurt to check while you have the driveshaft out.
do you have any lift? if yes, have a t-case drop? SYE? having a lift without any of those could be the source of your problem, like it was said above, because of the driveline angle.
it could be like me and the pinion bearing is on its way out. do you have a rumble type of sound when decelerating too? at highway speed I have an intermittent humming/vibration, it goes away between 40-50mph and it comes back when I let go of the throttle at around 35-40. i've determined it's my pinion bearing even if there is no play at the yoke.
hope it helps
from the video the joint seems fine, you could always try to disconnect the driveshaft and play around with the output yoke. same thing on your transfer case (remove the driveshaft and try to wiggle the output shaft and look for any left-right-top-bottom play)
when's the last time you greased your slip yoke? i wasn't aware you had to grease it and it was dry when I first greased it. doesn't hurt to check while you have the driveshaft out.
do you have any lift? if yes, have a t-case drop? SYE? having a lift without any of those could be the source of your problem, like it was said above, because of the driveline angle.
it could be like me and the pinion bearing is on its way out. do you have a rumble type of sound when decelerating too? at highway speed I have an intermittent humming/vibration, it goes away between 40-50mph and it comes back when I let go of the throttle at around 35-40. i've determined it's my pinion bearing even if there is no play at the yoke.
hope it helps
Herp Derp Jerp
Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Getting some very minimals wobble when im driving, doesnt matter the speed. The issue is when I start to brake the wobble gets worse the more i brake until a point nad then it just stops when i start to brake harder. Was thinking it was my rotors since I really feel it only while braking. Any ideas?
Thanks in advance
Thanks in advance
CF Veteran
Joined: Jul 2013
Posts: 1,154
Likes: 40
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Just rotated my tires. Ill see how it drives now. Everything seemed to be in order. even got it aligned a few weeks ago and was hoping that wouldve solved the issue
CF Veteran
Joined: Oct 2013
Posts: 1,589
Likes: 2
From: Denver
Year: 99
Model: Cherokee
Engine: 4.0
Replaced the driver side wheel cylinder, parking brake isn't dragging and everything seems proper but the BRAKE light is illuminated? What gives?
edit: Reefed on the brake pedal and it clicked and reset the system and the light went off. Thanks google
edit: Reefed on the brake pedal and it clicked and reset the system and the light went off. Thanks google
Last edited by kgm; May 22, 2016 at 06:50 PM.
No, I don't lick fish.
Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Joined: Aug 2015
Posts: 1,226
Likes: 11
From: Laurium, MI
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L
Mine did that a few times, check your reservoir and wheel cylinders for leaks. mine reset 4-5 times and then finally stayed on: leaking drivers side wheel cylinder drained the reservoir over the course of a week. Replaced drum system with a disc system now no problems of that sort! Ha!
Member
Joined: Feb 2016
Posts: 135
Likes: 0
From: Colorado
Year: 2001
Model: Cherokee
Engine: 4.0 HO
If it works, I might have something I can sell.
Beach Bum
Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0

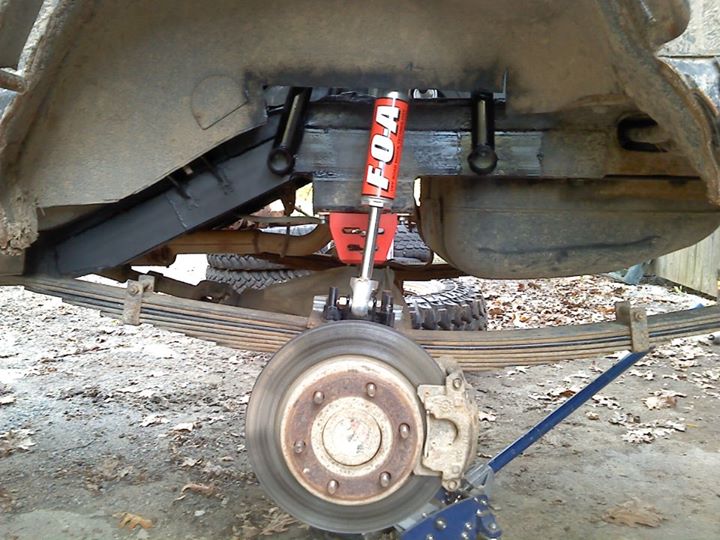

One reason is when moving shock eye from way below the axle to center of axle tube or on top of leaf springs, there is no room for shock body and extended shaft.
Junior Member
Joined: Aug 2013
Posts: 52
Likes: 0
Model: Cherokee
EV code
How long does it take, i.e how many miles, to either clear the EV code or have the engine light come on to see what the problem is with the EV system. I drove my 2001 XJ for over 300 miles, but nothing happened. What is the "cycle" for the code to clear?
Before I had a bad front catalytic converter code, but the cat was changed out and the code cleared in a hurry.
Before I had a bad front catalytic converter code, but the cat was changed out and the code cleared in a hurry.
CF Veteran
Joined: Aug 2015
Posts: 1,226
Likes: 11
From: Laurium, MI
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L
How long does it take, i.e how many miles, to either clear the EV code or have the engine light come on to see what the problem is with the EV system. I drove my 2001 XJ for over 300 miles, but nothing happened. What is the "cycle" for the code to clear?
Before I had a bad front catalytic converter code, but the cat was changed out and the code cleared in a hurry.
Before I had a bad front catalytic converter code, but the cat was changed out and the code cleared in a hurry.
Senior Member
Joined: Jul 2014
Posts: 931
Likes: 0
From: Glen Ellyn, IL
Year: 1997
Model: Cherokee
Engine: 4.0 Inline 6
I have a loud knocking coming from the oil pan right that started yesterday afternoon. Loud knocking noise on startup, but goes away after a minute of driving or so. Went wheeling on Sunday and the radiator got caked with mud and it was starting to overheat during the 5 minute drive to get it cleared, got around 245-250 before I stopped. Is this a rod knock? If so is there anything I can do besides swap engines?
1997 XJ, 4.0, AW4, 201,200 miles. No previous engine problems.
1997 XJ, 4.0, AW4, 201,200 miles. No previous engine problems.
Junior Member
Joined: Aug 2013
Posts: 52
Likes: 0
Model: Cherokee
Hi rcguymike:
Thank you for the feed back. I can reset the code but it will come back unless the problem is eliminated. Right now the EV code is flashing, no engine light on and I drove the car over 300 miles.
Thank you for the feed back. I can reset the code but it will come back unless the problem is eliminated. Right now the EV code is flashing, no engine light on and I drove the car over 300 miles.
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I have a loud knocking coming from the oil pan right that started yesterday afternoon. Loud knocking noise on startup, but goes away after a minute of driving or so. Went wheeling on Sunday and the radiator got caked with mud and it was starting to overheat during the 5 minute drive to get it cleared, got around 245-250 before I stopped. Is this a rod knock? If so is there anything I can do besides swap engines?
1997 XJ, 4.0, AW4, 201,200 miles. No previous engine problems.
1997 XJ, 4.0, AW4, 201,200 miles. No previous engine problems.
What brand of oil filter are you using?
If/when it does it again on start-up, turn it off and wait 10 seconds. Restart it. Noise gone?
Senior Member
Joined: Jul 2014
Posts: 931
Likes: 0
From: Glen Ellyn, IL
Year: 1997
Model: Cherokee
Engine: 4.0 Inline 6
I use Mopar filters. I just started it up and now it has an almost rattling sound when I rev it. It warmed up and the rattling went away, but no knock this time
