Old May 9, 2016 | 08:34 PM
  #54061
SatiricalHen's Avatar
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

looks more like a meme to me, and it's not censored so I'd be careful if I were you.
Old May 10, 2016 | 08:23 AM
  #54062
Basslicks's Avatar
No, I don't lick fish.
Premium Member
15 Year Member
Liked

Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by Jaster343
The fuel pump is less than a year old (Bosch), I hope that's not the cause. I'm going to throw a gauge on when I get a chance. On the way home today the truck threw an O2 sensor code. Over the past month or so I've noticed the jeep either runs mint or feels like it doesn't really want to go to work in the morning. The mood changes between startups. I am hoping that I can replace the faulty sensor and fix that issue, but could the two be related?
Faulty O2 sensors could certainly cause issues. The sin wave that's being fed to the ECU would be all over the place causing large flucuations in fuel/air mix... but it would be more like second to second variance, not day to day.

Originally Posted by SatiricalHen
looks more like a meme to me, and it's not censored so I'd be careful if I were you.
Wha?
Old May 10, 2016 | 08:28 AM
  #54063
SatiricalHen's Avatar
CF Veteran

Joined: Oct 2013
Posts: 5,924
Likes: 203
From: Greenville, SC
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by Basslicks
Faulty O2 sensors could certainly cause issues. The sin wave that's being fed to the ECU would be all over the place causing large flucuations in fuel/air mix... but it would be more like second to second variance, not day to day. Wha?
it's been deleted now
Old May 10, 2016 | 12:47 PM
  #54064
rcguymike's Avatar
CF Veteran

Joined: Aug 2015
Posts: 1,226
Likes: 11
From: Laurium, MI
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L
Default Maybe I can save someone hours upon hours of research...:-D

Originally Posted by rcguymike
So I'm attempting to get everything together for a KJ disk brake swap, and figured I might as well do everything with new parts. The current problem I'm facing is where to get the backing plates without breaking the bank...I found one side for less than ~$150 but the other side I'm finding is ~$300+!!! Anyone know of a better place to get them?

Here's my list, am I missing anything?
Backing plates(all parking hardware?)
52128414AB Right (replaced by 52128414AC)
52128415AB Left (replaced by 52128415AC)
Backing Plate Studs x8
Rotors
Calipers(with bolts)
Pads
Wheel Studs x10
Parking brake cables
Loop the KJ one
Brake lines (ZJ?)(Caliper to hard line?)
H380528 Brake hoses?
Axle seals
8835S Timken rear axle seals
Axle Bearings?
Diff fluid
Well by the time I get everything priced out I'll be over $400... No suggestions for Black Magic Brakes!?
http://shop.blackmagicbrakes.com/Dan...Conversion.htm
I think I'll get his kit and maybe do it next weekend...
I'll still need a few wheel studs(have some from my old front hubs), axle seals and I think e-brake cables, but I think I'll try to mod the stock ones to work(not like they work now anyways...lol).
Old May 10, 2016 | 02:42 PM
  #54065
sammiegirl9's Avatar
Newbie

Joined: May 2016
Posts: 6
Likes: 0
Model: Cherokee
Default None existent fender brackets appearently

I'm having a huge issue finding new fender brackets. I have a 98 cherokee classic and I have looked everywhere! Mine are completely rusted from sitting for years before I found and bought the jeep so replacement is a must. But since I'm having so much trouble finding them I'm starting to wonder if I should just install Bush wackers. Suggestions/thoughts on this??
Old May 10, 2016 | 02:47 PM
  #54066
Mr. Pink's Avatar
CF Veteran

Joined: Oct 2012
Posts: 1,127
Likes: 0
From: Capac, Mi
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by sammiegirl9
I'm having a huge issue finding new fender brackets. I have a 98 cherokee classic and I have looked everywhere! Mine are completely rusted from sitting for years before I found and bought the jeep so replacement is a must. But since I'm having so much trouble finding them I'm starting to wonder if I should just install Bush wackers. Suggestions/thoughts on this??
they only sell the front part of the flare brackets still, the rear part of the front flare brackets has been discontinued.
Old May 10, 2016 | 02:55 PM
  #54067
sammiegirl9's Avatar
Newbie

Joined: May 2016
Posts: 6
Likes: 0
Model: Cherokee
Default

Originally Posted by Mr. Pink
they only sell the front part of the flare brackets still, the rear part of the front flare brackets has been discontinued.
Does that make a huge difference? Are they an absolute must have for a proper fix?
Old May 10, 2016 | 03:02 PM
  #54068
Basslicks's Avatar
No, I don't lick fish.
Premium Member
15 Year Member
Liked

Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by sammiegirl9
Does that make a huge difference? Are they an absolute must have for a proper fix?
Not sure exactly which part you're referring to as a bracket on a '98... but the '92 has a brace that goes from the inner fender to the fender skin to keep the skins from "flopping around" AND a backing plate with studs welded to it that sandwhiches the fender flare to the fender skin. You can achieve the same purpose using fender washers and screws.

I believe once the bushwackers are installed, the brace from the inner fender to the skin is deleted as is the backing plates. The bushwackers generally have enough rigidity to hold the fender skin in place.
Old May 10, 2016 | 03:07 PM
  #54069
sammiegirl9's Avatar
Newbie

Joined: May 2016
Posts: 6
Likes: 0
Model: Cherokee
Default

Originally Posted by Basslicks
Not sure exactly which part you're referring to as a bracket on a '98... but the '92 has a brace that goes from the inner fender to the fender skin to keep the skins from "flopping around" AND a backing plate with studs welded to it that sandwhiches the fender flare to the fender skin. You can achieve the same purpose using fender washers and screws.

I believe once the bushwackers are installed, the brace from the inner fender to the skin is deleted as is the backing plates. The bushwackers generally have enough rigidity to hold the fender skin in place.
I'm just talking about the metal bar on the outter side that the fender flare itself snaps to.
Old May 10, 2016 | 03:10 PM
  #54070
sammiegirl9's Avatar
Newbie

Joined: May 2016
Posts: 6
Likes: 0
Model: Cherokee
Default


Originally Posted by Basslicks
Not sure exactly which part you're referring to as a bracket on a '98... but the '92 has a brace that goes from the inner fender to the fender skin to keep the skins from "flopping around" AND a backing plate with studs welded to it that sandwhiches the fender flare to the fender skin. You can achieve the same purpose using fender washers and screws.

I believe once the bushwackers are installed, the brace from the inner fender to the skin is deleted as is the backing plates. The bushwackers generally have enough rigidity to hold the fender skin in place.

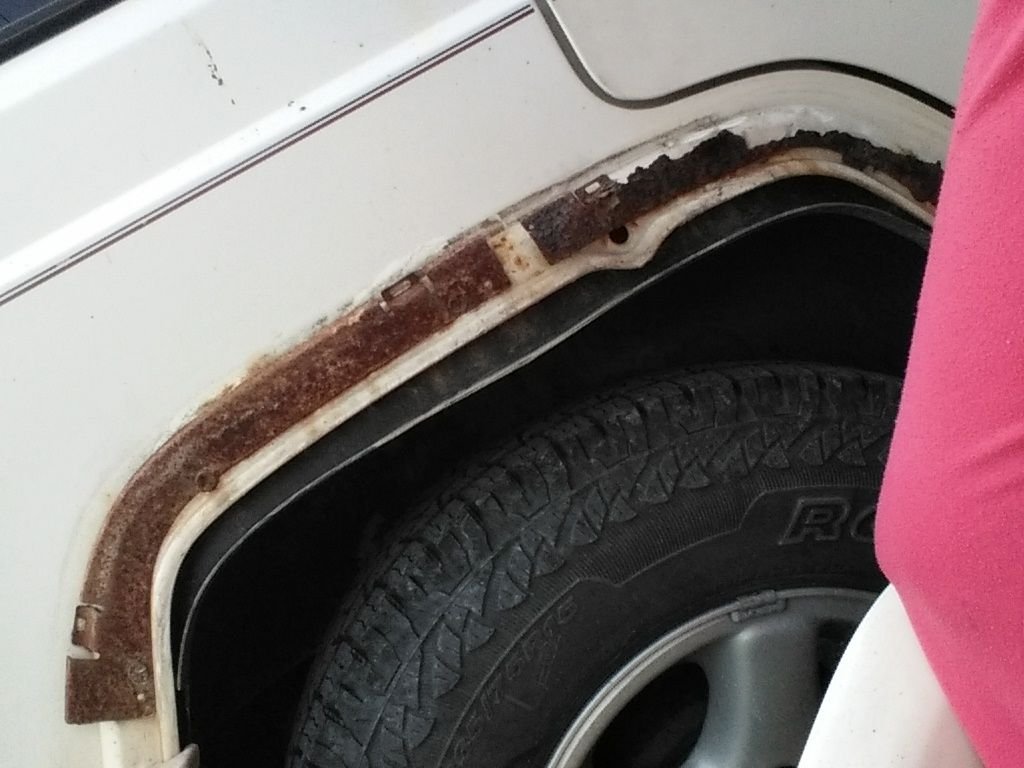

These pieces. Front and back all the way around.
Old May 10, 2016 | 03:11 PM
  #54071
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by sammiegirl9
I'm just talking about the metal bar on the outter side that the fender flare itself snaps to.
Discontinued - try your luck on a partout, or post a wanted ad. Some folks discard them when installing aftermarket flares. I was lucky enough to get a set for all four wheels off of a beaten-but-pristine '97 for my crusty '99
Old May 10, 2016 | 03:13 PM
  #54072
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by sammiegirl9
These pieces. Front and back all the way around.
For stock flares, you need them. Finding them may take a stroke of luck, though. With aftermarket flares, I assume they're unneeded
Old May 10, 2016 | 03:15 PM
  #54073
sammiegirl9's Avatar
Newbie

Joined: May 2016
Posts: 6
Likes: 0
Model: Cherokee
Default

Originally Posted by NewKindOfClown
For stock flares, you need them. Finding them may take a stroke of luck, though. With aftermarket flares, I assume they're unneeded
I was afraid of that. I didn't really plan on after market parts, I prefer stock but I guess it's an easier direction to go. Thanks very much.
Old May 10, 2016 | 03:25 PM
  #54074
Basslicks's Avatar
No, I don't lick fish.
Premium Member
15 Year Member
Liked

Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by sammiegirl9




These pieces. Front and back all the way around.
Ahh ok... honestly never gave any thought to them being different from the OBS. Hard to find either way.
Old May 10, 2016 | 04:56 PM
  #54075
Cane's Avatar
CF Veteran

Joined: Mar 2012
Posts: 1,024
Likes: 2
From: Quebec
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

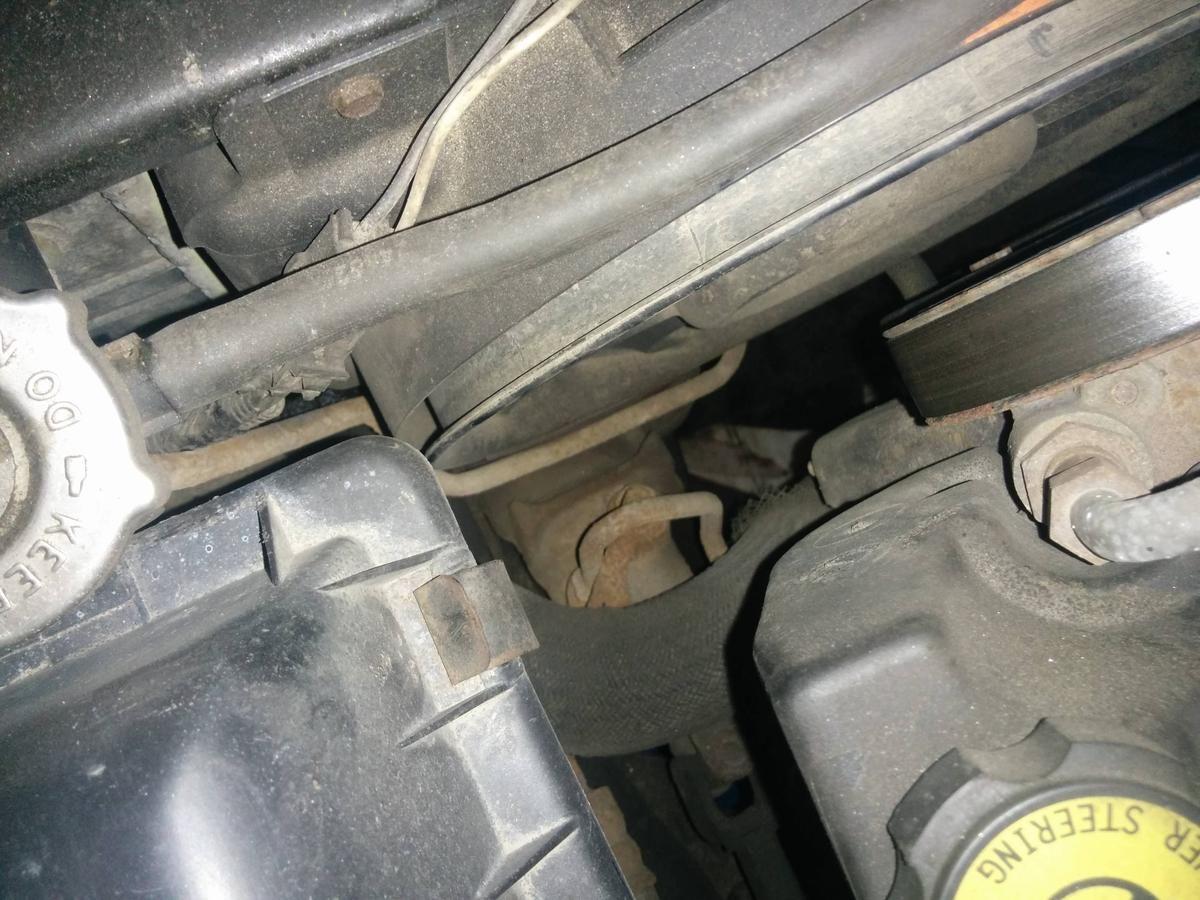

do i need to remove the electric fan in order to access the nut/bolt to adjust my steering box? from under I seem to have enough space to fit a wrench in there but not enough for the allen key. from the top i can't see it.

cheers
