XJ Ask the Question Thread
Moderator of Jeeps
Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6

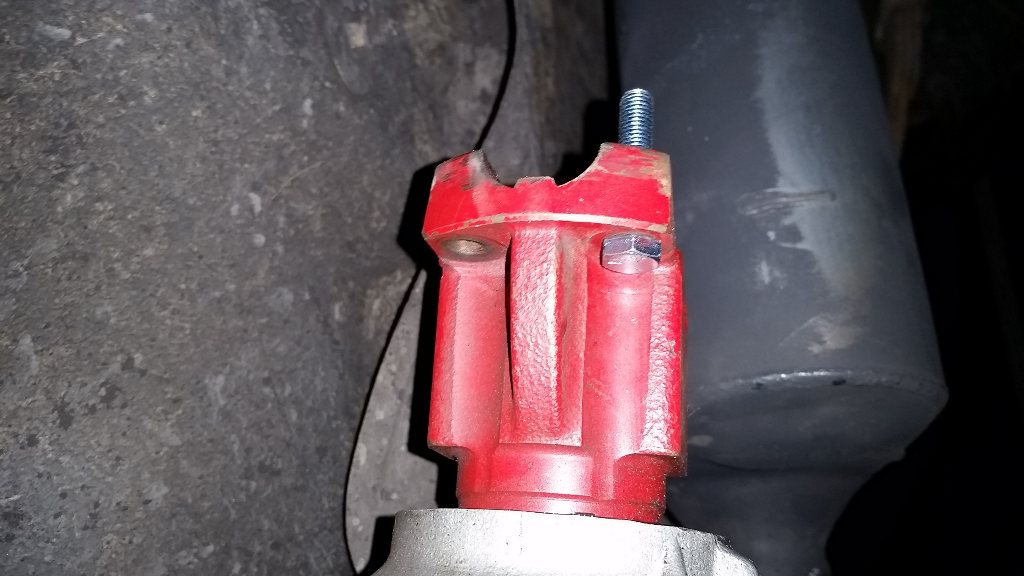

Installed a used SYE. My TC output doesn't have threaded holes, but my CV does.
I'm thinking flange bolts through the TC output, into the CV threads. Is that a problem?
I'm thinking flange bolts through the TC output, into the CV threads. Is that a problem?
Junior Member
Joined: Jan 2015
Posts: 64
Likes: 0
From: Cumberland Plateau
Year: 1997 Sport, 2001 Limited
Model: Cherokee
Engine: 4.0
Ah yes, the lighter and power sockets are indeed irritating. I was not aware the plugs changed! There are metal tabs on the rear of the sockets that press against the back of the switch panel. Depress them with a screwdriver, fingers, pliers, whatever, and the sockets will eventually come out the front of the panel.
You'll need to elaborate a bit on the "two power sockets"... the lighter and original sockets are the same, just on different circuits (one switched and one on the battery)
You'll need to elaborate a bit on the "two power sockets"... the lighter and original sockets are the same, just on different circuits (one switched and one on the battery)
Regardless, still can't seem to figure out how to remove them. It seems like there's some little square holes in the metal body that lock onto some plastic tabs, but I don't see any way to release them?
Moderator of Jeeps
Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Moderator of Jeeps
Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6

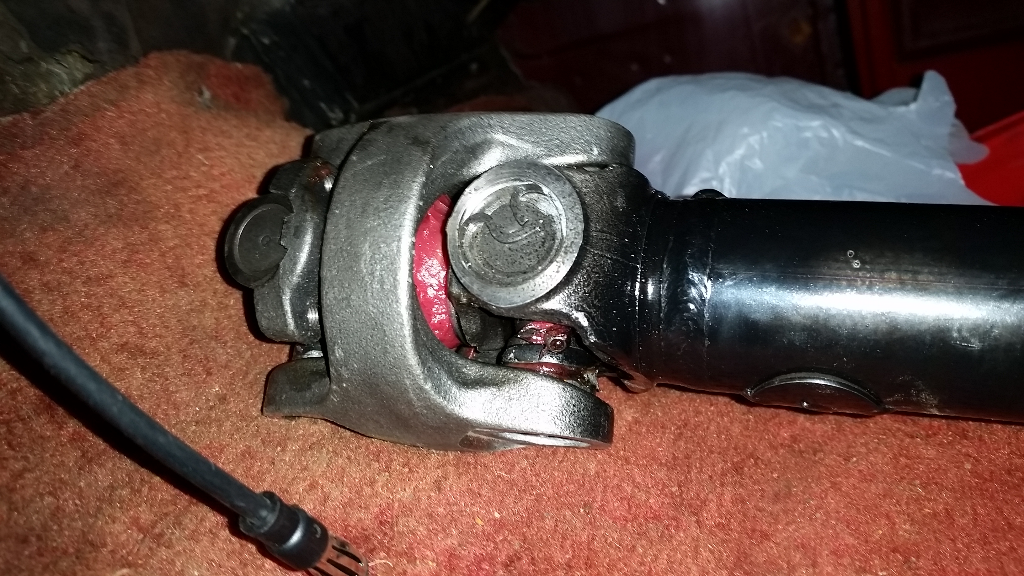

Cool, thanks fellas. Bought it used without hardware, and this is my first time dealing with the driveshaft aspect of an SYE install
Grade 5 bolts, and is there a torque spec?
Grade 5 bolts, and is there a torque spec?
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
I tightenes them down to 20 lb
CF Veteran
Joined: Jan 2015
Posts: 1,381
Likes: 3
From: Southern Maryland
Year: 1991
Model: Cherokee
Engine: 1999 4.0L
The bolts are kind of special, odd shape and size that lets you get them installed and get some wrench on it. The dealer should still be able to get them, part number 6036-415AA, $1 each last time I bought them.
Moderator of Jeeps
Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Cause I didn't have instructions lol, and because I didn't know if the aftermarket DS would have the same pitch as the OEM front. I just spent $2.22 on hardware, and my CV thread is definitely 5/16x24.
Junior Member
Joined: Jan 2015
Posts: 64
Likes: 0
From: Cumberland Plateau
Year: 1997 Sport, 2001 Limited
Model: Cherokee
Engine: 4.0

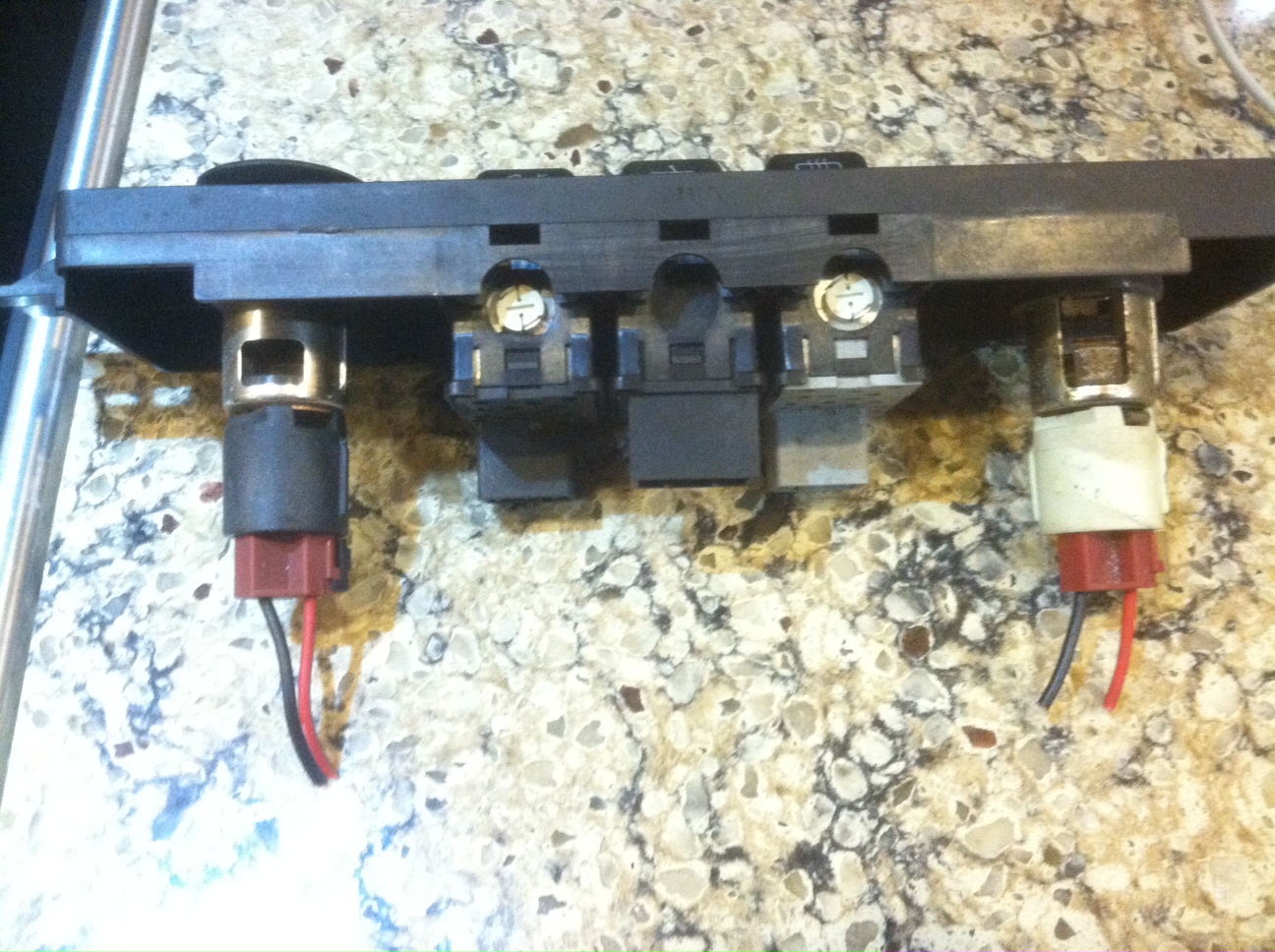

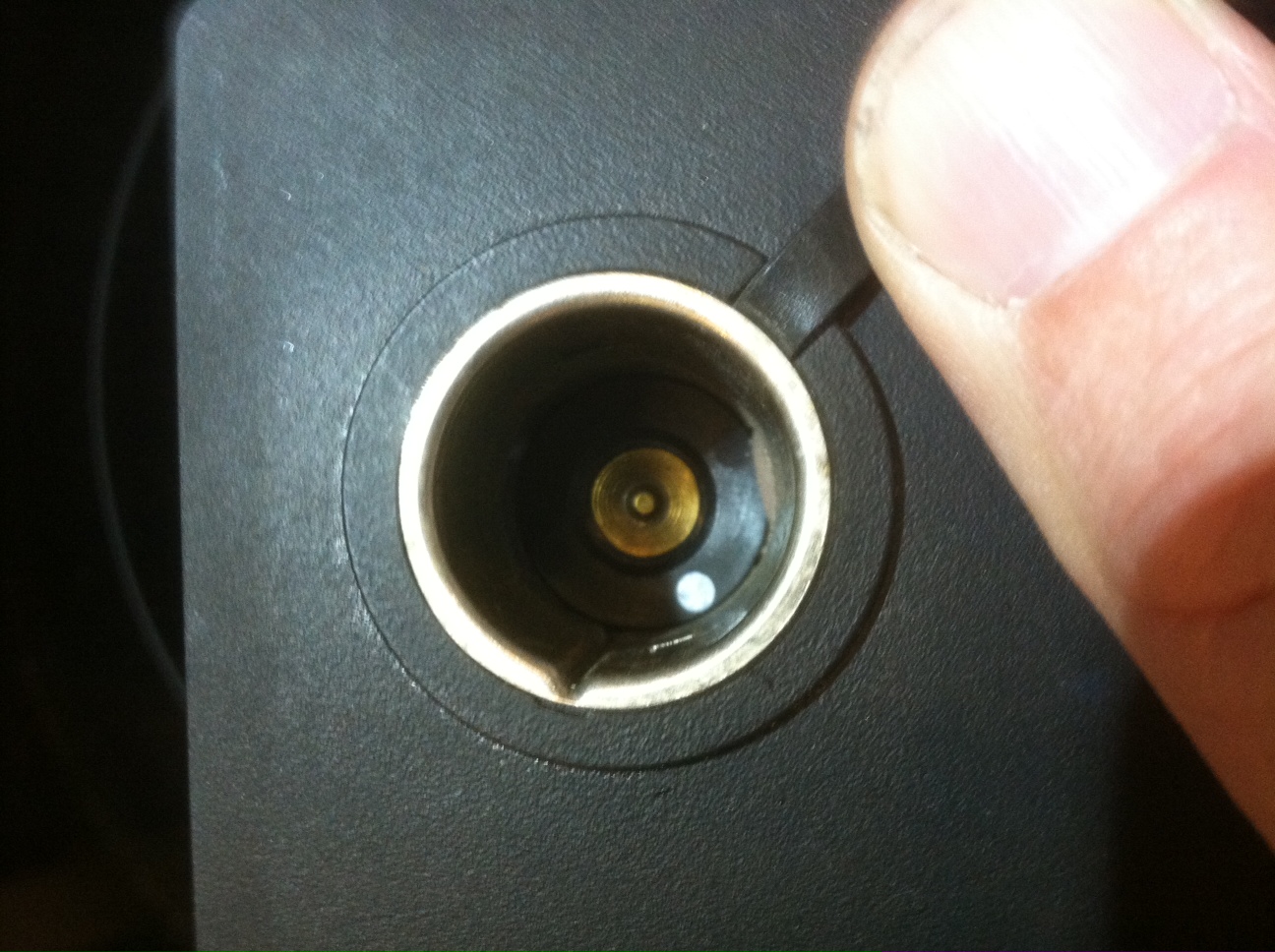

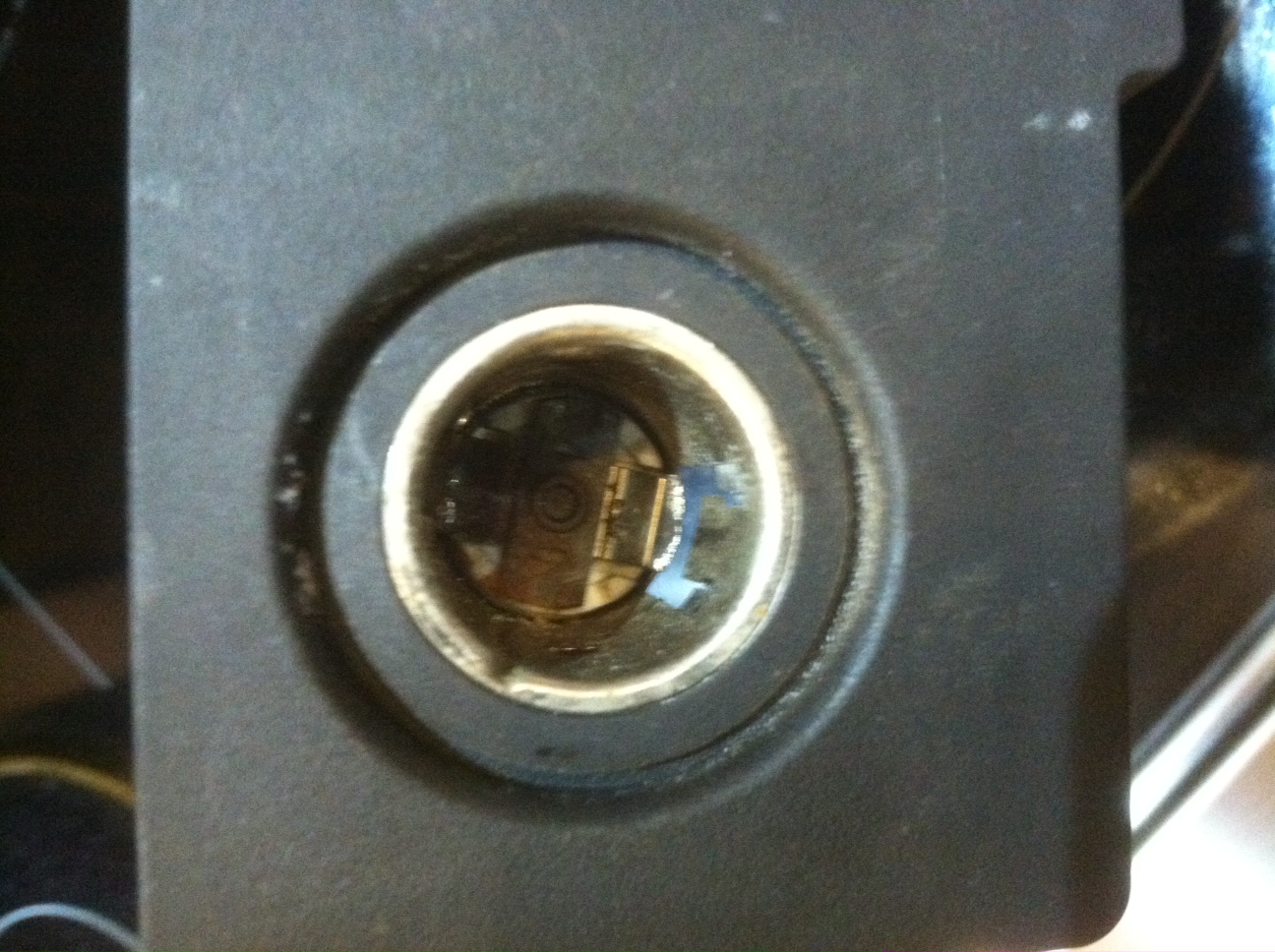

First pic is of the power socket. It is mounted on a raised lip (about 1/8") sticking out from the front of the panel. Second pic is the cigarette lighter, I realize they function the same but they are indeed different. It's mounted in a recessed circle on the panel. Third pic is the whole panel, lighter has the white connector, socket black. You can see how much longer the lighter housing is than the power socket. Regardless, still can't seem to figure out how to remove them. It seems like there's some little square holes in the metal body that lock onto some plastic tabs, but I don't see any way to release them?
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
but I don't know if u can fit a wrench over the head of bolt on the yoke though.
Moderator of Jeeps
Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Herp Derp Jerp
Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
First pic is of the power socket. It is mounted on a raised lip (about 1/8") sticking out from the front of the panel. Second pic is the cigarette lighter, I realize they function the same but they are indeed different. It's mounted in a recessed circle on the panel. Third pic is the whole panel, lighter has the white connector, socket black. You can see how much longer the lighter housing is than the power socket.
- lighter has a bit more vent
- they're mounted in different holes in the panel (can't put that handy "12V DC" on the lighter side)
- the sockets and their holes in the panel are keyed slightly differently
I already tried this swap lol it just doesn't work.
Yes
uhhhh no...
CF Veteran
Joined: May 2011
Posts: 6,098
Likes: 250
From: DE
Year: 1988
Model: Cherokee
Engine: I6 4.0
Is the transfer case the same as a transmission? Meaning that if you haven't changed the fluid frequently on a high mileage tranny then you shouldn't change it at all? Just a thought since I have to fill my tcase up tomorrow anyway and it uses the same oil.
