Old Oct 26, 2014 | 06:28 PM
  #46321
Jeeptunes's Avatar
Member

Joined: Nov 2011
Posts: 176
Likes: 0
From: pennsylvania
Year: 96
Model: Cherokee
Engine: 4.0
Default

is there a thread for zj junkyard mods like there is for the xj?
Old Oct 26, 2014 | 06:36 PM
  #46322
kevin96xx's Avatar
Member

Joined: Aug 2013
Posts: 145
Likes: 0
From: Long Island
Year: 2000
Model: Cherokee
Engine: 4.0
Default

i currently have re monotube shocks on my 3.5 re lift for my xj but these shocks are very loud and obnoxious in the front, they are 3.5" in travel but im looking at the bilstein 5100 series front shocks that have 5-6" travel. does it matter if these shocks have a larger travel distance than my lift itself?
Old Oct 26, 2014 | 08:21 PM
  #46323
phletch's Avatar
Junior Member

Joined: Oct 2012
Posts: 68
Likes: 1
From: Toledo, Ohio
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

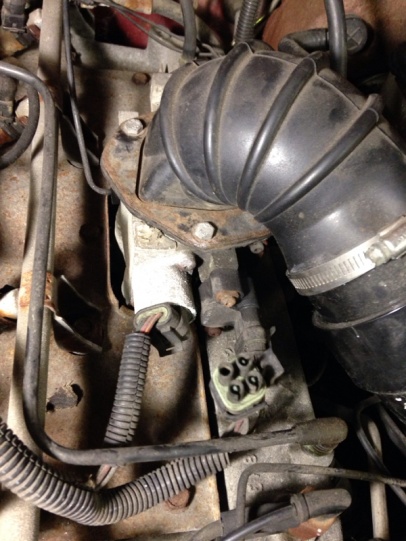

Can anyone tell me where this connector is supposed to go? 88 Comanche 4.0


XJ Ask the Question Thread-image-13971133.jpg
Old Oct 26, 2014 | 08:23 PM
  #46324
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by phletch
Can anyone tell me where this connector is supposed to go? 88 Comanche 4.0


Attachment 256872
To another connector that goes to the Transmission Control Unit on an 88 with auto trans.
Old Oct 26, 2014 | 09:14 PM
  #46325
phletch's Avatar
Junior Member

Joined: Oct 2012
Posts: 68
Likes: 1
From: Toledo, Ohio
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by cruiser54
To another connector that goes to the Transmission Control Unit on an 88 with auto trans.
Awesome. Thanks cruiser.
Old Oct 26, 2014 | 09:49 PM
  #46326
Dado3's Avatar
Newbie

Joined: Dec 2013
Posts: 3
Likes: 0
Model: Cherokee
Default 99 ongoing cold problem

99 4.0 185,000 miles. This problem started last November. Either really hard cold start followed by stalling and sometimes backfiring,because I'm feathering throttle to keep it going. Or starts up fine then stumbles, stutters, sometimes stalls. Engine light comes on momentarily but never stays on. No codes thrown.
By the time I get about 2 miles this all stops and runs fine. I drove 1600 miles this summer on a vacation with 5 people in jeep, no problems. I only have dummy gages so can't tell what temp. is when it starts running fine.
Now that temperatures are getting colder here in Ohio problem is rearing it's ugly head again.
I have checked grounds, replaced cps,cleaned tps,replaced battery and had alternator checked.
Several years ago replaced ECM. Thought original went bad but was a short in wiring harness. I also checked Fuel pressure at the rail, which was within specs and cut out cat because suspected it was bad. Any help would be appreciated
Old Oct 26, 2014 | 10:20 PM
  #46327
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by phletch
Awesome. Thanks cruiser.
So, it's a manual trans?
Old Oct 26, 2014 | 10:54 PM
  #46328
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by Dado3
99 4.0 185,000 miles. This problem started last November. Either really hard cold start followed by stalling and sometimes backfiring,because I'm feathering throttle to keep it going. Or starts up fine then stumbles, stutters, sometimes stalls. Engine light comes on momentarily but never stays on. No codes thrown.
By the time I get about 2 miles this all stops and runs fine. I drove 1600 miles this summer on a vacation with 5 people in jeep, no problems. I only have dummy gages so can't tell what temp. is when it starts running fine.
Now that temperatures are getting colder here in Ohio problem is rearing it's ugly head again.
I have checked grounds, replaced cps,cleaned tps,replaced battery and had alternator checked.
Several years ago replaced ECM. Thought original went bad but was a short in wiring harness. I also checked Fuel pressure at the rail, which was within specs and cut out cat because suspected it was bad. Any help would be appreciated
Grab a multimeter and check the ECT and IAT sensors against this chart:

Name:  CoolantandAirTempChart.jpg
Views: 204
Size:  35.8 KB

Also what are you using that won't pull a code? There should be some pending if or some old freeze data.
Old Oct 26, 2014 | 11:30 PM
  #46329
jpluvr4life's Avatar
Junior Member
15 Year Member

Joined: Jun 2009
Posts: 48
Likes: 5
From: Auburn, Ca
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by JerrytheJeep
Hows your alternator? Battery cables? Grounds?
Originally Posted by jpluvr4life
98 inline 6 cyl 4.0 w/ k&n cold air intake. It doesn't fall below 12 when cranking and at idle it it sits between 12-14 and closer to 14 or so when accelerating. Found the paperwork on the fuel pump. It was replaced 11/16/2012, Airtex brand. Also after reading different threads I was going to do the plugs/wires and clean the TBI to start.
Originally Posted by jpluvr4life
Cables look good and grounds were cleaned just prior to the battery replacement. I believe the alternator is original as the previous owner kept crazy mad logs of date, mileage, and MPG at every service done.
Originally Posted by salad
Airtex pump and no codes come up during a scan?

After you get your tune-up done you might wanna rent a fuel pressure testing kit.
Originally Posted by jpluvr4life
Yes, Airtex pump. I should have been more specific about the code thing; I meant there has been no check engine light come on. I don't have a code reader at the moment but have access to one. I will let you know how things go after the tune up. I just don't want to have to drop that tank again!!! And thank you guys for the advice!
Sorry, I accidentally posted this earlier without any quotes.

I replaced my plugs, wires, cap, and rotor. All the plugs looked great. I did mess up the order of the wires by 1 and had to fix that. Then it ran better about a day. Also, I did not drive it more than 30 miles I would say and it looks like I burned almost 1/4 tank. Then the day I decided to stretch it's legs on the road it threw a check engine light before I even left the drive way. P0301. I hope this isn't because of something I did? Also, I see some people saying to test my #1 fuel injector and others saying it's the CPS. Which should I do?
Old Oct 26, 2014 | 11:33 PM
  #46330
jpluvr4life's Avatar
Junior Member
15 Year Member

Joined: Jun 2009
Posts: 48
Likes: 5
From: Auburn, Ca
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by jpluvr4life
Hope I am posting right. Long story.. A few weeks ago I accidentally ran my battery dead; gave it a jump and drove it a week or so then it mysteriously died again. Tried to jump it and it wouldn't hold a charge (also tried slow charge), ended up replacing the battery. Ever since it has been occasionally hard to start at random times (3-5 sec of cranking) and when this happens it idles rough and rich. Now the gas gauge has decided to join in the fun with occasionally reading empty. I originally thought I was having electrical issues but now I am not sure what I should be looking at or even if the two are related. I have replaced the fuel pump almost two years ago now... and if it is going out again, grrrrr. Also, it's coming up on 150k and I haven't given it a tune up in the 2 years I have owned it, but it has always fired up and ran amazing post fuel pump replacement until the battery incident. And (sheesh I keep adding stuff) it is not throwing any codes at all.
OMG I keep messing up this quote stuff up!
Old Oct 27, 2014 | 07:06 AM
  #46331
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Test the fuel system first. There will always be people saying it's the CKP, even if the problem has nothing to do with it.

Also I strongly suggest starting a new thread to keep the issue coherent. Ask the Question is a really poor venue for ongoing troubleshooting
Old Oct 27, 2014 | 12:44 PM
  #46332
jpluvr4life's Avatar
Junior Member
15 Year Member

Joined: Jun 2009
Posts: 48
Likes: 5
From: Auburn, Ca
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by salad
Test the fuel system first. There will always be people saying it's the CKP, even if the problem has nothing to do with it.

Also I strongly suggest starting a new thread to keep the issue coherent. Ask the Question is a really poor venue for ongoing troubleshooting
Okay, thank you! This is my first and only experience on a forum so I appreciate the patience and advice.
Old Oct 27, 2014 | 01:13 PM
  #46333
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by jpluvr4life
Okay, thank you! This is my first and only experience on a forum so I appreciate the patience and advice.
Well you've already experienced how big of a pain in the *** it is with quoting! haha
Old Oct 27, 2014 | 04:09 PM
  #46334
Wolf427's Avatar
Member

Joined: Jul 2014
Posts: 136
Likes: 0
From: Mississauga, Ontario
Year: 1996
Model: Cherokee
Engine: 4.0l I6
Default

I accidentally ripped my exhaust off this weekend on the trails (well I broke part of it, and purposely ripped the rest off). For now I just have a downturn coming right off behind the cat. Anyways, with this new configuration, I noticed a huge loss of power. Is that normal for losing that length of exhaust?

Its only temporary until I can afford to get the exhaust replaced professionally.
Old Oct 27, 2014 | 04:42 PM
  #46335
Tholtsr1's Avatar
Newbie

Joined: Oct 2014
Posts: 6
Likes: 0
Model: Cherokee
Default

I have a question and am not sure where to post it. I have a 1997 cherokee108000 mi and a '98 251000 mi the 98 body is great the 97 came from new york and has cancer real bad is it impossiable to change bodys?
