Originally Posted by JimN
Can anyone offer thoughts on this, please? Just purchased a 99 XJ, base model with 4.0L and 5 speed manual, 4wd and 4 dr. 95K miles. Yesterday, after turning off the engine, the electric fan kept running. I could not get (what I think was) the connector disconnected, so I disconnected the battery while at my friend's. Rconnected battery for the drive home, same thing there - the fan kept running. Pouring rain, so I pulled the garage, turned off, and it stopped this time. Maybe a bad relay? I've searched this site, but with "fan" as a keyword, I'll be on here till next year searching. THanks in advance!
The search function on the site sucks. I've always had much better luck googling stuff. "Jeep Cherokee xj electric fan won't shut off"

Sorry, but I have no info related to your problem.
Old Nov 24, 2014 | 06:17 PM
  #46877
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by Dirt Diver

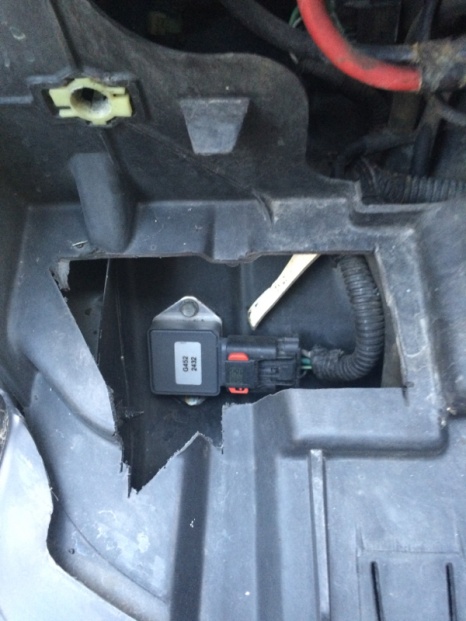

Pulled the right headlight to check something. Sure as heck, been done before.

Attachment 259364

I swapped out the relay. Napa was the closest place...$64 later. Seems to be fine now. I wonder if the new one was damaged when someone backed into that corner last week. That whole area is affected. Took me forever and a jammed finger to work the headlight out.
Thanks for the heads up, Clown.
No worries, bud

Originally Posted by JimN
Can anyone offer thoughts on this, please? Just purchased a 99 XJ, base model with 4.0L and 5 speed manual, 4wd and 4 dr. 95K miles. Yesterday, after turning off the engine, the electric fan kept running. I could not get (what I think was) the connector disconnected, so I disconnected the battery while at my friend's. Rconnected battery for the drive home, same thing there - the fan kept running. Pouring rain, so I pulled the garage, turned off, and it stopped this time. Maybe a bad relay? I've searched this site, but with "fan" as a keyword, I'll be on here till next year searching. THanks in advance!
http://www.lunghd.com/Tech_Articles/..._Diagnosis.htm
Old Nov 24, 2014 | 06:18 PM
  #46878
JerrytheJeep's Avatar
CF Veteran

Joined: Aug 2011
Posts: 1,994
Likes: 8
From: San Jose
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by JimN
Can anyone offer thoughts on this, please? Just purchased a 99 XJ, base model with 4.0L and 5 speed manual, 4wd and 4 dr. 95K miles. Yesterday, after turning off the engine, the electric fan kept running. I could not get (what I think was) the connector disconnected, so I disconnected the battery while at my friend's. Rconnected battery for the drive home, same thing there - the fan kept running. Pouring rain, so I pulled the garage, turned off, and it stopped this time. Maybe a bad relay? I've searched this site, but with "fan" as a keyword, I'll be on here till next year searching. THanks in advance!
Its supposed to do that. If your jeep is overheating, even slightly, the fan will kick on. If you shut it off while its overheating, again, even slightly, the fan will stay on for a minute or two. It's normal, but it does say that it may be time to service your cooling system.
Old Nov 24, 2014 | 07:01 PM
  #46879
JimN's Avatar
Newbie

Joined: Nov 2014
Posts: 28
Likes: 0
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Thanks guys! Yeah, I realize it's designed to run as needed to cool, but yesterday was pouring rain and about 60 degrees at most. It kept running for quite a while non stop. I'm certainly willing to have the cooling system serviced since winter is coming (I'm in GA), and the XJ will be parked outside.

I'll Google and check your link, NewKindofClown. We'll see.

BTW, only upgrade so far has been stereo and speakers. Still don't have driver's side door speaker functioning, but found a YouTube video on repairing broken wires inside the rubber boot between the door and frame. Apparently the issues to the Cherokee have been well documented. Still have an entire exhaust system & brakes to upgrade, plus mild lift and tires. This Jeep is mainly for weekends (drums and dogs, haha), so no rush.
Old Nov 24, 2014 | 07:01 PM
  #46880
JimN's Avatar
Newbie

Joined: Nov 2014
Posts: 28
Likes: 0
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

And again, thank you for your help!!
Old Nov 24, 2014 | 07:11 PM
  #46881
BimmerJeeper's Avatar
Banned

Joined: Oct 2012
Posts: 1,744
Likes: 2
From: USA
Year: 1998
Model: Cherokee
Engine: 4.0L i6
Default

I was looking at my rear bumper and was wondering how you'd remove it.
I see 2 bolts on the bottom side of the bumper, which are easily accessed.
But, there are 2 more bolts up inside the bumper. How do you remove those??
Old Nov 24, 2014 | 07:25 PM
  #46882
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Flexible fingers and probably $500 more in specialized tools.

I also find a particular tool that's very useful in this kind of situation... A wrecking ball
Old Nov 24, 2014 | 07:59 PM
  #46883
1991Jeep_Man's Avatar
CF Veteran

Joined: Oct 2009
Posts: 2,867
Likes: 16
From: Fauquier County, Virginia
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Default

Anyone have a pic of the long rear brake line that runs from the front of the Jeep (prop valve) to the back axle soft line? Im probably just going to go ahead and replace my whole thing rather than splice. Is it hard to remove?
Old Nov 24, 2014 | 08:02 PM
  #46884
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Originally Posted by 1991Jeep_Man
Anyone have a pic of the long rear brake line that runs from the front of the Jeep (prop valve) to the back axle soft line? Im probably just going to go ahead and replace my whole thing rather than splice. Is it hard to remove?
no not that hard to do. If I recall correctly, it's actually two piece.
Old Nov 24, 2014 | 08:18 PM
  #46885
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by XJwonders
no not that hard to do. If I recall correctly, it's actually two piece.
I think you're correct, but that's based on diagrams I've seen while searching. I've never replaced that line on an XJ
Old Nov 24, 2014 | 08:19 PM
  #46886
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

I replaced mine when I first got it. A piece goes from the prop valve down to the area near LCA mount on the uniframe and another piece goes from there to the soft line connection
Old Nov 24, 2014 | 11:19 PM
  #46887
steelybill's Avatar
Senior Member

Joined: Sep 2014
Posts: 580
Likes: 0
From: Saginaw Mi area
Year: 1994
Model: Cherokee
Engine: 4.0
Default

I replaced that line a day after I got my Jeep ! Don't remember the details (CRS) but I spliced a long length in there....it wasn't a big job by the way...

I had just bought a 25 ft roll of 3/16 inch brake line a week before I bought the Jeep ! Old cars with rusty lines.....repairs never really end unless stainless lines are used...
Old Nov 25, 2014 | 10:29 AM
  #46888
1991Jeep_Man's Avatar
CF Veteran

Joined: Oct 2009
Posts: 2,867
Likes: 16
From: Fauquier County, Virginia
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Default

Originally Posted by steelybill
I replaced that line a day after I got my Jeep ! Don't remember the details (CRS) but I spliced a long length in there....it wasn't a big job by the way...

I had just bought a 25 ft roll of 3/16 inch brake line a week before I bought the Jeep ! Old cars with rusty lines.....repairs never really end unless stainless lines are used...
So can the two pieces be dropped as one? I suspect the flare nut is going to be FUBAR like the one at the end. Does the prop valve use a double flare as well? Someone told me to save that fitting because its a different size.

I'll likely be using two pre flared pieces (redoing the one end of course for the special fitting) so that I can easily remove a section if something ever causes it to fail.
Old Nov 25, 2014 | 11:42 AM
  #46889
Matt.rob's Avatar
Newbie

Joined: Nov 2014
Posts: 3
Likes: 0
From: New York
Year: 1999
Model: Cherokee
Engine: 4.0 IL 6
Default Sorry its so long

I recently bought a 99 cherokee sport (4.0L) and have had a number of electrical issues. First off, the high beams did not work, I repleced the sockets and now the headlights work as they should. However I noticed yesterday; whenever I hit the brakes and I have,the headlights OFF the back light on the dash comes on, the radio backlight dims, and the parking lights come on. It only acts maybe half the time I drive it and when the headlightsareon everything worksasitshould. I also noticed thedriversside brake light is out, the filliment looks fine and the sockets clean but I changed the bulb anyways, the tail light works but when I hit the brakes I get nothing.

Thanks, Matt
Old Nov 25, 2014 | 12:09 PM
  #46890
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by Matt.rob
I recently bought a 99 cherokee sport (4.0L) and have had a number of electrical issues. First off, the high beams did not work, I repleced the sockets and now the headlights work as they should. However I noticed yesterday; whenever I hit the brakes and I have,the headlights OFF the back light on the dash comes on, the radio backlight dims, and the parking lights come on. It only acts maybe half the time I drive it and when the headlightsareon everything worksasitshould. I also noticed thedriversside brake light is out, the filliment looks fine and the sockets clean but I changed the bulb anyways, the tail light works but when I hit the brakes I get nothing.

Thanks, Matt
I'd start by cleaning up electrical grounds
