Old Apr 17, 2014 | 10:46 AM
  #41986
rickeyj99xj's Avatar
Newbie

Joined: Apr 2014
Posts: 18
Likes: 0
Year: 86
Model: Cherokee
Engine: 2.8
Default whoops

Okay so I'm in the process of replacing my valve cover gasket on my 99 Cherokee and was just wondering if anyone could tell me the name of the plastic line that comes off the top of the valve cover in the side closest to the firewall it goes over by the throttle body I broke it and need to know the name and if I can get it at like AutoZone.
Old Apr 17, 2014 | 11:06 AM
  #41987
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by rickeyj99xj
Okay so I'm in the process of replacing my valve cover gasket on my 99 Cherokee and was just wondering if anyone could tell me the name of the plastic line that comes off the top of the valve cover in the side closest to the firewall it goes over by the throttle body I broke it and need to know the name and if I can get it at like AutoZone.
Vacuum line from rear CCV elbow to intake manifold. It's also a good idea to pick up a new grommet and CCV elbow too as they clog up, and tend to break into a zillion pieces when you try to remove them for cleaning. AutoZone's astute-as-a-potato parts lookup system will probably call it PCV.
Old Apr 17, 2014 | 12:54 PM
  #41988
Dirt Diver's Avatar
Seasoned Member

Joined: Apr 2013
Posts: 259
Likes: 0
From: Mass
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by rickeyj99xj
Okay so I'm in the process of replacing my valve cover gasket on my 99 Cherokee and was just wondering if anyone could tell me the name of the plastic line that comes off the top of the valve cover in the side closest to the firewall it goes over by the throttle body I broke it and need to know the name and if I can get it at like AutoZone.
I only have a mom-n-pop type auto place here so I had to order from the dealer down the road. They charged $68!!! But you will definitely see the diff in the old and knew. My old one crumbled when I took it off to do the valve cover gasket. The new one was amazingly flexible.

Originally Posted by salad
Vacuum line from rear CCV elbow to intake manifold. It's also a good idea to pick up a new grommet and CCV elbow too as they clog up, and tend to break into a zillion pieces when you try to remove them for cleaning. AutoZone's astute-as-a-potato parts lookup system will probably call it PCV.
X2^^^
Note the difference between the front and rear CCV elbows. I put mine on backwards a few months ago and just realized it yesterday. Gotta swap'm around later today.
Old Apr 17, 2014 | 01:10 PM
  #41989
GreatPumpkin's Avatar
Junior Member

Joined: Feb 2014
Posts: 88
Likes: 1
From: Washington
Year: 1990
Model: Cherokee
Engine: 4.0
Default

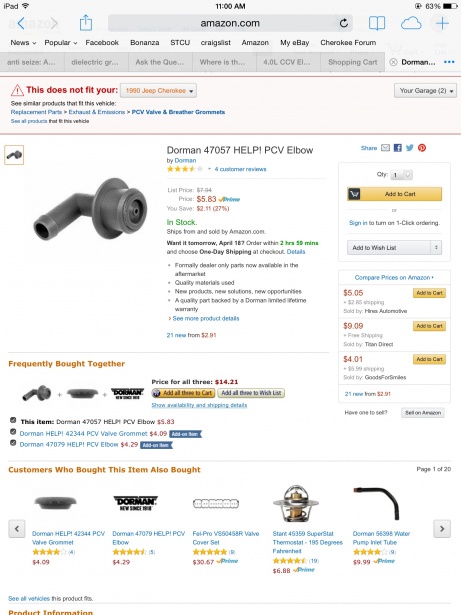

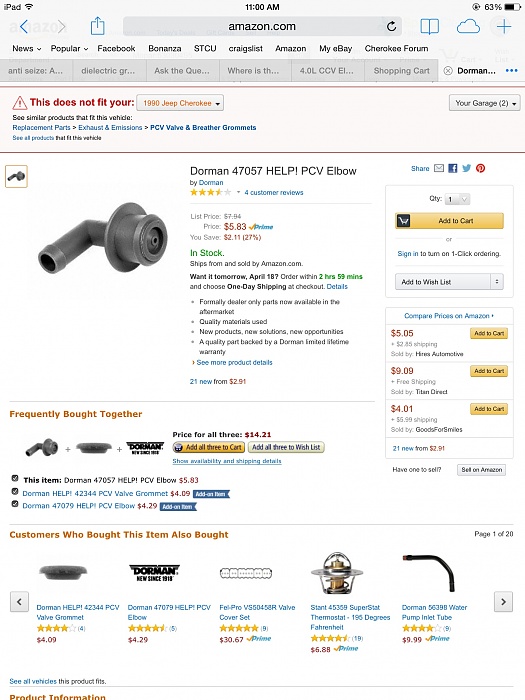

Amazon! Cheaper than the stealership as long as you know what you're looking for...
Notice how they call it PCV, and helpfully say it won't fit my Jeep


(Yes, I know it is actually a CCV= Constant Crankcase Ventilation)
Attached Thumbnails XJ Ask the Question Thread-image.jpg
Old Apr 17, 2014 | 01:19 PM
  #41990
CCKen's Avatar
CF Veteran

Joined: Aug 2010
Posts: 8,357
Likes: 103
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by ksrummel
Is there just a gasket on a 98 XJ distributor shaft or is there also an O-ring?

Just a gasket.

OEM part number J318 1288
Old Apr 17, 2014 | 01:56 PM
  #41991
rickeyj99xj's Avatar
Newbie

Joined: Apr 2014
Posts: 18
Likes: 0
Year: 86
Model: Cherokee
Engine: 2.8
Default

Probably a stupid question but I'm getting multiple different answers. Do you need to put Rtv on the valve cover gasket.
Old Apr 17, 2014 | 02:43 PM
  #41992
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by rickeyj99xj
Probably a stupid question but I'm getting multiple different answers. Do you need to put Rtv on the valve cover gasket.
Not if you use the good one in the first place, which is Fel-Pro PermaDry.
Old Apr 17, 2014 | 03:42 PM
  #41993
loganzillmer's Avatar
Junior Member

Joined: Apr 2014
Posts: 58
Likes: 0
From: Grand Rapids, MI
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

I ended up dropping my jeep off at the garage I go to this morning and the mechanic told me I'm going to need a new transfer case. There is a guy who parts out XJs near where I live and he said he has a 242, which I believe is what is on my '01 Limited. Is that correct? Also, what should I look for to make sure this one is in good shape?
Old Apr 17, 2014 | 03:48 PM
  #41994
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by loganzillmer
I ended up dropping my jeep off at the garage I go to this morning and the mechanic told me I'm going to need a new transfer case. There is a guy who parts out XJs near where I live and he said he has a 242, which I believe is what is on my '01 Limited. Is that correct? Also, what should I look for to make sure this one is in good shape?
Transfer cases are fairly stout. Likely just the chain needs replaced.
Can you get more detailed info from the mechanic and the reasons for his diagnoses? Did he show you what the issue is?

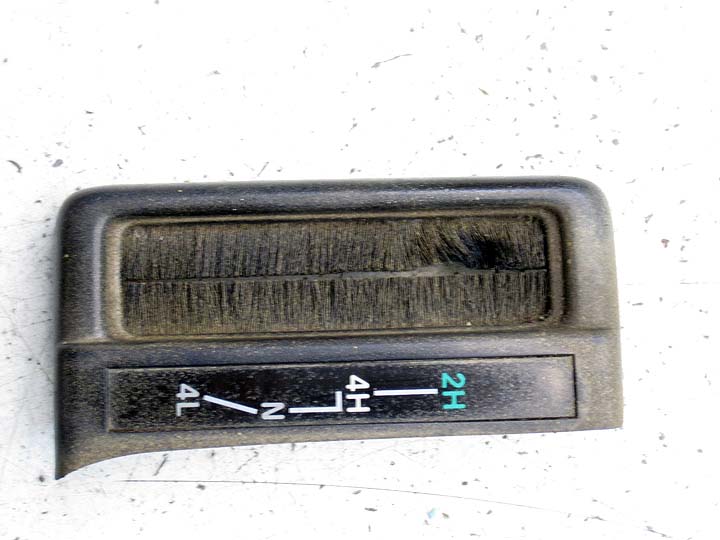

If the shifter bezel looks like this picture than it's 231 transfer case. If you have 'Part Time' and 'Full Time' than it's 242.
Also, on rear of TC is a disk with the model number stamped into it.
Attached Thumbnails XJ Ask the Question Thread-y7255.jpg

Last edited by SteveMongr; Apr 17, 2014 at 04:02 PM.
Old Apr 17, 2014 | 04:43 PM
  #41995
CherokeePurp's Avatar
Junior Member

Joined: Jul 2013
Posts: 86
Likes: 0
Model: Cherokee
Default

Alright guys why the hell can I not find ANY store with 5/8" hose barb X 3/8" NPT brass nipple...? Ive tried 3 Home Depots, Fastenal, Ace Hardware, Lowes. This is ridonculous.
Old Apr 17, 2014 | 04:44 PM
  #41996
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by SteveMongr

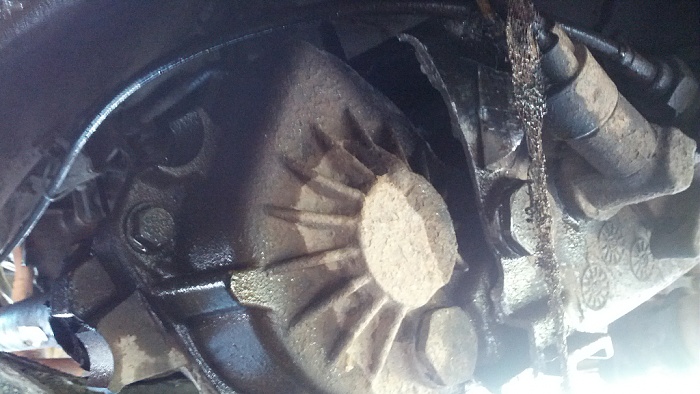

Transfer cases are fairly stout.
Usually
Attached Thumbnails XJ Ask the Question Thread-forumrunner_20140417_174413.jpg
Old Apr 17, 2014 | 04:49 PM
  #41997
LawDog9's Avatar
Senior Member

Joined: Apr 2012
Posts: 638
Likes: 0
From: Huntsville, Tn
Year: Different Years (I have several XJ's)
Model: Cherokee
Engine: 4.0 HO
Default

Alright y'all. Got my entire 6.5" lift complete. Now I need to do a sye and drive shaft. Anyone know where I can get a complete kit or what's the cheapest but most durable way to get this done?
Old Apr 17, 2014 | 05:03 PM
  #41998
ksrummel's Avatar
Seasoned Member

Joined: Sep 2011
Posts: 464
Likes: 0
From: Muncie, Indiana
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by CCKen

Just a gasket.

OEM part number J318 1288
Thank you!
Old Apr 17, 2014 | 07:52 PM
  #41999
Houston Kid's Avatar
Senior Member

Joined: Aug 2012
Posts: 583
Likes: 0
From: Clear Lake, TX
Year: 1999 Jeep Cherokee
Model: Cherokee
Engine: 4.0
Default Cylinder #3 running rich

I switched from E3s to some Champion plugs about 2,000 miles ago. When I pulled the E3s cylinder #3 plug had a lot of black on the plug like it was running rich. I just decided to go to the NGKs and when I pulled the Champions again #3 cylinder plug had a lot of black residue on it like #3 is running rich. All other plugs look great.

Questions:
1. Is the Champion #3 a bad plug?
2. Should I swap injectors to see if that is the problem?
3. Could the computer be telling only #3 to run rich for some reason?
4. If not the injector or bad plug, what all could cause this?

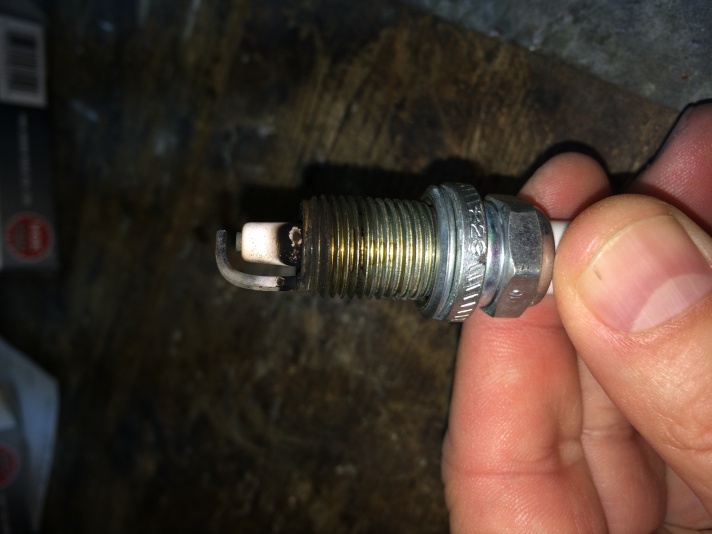

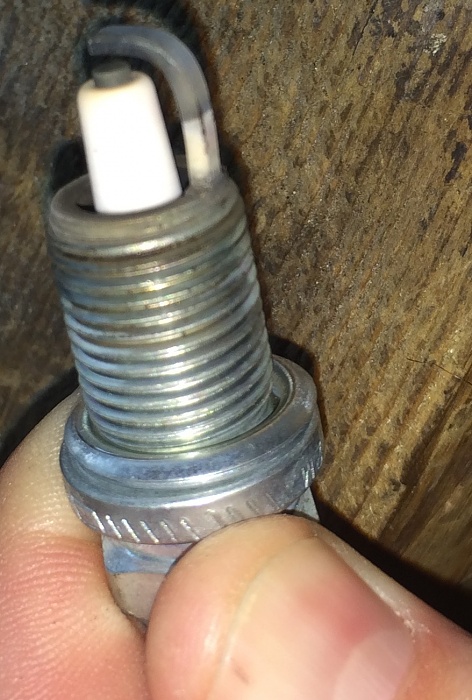

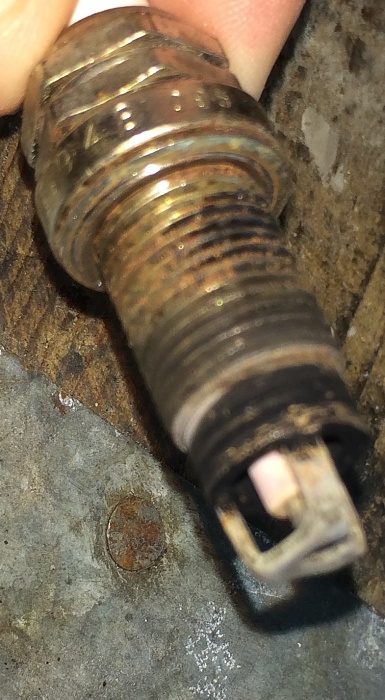

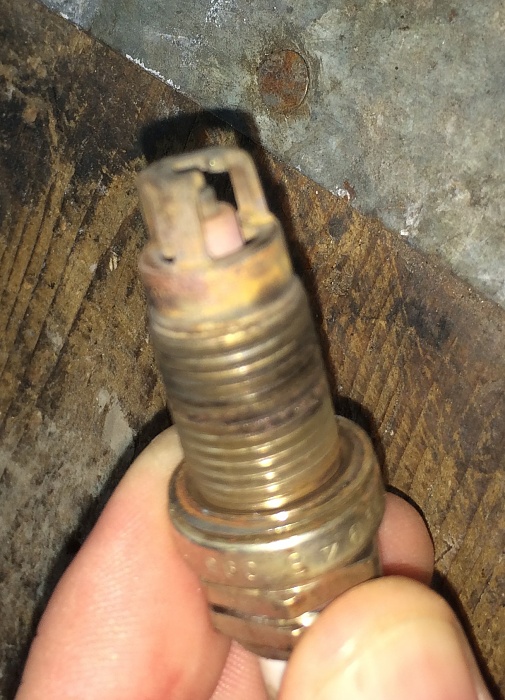

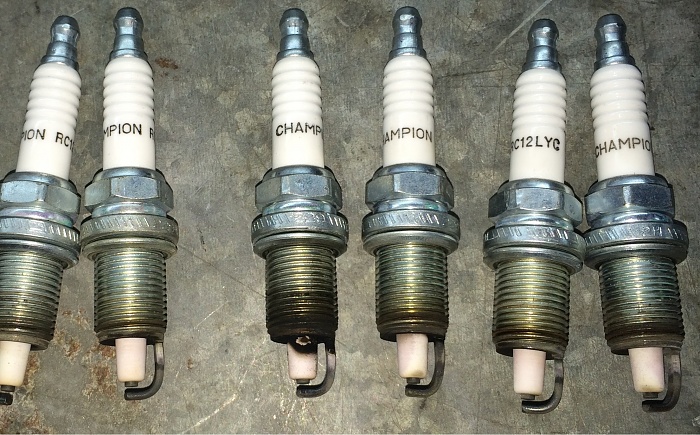

Below are pics of the E3s and the Champions. The #3 cylinder plug is the one with all the black on it. The clean Champion plug show how well the others are doing. Same thing with the E3.
Attached Thumbnails XJ Ask the Question Thread-photo-4.jpg   XJ Ask the Question Thread-photo-3.jpg   XJ Ask the Question Thread-photo-5.jpg   XJ Ask the Question Thread-photo-1-1-.jpg   XJ Ask the Question Thread-photo-2.jpg

Old Apr 17, 2014 | 08:04 PM
  #42000
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

I would check the injector first.
