Old Jul 31, 2013 | 06:11 PM
Share
  #33961
PriusCrusher's Avatar
PriusCrusher
Newbie

Joined: Jul 2013
Posts: 4
Likes: 0
From: Oakland California
Year: 1988
Model: Cherokee
Engine: 4.0 Litre Staight 6
Default
Im having a dilemma? I see people posting used trannys on Craigslist, and need one bad. Seeing how I have no reverse.

My question is how difficult would it be, and what specialty tools will I need to rebuild my old tranny? So I guess in the hurry to type this here, I forgot to mention it is a manual, I think its the AX15. All other gears work fine.

Thanks for your time

Cheers Warren (PriusCrusher)
Last edited by PriusCrusher; Aug 1, 2013 at 06:37 PM.
Old Jul 31, 2013 | 06:13 PM
Share
  #33962
ccooper1234's Avatar
ccooper1234
CF Veteran

Joined: Oct 2011
Posts: 1,812
Likes: 0
From: South Mills, NC
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
Originally Posted by DieselD

Are you still stuck on the side of the road?
No I got towed home
Old Jul 31, 2013 | 06:16 PM
Share
  #33963
cruiser54's Avatar
cruiser54
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by PriusCrusher
Im having a dilemma? I see people posting used trannys on Craigslist, and need one bad. Seeing how I have no reverse.

My question is how difficult would it be, and what specialty tools will I need to rebuild my old tranny?

Thanks for your time

Cheers Warren (PriusCrusher)
If you've never done one, difficult. Auto or manual trans bTW?
Old Jul 31, 2013 | 06:40 PM
Share
  #33964
PoorManXj's Avatar
PoorManXj
Member

Joined: Apr 2013
Posts: 157
Likes: 0
From: Greensboro NC
Year: 1997
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by dukie564

Front ujoint at the axle. I had the same issue. It may be hitting the flange of the shaft. You can grind some of the flange away for more clearance at high angles
Could u elaborate on "the flange"....mines a high pinion. Is yours also?
Old Jul 31, 2013 | 06:51 PM
Share
  #33965
cruiser54's Avatar
cruiser54
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by PoorManXj
Could u elaborate on "the flange"....mines a high pinion. Is yours also?
Jack it up, turn the steering to full lock on both sides while rotating the tire. If that's it, you'll see it .
Old Jul 31, 2013 | 07:04 PM
Share
  #33966
ccooper1234's Avatar
ccooper1234
CF Veteran

Joined: Oct 2011
Posts: 1,812
Likes: 0
From: South Mills, NC
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
OK so there is definitely an electrical problem with my jeep. When I go to turn it on the check gauges light and e-brake light turn on plus the battery gauge goes to 10volts so I may need to goes a new CPS. I have no clue. Also the exhaust smells rich. I'm really hoping its not the computer
Old Jul 31, 2013 | 07:36 PM
Share
  #33967
bulrid8's Avatar
bulrid8
Seasoned Member

Joined: May 2012
Posts: 436
Likes: 0
From: Ware Shoals, SC
Year: 1993
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by ccooper1234
OK so there is definitely an electrical problem with my jeep. When I go to turn it on the check gauges light and e-brake light turn on plus the battery gauge goes to 10volts so I may need to goes a new CPS. I have no clue. Also the exhaust smells rich. I'm really hoping its not the computer
Those lights should come on when you Turn key. They go off when started. Sounds like a bad cps! Plus, charge your battery. It's probably low from trying to crank it.
Old Jul 31, 2013 | 07:49 PM
Share
  #33968
ccooper1234's Avatar
ccooper1234
CF Veteran

Joined: Oct 2011
Posts: 1,812
Likes: 0
From: South Mills, NC
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
Originally Posted by bulrid8

Those lights should come on when you Turn key. They go off when started. Sounds like a bad cps! Plus, charge your battery. It's probably low from trying to crank it.
I would charge the battery but the crappy Harbor Freight charger literally burned up. It started smoking
Old Jul 31, 2013 | 08:13 PM
Share
  #33969
salad's Avatar
salad
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default
Originally Posted by ccooper1234
I would charge the battery but the crappy Harbor Freight charger literally burned up. It started smoking
GG

Boost from another car?

Swapped the ASD relay with another one like the aux fan?

All fuses good?

There are literally thousands of no start threads you can search for ideas in BTW.
Old Jul 31, 2013 | 08:25 PM
Share
  #33970
ccooper1234's Avatar
ccooper1234
CF Veteran

Joined: Oct 2011
Posts: 1,812
Likes: 0
From: South Mills, NC
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
Originally Posted by salad

GG

Boost from another car?

Swapped the ASD relay with another one like the aux fan?

All fuses good?

There are literally thousands of no start threads you can search for ideas in BTW.
Yes all fuses are good. I cheched the resistance on all fuel injectors, which was between 12.9-13.1 so the are good. I'll take the CPS off and take it to get exchanged. I left it cause I was getting mad. I'll look at it tomorrow
Old Jul 31, 2013 | 08:27 PM
Share
  #33971
multiperpus's Avatar
multiperpus
Member

Joined: Oct 2011
Posts: 110
Likes: 0
From: CT
Year: 99
Model: Cherokee
Engine: 4.0
Default

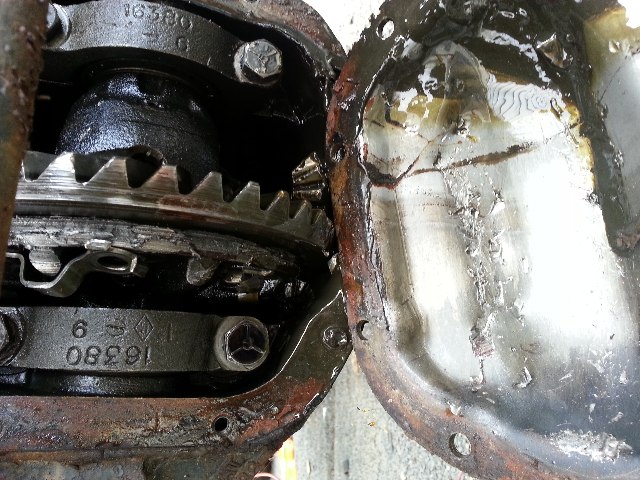

This is totally still useable right?

XJ Ask the Question Thread-forumrunner_20130731_212657.jpg
Old Jul 31, 2013 | 08:39 PM
Share
  #33972
bhennessee1's Avatar
bhennessee1
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Originally Posted by multiperpus
This is totally still useable right?
The ring and pinion don't look chewed, spin the wheels or rotors or hubs or whatever is left so you can see the spiders.

Is that a piece of a gear laying in the bottom of the housing?
Last edited by bhennessee1; Jul 31, 2013 at 08:57 PM.
Old Jul 31, 2013 | 08:43 PM
Share
  #33973
karl4x4's Avatar
karl4x4
Senior Member

Joined: May 2013
Posts: 541
Likes: 1
From: Vancouver
Year: 1998 and 1988
Model: Cherokee
Engine: 4.7
Default
Originally Posted by multiperpus
This is totally still useable right?

Attachment 205671
Yeah, it looks practiquely new. LOL.

What part are you referring too?
Old Jul 31, 2013 | 08:55 PM
Share
  #33974
bulrid8's Avatar
bulrid8
Seasoned Member

Joined: May 2012
Posts: 436
Likes: 0
From: Ware Shoals, SC
Year: 1993
Model: Cherokee
Engine: 4.0L
Default
The spider gear at the bottom makes it lock up better!
Old Jul 31, 2013 | 09:55 PM
Share
  #33975
multiperpus's Avatar
multiperpus
Member

Joined: Oct 2011
Posts: 110
Likes: 0
From: CT
Year: 99
Model: Cherokee
Engine: 4.0
Default
Originally Posted by bhennessee1

The ring and pinion don't look chewed, spin the wheels or rotors or hubs or whatever is left so you can see the spiders.

Is that a piece of a gear laying in the bottom of the housing?
PO had 35s on a dana 27 this is what found when I opened it..pinion is just about smooth...half of one spider is whats sitting on the bottom..carrier has a hole torn through it on the backside anf I can only find half of the pin.. was an interesting find
