Old Apr 14, 2012 | 05:11 PM
  #10891
Scott0821's Avatar
Banned

Joined: Feb 2012
Posts: 948
Likes: 0
From: Ohio
Year: 1999
Model: Cherokee
Engine: 4.0l i6
Default

Originally Posted by ehracing67

I've had luck with rust oleum textured flat black. I tried it many years ago when I was much younger. Looked good till I drove away.
I am thinking about having red highlights (control arms, track bar, leaf springs, coil springs, diff covers,D rings, and a few other things) when I put my lift on and I was gonna use rustoleum enamel to do it but I'm kinda hesitant to paint over the lift that is powder coated :S
Old Apr 14, 2012 | 05:17 PM
  #10892
ehracing67's Avatar
CF Veteran

Joined: Aug 2011
Posts: 1,090
Likes: 0
From: Lehigh Valley, Pennsylvania
Year: 1999
Model: Cherokee
Engine: 4.0 stroked to 4.6, Thanks to Teasdale'sMachine!
Default

Originally Posted by Scott0821

I am thinking about having red highlights (control arms, track bar, leaf springs, coil springs, diff covers,D rings, and a few other things) when I put my lift on and I was gonna use rustoleum enamel to do it but I'm kinda hesitant to paint over the lift that is powder coated :S

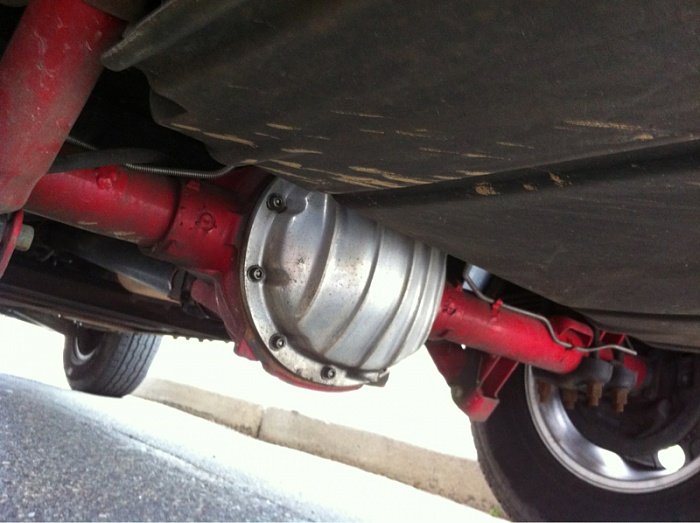

XJ Ask the Question Thread-image-3516637539.jpg

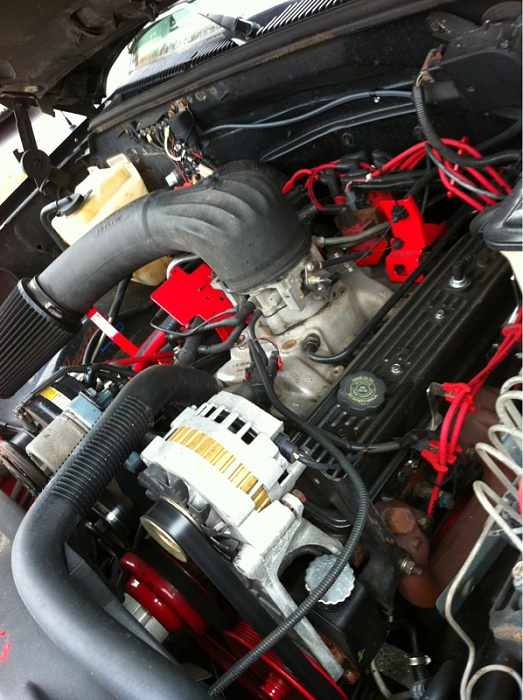

XJ Ask the Question Thread-image-2948441156.jpg

Something like that?
Old Apr 14, 2012 | 05:22 PM
  #10893
Scott0821's Avatar
Banned

Joined: Feb 2012
Posts: 948
Likes: 0
From: Ohio
Year: 1999
Model: Cherokee
Engine: 4.0l i6
Default

Originally Posted by ehracing67

Something like that?
Ya color wise... I think red highlights would look good on a white jeep...
Old Apr 14, 2012 | 05:31 PM
  #10894
ehracing67's Avatar
CF Veteran

Joined: Aug 2011
Posts: 1,090
Likes: 0
From: Lehigh Valley, Pennsylvania
Year: 1999
Model: Cherokee
Engine: 4.0 stroked to 4.6, Thanks to Teasdale'sMachine!
Default

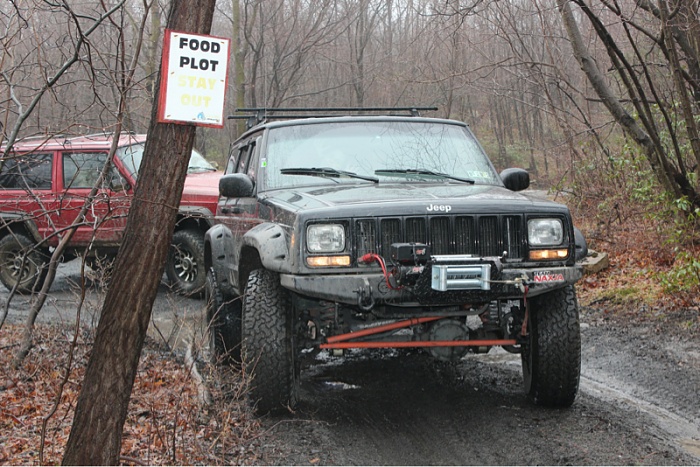

That's all powder coating. Including rear axle, not that you can see though. I've painted over powder coated suspension parts quite a bit with good luck.

XJ Ask the Question Thread-image-2936504080.jpg
Old Apr 14, 2012 | 05:34 PM
  #10895
Scott0821's Avatar
Banned

Joined: Feb 2012
Posts: 948
Likes: 0
From: Ohio
Year: 1999
Model: Cherokee
Engine: 4.0l i6
Default

Originally Posted by ehracing67
That's all powder coating. Including rear axle, not that you can see though. I've painted over powder coated suspension parts quite a bit with good luck.
Alright cool thanks
Old Apr 14, 2012 | 11:49 PM
  #10896
mewantmud's Avatar
Newbie

Joined: Apr 2012
Posts: 5
Likes: 0
From: Colorado
Model: Cherokee
Engine: 4.0L 6cyl 4X4
Default

I've got a 95 cherokee xj 4.0 L 6 cylinder automatic with around 165,000 miles. Recently I performed a tune up, which included replacing thermostat, spark plugs, wires, distributor cap, rotor, transmission fluid/filter. The engine's been acting funny however. Usually the engine will run fine and smooth for about 20-30 minutes and then stalls out when i slow down or come to a stop. After the stall, I can usually start it up again, but sometimes it won't. I love this car and have put many hours into it and this is REALLY frustrating. Any ideas or help would be appreciated?
Old Apr 15, 2012 | 12:17 AM
  #10897
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by mewantmud
I've got a 95 cherokee xj 4.0 L 6 cylinder automatic with around 165,000 miles. Recently I performed a tune up, which included replacing thermostat, spark plugs, wires, distributor cap, rotor, transmission fluid/filter. The engine's been acting funny however. Usually the engine will run fine and smooth for about 20-30 minutes and then stalls out when i slow down or come to a stop. After the stall, I can usually start it up again, but sometimes it won't. I love this car and have put many hours into it and this is REALLY frustrating. Any ideas or help would be appreciated?
Hmm, any relation to weather? Does it run smoothly when it starts up again? When it doesn't, how long can it take to get going again? (I'm assuming you don't need a tow)

I'm thinking heat soak or a sensor that's acting up. CEL on? Have you scanned for codes?
Old Apr 15, 2012 | 12:26 AM
  #10898
Kuro89's Avatar
Senior Member
15 Year Member

Joined: Jan 2011
Posts: 917
Likes: 101
Default

I am replacing my power steering pressure line tomorrow but the return is leaking as well, would it be ok to cut it ( the return line) at the couplings and just use some new hose and clamps?
Old Apr 15, 2012 | 01:13 AM
  #10899
ehracing67's Avatar
CF Veteran

Joined: Aug 2011
Posts: 1,090
Likes: 0
From: Lehigh Valley, Pennsylvania
Year: 1999
Model: Cherokee
Engine: 4.0 stroked to 4.6, Thanks to Teasdale'sMachine!
Default

Originally Posted by Kuro89
I am replacing my power steering pressure line tomorrow but the return is leaking as well, would it be ok to cut it ( the return line) at the couplings and just use some new hose and clamps?
Yep. The return line is just a hose. If you go to whoever autoparts and ask for the return line fitting out of the steering gear, you'll get this tiny little universal barb, but it does the job. Then you'll need to get the hose too. Some people use heater hose or fuel line and for the life of me I can't remember what I used.
It'll be a good time to splice in a small cheap Transmission cooler too.
Old Apr 15, 2012 | 01:22 AM
  #10900
Kuro89's Avatar
Senior Member
15 Year Member

Joined: Jan 2011
Posts: 917
Likes: 101
Default

Originally Posted by ehracing67

Yep. The return line is just a hose. If you go to whoever autoparts and ask for the return line fitting out of the steering gear, you'll get this tiny little universal barb, but it does the job. Then you'll need to get the hose too. Some people use heater hose or fuel line and for the life of me I can't remember what I used.
It'll be a good time to splice in a small cheap Transmission cooler too.
How does cutting the metal tube and flaring it sound instead of barbed fittings?
Old Apr 15, 2012 | 01:29 AM
  #10901
ehracing67's Avatar
CF Veteran

Joined: Aug 2011
Posts: 1,090
Likes: 0
From: Lehigh Valley, Pennsylvania
Year: 1999
Model: Cherokee
Engine: 4.0 stroked to 4.6, Thanks to Teasdale'sMachine!
Default

Originally Posted by Kuro89

How does cutting the metal tube and flaring it sound instead of barbed fittings?
That's what I did with both PS and tranny lines to run to the coolers. Should work fine.
Old Apr 15, 2012 | 11:00 AM
  #10902
Derision's Avatar
Seasoned Member

Joined: Apr 2012
Posts: 254
Likes: 0
From: New Jersey and Maryland
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0L
Default Question...

Okay, here's a question.

Checking my oil this morning, I noticed a small layer of gunk at the end of the dipstick. I got that sinking feeling that one gets when they realize their head gaskets are failing, but it didn't look quite like antifreeze in the coolant and definitely wasn't the milkshake of doom... now I've looked again, I'm like 98% sure it's not the head gasket.

After driving to work, I checked again. The little layer was still there, and had not mixed with the oil. On close inspection, it looks kind of like dirt or metal filings or something.

Picture:



Any idea? Are my bearings disintegrating, or have I just collected 193,000 miles of junk at the bottom of my pan? I don't hear any kind of bearing knock; having spun the bearings on a few cars, that awful sound is seared into my brain.

AJ

Last edited by Derision; Apr 15, 2012 at 11:19 AM.
Old Apr 15, 2012 | 12:01 PM
  #10903
eeprocker's Avatar
Newbie

Joined: Nov 2010
Posts: 13
Likes: 0
From: East Lyme CT
Year: 1990
Model: Cherokee
Engine: 4.0
Default Fuel?

Originally Posted by mewantmud
I've got a 95 cherokee xj 4.0 L 6 cylinder automatic with around 165,000 miles. Recently I performed a tune up, which included replacing thermostat, spark plugs, wires, distributor cap, rotor, transmission fluid/filter. The engine's been acting funny however. Usually the engine will run fine and smooth for about 20-30 minutes and then stalls out when i slow down or come to a stop. After the stall, I can usually start it up again, but sometimes it won't. I love this car and have put many hours into it and this is REALLY frustrating. Any ideas or help would be appreciated?
Just out of curiosit how long since u changed the fuel filter? Could have enough build up that after the pressure has went through it for a while it clogs it up when it dies the pressure releases just enough to get it going again.

Chiep enough to try if you can't find a bad sensor and good practice of maintance any ways
Old Apr 15, 2012 | 12:07 PM
  #10904
eeprocker's Avatar
Newbie

Joined: Nov 2010
Posts: 13
Likes: 0
From: East Lyme CT
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Derision
Okay, here's a question.

Checking my oil this morning, I noticed a small layer of gunk at the end of the dipstick. I got that sinking feeling that one gets when they realize their head gaskets are failing, but it didn't look quite like antifreeze in the coolant and definitely wasn't the milkshake of doom... now I've looked again, I'm like 98% sure it's not the head gasket.

After driving to work, I checked again. The little layer was still there, and had not mixed with the oil. On close inspection, it looks kind of like dirt or metal filings or something.

Picture:



Any idea? Are my bearings disintegrating, or have I just collected 193,000 miles of junk at the bottom of my pan? I don't hear any kind of bearing knock; having spun the bearings on a few cars, that awful sound is seared into my brain.

AJ
not to untypical for that many miles I'd say. My suggestion would be on the next oil change give it a good flush after u drain it say flush through 3-4 quarts you could even pull the oil pan and clean it out but if you don't want to spend the time a good flush should help. Might pay to run so oil system cleaner to. after you get it flushed out good if it still continues to build up you may have a need for concern. If everything still sounds normal i'd say more likely just build up over the yrs
Old Apr 15, 2012 | 12:35 PM
  #10905
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by eeprocker
not to untypical for that many miles I'd say. My suggestion would be on the next oil change give it a good flush after u drain it say flush through 3-4 quarts you could even pull the oil pan and clean it out but if you don't want to spend the time a good flush should help. Might pay to run so oil system cleaner to. after you get it flushed out good if it still continues to build up you may have a need for concern. If everything still sounds normal i'd say more likely just build up over the yrs
+1. Looks like normal buildup and a bit of varnishing to me. I'd venture that previous owners weren't as dilligent as they should have been about maintenance. The super cautious route would be to drop the oil pan and valve cover and see what you're really dealing with before taking any action. With actual evidence of a bit of metal in there I'd be very careful about cleaning it out if you were going to pursue a flush. Like don't go overboard with a product like Seafoam or something, just a bit at a time, as if the gunk and varnish is actually bad you don't want something to break loose and clog a passageway.

Don't worry too much though - 4.0Ls have gotten almost as high as yours with 0-2 oil changes and actually lived to tell the tale
