fiddled with the switch and it worked after that...i don't recall it ever extending all the way but i'm also not sure what "all the way" is..and it didn't make a definitive click when i released the pedal...when the pedal is released the plunger is flush with the housing and when pressed it only comes out about a 1/4". I couldnt get a good grip on it so if it does come out farther it must be difficult to get...also ill try and see if i can replicate that to find out if the switch is the problem...also while i was driving it did unlock and lock once but that was at about 50ish.

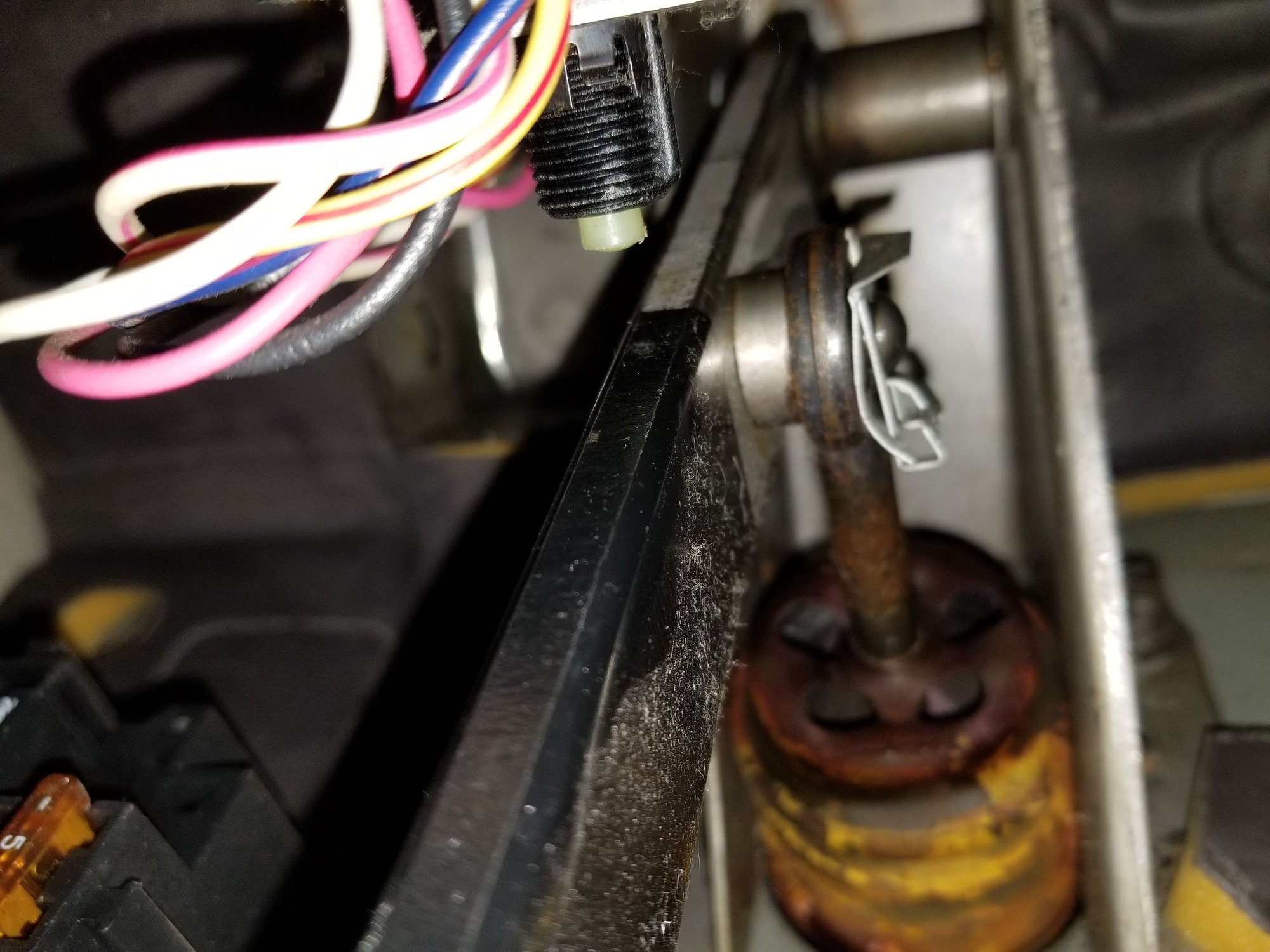

this is the pedal pressed
released
this is the pedal pressed
released
I played this game for a few months, brake light switches, NSS, etc. Cleaning, adjusting, and replacing. After every attempt it would SEEM to remedy the issue for a bit only to have it come back. Ultimately I had to replace solenoids. It isn't a terrible job to do and Cascade Transmission (ebay or their website) sells a kit with all three solenoids, new filter, and gasket for like $75.
CF Veteran
Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes
on
24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Member
Join Date: Jul 2017
Location: Aurora CO
Posts: 115
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I played this game for a few months, brake light switches, NSS, etc. Cleaning, adjusting, and replacing. After every attempt it would SEEM to remedy the issue for a bit only to have it come back. Ultimately I had to replace solenoids. It isn't a terrible job to do and Cascade Transmission (ebay or their website) sells a kit with all three solenoids, new filter, and gasket for like $75.
CF Veteran
Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes
on
24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Alright guys. Cut a window, but the weld nut is not the issue. It isnt spinning.It seems like maybe the bolt is just stuck inside of the bushing sleeve? I have tried multiple times with a pry bar to get the bolt out even while wiggling the leaf but nothing. Any other ideas before I just cut everything off?
CF Veteran
Join Date: May 2015
Location: San Antonio, TX
Posts: 1,472
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Yeah the bolt is seized in the metal sleeve.
Cut the leaf close to the eye.
Rotate it around, cut again, pop the two halves out.
Repeat with the outer metal sleeve.
Hack/break the bushing out.
Inner metal sleeve has a seam, hit that with a chisel, air chisel if you have one.
Bolt should come out fairly easy once you kill yourself doing all that other ****.
Cut the leaf close to the eye.
Rotate it around, cut again, pop the two halves out.
Repeat with the outer metal sleeve.
Hack/break the bushing out.
Inner metal sleeve has a seam, hit that with a chisel, air chisel if you have one.
Bolt should come out fairly easy once you kill yourself doing all that other ****.
CF Veteran
Join Date: May 2015
Location: San Antonio, TX
Posts: 1,472
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Just had to do that on my XJ. And I work on 50yr old Mustangs for a living, lol, couldn't begin to count how many times I've had to do that procedure. Ugh.
CF Veteran
Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes
on
24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
OK so new question...
I have HD offroad shackle relocation brackets, the lift kind and 1.5 inch shackles for the rear. Ive got 4.5 inch coils for the front and thats the lift size im shooting for. I think that stock leafs along with those brackets and shackles should get me close correct? Dont much want to go higher than 4.5-5 inches
I have HD offroad shackle relocation brackets, the lift kind and 1.5 inch shackles for the rear. Ive got 4.5 inch coils for the front and thats the lift size im shooting for. I think that stock leafs along with those brackets and shackles should get me close correct? Dont much want to go higher than 4.5-5 inches
CF Veteran
Join Date: May 2015
Location: San Antonio, TX
Posts: 1,472
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
OK so new question...
I have HD offroad shackle relocation brackets, the lift kind and 1.5 inch shackles for the rear. Ive got 4.5 inch coils for the front and thats the lift size im shooting for. I think that stock leafs along with those brackets and shackles should get me close correct? Dont much want to go higher than 4.5-5 inches
I have HD offroad shackle relocation brackets, the lift kind and 1.5 inch shackles for the rear. Ive got 4.5 inch coils for the front and thats the lift size im shooting for. I think that stock leafs along with those brackets and shackles should get me close correct? Dont much want to go higher than 4.5-5 inches
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by Joecam18
OK so new question...
I have HD offroad shackle relocation brackets, the lift kind and 1.5 inch shackles for the rear. Ive got 4.5 inch coils for the front and thats the lift size im shooting for. I think that stock leafs along with those brackets and shackles should get me close correct? Dont much want to go higher than 4.5-5 inches
I have HD offroad shackle relocation brackets, the lift kind and 1.5 inch shackles for the rear. Ive got 4.5 inch coils for the front and thats the lift size im shooting for. I think that stock leafs along with those brackets and shackles should get me close correct? Dont much want to go higher than 4.5-5 inches
Edit: I know my shackle brackets said there's typically about 1.5" of lift gained, the 3" rough country springs said they were "leveling" and only gave 2" of lift and the shackles were on their 2" mark.
CF Veteran
Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes
on
24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes
on
24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
When I had 2" shackles, shackle relocation brackets that gave lift and a 3" rough country pack, at a good shackle angle I was around 4.5" with a bad angle (almost vertical) it was a touch over 5" of lift. Lift shackles don't give as much lift as they say they do when they are at the proper angle. They give the lift stated at an improper angle typically. That's just my experience and 2 cents.
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
I had 3" rough country AAL on my stock packs, along with homemade shackle relocation brackets and 1.5" extended shackles. I sat right on the money; 4.5" over stock.
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by Joecam18
Just ordered 3.5 inch rubicon express leafs. we shall see. inb4 monster truck status
