Question Battery drain

I have a 95 XJ that I recently purchased and the battery keeps going dead while parked for just a few days. Note the battery is brand new and will charge. I don't have any accessories that run whole off. I have replaced the battery cables but not the ground. It appears to be fine.
Any thoughts?? I'm all ears
Old Nov 3, 2015 | 06:40 PM
  #51827
wormdunker's Avatar
Junior Member

Joined: Sep 2015
Posts: 95
Likes: 0
From: Lansing Mi
Model: Cherokee
Default

Pull negative battery off. Put test light between cable and battery. If it lights you have a draw on battery. If it lights try pulling one fuse at a time to see what is drawing power. Don't forget when door is open dome light will draw so pull that fuse first.
Old Nov 4, 2015 | 12:59 AM
  #51828
Basslicks's Avatar
No, I don't lick fish.
Premium Member
15 Year Member
Liked

Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default Sorry took so long

Originally Posted by sycoglitch
Delphi IIRC does Toyota parts. I've ran a few of their sensors and didn't have issues. And AC Delco isn't too bad neither. Stay away from airtex wells even if they paid you to sleep with a model.
Yeah, I didn't think their stuff would be any different in regard to a sensor, but I figured I'd check just the same.

Originally Posted by NewKindOfClown
The sending unit is just for the gauge. The Coolant Temperature Sensor gives information to the computer. If one is faulty and throwing a code, I believe it'd be the Sensor.
This is actually a little troubling. Because not only is the COMPUTER saying it's running too cool (as evident by the code AND the unbelieveably rich smell emanating from the exhaust) but the temp gauge is also saying it. I wonder if "cheaping out" on the T-Stat is biting me in the *****.

Originally Posted by ehall
Code 17 is for the sensor in the thermostat housing (computer does not monitor the gauge sender in the back of the head)

I use Standard brand for everything and have been extremely pleased with the accuracy and reliability. ACDelco is the house brand for GM, and they used to be good like Mopar, but they are using China production now and quality has been dropping for the past few years (I buy a lot of GM parts for my old Cadillac, and I stopped buying ACDelco). Delphi also used to be good (and also used to be part of GM) but quality has also been falling--bought a coil and fuel pump from them in the past six months and both are having problems, the coil farts after sitting overnight, and the fuel pump doesn't fit right.

You should also check your heater core. I got that code when I first got my beater and after trying a few things I flushed the core and heads and a bunch of straw came out from the old dried up coolant. It had created an air pocket in the core, and blocked coolant from flowing through the head, so the sensor was only reading temperature of the air and not the coolant.
Ok, I'll have to try that too. Being as my coolant system is so old (minus the water pump), I just go ahead and replace the sensor regardless, do a system flush because I'm sure it could use it... I've had the Jeep for 4 years and haven't ever done it, and repalce the T-Stat with a Stant 195.. if the thermostat isn't the failure point, I'll have a spare, and replace the sending unit for the gauge too.

I don't have any problem replacing parts on this thing if they have the potential to need it... she's got 236k miles on her... he sensors are TIRED.
Old Nov 4, 2015 | 07:26 AM
  #51829
Doove's Avatar
Senior Member

Joined: Jul 2014
Posts: 931
Likes: 0
From: Glen Ellyn, IL
Year: 1997
Model: Cherokee
Engine: 4.0 Inline 6
Default

For TruckLite leds should I run a new wiring harness like the Putco one and relays? Or just relays? 1997 body style.
Old Nov 4, 2015 | 07:33 AM
  #51830
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Originally Posted by Doove
For TruckLite leds should I run a new wiring harness like the Putco one and relays? Or just relays? 1997 body style.
yes do it anyway
Old Nov 4, 2015 | 07:44 AM
  #51831
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by XJwonders
yes do it anyway
Why? It draws minimal amperage and isn't bottlenecked by the factory wiring
Old Nov 4, 2015 | 07:50 AM
  #51832
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Originally Posted by NewKindOfClown
Why? It draws minimal amperage and isn't bottlenecked by the factory wiring
ease of mind and in case he change his mind later on and run different head lights.

And it's always nice to move a point of failure somewhere else that's easily serviceable.
Old Nov 4, 2015 | 07:56 AM
  #51833
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by XJwonders
ease of mind and in case he change his mind later on and run different head lights.

And it's always nice to move a point of failure somewhere else that's easily serviceable.
Reasonable point of view. I still hold that it isn't necessary, but I agree it wouldn't hurt.
Old Nov 5, 2015 | 05:55 PM
  #51834
93XJeeper's Avatar
CF Veteran
10 Year Member

Joined: Feb 2015
Posts: 1,528
Likes: 2
From: North Carolina
Year: 1993
Model: Cherokee
Engine: 4.0
Default

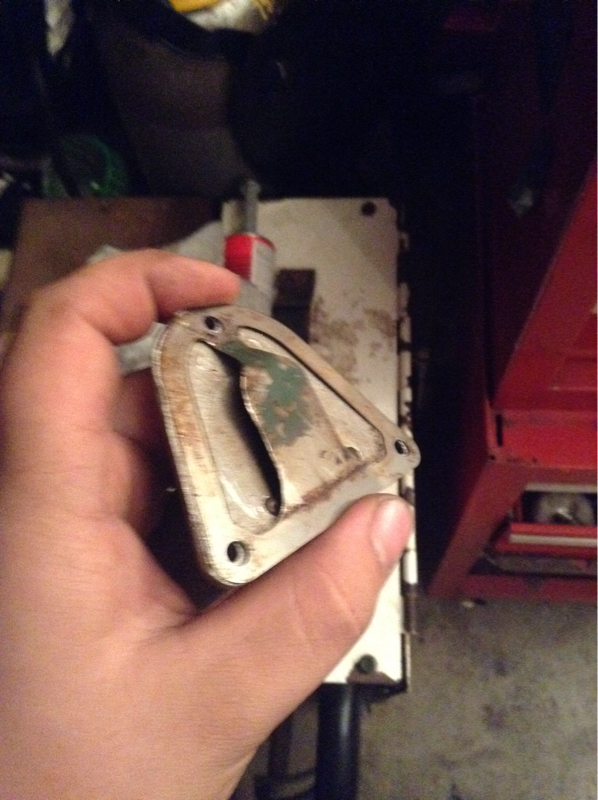

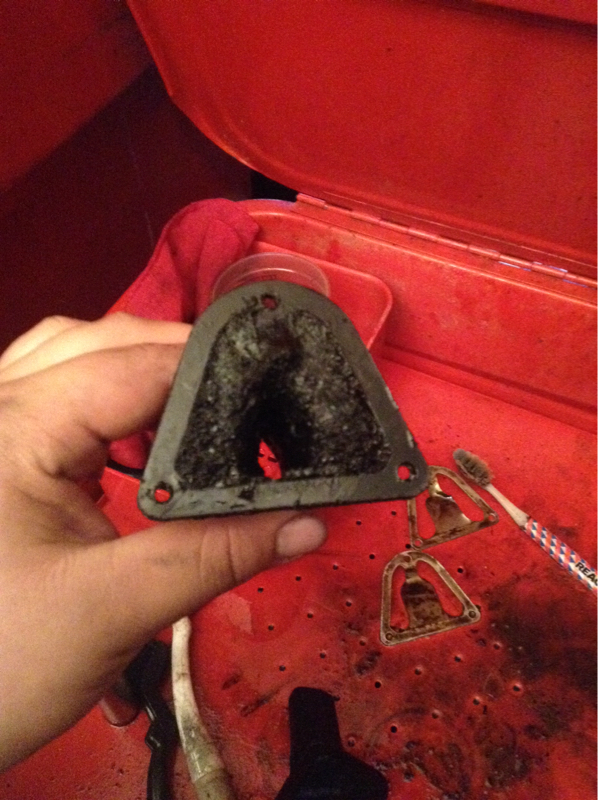

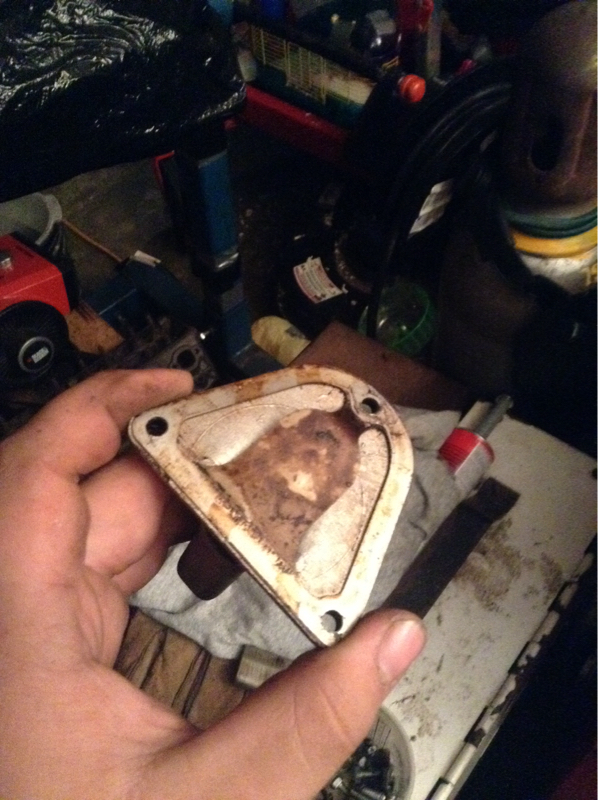

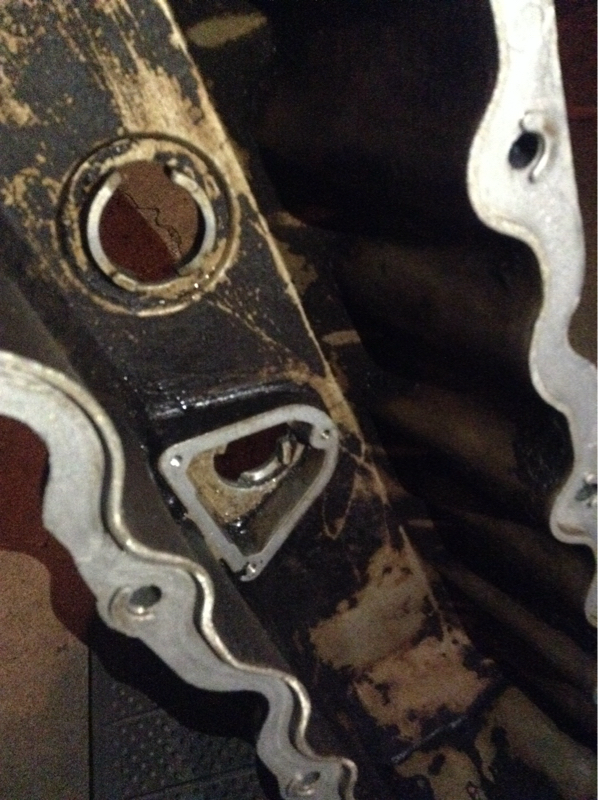

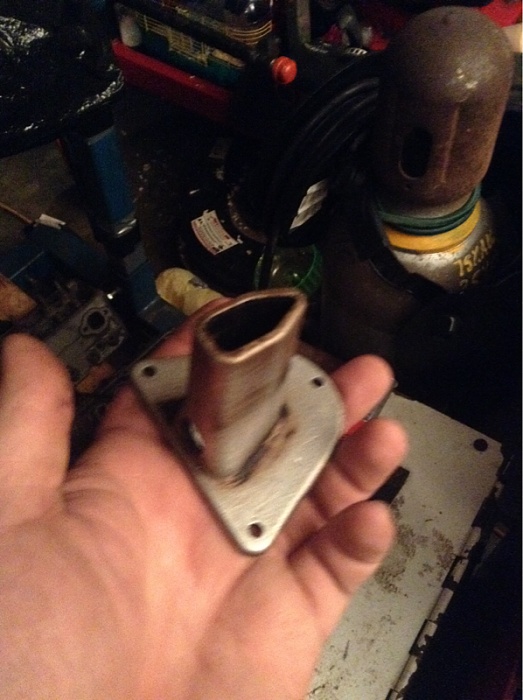

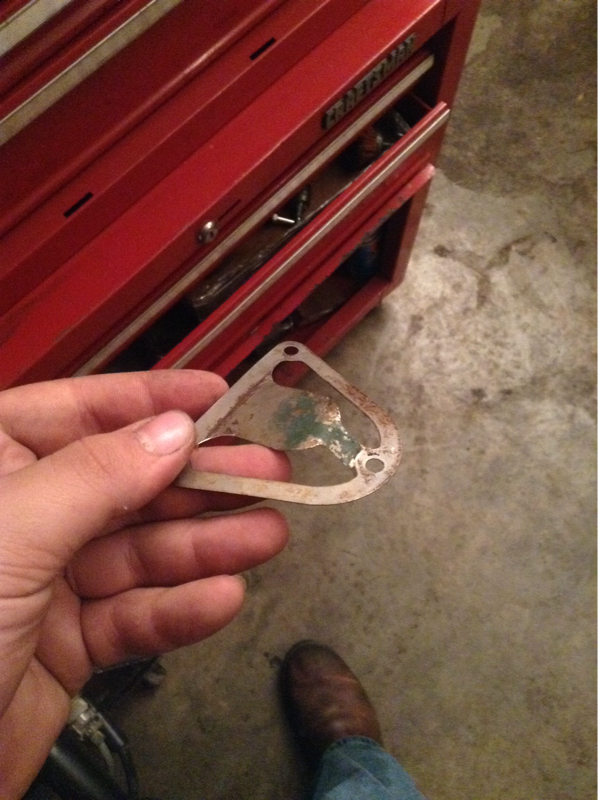

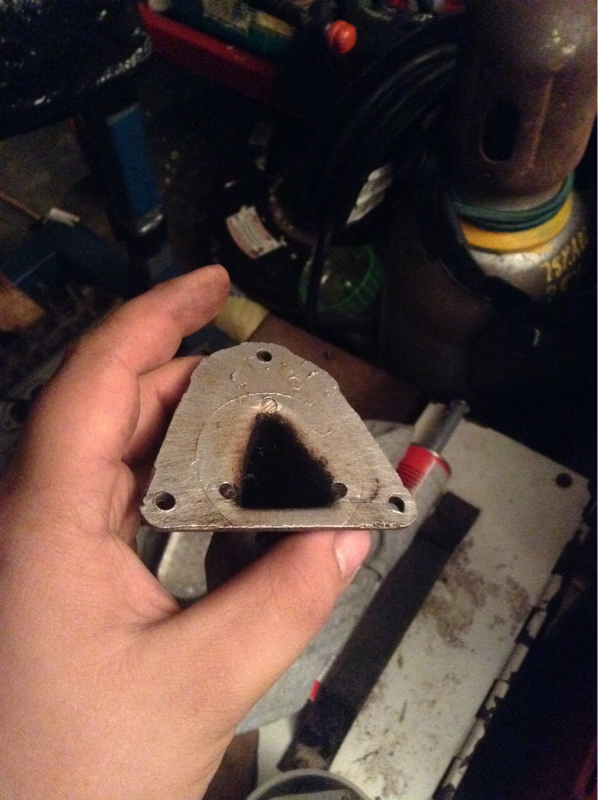

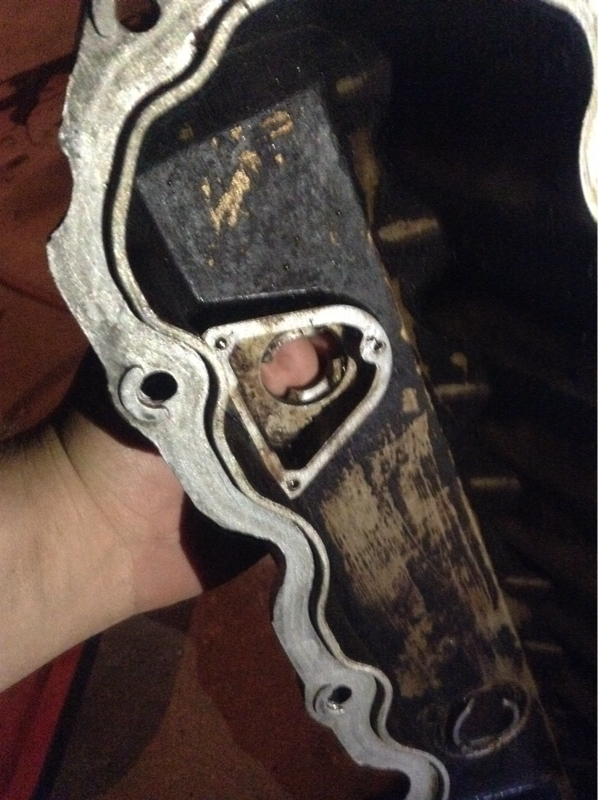

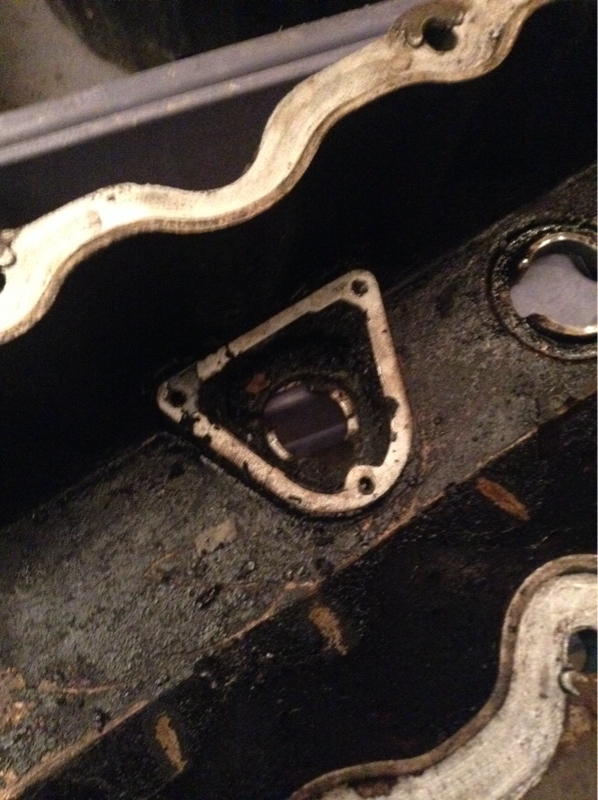

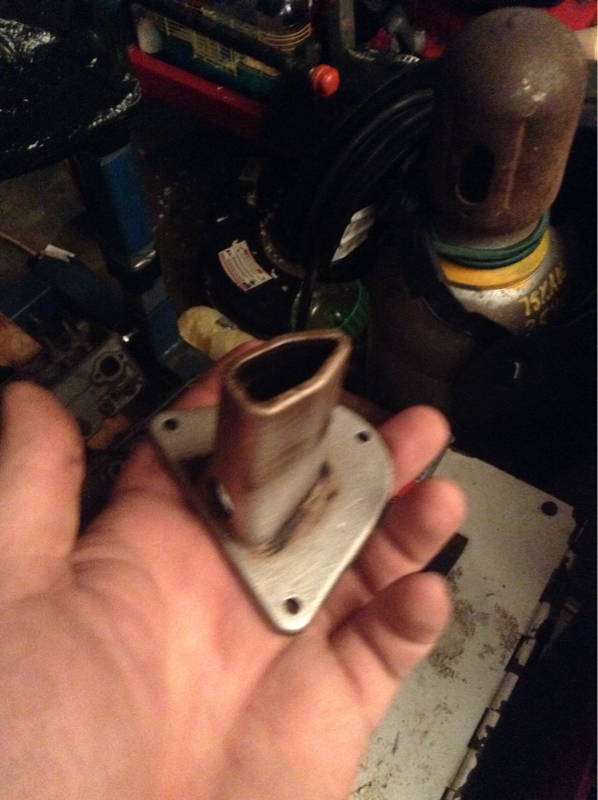

Hey guys, so I'm replacing my valve cover gasket and while I was cleaning the valve cover, I pulled off theses little triangle tunnel things to clean the gunk out. It's just that, when I pulled them off, they had an old gasket on the, and it crumbled into a bunch of pieces. Also this little thin metal peice. What do these parts do? And do I need a new gasket for it or can I just bolt it back together with the little thin metal cover peice? Thanks.
Attached Thumbnails XJ Ask the Question Thread-image-428458840.jpg   XJ Ask the Question Thread-image-1659256264.jpg   XJ Ask the Question Thread-image-548133207.jpg   XJ Ask the Question Thread-image-722614210.jpg   XJ Ask the Question Thread-image-2443538271.jpg

XJ Ask the Question Thread-image-3111782303.jpg   XJ Ask the Question Thread-image-4107418345.jpg   XJ Ask the Question Thread-image-2179493147.jpg   XJ Ask the Question Thread-image-1031753814.jpg

Last edited by 93XJeeper; Nov 5, 2015 at 05:57 PM.
Old Nov 5, 2015 | 06:07 PM
  #51835
Dumajones's Avatar
Moderator CF K9-unit

Joined: Apr 2012
Posts: 5,842
Likes: 12
From: Alaska
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
Default

Originally Posted by 93XJeeper
Hey guys, so I'm replacing my valve cover gasket and while I was cleaning the valve cover, I pulled off theses little triangle tunnel things to clean the gunk out. It's just that, when I pulled them off, they had an old gasket on the, and it crumbled into a bunch of pieces. Also this little thin metal peice. What do these parts do? And do I need a new gasket for it or can I just bolt it back together with the little thin metal cover peice? Thanks.
Read post 25 here..They can go back together without gaskets.

https://www.cherokeeforum.com/f51/cr...2/#post2114753
Old Nov 5, 2015 | 06:29 PM
  #51836
wormdunker's Avatar
Junior Member

Joined: Sep 2015
Posts: 95
Likes: 0
From: Lansing Mi
Model: Cherokee
Default Brake lines

I did a search and it said no match so I'll try here. I have a 1991 Cherokee are the brake lines domestic or metric? Same with fitting domestic or metric?
Old Nov 5, 2015 | 07:12 PM
  #51837
93XJeeper's Avatar
CF Veteran
10 Year Member

Joined: Feb 2015
Posts: 1,528
Likes: 2
From: North Carolina
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Dumajones
Read post 25 here..They can go back together without gaskets. https://www.cherokeeforum.com/f51/cr...2/#post2114753
thanks! I guess I'll be modding them as well while I got them out.
Old Nov 5, 2015 | 08:48 PM
  #51838
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by wormdunker
I did a search and it said no match so I'll try here. I have a 1991 Cherokee are the brake lines domestic or metric? Same with fitting domestic or metric?
Standard (domestic)
Old Nov 5, 2015 | 09:32 PM
  #51839
wormdunker's Avatar
Junior Member

Joined: Sep 2015
Posts: 95
Likes: 0
From: Lansing Mi
Model: Cherokee
Default

Thank you NewKindOfClown. I seem to run in to both with nut and bolt size.
Old Nov 6, 2015 | 06:28 AM
  #51840
Dny13's Avatar
Newbie

Joined: May 2015
Posts: 12
Likes: 0
From: London, uk
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Hi. I have fitted a 1 inch spacer on the throttle body on my cherokee. Problem is that the bonnet is pressing on the rubber intake now. I was thinking to cut a square in the bonnet and put a scoop in as the sports car have, but then I would have water going through if I drive through a puddle.
Any ideas would be much appreciated.
