XJ Ask the Question Thread
Thanks. Ill give it a try. D'ship parts place closed on weekend. I hate to do non OEM but assume I can find a suitable stand in at AZone or O'Rreilly?
...clearly there a lip on the elbow that the hose has to clear to get off. Can I use a screwdriver to help it slide or WD40?
Seasoned Member
Joined: Apr 2013
Posts: 259
Likes: 0
From: Mass
Year: 2000
Model: Cherokee
Engine: 4.0
This X2. You may as well swap them while you have the cover off. Make sure to note the difference between the front and rear as well. I believe the front is shorter with a complete opening, while the rear is longer with a restricted opening. My rear line to the throttle body snapped the minute I tried to disconnect. The plastic gets brittle over time. You may want to have elbows and grommets on hand and make sure your parts place has the lines in stock.
Herp Derp Jerp

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Bad idea on the screwdriver, the elbow will snap. WD40 maybe but remember it's a vacuum-tight seal that already has oil vapours inside.
Yeah non-OEM for these isn't a big deal. Indeed '98+ uses a short version of the front elbow. I was lazy and used a taller one from a previous year, no issues yet.
Yeah non-OEM for these isn't a big deal. Indeed '98+ uses a short version of the front elbow. I was lazy and used a taller one from a previous year, no issues yet.
Last edited by salad; Jun 14, 2014 at 10:36 AM.

I removed my track bar in order to get the new oil plan in place. In the process, I made a mess of this hole. Do I need to do something to fix this and if so, what? Also, on the other end of the track bar the ball joint is clunky... movements are jerky, not smooth. It's stiff and feels solid though. Is this an issue or something that will be good enough until I get a lift installed and replace it in the next year?
Bad idea on the screwdriver, the elbow will snap. WD40 maybe but remember it's a vacuum-tight seal that already has oil vapours inside.
Yeah non-OEM for these isn't a big deal. Indeed '98+ uses a short version of the front elbow. I was lazy and used a taller one from a previous year, no issues yet.
Yeah non-OEM for these isn't a big deal. Indeed '98+ uses a short version of the front elbow. I was lazy and used a taller one from a previous year, no issues yet.
Also...back to ground...does that stay on top of bolt and I simply try to get the bolt out with it on? Thanks again your patience is appreciated
I SO want to do this myself
For some reason i cant get my photos uploaded so if you would like to see them you can find them on my dropbox.
https://www.dropbox.com/sh/afgy1b3yb...N8w54tdrqr7B3a
Last edited by lonski349; Jun 14, 2014 at 11:39 AM.
CF Veteran
Joined: Apr 2011
Posts: 4,825
Likes: 2
From: Indianapolis
Year: '99 and '91
Model: Cherokee
CF Veteran
Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Member
Joined: Apr 2012
Posts: 119
Likes: 0
From: Minersville Pennsylvania
Year: 1991
Model: Cherokee
Engine: 4.0 H.O.
Hit and miss hard starting on my 1991 XJ
I replaced the coil, CPS, cleaned cap/rotor, did plugs and wires. I checked the fuel pressure the poor man way, I pushed in the valve stem on the fuel pressure test port and it squirts almost to the fuel rail when its having a hard time starting, when it starts fine it shoots across the valve cover. I am pretty sure it is the fuel pump, I was thinking about getting a delphi fuel pump/sending unit assembly (my sending unit acts up sometimes and gauge doesn't go to full) for 100 bucks from autozone. Has anyone else used this pump? I hate airtex , spectra only has a 1 yr warranty, and I can't find a carter with the sending unit assembly. I like the idea of delphi lifetime warranty, since it doesn't look too hard to change the pump if it fails again. I was thinking about saving up for one of these as well http://www.ebay.com/itm/290895982589...84.m1423.l2649
I replaced the coil, CPS, cleaned cap/rotor, did plugs and wires. I checked the fuel pressure the poor man way, I pushed in the valve stem on the fuel pressure test port and it squirts almost to the fuel rail when its having a hard time starting, when it starts fine it shoots across the valve cover. I am pretty sure it is the fuel pump, I was thinking about getting a delphi fuel pump/sending unit assembly (my sending unit acts up sometimes and gauge doesn't go to full) for 100 bucks from autozone. Has anyone else used this pump? I hate airtex , spectra only has a 1 yr warranty, and I can't find a carter with the sending unit assembly. I like the idea of delphi lifetime warranty, since it doesn't look too hard to change the pump if it fails again. I was thinking about saving up for one of these as well http://www.ebay.com/itm/290895982589...84.m1423.l2649
CF Veteran
Joined: Aug 2011
Posts: 1,994
Likes: 8
From: San Jose
Year: 89
Model: Cherokee
Engine: 4.0 I6

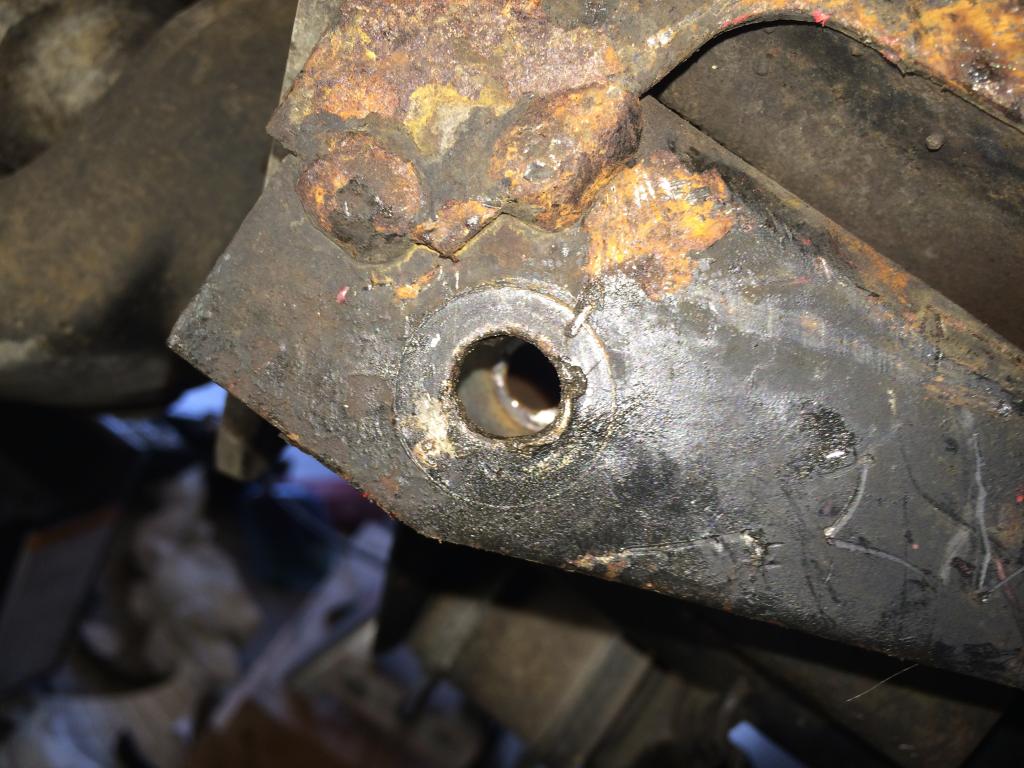

I removed my track bar in order to get the new oil plan in place. In the process, I made a mess of this hole. Do I need to do something to fix this and if so, what? Also, on the other end of the track bar the ball joint is clunky... movements are jerky, not smooth. It's stiff and feels solid though. Is this an issue or something that will be good enough until I get a lift installed and replace it in the next year?
http://www.pacificcustoms.com/weldwasher12hd.html
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
