Old Sep 12, 2013 | 01:30 PM
  #35311
karl4x4's Avatar
Senior Member

Joined: May 2013
Posts: 541
Likes: 1
From: Vancouver
Year: 1998 and 1988
Model: Cherokee
Engine: 4.7
Default

Originally Posted by NewKindOfClown
The late model mirrors bolt right up to the pre-97 doors, FYI.
Now you tell me. I already put F250 mirrors on.

Old Sep 12, 2013 | 01:59 PM
  #35312
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by sycoglitch
Can you post him the obdi key on blah blah code read link. Cant get it on my phone that easily lol
http://www.quadratec.com/jeep_knowle...article-24.htm

First Google hit lol
Old Sep 12, 2013 | 02:03 PM
  #35313
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by salad
Nice
Old Sep 12, 2013 | 05:26 PM
  #35314
shadowflyer101's Avatar
Newbie

Joined: Sep 2013
Posts: 3
Likes: 0
Model: Cherokee
Default

Quick question for all you gurus. I have a 87 Honda civic lowered with an electric turbo fan, and im not getting much power, any advice?
NAH!!!!!
truck, 92 Cherokee Laredo 4.0 straight 6.
the dam temp gauge on the cluster acts a little downzy.
it get to the first line before normal temp (center) and that's it. I unplugged the sensor attached to the thermo housing and the gauge is unaffected by this

Am I testing this right? I just bought the jeep and I suspect some kind of cover up.
I know there is a temp sender, is this the one that affect the gauge on the cluster?

thanks. btw, I do not drive a ricer. lol
Old Sep 12, 2013 | 05:28 PM
  #35315
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by shadowflyer101
Quick question for all you gurus. I have a 87 Honda civic lowered with an electric turbo fan, and im not getting much power, any advice?
NAH!!!!!
truck, 92 Cherokee Laredo 4.0 straight 6.
the dam temp gauge on the cluster acts a little downzy.
it get to the first line before normal temp (center) and that's it. I unplugged the sensor attached to the thermo housing and the gauge is unaffected by this

Am I testing this right? I just bought the jeep and I suspect some kind of cover up.
I know there is a temp sender, is this the one that affect the gauge on the cluster?

thanks. btw, I do not drive a ricer. lol
190-210° is acceptable operating range for an XJ 4.0L in most climates.
Old Sep 12, 2013 | 05:29 PM
  #35316
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by shadowflyer101
Quick question for all you gurus. I have a 87 Honda civic lowered with an electric turbo fan, and im not getting much power, any advice?
NAH!!!!!
truck, 92 Cherokee Laredo 4.0 straight 6.
the dam temp gauge on the cluster acts a little downzy.
it get to the first line before normal temp (center) and that's it. I unplugged the sensor attached to the thermo housing and the gauge is unaffected by this

Am I testing this right? I just bought the jeep and I suspect some kind of cover up.
I know there is a temp sender, is this the one that affect the gauge on the cluster?

thanks. btw, I do not drive a ricer. lol
Yes, ish. The gauge is driven by a different sensor at the rear of the head.
Old Sep 12, 2013 | 05:32 PM
  #35317
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

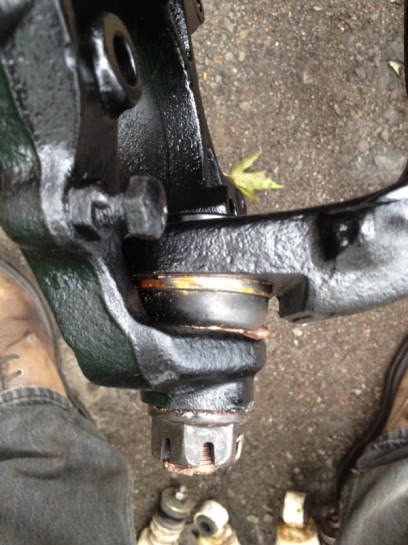

Okay experts. Both of these are 75 freaking foot-pounds. Which one is correct? Is there even a correct one? I'm concerned with how squished the grease boots are versus thread exposed.



XJ Ask the Question Thread-image-4079871713.jpg



XJ Ask the Question Thread-image-1219859067.jpg
Old Sep 12, 2013 | 05:34 PM
  #35318
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by salad
Okay experts. Both of these are 75 freaking foot-pounds. Which one is correct? Is there even a correct one? I'm concerned with how squished the grease boots are versus thread exposed.
Torque it and grease it. If it falls off, start over.
Old Sep 12, 2013 | 05:35 PM
  #35319
shadowflyer101's Avatar
Newbie

Joined: Sep 2013
Posts: 3
Likes: 0
Model: Cherokee
Default

Originally Posted by salad
Yes, ish. The gauge is driven by a different sensor at the rear of the head.
Ok, ill test the sending unit next. I wanted a second opinion before I crawled back there. thanks
Old Sep 12, 2013 | 05:39 PM
  #35320
shadowflyer101's Avatar
Newbie

Joined: Sep 2013
Posts: 3
Likes: 0
Model: Cherokee
Default

Originally Posted by salad
Okay experts. Both of these are 75 freaking foot-pounds. Which one is correct? Is there even a correct one? I'm concerned with how squished the grease boots are versus thread exposed.



Attachment 212130



Attachment 212131
back off the less squished one, then toque it again.
Old Sep 12, 2013 | 05:46 PM
  #35321
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Well it's a bit warm for a touque, but I backed off the squished one and tried tightening again. Same result. I took a look at the other lower BJs here and decided to tighten it enough so that the nut wouldn't turn with the steering knuckle. There's still more exposed thread than the other 5. (P/S of this same axle, original axles in my '99 and '01). Dunno if this Spicer unit is defective or what. Anti-sieze says quite clearly that there is no torque reduction required

Should I just crank it down anyway and live with the squashed grease boot?

Last edited by salad; Sep 12, 2013 at 05:49 PM.
Old Sep 12, 2013 | 06:21 PM
  #35322
karl4x4's Avatar
Senior Member

Joined: May 2013
Posts: 541
Likes: 1
From: Vancouver
Year: 1998 and 1988
Model: Cherokee
Engine: 4.7
Default

Originally Posted by salad
Okay experts. Both of these are 75 freaking foot-pounds. Which one is correct? Is there even a correct one? I'm concerned with how squished the grease boots are versus thread exposed.



Attachment 212130



Attachment 212131
First, the top ball joint will adjust with the opening of the steering knuckle. It in has about 3/8" of in and out play. The bottom joint is the one that resist ALL the up/down motion.
Second, the rubber is just a dust booth. There's grease in it normally but that's not where the lubrication is required. Its inside the ball joint. When they start bulging while greasing that mean the grease made it past the ball.

If you go to tight (to a point) that just mean that next time you have to replace it, it will be harder separate it from the knuckle. It will not change anything on the functionality of the ball joints. If you have a 3 foot wrench and go stupid tight, you risk damaging the steering knuckle part as it will be forced to open from the tapered stud going true.
Old Sep 12, 2013 | 06:33 PM
  #35323
Jaster343's Avatar
Member

Joined: Sep 2011
Posts: 163
Likes: 0
From: New York
Year: 1998
Model: Cherokee
Engine: AMC 242 4.0L
Default Very strange question

I recently replaced the radiator on a 2001 Sport. The transplant went fine except that the trucks granny fluid was jet black. I drained what I could and replaced with new fluid. The motor runs better than ever except now from a dead stop during acceleration there is an unfamiliar rattle from the passenger side mid truck. Any ideas?
Old Sep 12, 2013 | 07:12 PM
  #35324
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by karl4x4

First, the top ball joint will adjust with the opening of the steering knuckle. It in has about 3/8" of in and out play. The bottom joint is the one that resist ALL the up/down motion.
Second, the rubber is just a dust booth. There's grease in it normally but that's not where the lubrication is required. Its inside the ball joint. When they start bulging while greasing that mean the grease made it past the ball.

If you go to tight (to a point) that just mean that next time you have to replace it, it will be harder separate it from the knuckle. It will not change anything on the functionality of the ball joints. If you have a 3 foot wrench and go stupid tight, you risk damaging the steering knuckle part as it will be forced to open from the tapered stud going true.
Thanks for the info, but uh, how should I proceed? Top joints tightened up just fine. Am I correct in interpreting that I should just tighten it to spec anyway? I thought these should only go so far on account of the stud and hole bring tapered?
Old Sep 12, 2013 | 07:45 PM
  #35325
karl4x4's Avatar
Senior Member

Joined: May 2013
Posts: 541
Likes: 1
From: Vancouver
Year: 1998 and 1988
Model: Cherokee
Engine: 4.7
Default

Originally Posted by salad
Thanks for the info, but uh, how should I proceed? Top joints tightened up just fine. Am I correct in interpreting that I should just tighten it to spec anyway? I thought these should only go so far on account of the stud and hole bring tapered?
Germain specs.. goodandtight...

75Ft/lb
