Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.
Old Sep 21, 2015, 03:49 PM
How-Tos on this Topic
Last edit by: IB Advertising
See related guides and technical advice from our community experts:

Browse all: General Overview
Print Wikipost

XJ Ask the Question Thread

Thread Tools

Search this Thread

Old Apr 29, 2013 | 09:23 AM
  #29716
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by wiggles

...what? You are looking for a chime box on your drive shaft and you already looked behind the plastic?

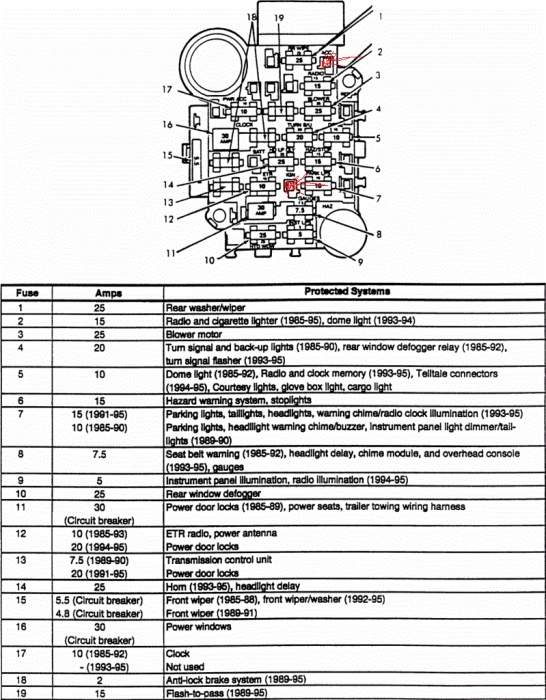

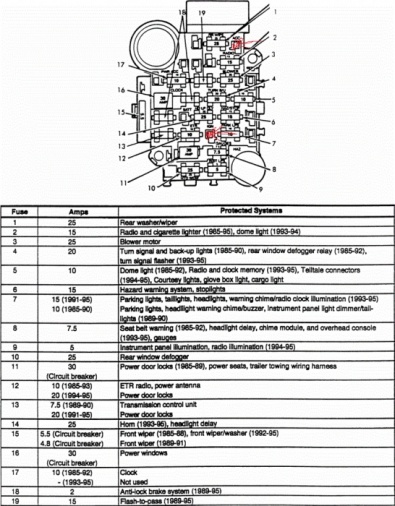

He needs someone wit da image dawg

Square thing on the top but it's actually on the left side in real life
XJ Ask the Question Thread-image-2380242327.jpg
Old Apr 29, 2013 | 10:02 AM
  #29717
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

English isn't his first language, and he has an export diesel XJ. Help out if you can.
Old Apr 29, 2013 | 10:03 AM
  #29718
cf1k1's Avatar
CF Veteran

Joined: Aug 2010
Posts: 8,387
Likes: 1
From: The Florida State University
Year: 2001
Model: Cherokee
Engine: I-6 4.0 L
Default

Originally Posted by joaopaulo
About the jeep cherokee from 2000 year i would like to ask if anyone knows or can explain me where is located the chime box ...i know its under the drive shaft and i alreaddy was there looking after gett out the plastics but i see several boxes and i cant figer itout whish the box is.....i need help whit the image of the box or something ...thankyou
¿Hables español?
Old Apr 29, 2013 | 10:05 AM
  #29719
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by cf1k1

¿Hables español?
I think Portuguese is his native tongue. Might be wrong, and I don't know how many languages he speaks.
Old Apr 29, 2013 | 10:55 AM
  #29720
Eagle564's Avatar
Senior Member

Joined: Nov 2012
Posts: 521
Likes: 0
From: Oregon
Year: 1996
Model: Cherokee
Engine: 4.0
Default

So i got a couple questions regarding wiring up the efan to a switch. One, do i just need a switch and wire? Then wire the positive to the switch, ground out the negative from the fan(and no ground from the switch itself), then take a wire from the switch to the battery?

2, i know the fan comes on during ac use and the defrosters, do u need to turn it on periodically yourself then when using defrosters or ac?
Old Apr 29, 2013 | 10:58 AM
  #29721
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by Eagle564
So i got a couple questions regarding wiring up the efan to a switch. One, do i just need a switch and wire? Then wire the positive to the switch, ground out the negative from the fan(and no ground from the switch itself), then take a wire from the switch to the battery?

2, i know the fan comes on during ac use and the defrosters, do u need to turn it on periodically yourself then when using defrosters or ac?
Read the write up in my sig...

1.) 1 wire from the switch goes to any ground on the Jeep. The other goes to the dark blue with pink stripe wire going to the ECU.
2.) No
Old Apr 29, 2013 | 11:07 AM
  #29722
MoparNJeep's Avatar
CF Veteran

Joined: May 2012
Posts: 1,209
Likes: 5
From: Puyallup wa
Year: 1999
Model: Cherokee
Engine: 4.5L Stroker
Default

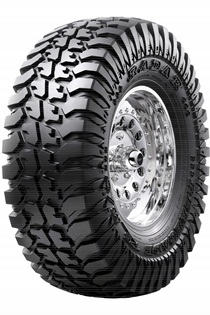

Omni radar renegades. There made about 120mi south of Mexican/us border. Anyone seen or heard of these. Or know a us distributer/prices. Not looking to buy just like to know about what's out there.
Attached Images
Old Apr 29, 2013 | 11:19 AM
  #29723
PNWjeeper's Avatar
CF Veteran

Joined: Feb 2012
Posts: 1,206
Likes: 2
From: Southern Oregon
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Is anyone else annoyed that the cigarette lighter only works when the jeep is in the on position? I sure am, and I was wondering if it would be a good idea to run just a 12v wire from the batt+ or another source to the lighter. Would it constantly drain my battery or work like ALL other cars cigarette lighters do? I suppose if nothing else I could hook it to a switch right ,then turn it on and off whenever I wanted.

Ideas or insight is much appreciated thanks everyone.
Old Apr 29, 2013 | 11:22 AM
  #29724
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by PNWjeeper
Is anyone else annoyed that the cigarette lighter only works when the jeep is in the on position? I sure am, and I was wondering if it would be a good idea to run just a 12v wire from the batt+ or another source to the lighter. Would it constantly drain my battery or work like ALL other cars cigarette lighters do? I suppose if nothing else I could hook it to a switch right ,then turn it on and off whenever I wanted.

Ideas or insight is much appreciated thanks everyone.
I'd go with a switch. Not all cars have constant power there; especially older models.
Old Apr 29, 2013 | 11:22 AM
  #29725
Donerighthandyman's Avatar
Newbie

Joined: Apr 2013
Posts: 4
Likes: 0
From: Port Orchard, Washington
Year: 1996
Model: Grand Cherokee
Engine: 5.2L
Unhappy HELP...

Ok I'm new here so feel free to criticize. I have a 96 Grand Cherokee 5.2L. with a glass pack and cold air intake if it matters. It started studdering upon acceleration right about 3,000 rmps at first only at 1/2 to 3/4 of throttle almost like a governor. so i replaced the plugs. Then cap and rotor. Checked all my fluids. and replaced the MAP sensor. NO CHANGE checked the codes and got a #7 misfire and a general misfire cleared the codes after replacing the parts.... today i take my son to school. i was making it to do it again. and it dies. starts makes to school and back dies 2 more times. in under 5 miles of road. and now its in my driveway and will not start again. I'm going to make sure fuel level isn't a problem. it says an 1/8 of tank but i have had several issues with that. But that's a different discussion. also about the same time this started i got a rattle in my exhaust something is in there right after my ressinator. I am new to owning a jeep but not mechanics. but im dumbfounded plz help
Old Apr 29, 2013 | 11:22 AM
  #29726
Lowrange2's Avatar
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default

Originally Posted by PNWjeeper
Is anyone else annoyed that the cigarette lighter only works when the jeep is in the on position? I sure am, and I was wondering if it would be a good idea to run just a 12v wire from the batt+ or another source to the lighter. Would it constantly drain my battery or work like ALL other cars cigarette lighters do? I suppose if nothing else I could hook it to a switch right ,then turn it on and off whenever I wanted.

Ideas or insight is much appreciated thanks everyone.


As long as it's fused there's nothing wrong with that.

It won't drain your battery any more than any other vehicle.

I'd just run a fused wire straight to one of the vacant spots on the fuse panel.

There's no sense in going all the way to the battery.
Old Apr 29, 2013 | 11:24 AM
  #29727
Lowrange2's Avatar
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default

Originally Posted by Donerighthandyman
Ok I'm new here so feel free to criticize. I have a 96 Grand Cherokee 5.2L. with a glass pack and cold air intake if it matters. It started studdering upon acceleration right about 3,000 rmps at first only at 1/2 to 3/4 of throttle almost like a governor. so i replaced the plugs. Then cap and rotor. Checked all my fluids. and replaced the MAP sensor. NO CHANGE checked the codes and got a #7 misfire and a general misfire cleared the codes after replacing the parts.... today i take my son to school. i was making it to do it again. and it dies. starts makes to school and back dies 2 more times. in under 5 miles of road. and now its in my driveway and will not start again. I'm going to make sure fuel level isn't a problem. it says an 1/8 of tank but i have had several issues with that. But that's a different discussion. also about the same time this started i got a rattle in my exhaust something is in there right after my ressinator. I am new to owning a jeep but not mechanics. but im dumbfounded plz help

I'd start with 5 gallons of gas.
Old Apr 29, 2013 | 11:31 AM
  #29728
DESERTXJ206's Avatar
CF Veteran

Joined: May 2011
Posts: 1,458
Likes: 2
From: Glendale,Az
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default

Originally Posted by cruiser54

Is the starter coated in oil from a present or previous oil leak?

If so, you can disassemble the starter, spray the parts off with Brake-kleen and reassembble it most likely.

BTW, how's your son?
It is covered in oil from some leaks. But lately I have been having really slow starta and Iv got a brand new battery that tests perfect so im assiming the starter is on its way out anyway?

My sons doing much better, he had a seizure lasting 23 min.After that his body stayed stiff for about 1 hour, they had to give him a super dose of his regular seizure meds to get him stable. This morning hes up, no fuss and seems to be feeling great. Hopefully we get to go home today.
Old Apr 29, 2013 | 11:31 AM
  #29729
Cherokeekid4x4's Avatar
CF Veteran

Joined: Feb 2012
Posts: 2,652
Likes: 2
From: Kansas
Year: 1994
Model: Cherokee
Engine: 190-hp, 4.0-liter I-6
Default

Is royal purple gear oil worth it? Is it better than most cheap brands?
Old Apr 29, 2013 | 11:50 AM
  #29730
DieselD's Avatar
CF Veteran

Joined: Apr 2011
Posts: 4,825
Likes: 2
From: Indianapolis
Year: '99 and '91
Model: Cherokee
Default

Originally Posted by PNWjeeper
Is anyone else annoyed that the cigarette lighter only works when the jeep is in the on position? I sure am, and I was wondering if it would be a good idea to run just a 12v wire from the batt+ or another source to the lighter. Would it constantly drain my battery or work like ALL other cars cigarette lighters do? I suppose if nothing else I could hook it to a switch right ,then turn it on and off whenever I wanted.

Ideas or insight is much appreciated thanks everyone.
Yes! Well on my 91 I was. Then I got a 99 , it has a cig lighter AND ankther socket for accessories. The one for accessories stays on whether key is on or not. The CIG lighter doesn't.

Maybe find a diagram for how the 99s extra port is wired up and go from there.

Another option, I've seen people hardwire USB ports for charging phones. I know there's was a guy on CF that did it.
