Feb 22, 2013 | 12:42 PM

#24451

DESERTXJ206

CF Veteran

Joined: May 2011

Posts: 1,458

Likes: 2

From: Glendale,Az

Year: 1990

Model: Cherokee

Engine: 4.0l 6Cyl

Quote:

Originally Posted by dukie564

the one directly opposite the pressure regulator is the return line. I believe the back one is the supply (at least on mine)

On my 90 theres one at the fire wall and one end near the belt. I believe the inlet is at the firewall but idk.

Feb 22, 2013 | 01:23 PM

#24452

joaopaulo

Junior Member

Joined: Nov 2012

Posts: 71

Likes: 0

Model: Cherokee

i would like to know how much fluid oil the gearbox of the jeep cherokee should have inside ..thankyou

Feb 22, 2013 | 01:24 PM

#24453

PNWjeeper

CF Veteran

Joined: Feb 2012

Posts: 1,206

Likes: 2

From: Southern Oregon

Year: 1990

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by PNWjeeper

I don't know much about how lockers work so... without taking off the diff cover is it possible to find out if you have a locker in there? And then of course if it is possible, how? And finally later on this summer when i do fluids (if I do indeed have a locker) is there a way to tell which brand easily?
Thanks for bearing with my noob locker questions.

Quote:

Originally Posted by wiggles

Just put the axle on jack stands and spin one tire, much easier

Quote:

Originally Posted by PNWjeeper

Gottcha, sounds like I'm jacking up the front end.
Thanks again guys

Jacked up the front of my jeep and spun the front tires as hard as I could and the opposite side would slightly move in the opposite direction.
Ex: spun the driver side tire as if the car was in drive and the passenger side would start to spin as if it were in reverse.

Feb 22, 2013 | 01:29 PM

#24454

hick92

CF Veteran

Joined: Nov 2012

Posts: 1,491

Likes: 0

Quote:

Originally Posted by PNWjeeper

It ain't locked

Feb 22, 2013 | 01:32 PM

#24455

PNWjeeper

CF Veteran

Joined: Feb 2012

Posts: 1,206

Likes: 2

From: Southern Oregon

Year: 1990

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by hick92

It ain't locked

Damn.

That's what I thought but I had high hopes. Thanks hick.

Feb 22, 2013 | 01:33 PM

#24456

ScikoFaery

Seasoned Member

Joined: Jan 2013

Posts: 298

Likes: 0

From: Pinehurst

Year: 2000

Model: Cherokee

Engine: H.O. 4.0L I6

Quote:

Originally Posted by ehracing67

On 97 up, take both sides of center bezel at the very bottom and pull towards you. The radio is held in with a couple screws.
Not sure about them older ones.

thanks thats what i figured just didnt wanna pull on it and break something lol i have a 2000 (:

Feb 22, 2013 | 01:37 PM

#24457

ehracing67

CF Veteran

Joined: Aug 2011

Posts: 1,090

Likes: 0

From: Lehigh Valley, Pennsylvania

Year: 1999

Model: Cherokee

Engine: 4.0 stroked to 4.6, Thanks to Teasdale'sMachine!

Quote:

Originally Posted by ScikoFaery

thanks thats what i figured just didnt wanna pull on it and break something lol i have a 2000 (:

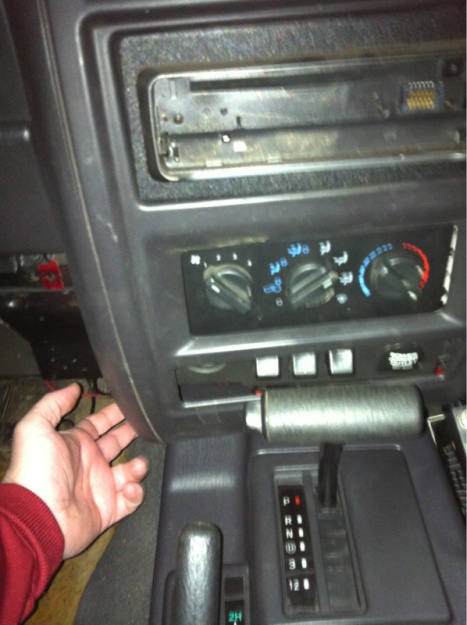

Yep. Grab it here and opposite side and pull then work it off towards the top.

XJ Ask the Question Thread-image-3236734456.jpg

XJ Ask the Question Thread-image-3073584897.jpg

XJ Ask the Question Thread-image-1818814982.jpg

Two screws for the radio.

Feb 22, 2013 | 01:41 PM

#24458

hick92

CF Veteran

Joined: Nov 2012

Posts: 1,491

Likes: 0

Quote:

Originally Posted by PNWjeeper

Damn.

That's what I thought but I had high hopes. Thanks hick.

No problem

Feb 22, 2013 | 01:48 PM

#24459

cruiser54

::CF Moderator::

Joined: Aug 2011

Posts: 43,971

Likes: 1,578

From: Prescott, Az

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

Quote:

Originally Posted by joeogio

yesterday morning i let my 1990 xj laredo warm up while i was getting ready for work and it over heated and sprayed antifreeze out of the plastic expansion tank when i realized the problem and shut the engine off and let her cool down a bit and replenished the coolant and drove to work.

i later on realized that my wipers, turn signals, and blower no longer work.
its possible that whatever caused that stuff to quit working happened before it overheated, and i just noticed it after.

i checked the blower fuse and the accessory fuse and those look fine, everything else seems normal my voltage seems fine and the xj seems to run just fine.

any suggestions on what the problem could be?

Brown wire on the ignition switch is probably burned.

Attached Images

Feb 22, 2013 | 01:51 PM

#24460

kwcamden

Newbie

Joined: Feb 2013

Posts: 4

Likes: 0

Model: Cherokee

Quote:

Originally Posted by Eagle564

What size tires? Ill take a stab at it though. 3"s maybe? I dont know the stock specs for how a grand cherokee sits so that you could measure it.

Id say a nice trade regardless. Way better than a minivan lol

They are actually 31s... I'd like to get 33's on it, it looks like they will fit, but I'm not quite sure how much of a lift is on it... I'm headed to the tire store this weekend, just wanted to get an idea of what I was looking at... and yes.. way better than my divorce, leftover minivan....

Feb 22, 2013 | 02:27 PM

#24461

Lowrange2

Junior Member

Joined: May 2008

Posts: 15,016

Likes: 11

From: +34° 25' 35.67", -81° 21' 12.04"

Year: 1993

Engine: 4.0

Quote:

Originally Posted by kwcamden

I'd guess it's 3"s as well.

Feb 22, 2013 | 02:29 PM

#24462

Hot DogsJeep

Junior Member

Joined: Oct 2012

Posts: 52

Likes: 0

From: Broward County

Year: 1998

Model: Cherokee

Engine: 4.0

My Front passenger window came loose inside. I the opend panel and noticed the loose worm cable. It does not appear to be broken. So How do I re connect it and where does it reconnect?
Also Need a diagram for reconnecting worm cable passenger window regulator

Feb 22, 2013 | 02:32 PM

#24463

DieselD

CF Veteran

Joined: Apr 2011

Posts: 4,825

Likes: 2

From: Indianapolis

Year: '99 and '91

Model: Cherokee

Quote:

Originally Posted by Hot DogsJeep

It'd be a bit more complicated than just re-attaching it. I'm willing to bet the little plastic piece that the worm gear pushes against is broken. Mine was. Had to cut the plastic part off, drill holes in the bracket that attaches to the window and use cotter pins to hold onto the worm gear. Worked great.

Go check, if the worm gear just slides through the bracket, than its broken.

Feb 22, 2013 | 02:50 PM

#24464

salad

Herp Derp Jerp

Joined: Nov 2011

Posts: 18,251

Likes: 17

From: Parham, ON

Year: 1999

Model: Cherokee

Engine: 4.0L OBD-II

Quote:

Originally Posted by joaopaulo

i would like to know how much fluid oil the gearbox of the jeep cherokee should have inside ..thankyou

I put approximately 3.8L into my AX-15

Feb 22, 2013 | 04:43 PM

#24465

joaopaulo

Junior Member

Joined: Nov 2012

Posts: 71

Likes: 0

Model: Cherokee

so how do you know its enoth or not ? i know there is a way to check the oil in gearbox but i really dont know yet how we do that ....this is funny case i went to open my gearbox becase my first and four gear was jumping and i found out i had less that half Lt inside and now checking all the pieces everithing is good and nothing damage .. i will have to pay more attencion in future case all my woark now was useless and i presume the problem was only the oil
