Jeep Cherokee Forum

Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.
Old Sep 21, 2015, 03:49 PM
How-Tos on this Topic
Last edit by: IB Advertising
See related guides and technical advice from our community experts:

Browse all: General Overview
Print Wikipost

XJ Ask the Question Thread

Thread Tools

Search this Thread

Old Jan 31, 2013 | 02:03 PM
Share
  #22516
DESERTXJ206's Avatar
DESERTXJ206
CF Veteran

Joined: May 2011
Posts: 1,458
Likes: 2
From: Glendale,Az
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default
Originally Posted by my89xj

Think there all the same. Think they're call spade connectors.
Just makin sure there not soldered or special clips
Old Jan 31, 2013 | 02:24 PM
Share
  #22517
BobF's Avatar
BobF
Member

Joined: Mar 2012
Posts: 202
Likes: 0
From: Reno
Year: 1990
Model: Cherokee
Engine: 4.0 I6
Default
Originally Posted by luckyunblock
So the axle and frame bolts for the upper control arm are the same?
This is what I have on my cheat sheet which I got from somewhere here on the forum:
The track bar bolt is: M10x1.5x75mm
LCA bolts are: M14x2.0mmx120mm
UCA bolts are: M10x1.5x110mm
Cross Member bolts are: 3/8"-24 (I think)

However, I think the LCAs might be better off at 110mm also.
Any help from others?
Old Jan 31, 2013 | 03:53 PM
Share
  #22518
my89xj's Avatar
my89xj
CF Veteran

Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Default
So I think my fuel pump is going bad, stuttering issue gets worse the more empty the tanks get.
Old Jan 31, 2013 | 03:58 PM
Share
  #22519
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default
Originally Posted by theyammieguy
Yes, I'm aware.

I've done quite a bit searching on here and I've read a lot. Most threads show how to cut, bit not where.

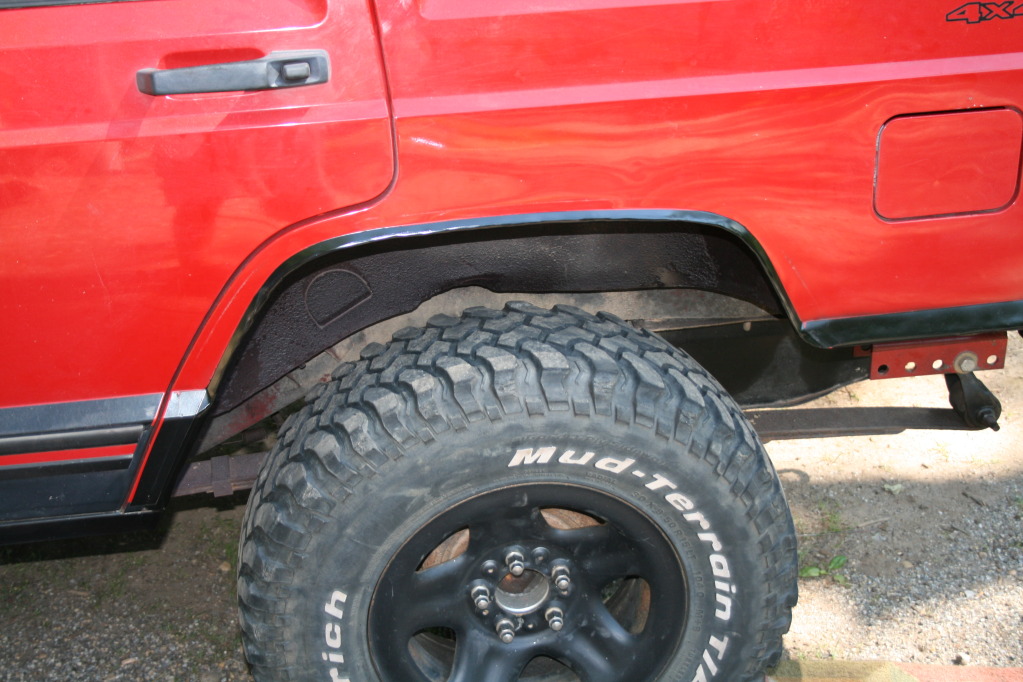

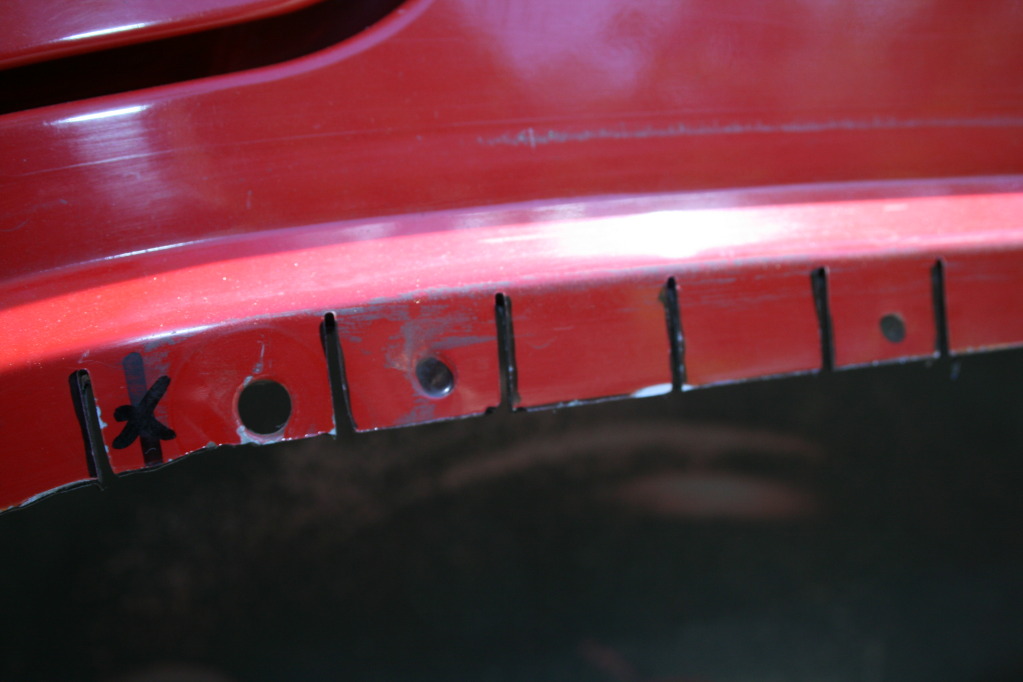

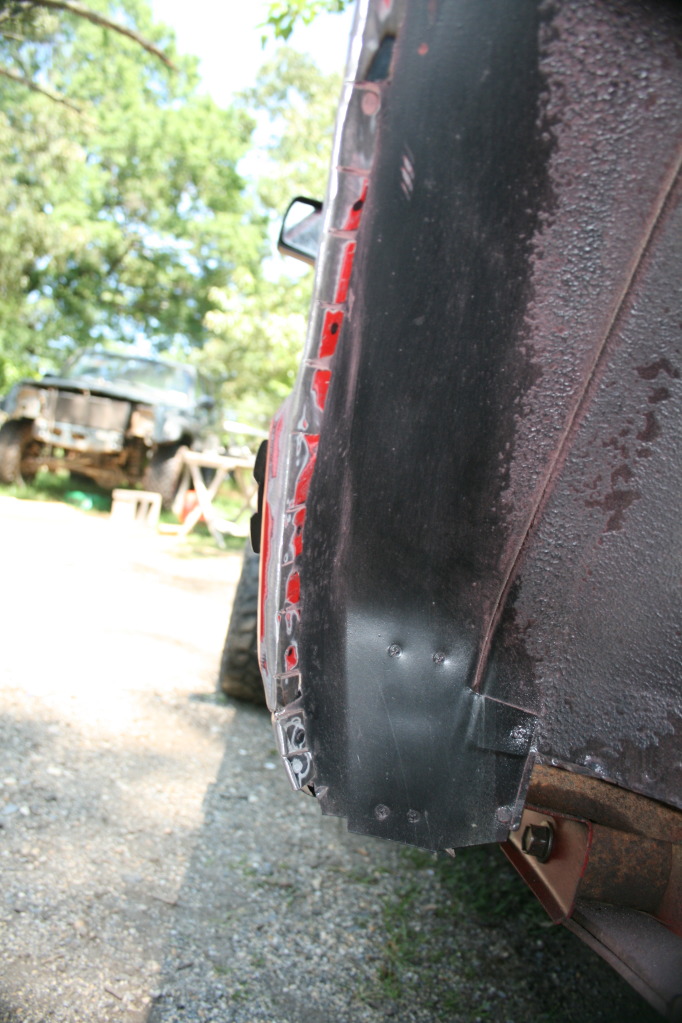

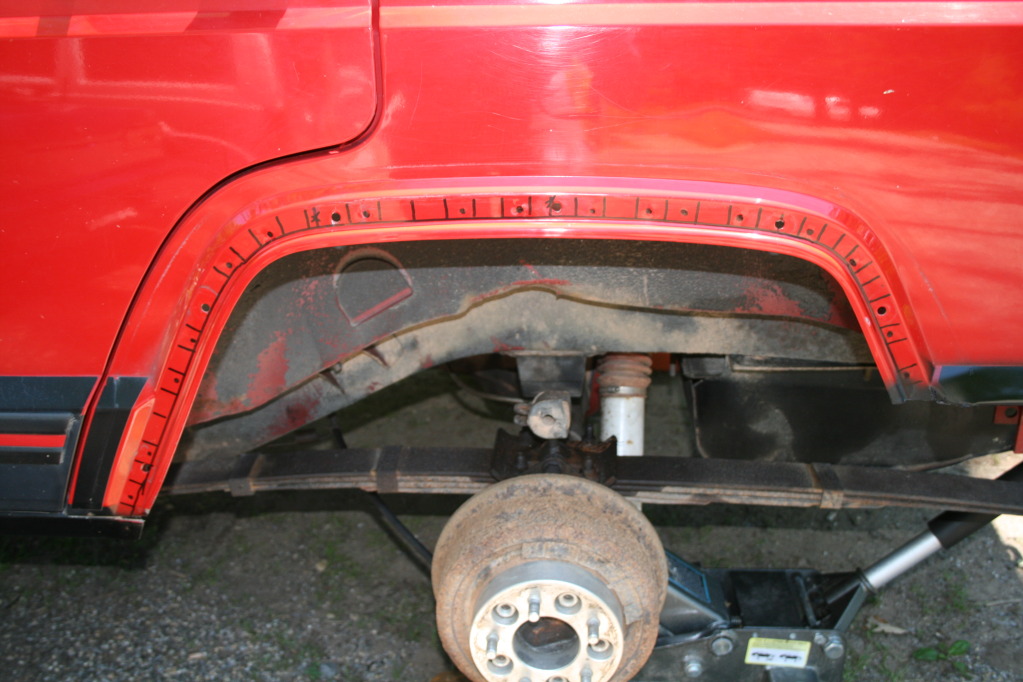

Like-a-dis

Name: IMG_7934.jpg Views: 38 Size: 179.5 KB
Name: IMG_7935.jpg Views: 31 Size: 104.9 KB
Name: IMG_7937.jpg Views: 82 Size: 200.7 KB
Name: IMG_7939.jpg Views: 70 Size: 203.2 KB
Old Jan 31, 2013 | 03:59 PM
Share
  #22520
I Leak Oil's Avatar
I Leak Oil
CF Veteran

Joined: Nov 2010
Posts: 3,251
Likes: 0
From: Frisco, Tx
Year: 1994
Model: Cherokee
Engine: 4.0
Default
Originally Posted by my89xj
So I think my fuel pump is going bad, stuttering issue gets worse the more empty the tanks get.
Sure its not a sloshing issue
Old Jan 31, 2013 | 03:59 PM
Share
  #22521
cruiser54's Avatar
cruiser54
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by dukie564
Like-a-dis




Nice!!
Old Jan 31, 2013 | 04:40 PM
Share
  #22522
my89xj's Avatar
my89xj
CF Veteran

Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Default
Originally Posted by I Leak Oil

Sure its not a sloshing issue
Explain? Its mostly when its still cold but can still happen at warm temp.
Old Jan 31, 2013 | 04:49 PM
Share
  #22523
straightsixjeep's Avatar
straightsixjeep
CF Veteran

Joined: Aug 2012
Posts: 1,539
Likes: 0
From: ks
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Im going to cut out my muffler and catalytic converter and weld new ones in. I want to sleeve weld them in since its stronger than butt welding. Should I flare the exhaust pipe to fit over the muffler/cat inlet/outlet, or flare the muffler/cat to slide over the exhaust pipe?
Old Jan 31, 2013 | 04:56 PM
Share
  #22524
NewKindOfClown's Avatar
NewKindOfClown
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by straightsixjeep
Im going to cut out my muffler and catalytic converter and weld new ones in. I want to sleeve weld them in since its stronger than butt welding. Should I flare the exhaust pipe to fit over the muffler/cat inlet/outlet, or flare the muffler/cat to slide over the exhaust pipe?
Overlap them so the exhaust gas isn't restricted. Pieces toward the rear should sleeve over pieces toward the manifold.
Old Jan 31, 2013 | 05:00 PM
Share
  #22525
straightsixjeep's Avatar
straightsixjeep
CF Veteran

Joined: Aug 2012
Posts: 1,539
Likes: 0
From: ks
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Originally Posted by NewKindOfClown
Overlap them so the exhaust gas isn't restricted. Pieces toward the rear should sleeve over pieces toward the manifold.
Thank you
Old Jan 31, 2013 | 05:23 PM
Share
  #22526
DESERTXJ206's Avatar
DESERTXJ206
CF Veteran

Joined: May 2011
Posts: 1,458
Likes: 2
From: Glendale,Az
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default
Any way to wire in a jumper switch to roll the window down and up? Driver front door window works when it has power but i need to know how to wire in some sore of switch for it ti work when i want it to.
Old Jan 31, 2013 | 05:34 PM
Share
  #22527
Houston Kid's Avatar
Houston Kid
Senior Member

Joined: Aug 2012
Posts: 583
Likes: 0
From: Clear Lake, TX
Year: 1999 Jeep Cherokee
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Eagle564
Well my 96 SE only has the idiot lights, what would it take to swap in some real gauges, atleast a temp gauge and an oil pressure gauge into the idiot light spots? From my understanding I'd need the new gauge, then a new Oil Pressure Sensor and just replace? Not sure on the Temp one. Anyone have links to any threads on it(Search wasn't bein nice)?
Found this.

http://www.naxja.org/html/techarticles/gauge/Gauge.htm
Old Jan 31, 2013 | 05:41 PM
Share
  #22528
Hot DogsJeep's Avatar
Hot DogsJeep
Junior Member

Joined: Oct 2012
Posts: 52
Likes: 0
From: Broward County
Year: 1998
Model: Cherokee
Engine: 4.0
Default
1998 Cherokee Classic, Thanks to all on OEM fog lights and switch (Its Alive!)

Now how about the Emergency/ Parking Brake light. (it's on all the time)
Brakes / Emergency Brake / Fluid / no air in lines/ All functioning okay.
So do I have to remove part of the center console to get access to and play with the switch?
Old Jan 31, 2013 | 05:48 PM
Share
  #22529
salad's Avatar
salad
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default
Originally Posted by Hot DogsJeep
1998 Cherokee Classic, Thanks to all on OEM fog lights and switch (Its Alive!)

Now how about the Emergency/ Parking Brake light. (it's on all the time)
Brakes / Emergency Brake / Fluid / no air in lines/ All functioning okay.
So do I have to remove part of the center console to get access to and play with the switch?
Yup it's right underneath it between the seats. I can't remember if the switch is normally open or normally closed, so the wire may be shorted to the transmission tunnel or simply popped off of the connector
Old Jan 31, 2013 | 06:35 PM
Share
  #22530
theyammieguy's Avatar
theyammieguy
Senior Member

Joined: Apr 2009
Posts: 791
Likes: 0
From: Houston Texas
Year: 1996
Model: Cherokee
Engine: I6
Default
Originally Posted by dukie564
Like-a-dis
I'm subscribed to your thread.
