XJ Ask the Question Thread

Thread Tools

Search this Thread

Old Jan 30, 2013 | 03:09 PM
Share
  #22396
xj_maniac_newb's Avatar
xj_maniac_newb
CF Veteran

Joined: Sep 2009
Posts: 6,322
Likes: 6
From: Summerville, Ga
Year: 1995
Model: Cherokee
Engine: 2.5 4 cyl.
Default
Originally Posted by NewJerseyXJ609
Anyone have a write up handy for cutting and folding the lower part of the rear quarter panels? Not the fender I've already got that all cut and folded but I want to do that bottom portion too. The bottom portion with the bracket for the flare.
Originally Posted by straightsixjeep
I just found a rust hole in my rear 1/4 panel under the end cap. Am I better off cutting the bad metal out and welding in new or cut and fold the 1/4?

Lol you both posted at the same time.. I think this is a sign straightsixjeep.
Last edited by xj_maniac_newb; Jan 30, 2013 at 03:13 PM.
Old Jan 30, 2013 | 03:10 PM
Share
  #22397
Lowrange2's Avatar
Lowrange2
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default
Originally Posted by NewJerseyXJ609
Anyone have a write up handy for cutting and folding the lower part of the rear quarter panels? Not the fender I've already got that all cut and folded but I want to do that bottom portion too. The bottom portion with the bracket for the flare.

https://www.cherokeeforum.com/f58/re...rite-up-94546/
Old Jan 30, 2013 | 03:14 PM
Share
  #22398
jeepsurfer1's Avatar
jeepsurfer1
CF Veteran

Joined: May 2011
Posts: 2,516
Likes: 4
From: va
Year: 1996
Model: Cherokee
Engine: i-6 4.0
Default
Originally Posted by luckyunblock

Do you know the diameter and length? The reason i am asking is because I had to cut them off, rusted to bad.
Awh I see axle side I'm guessing?
Old Jan 30, 2013 | 03:14 PM
Share
  #22399
NewJerseyXJ609's Avatar
NewJerseyXJ609
CF Veteran

Joined: Jul 2009
Posts: 2,522
Likes: 0
From: New Jersey
Year: 2000
Model: Cherokee
Engine: l6 HO
Default
Originally Posted by xj_maniac_newb
Lol you both posted at the same time.. I think this is a sign straightsixjeep.
Lol that's pretty funny





Originally Posted by lowrange2
Thank you good sir
Old Jan 30, 2013 | 03:16 PM
Share
  #22400
dukie564's Avatar
dukie564
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

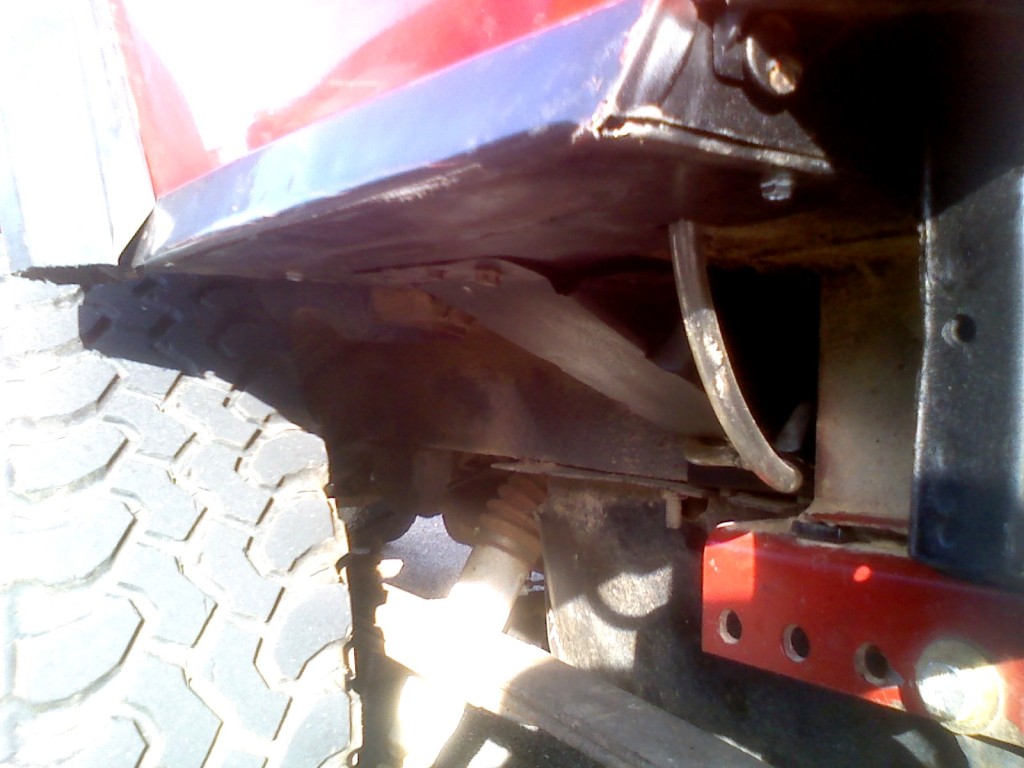

Originally Posted by NewJerseyXJ609
Anyone have a write up handy for cutting and folding the lower part of the rear quarter panels? Not the fender I've already got that all cut and folded but I want to do that bottom portion too. The bottom portion with the bracket for the flare.
http://www.jeepforum.com/forum/f11/c...t-way-1007865/
http://www.naxja.org/forum/showthrea...light=cut+fold

Name: 0429121822-00.jpg Views: 38 Size: 133.4 KB
Old Jan 30, 2013 | 03:18 PM
Share
  #22401
Lowrange2's Avatar
Lowrange2
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default
Ya know, I kinda want to cut and fold my quarters on my DD but I haven't cut it anywhere. I think it's about time to start.
Old Jan 30, 2013 | 03:19 PM
Share
  #22402
luckyunblock's Avatar
luckyunblock
Junior Member

Joined: Dec 2012
Posts: 89
Likes: 0
From: Fredericksburg
Model: Cherokee
Default
Originally Posted by luckyunblock

Do you know the diameter and length? The reason i am asking is because I had to cut them off, rusted to bad.

Do you know the diameter and length? The reason i am asking is because I had to cut them off, rusted to bad
Old Jan 30, 2013 | 03:22 PM
Share
  #22403
luckyunblock's Avatar
luckyunblock
Junior Member

Joined: Dec 2012
Posts: 89
Likes: 0
From: Fredericksburg
Model: Cherokee
Default
Wanting to know what size bolt went into the upper control arms, if I could get the diameter and length, I would appreciate it
Old Jan 30, 2013 | 03:25 PM
Share
  #22404
Lowrange2's Avatar
Lowrange2
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default
Originally Posted by luckyunblock
Do you know the diameter and length? The reason i am asking is because I had to cut them off, rusted to bad
Worried you got overlooked?

Lower control arm bolts are 120mm long, M14x2.0mm, ISO Property Class 10.9. The stock ones are roughly equivalent to grade 8.

Uppers are 120mm M10x1.25mm. ISO Property Class 10.9
Old Jan 30, 2013 | 03:32 PM
Share
  #22405
luckyunblock's Avatar
luckyunblock
Junior Member

Joined: Dec 2012
Posts: 89
Likes: 0
From: Fredericksburg
Model: Cherokee
Default
Originally Posted by lowrange2

Worried you got overlooked?

Lower control arm bolts are 120mm long, M14x2.0mm, ISO Property Class 10.9. The stock ones are roughly equivalent to grade 8.

Uppers are 120mm M10x1.25mm. ISO Property Class 10.9
Awesome, next question where would I find these? Lowes?
Old Jan 30, 2013 | 03:35 PM
Share
  #22406
Lowrange2's Avatar
Lowrange2
Junior Member

Joined: May 2008
Posts: 15,016
Likes: 11
From: +34° 25' 35.67", -81° 21' 12.04"
Year: 1993
Engine: 4.0
Default
You'll probably have better luck at a smaller well stocked hardware store.

Our Tractor Supply has them.
Old Jan 30, 2013 | 03:36 PM
Share
  #22407
87laredoxj's Avatar
87laredoxj
Member

Joined: Jun 2011
Posts: 234
Likes: 0
From: Post Falls, Idaho
Year: 1990
Model: Cherokee
Engine: 4.0
Default
anybody know what the check antilock light means in my 1990 laredo and how do i fix it? any help is great
Old Jan 30, 2013 | 03:36 PM
Share
  #22408
bhennessee1's Avatar
bhennessee1
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Originally Posted by luckyunblock

Awesome, next question where would I find these? Lowes?
Originally Posted by lowrange2
You'll probably have better luck at a smaller well stocked hardware store.

Our Tractor Supply has them.
If you have a fastenal near you, they would almost certainly have it.
Old Jan 30, 2013 | 03:37 PM
Share
  #22409
luckyunblock's Avatar
luckyunblock
Junior Member

Joined: Dec 2012
Posts: 89
Likes: 0
From: Fredericksburg
Model: Cherokee
Default
Originally Posted by lowrange2
You'll probably have better luck at a smaller well stocked hardware store.

Our Tractor Supply has them.
Thanks man
Old Jan 30, 2013 | 03:42 PM
Share
  #22410
straightsixjeep's Avatar
straightsixjeep
CF Veteran

Joined: Aug 2012
Posts: 1,539
Likes: 0
From: ks
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Originally Posted by xj_maniac_newb
Lol you both posted at the same time.. I think this is a sign straightsixjeep.
What are the chances of that happening? Either way its pretty cool. I really like the idea of the cut and fold because then theres less chance of tons of mud getting stuck up in there around the rear leaf spring pack bolt. Also would take care of the rust. The only downfall is that it will look funny until I have the $ to build a rear bumper with a wrap around that covers that portion, like jcr's bumpers. Could also just patch the rust spot and make some lower 1/4 panel armor out of 3/16 steel. I think Il make the armor and down the road if I hit something big enough to dent the armor, and the panel, Il just cut it.
