Transfer Case ID Help
#1
Newbie
Thread Starter
Join Date: Dec 2013
Location: Levittown
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 liter
Transfer Case ID Help
Hello to all,
After about 254 pages and post only thing I can find is 242 and 231 case parts info or ones stronger than the other.
Overview on vehicle:
I have a 99 Jeep XJ sport loaded,4x4, I6, AW4 Auto, Zone 4.5 lift with full leaves, Zone steering stab and shocks, Additionally RC Adjustable Front Track Bar 4-6" of lift and RC LCA drop Brkt kit. TJ rims with 255/70/18 Hankook AT's on 5x5 adapters.
Is there a number on T case or on body somewhere that I can determine which case I have? Is it denoted by shifter pattern on console?

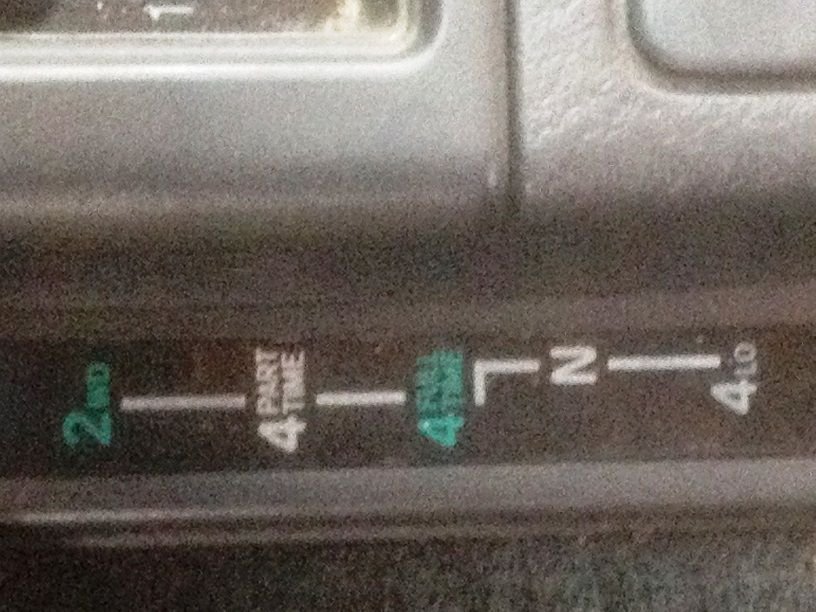

Here is a pic of my shifter.
Thanks ahead time for any light you can shed on this.
After about 254 pages and post only thing I can find is 242 and 231 case parts info or ones stronger than the other.
Overview on vehicle:
I have a 99 Jeep XJ sport loaded,4x4, I6, AW4 Auto, Zone 4.5 lift with full leaves, Zone steering stab and shocks, Additionally RC Adjustable Front Track Bar 4-6" of lift and RC LCA drop Brkt kit. TJ rims with 255/70/18 Hankook AT's on 5x5 adapters.
Is there a number on T case or on body somewhere that I can determine which case I have? Is it denoted by shifter pattern on console?
Here is a pic of my shifter.
Thanks ahead time for any light you can shed on this.
#2
Senior Member
You have the NP242 according to the bezel.
However, there is a round tag on the transfer case itself that will tell you what the unit actually is.
It's the red tag in that photo. Likely it will be completely covered in grime
I once bought a cherokee that had the bezel from a 242, but the original unit had been swapped for a 231.
However, there is a round tag on the transfer case itself that will tell you what the unit actually is.
It's the red tag in that photo. Likely it will be completely covered in grime
I once bought a cherokee that had the bezel from a 242, but the original unit had been swapped for a 231.
#3
Newbie
Thread Starter
Join Date: Dec 2013
Location: Levittown
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 liter
Thanks yes when I was cleaning underneath vehicle though it very clean to start with I did notice that tag I will look tonight.
I think I screwed though if it is a 242. I am getting driveline vibe . I took out rear shaft left front one in no vibration. Reversed process vibe is there. so its the rear drive shaft.
Is it possible to get a double CV drive shaft to smooth out the vibration? Time to do more post searching it think.
I think I screwed though if it is a 242. I am getting driveline vibe . I took out rear shaft left front one in no vibration. Reversed process vibe is there. so its the rear drive shaft.
Is it possible to get a double CV drive shaft to smooth out the vibration? Time to do more post searching it think.
Last edited by Ranger4219; 04-29-2016 at 03:25 PM.
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Put (have put) new U-Joints on the rear shaft. Spacers between the cross member and the frame to drop the TC may help (?). I'm not an expert on un-phucing lifted Heeps so someone that is should chime in.
:-)
:-)
Last edited by CCKen; 04-29-2016 at 03:45 PM.
#5
Senior Member
Most jeeps with the 242 and even a small lift require a transfer case drop (cheap and easy to install) or a slip yoke eliminator (not cheap and not something that you can undo, but is the better option) or you will get vibrations.
#7
Newbie
Thread Starter
Join Date: Dec 2013
Location: Levittown
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 liter
[/SIZE]Hi folks took a few pics under the transfer case

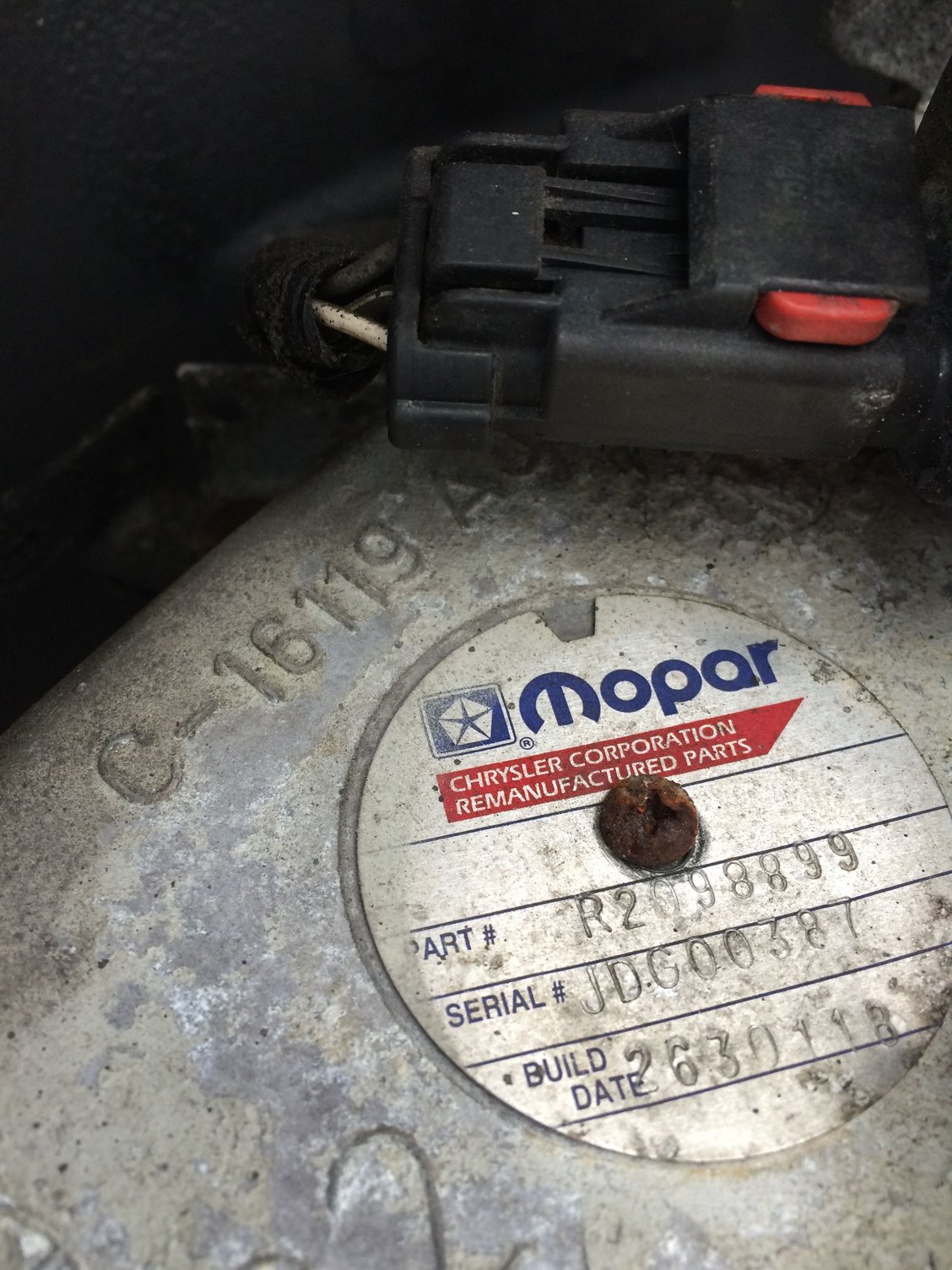

Case has a tag on see pics and a big case number stamped
C-16119 AJ
MOPAR tag screwed on case as mentioned what to look for
Part# R2098899
Serial#JDG00387
Build Date: 2630118
I know I have been told it's a 242 t case just wish to make before I buy custom driveshafts hack n tap
Or this driveshaft I found on eBay NON-SYE with CV what looks to make the SYE kits null.
Case has a tag on see pics and a big case number stamped
C-16119 AJ
MOPAR tag screwed on case as mentioned what to look for
Part# R2098899
Serial#JDG00387
Build Date: 2630118
I know I have been told it's a 242 t case just wish to make before I buy custom driveshafts hack n tap
Or this driveshaft I found on eBay NON-SYE with CV what looks to make the SYE kits null.
Trending Topics
#9
Beach Bum
I suggest avoiding that double cardon drive shaft with slip yoke. I tried one and it only reduces vibrations, does not eliminate them. Slip-joint needs to be in the drive shaft.

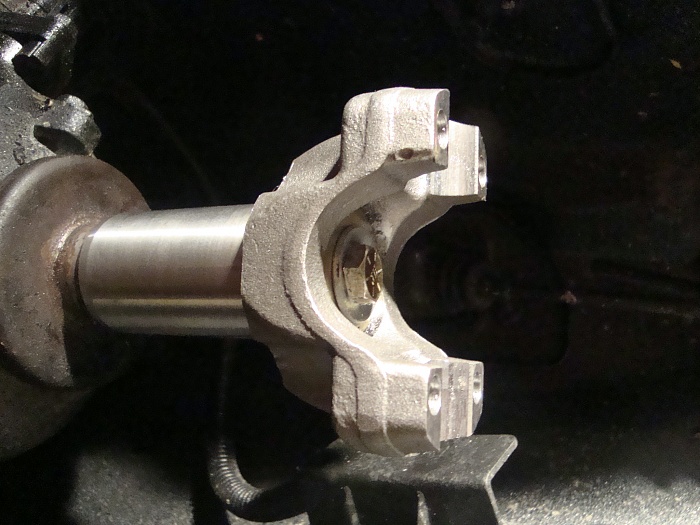

I did the hack-n-tap on my 242 about five years ago. Used my own front drive shaft for the rear until I could source another stock front shaft. $100 for the yoke, $50 for the drive shaft.
I did the hack-n-tap on my 242 about five years ago. Used my own front drive shaft for the rear until I could source another stock front shaft. $100 for the yoke, $50 for the drive shaft.
#10
I suggest avoiding that double cardon drive shaft with slip yoke. I tried one and it only reduces vibrations, does not eliminate them. Slip-joint needs to be in the drive shaft.
I did the hack-n-tap on my 242 about five years ago. Used my own front drive shaft for the rear until I could source another stock front shaft. $100 for the yoke, $50 for the drive shaft.
I did the hack-n-tap on my 242 about five years ago. Used my own front drive shaft for the rear until I could source another stock front shaft. $100 for the yoke, $50 for the drive shaft.
#11
Beach Bum
Correct, the fit is not good enough, there is a small amount of sideways slop between output shaft and drive shaft yoke.
Also, this system places the cardon joint further from TC than a hack-n-tap would.
I should have known because the ad said "helps reduce driveline vibrations". Reduction is not good enough, requires elimination.
Also, this system places the cardon joint further from TC than a hack-n-tap would.
I should have known because the ad said "helps reduce driveline vibrations". Reduction is not good enough, requires elimination.
#12
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
