Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go hereXJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.
Hello gentlemen. I need a second, third and a forth confirmation on whether my rear axle is a chrysler 8.25 or dana 35. Ive been looking at alot of axle covers to try and spot the differences and to me it looks like a chrysler 8.25 but i still need and experts confirmation. My jeep is a 1996 xj if that helps. Thanks Rear axle Numbers on the diff cover which i dont know what they stand for
1996 was the split year for 27 and 29 spline shafts - the only way to find out is to pull one out and have a look.
Originally Posted by Rainer
I thought the axles were a bit different or had some electronic components as well but if it is just the transfer case then it will be done very soon.
Not since the '80s! If both your '98 and your '99 are 4.0L Automatics then it's a direct swap. You need the transfer case, linkage for the shifter, the interior bezel, and the little thing under that which is called the shift gate. Wiring is a challenge but most XJs don't have working indicator lights anyway lol
Not since the '80s! If both your '98 and your '99 are 4.0L Automatics then it's a direct swap. You need the transfer case, linkage for the shifter, the interior bezel, and the little thing under that which is called the shift gate. Wiring is a challenge but most XJs don't have working indicator lights anyway lol
That is great news, thanks for the help. Both vehicles have working indicators Is it the entire wiring harness I need to move over or is it just a small part of it?
I need a second, third and a forth confirmation on whether my rear axle is a chrysler 8.25 or dana 35.
Ive been looking at alot of axle covers to try and spot the differences and to me it looks like a chrysler 8.25 but i still need and experts confirmation.
My jeep is a 1996 xj if that helps.
Thanks

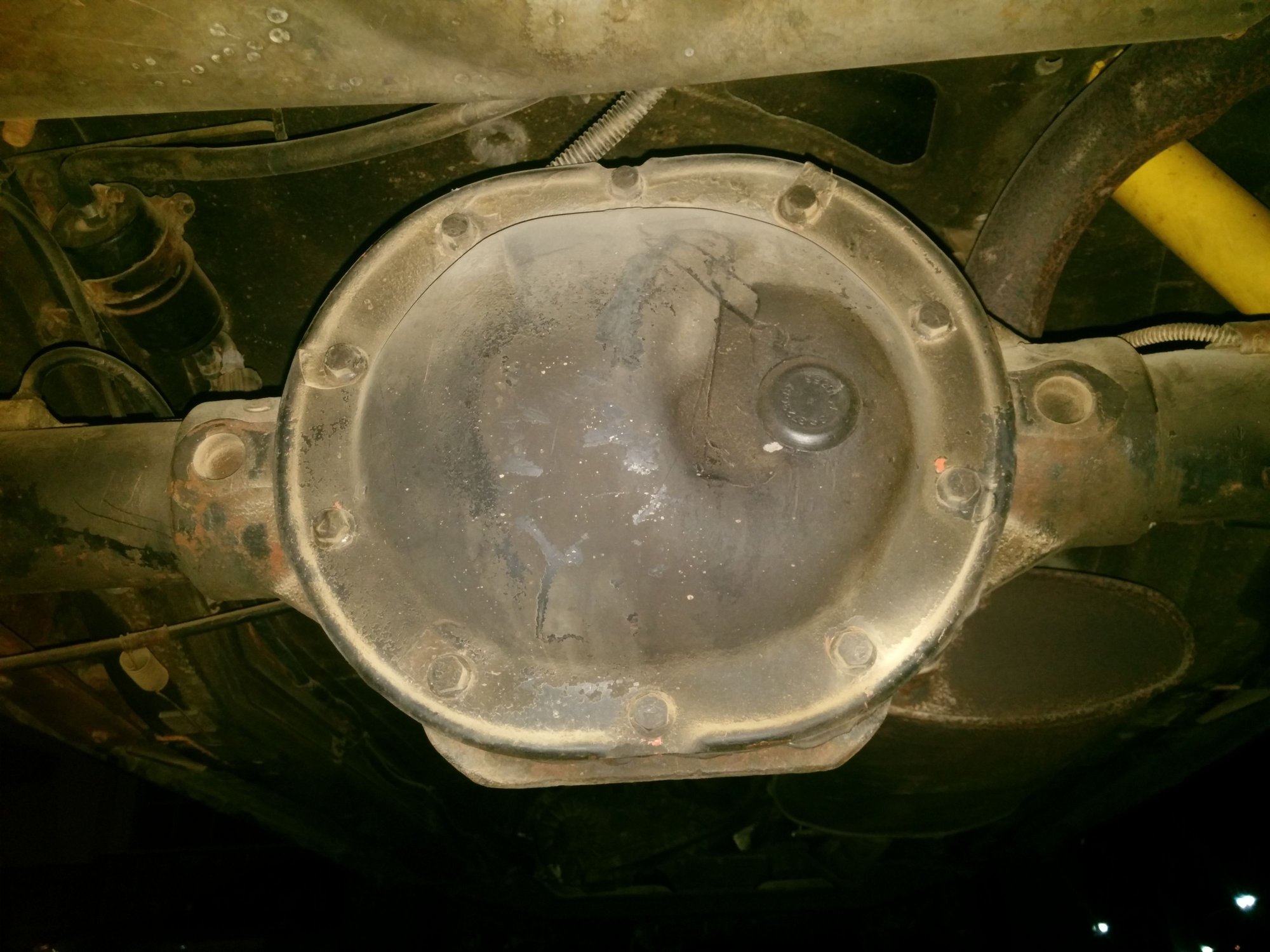

Rear axle
Numbers on the diff cover which i dont know what they stand for
Originally Posted by RSWiser
I need some help. 1999 Cherokee Sport 4.0 Automatic 4 Wheel. I had a serious Freeze plug leak, so I removed the Intake, Exhaust manifold, Injectors, etc. Replace the 5 freeze plugs on the side with Brass plugs. Re Installed everything. Replaced the anitfreeze and started it up. Took a couple seconds since the fuel rail had been off for a week. Once it fired up it ran smooth but immediately surged to 5000 rpm before I shut it down. Let it sit while I checked everything visibly. Couldn't see anything amiss. Started it again and same thing 5000 rpm. May have gone higher but I shut it down. What should I be looking for as a cause of this surge to 5000+ rpms. Thanks for any help you can lend. RSWiser
Originally Posted by RSWiser
Today I loosened everything and tried repositioning the Intake manifold. I am sure I got it on the guide pins. I could not slide it up, down or side to side. Re torqued everything to spec. Hooked every thing back up. Checked the throttle body and there are not obstructions, the butterfly opens and closes nicely. Started up and it immediately revved to the max again. Question, could be be the Idle Control Sensor or Throttle Position Sensor? Any other thoughts would be appreciated. RSWiser
Today I had a friend helping me, we could only start and stop the engine because it would rev up to red line immediately on start up. We could hear a vacuum leak at the back of the engine.
Could a leak in a vacuum line cause it to rev up to the max?
We both looked at the exhaust manifold and intake manifold and it appears to be seated properly. The Fuel injectors and properly seated and no leaks.
Could it be just a vacuum leak.
The line that goes from the valve cover to the intake manifold has a crack in the cover where it attaches to the manifold.
my rear window trim on the outside just started coming apart. basically one of the metal bracket is completely rusted and broke free (I'm guessing it's not the only one and others will follow).
I watched bleepinjeep's video on how you can replace them with 97+ ones, so solution-wise, I'm good. My question is rather how long can I wait before doing it? Can the water significantly get in and create more damage inside? Looking at it I have a feeling it's just a piece protecting the outside and the seal touching the window is what's important, but I'd rather be sure. i'm from the north east so there is bound to be water/snow in the following weeks.
4.7l 2000 Cherokee, oil pressure dropped, got p1391 changed both CPS and CKS, oil pressure sensor, than big back fire and blew aprt throttle body cover, now get p0121, change TPS and even the ECM. It starts but wont idle and is VERY ROUGH. Any Ideas. Plugs on left look good, Right side a little fouled. could the right cam have jumped off timing.
4.7l 2000 Cherokee, oil pressure dropped, got p1391 changed both CPS and CKS, oil pressure sensor, than big back fire and blew aprt throttle body cover, now get p0121, change TPS and even the ECM. It starts but wont idle and is VERY ROUGH. Any Ideas. Plugs on left look good, Right side a little fouled. could the right cam have jumped off timing.
You have a Grand Cherokee "WJ."
This is the Cherokee (XJ) section.
I did a search and didn't find what I was looking for. Is there a post or a place where they list parts interchange. I'm looking for direct fit door and other sheet metal interchange. The front end of all Cherokee looks the same to me and so due the doors that have vent windows so are they interchangeable?
I did a search and didn't find what I was looking for. Is there a post or a place where they list parts interchange. I'm looking for direct fit door and other sheet metal interchange. The front end of all Cherokee looks the same to me and so due the doors that have vent windows so are they interchangeable?
Body parts are the same for 84-96 and 97-01.
Parts across all years fit with some modification. Some heavy modification, and some light modification.
The front clip changed four times: 84-86, 87-90, 91-96, 97-01. The rear sheetmetal changes are 96-down and 97-up. Most of it can be made to interchange, but some of the body stamping won't change without major fabrication
The front clip changed four times: 84-86, 87-90, 91-96, 97-01. The rear sheetmetal changes are 96-down and 97-up. Most of it can be made to interchange, but some of the body stamping won't change without major fabrication
What was different about the earliest front clips?
Sep 21, 2015, 03:49 PM
Is it the entire wiring harness I need to move over or is it just a small part of it?
