Old May 27, 2014 | 09:22 PM
  #43081
FruitSnacks's Avatar
Senior Member

Joined: Feb 2014
Posts: 854
Likes: 1
From: Minnesota
Year: 1996
Model: Cherokee
Engine: 4.0
Default

I have no idea what yous guys are taking about... Lol
Old May 27, 2014 | 09:27 PM
  #43082
askingxforxit's Avatar
CF Veteran

Joined: Feb 2011
Posts: 3,500
Likes: 0
From: Long Beach, Ca
Year: 2000
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by salad

EDIT: Hmm that's completely useless without a description isn't it. Try circuit E1 (20awg tan pin 1)
Awesome. Thanks, salad!!
Old May 27, 2014 | 10:02 PM
  #43083
884x4's Avatar
CF Veteran

Joined: Feb 2013
Posts: 1,802
Likes: 2
From: Justin, TEXAS
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by salad
That pattern looks perfect. Doo eet
Thanks man
Originally Posted by 94XjSport94
Ballin. I'd call that a day, looks good to me. On the 30 you are supposed to add .003 to each shim pack to give carrier preload when installing into the housing, not sure about the 8.8, but press on your bearings, locktite everything down, run a final pattern check (shouldnt change...) and enjoy your new gears.
thanks man, I'm getting it finished up now
Old May 27, 2014 | 10:56 PM
  #43084
DESERTXJ206's Avatar
CF Veteran

Joined: May 2011
Posts: 1,458
Likes: 2
From: Glendale,Az
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default

Originally Posted by cruiser54

0 280 155 746 is the full part number. Off 5 cylinder volvos.
I read somewhere that there are 2 types of 746's and the 155-746 is the one you dont want due to the resistance or something like that is higher. I believe DFlintstone was the one discussing this in a prior thread.
Old May 27, 2014 | 11:48 PM
  #43085
DESERTXJ206's Avatar
CF Veteran

Joined: May 2011
Posts: 1,458
Likes: 2
From: Glendale,Az
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default

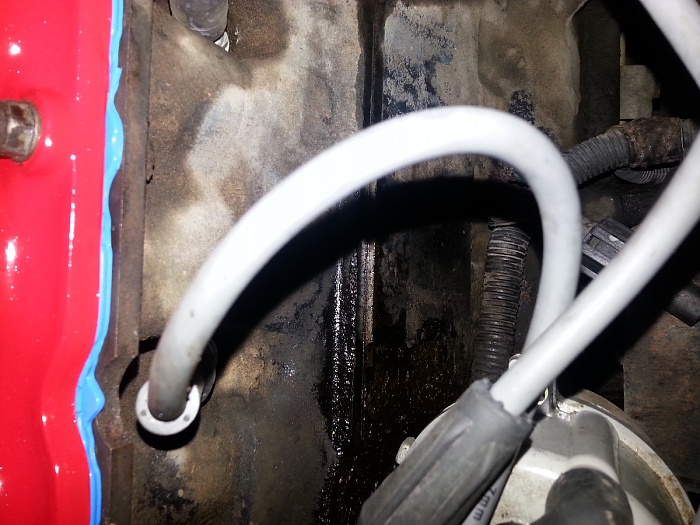

Does this leak seem to mean iv got a bad head gasket? I degrease the motor like once a month. As you can see its dry above the spark plugs so its not the valve cover.

Sorry if the pics are sideways. Im on the phone app.
Attached Thumbnails XJ Ask the Question Thread-forumrunner_20140527_214803.jpg   XJ Ask the Question Thread-forumrunner_20140527_214818.jpg   XJ Ask the Question Thread-forumrunner_20140527_214830.jpg
Old May 28, 2014 | 09:58 AM
  #43086
VTJeep's Avatar
CF Veteran

Joined: Jul 2010
Posts: 4,930
Likes: 3
From: 802
Year: 99
Model: Cherokee
Engine: 4.0
Default

99 w/ 4.0, 179k.
would a crack in exhaust manifold cause it to hesitate and backfire (from manifold are) at high rpm with WOT? I've had this jeep a while, its always had the diesel chug, but now even after i gave her a full tune up, it will struggle thru the last 1000-1500 RPM before shifting. it doesn't seem to be 100% of the time, which makes me wonder about it really being the exhaust manifold.. idk.. this is frustrating :/
Old May 28, 2014 | 10:10 AM
  #43087
hippydippy's Avatar
Junior Member

Joined: Mar 2013
Posts: 84
Likes: 0
From: Cape Cod
Year: 1992
Model: Cherokee
Engine: 4.0
Default

I have a 92 4.0 that I've replaced the nss on twice just this year, I bought the 30$ eBay one both times which I realize May be the source of the problem, anyways I'm having this new symptom where first of all I have reverse lights maybe 1/10 times I put it in reverse, and when starting I have to just hold the ignition for usually about 15 seconds and then it will miraculously turn over perfectly and start right up.
I've just gotten used to it because it is reliable just takes awhile to start, but last night I had to occasions where it took a good 3 mins so wondering if you guys could share some wisdom
Old May 28, 2014 | 10:29 AM
  #43088
DESERTXJ206's Avatar
CF Veteran

Joined: May 2011
Posts: 1,458
Likes: 2
From: Glendale,Az
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default

Originally Posted by hippydippy
I have a 92 4.0 that I've replaced the nss on twice just this year, I bought the 30$ eBay one both times which I realize May be the source of the problem, anyways I'm having this new symptom where first of all I have reverse lights maybe 1/10 times I put it in reverse, and when starting I have to just hold the ignition for usually about 15 seconds and then it will miraculously turn over perfectly and start right up.
I've just gotten used to it because it is reliable just takes awhile to start, but last night I had to occasions where it took a good 3 mins so wondering if you guys could share some wisdom


From what I have read on the NSS is that the cheaper ones dont work very well. Some even list "W/ Reverse light" and without. So some dont even activate the reverse lights. If I were you I'd find a good one at a junk yard and swap it in.
Old May 28, 2014 | 10:29 AM
  #43089
EZEARL's Avatar
CF Veteran

Joined: Aug 2009
Posts: 5,676
Likes: 301
From: WV
Year: '96
Model: Cherokee
Default

Maybe clean up the oem one and try it.

http://www.boyandjeep.com/tech-artic...switch-rebuild
Old May 28, 2014 | 12:45 PM
  #43090
my89xj's Avatar
CF Veteran

Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Total newb question. After removing the trim pieces how does one pull the whole foam head liner out? Does it just pop out?

99xj
Old May 28, 2014 | 01:05 PM
  #43091
Xpress's Avatar
Newbie

Joined: May 2014
Posts: 12
Likes: 0
From: El Cajon
Year: 1996
Model: Grand Cherokee
Engine: 5.2
Default

Originally Posted by DESERTXJ206
Does this leak seem to mean iv got a bad head gasket? I degrease the motor like once a month. As you can see its dry above the spark plugs so its not the valve cover.

Sorry if the pics are sideways. Im on the phone app.
It could very well mean that either your head is warped (not likely) or the head gasket is blown.
Old May 28, 2014 | 02:13 PM
  #43092
C H E R O K E E 98XJ's Avatar
Seasoned Member

Joined: Oct 2012
Posts: 414
Likes: 3
From: Minnesota
Year: 1998
Model: Cherokee
Engine: 4.0 Liter Inline 6
Default

1998 Jeep Cherokee 4.0L AW4

So i turn the key and hear a click. I go knock on the starter and try the key again and it cranks but without much power. So I've decided to replace the starter. Are there any ones/brands to watch out for?
I am looking at this one as of now...

http://shop.advanceautoparts.com/p/t...2-P#fragment-2

Also, I just pulled the old starter and when i shake it in my hand i can feel something clanking around in there. Not a bunch but something is loose. Is this normal?
Old May 28, 2014 | 02:16 PM
  #43093
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by my89xj
Total newb question. After removing the trim pieces how does one pull the whole foam head liner out? Does it just pop out?

99xj
Also remove the dome lights, rear mirror and overhead console. The headliner will then fall. It is not glued or screwed.
Old May 28, 2014 | 05:10 PM
  #43094
my89xj's Avatar
CF Veteran

Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by SteveMongr

Also remove the dome lights, rear mirror and overhead console. The headliner will then fall. It is not glued or screwed.
Cool thanks man.
Old May 28, 2014 | 06:25 PM
  #43095
ITTs_Cole's Avatar
CF Veteran

Joined: Apr 2014
Posts: 1,028
Likes: 0
From: Hagerstown MD
Year: 93
Model: Cherokee
Engine: 4.0 I6 w/Flux Capacitor
Default

Originally Posted by ITTs_Cole
Anyone know a paint code or how i can touch this up?



Looks like they painted right over factory tan. lol
Self Bump

Also will a dremel 3000 cut through the hood?
