Old Jan 3, 2014 | 05:25 PM
  #38581
tssguy123's Avatar
CF Veteran

Joined: Oct 2012
Posts: 2,314
Likes: 3
From: Canton, GA
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by salad
If you can get a graph of the O2 sensors once the Jeep has warmed up that'd be helpful.
Of the o2 sensor voltage? Just idling? I could do that.
Old Jan 3, 2014 | 06:42 PM
  #38582
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Question. With the durango steering box upgrade. Does it matter the engine size. I Know without snow plow package already
Old Jan 3, 2014 | 06:43 PM
  #38583
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by sycoglitch
Question. With the durango steering box upgrade. Does it matter the engine size. I Know without snow plow package already
'98/99 V8
Old Jan 3, 2014 | 06:52 PM
  #38584
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by NewKindOfClown

'98/99 V8
Ty
Old Jan 3, 2014 | 07:19 PM
  #38585
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by sycoglitch

Ty
np bby
Old Jan 3, 2014 | 07:46 PM
  #38586
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by NewKindOfClown

np bby
Shhh, they mustnt know
Old Jan 3, 2014 | 08:34 PM
  #38587
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Truly, a fine bromance.
Old Jan 3, 2014 | 08:40 PM
  #38588
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by salad
Truly, a fine bromance.
Don't be jealous
Old Jan 3, 2014 | 09:09 PM
  #38589
89XJDan's Avatar
Seasoned Member

Joined: Jul 2011
Posts: 413
Likes: 0
From: Murray, UT
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

Would there be any adverse effects to running shocks for a 4 inch lift on 3 inches of lift? I can't afford the lift I want right now, but I just got my 31s mounted up and the 2 inch coil spacers are not enough, they're still rubbing a tiny bit. My thoughts were to go buy some 3 inch coils and new shocks for the time being. I already have an AAL which netted me about 2.5-3 inches in the rear.
Old Jan 3, 2014 | 09:11 PM
  #38590
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by tssguy123
Of the o2 sensor voltage? Just idling? I could do that.
Yup, once it warms up though. Here's an example of what you're looking for



That's not from a Jeep - because I'm lazy - but that demonstrates a mostly working cat. The signal from upstream represents the computer adjusting fuel to hit the 14.7:1 AFR. Obviously not a, er, fine work of art since it's constantly turning the amount of fuel up and down. Downstream should be a steady signal once warmed up as the catalytic converter smooths out all the crap. Compared to an XJ that graph looks like it's reading on the rich side with a higher downstream voltage. However, STFT and LTFT will tell you if it's constantly adding a ton of fuel or trying to lean it, or spazzing out and adjusting STFT wildly (points to a vac leak or some kind of other fail)

Originally Posted by sycoglitch
Don't be jealous
Old Jan 3, 2014 | 09:13 PM
  #38591
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by 89XJDan
Would there be any adverse effects to running shocks for a 4 inch lift on 3 inches of lift? I can't afford the lift I want right now, but I just got my 31s mounted up and the 2 inch coil spacers are not enough, they're still rubbing a tiny bit. My thoughts were to go buy some 3 inch coils and new shocks for the time being. I already have an AAL which netted me about 2.5-3 inches in the rear.
It will simply ride worse with the shocks extended 1" further than designed. Although your first sentence is simple but the situation is a little more complex... What's rubbing where? Additional lift won't do anything for control arm or fender rub at full lock. 31s fit very nicely on a 3" lift when done properly.
Old Jan 3, 2014 | 09:13 PM
  #38592
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by 89XJDan
Would there be any adverse effects to running shocks for a 4 inch lift on 3 inches of lift? I can't afford the lift I want right now, but I just got my 31s mounted up and the 2 inch coil spacers are not enough, they're still rubbing a tiny bit. My thoughts were to go buy some 3 inch coils and new shocks for the time being. I already have an AAL which netted me about 2.5-3 inches in the rear.

No. Just don't let them bottom out on up travel.
Old Jan 3, 2014 | 09:14 PM
  #38593
tssguy123's Avatar
CF Veteran

Joined: Oct 2012
Posts: 2,314
Likes: 3
From: Canton, GA
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by salad
Yup, once it warms up though. Here's an example of what you're looking for


That's not from a Jeep - because I'm lazy - but that demonstrates a mostly working cat. The signal from upstream represents the computer adjusting fuel to hit the 14.7:1 AFR. Obviously not a, er, fine work of art since it's constantly turning the amount of fuel up and down. Downstream should be a steady signal once warmed up as the catalytic converter smooths out all the crap. Compared to an XJ that graph looks like it's reading on the rich side with a higher downstream voltage. However, STFT and LTFT will tell you if it's constantly adding a ton of fuel or trying to lean it, or spazzing out and adjusting STFT wildly (points to a vac leak or some kind of other fail)

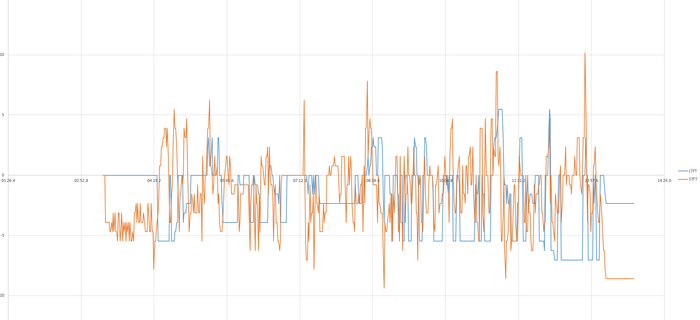

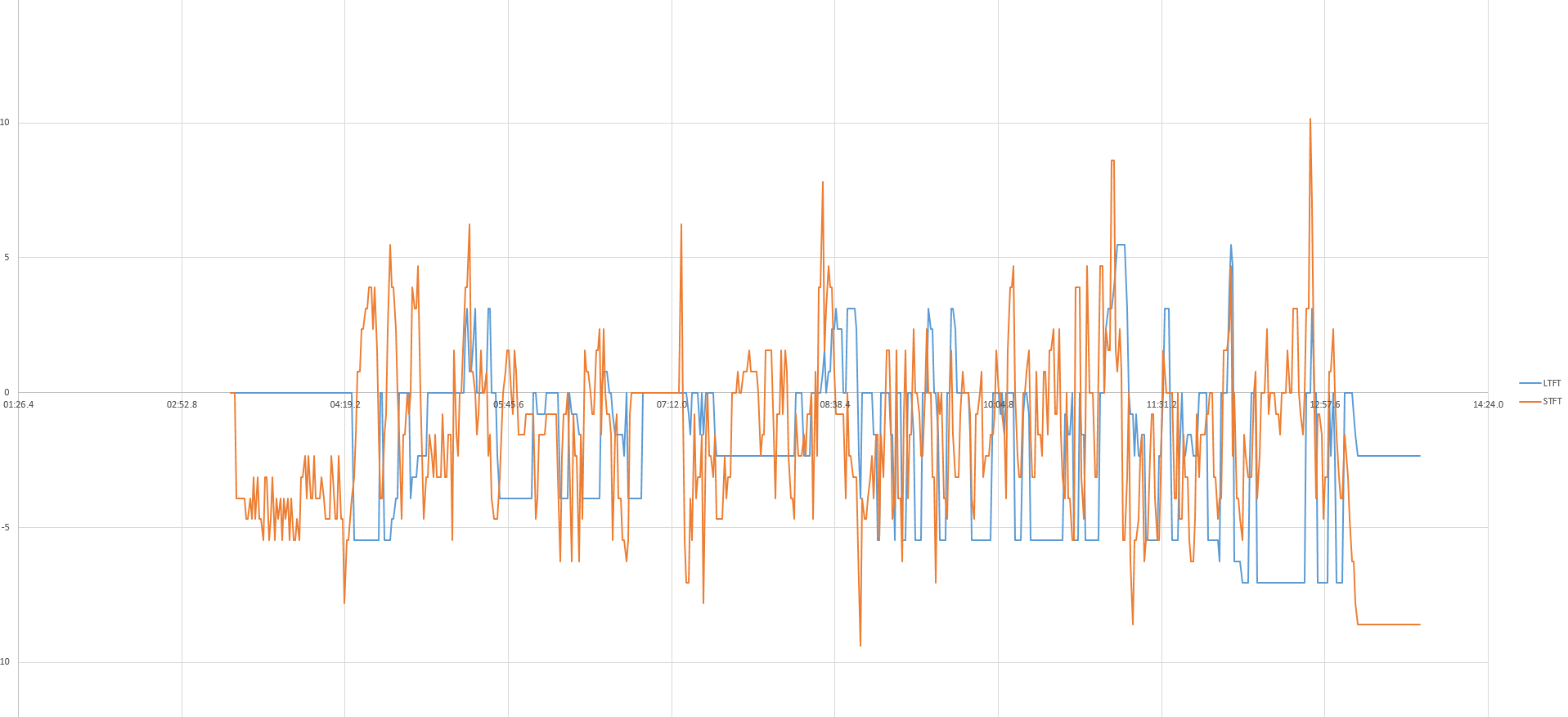

Dunno if this'll help much, I haven't had a chance to go outside and let the Jeep idle for 20 minutes or so. I did this earlier:

XJ Ask the Question Thread-ag2hyxp.png

Not the o2 sensor voltages, just the STFT @ LTFT %s. I did notice that the o2 sensor voltage (I believe it was upstream, [on second thought, it may have been both of them]) stuck at 1v for a bit after I turned the Jeep on. Is that normal or could it point to a wiring issue? I'll get more into this in the morning, but yeah. When I do do this is it okay if I drive around while I let it log? Shouldn't matter right?

Last edited by tssguy123; Jan 3, 2014 at 09:17 PM.
Old Jan 3, 2014 | 09:18 PM
  #38594
CarlyCall's Avatar
Newbie

Joined: Jan 2014
Posts: 7
Likes: 0
Model: Cherokee
Default HELP

So my Jeep's headlights will not come on. Normally I can shake the switch and they turn on. But as of yesterday they would not go on at all.
My dad has been trying to fix them and nothing is working!
He got new parts but not a new switch. He said when he got the headlights to work the taillights stopped working. I was wondering if anyone had this problem before, like is it the switch, or something else. I really need my car so please respond with anything helpful!!
Old Jan 3, 2014 | 09:19 PM
  #38595
89XJDan's Avatar
Seasoned Member

Joined: Jul 2011
Posts: 413
Likes: 0
From: Murray, UT
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by salad
It will simply ride worse with the shocks extended 1" further than designed. Although your first sentence is simple but the situation is a little more complex... What's rubbing where? Additional lift won't do anything for control arm or fender rub at full lock. 31s fit very nicely on a 3" lift when done properly.
She's rubbing on the fender a tiny bit under full lock, clears the control arm just fine. Went with some soft 8's too, so I've got some more back spacing there too, which may very well by part of the problem itself. I've always intended to trim the fenders, this just lights a little fire under that plan. We'll see how that works out with record lows approaching fast.
