Old Feb 6, 2013 | 05:19 PM
  #23056
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by cruiser54

VSS. How did you get your tC up into the tree?
Thanks, for one on rockauto expensive lil bastard. Need to really look at sensor when I get chance this weekend first. I had to back up through brush to get to my apartment door to unload some stuff cause the driveway was full and plot of land next door is undeveloped. Low lying branches came under the jeep and by my bad luck caught that one lil damn wire and presto, odometer stay the same. Ill post pics when I'm not tired from work. Was hoping I coul just put it back in but not that lucky
Old Feb 6, 2013 | 05:55 PM
  #23057
CherokeeSailor's Avatar
Seasoned Member

Joined: Oct 2012
Posts: 260
Likes: 1
From: Corpus Christi, TX
Year: 1999
Model: Cherokee
Engine: 4.0
Default

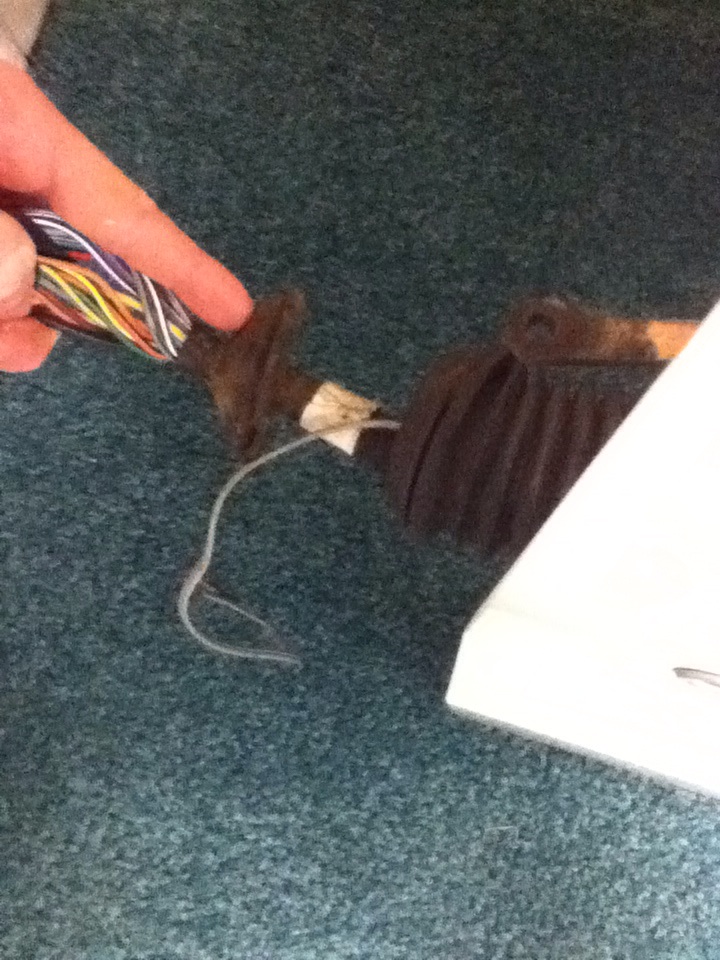

For going doorless, what should I do with the inner wiring seal(the part my finger is touching):
Name:  2013-02-06T18-42-32_9_zps1ce3d62b.jpg
Views: 54
Size:  239.3 KB

It was pretty tough to push/pull through the two holes in the jeep, should i cut it off somehow, deal with it, or is there some other solution?
thanks in advance.

Last edited by CherokeeSailor; Feb 6, 2013 at 05:57 PM. Reason: because i feel like it, gosh!
Old Feb 6, 2013 | 05:59 PM
  #23058
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by CherokeeSailor
For going doorless, what should I do with the inner wiring seal(the part my finger is touching):

It was pretty tough to push/pull through the two holes in the jeep, should i cut it off somehow, deal with it, or is there some other solution?

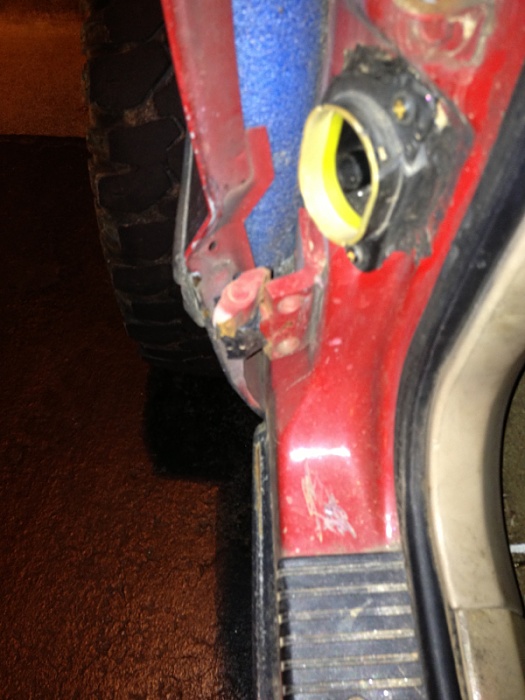

XJ Ask the Question Thread-image-3548949418.jpg

Most people come up with a total plug replacement like these from a ZJ
Old Feb 6, 2013 | 06:11 PM
  #23059
CherokeeSailor's Avatar
Seasoned Member

Joined: Oct 2012
Posts: 260
Likes: 1
From: Corpus Christi, TX
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 94XjSport94
Most people come up with a total plug replacement like these from a ZJ
I don't quite have the skills for that(it takes soldering, right?), but someday I'll have to give that a shot, I can see myself getting mad at my Jeep dealing with that every time I want to take off the doors. Thanks man.
Old Feb 6, 2013 | 06:15 PM
  #23060
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by CherokeeSailor
I don't quite have the skills for that(it takes soldering, right?), but someday I'll have to give that a shot, I can see myself getting mad at my Jeep dealing with that every time I want to take off the doors. Thanks man.
Just butt splices you need a cheap (10 dollars) crimping tool and some butt splices from the auto parts store.
Old Feb 6, 2013 | 06:16 PM
  #23061
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by CherokeeSailor
I don't quite have the skills for that(it takes soldering, right?), but someday I'll have to give that a shot, I can see myself getting mad at my Jeep dealing with that every time I want to take off the doors. Thanks man.
The plug comes out super easy. I used a bunch of wire crimps so no soldering... Depending on how many wires you have, use 4 prong trailer plugs
Old Feb 6, 2013 | 06:18 PM
  #23062
my89xj's Avatar
CF Veteran

Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Default

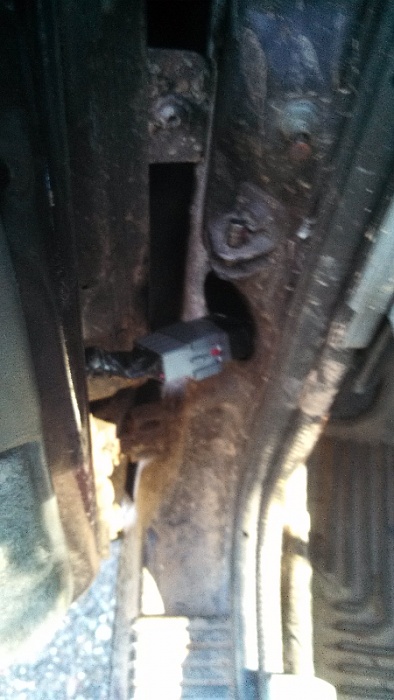

I just did this
Attached Thumbnails XJ Ask the Question Thread-forumrunner_20130206_191829.jpg
Old Feb 6, 2013 | 06:20 PM
  #23063
ThatPurpleXJ's Avatar
CF Veteran

Joined: Sep 2012
Posts: 1,289
Likes: 0
From: Springfield Virginia
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by my89xj
I just did this
Explain?
Old Feb 6, 2013 | 06:22 PM
  #23064
JMSimard36's Avatar
Newbie

Joined: Feb 2013
Posts: 15
Likes: 0
Model: Cherokee
Default

Jeep stops running
I was just wondering if anyone had an idea on what would cause this, I'm am in the middle of purchasing a 98 cherokee classic the lady says it runs and you drive a half mile and it shuts its self down, I pulled the dipstick and there's no antifreeze in the oil but couldn't start it because no one was home any ideas thanks!
Old Feb 6, 2013 | 06:22 PM
  #23065
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Just looks like he used a plug lol... I had to use a ZJ one cause I had 19 wires on the drivers side
Old Feb 6, 2013 | 06:33 PM
  #23066
CherokeeSailor's Avatar
Seasoned Member

Joined: Oct 2012
Posts: 260
Likes: 1
From: Corpus Christi, TX
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 94XjSport94
Just looks like he used a plug lol... I had to use a ZJ one cause I had 19 wires on the drivers side
yeah, I was too lazy to count, but with all power everything, there are a good amount of wires in the bundle. Eventually, I shall do this. eventually.
Old Feb 6, 2013 | 06:40 PM
  #23067
ThatPurpleXJ's Avatar
CF Veteran

Joined: Sep 2012
Posts: 1,289
Likes: 0
From: Springfield Virginia
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I know he used some plug or harness but I'm just wondering where he got it from
Old Feb 6, 2013 | 06:45 PM
  #23068
theyammieguy's Avatar
Senior Member

Joined: Apr 2009
Posts: 791
Likes: 0
From: Houston Texas
Year: 1996
Model: Cherokee
Engine: I6
Default

Who has the best prices on aussie lockers?
Old Feb 6, 2013 | 06:45 PM
  #23069
jx2991's Avatar
Member

Joined: Feb 2011
Posts: 206
Likes: 0
From: Kuna, ID
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

I'm trying to do the 703 injector swap. Does anyone know what the little plastic hat shaped caps on the end of the injector are called or where to get them? I've been to two parts stores and no one knows what I'm talking about. Do I even need them?
Old Feb 6, 2013 | 07:04 PM
  #23070
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by JMSimard36
Jeep stops running
I was just wondering if anyone had an idea on what would cause this, I'm am in the middle of purchasing a 98 cherokee classic the lady says it runs and you drive a half mile and it shuts its self down, I pulled the dipstick and there's no antifreeze in the oil but couldn't start it because no one was home any ideas thanks!
It could be a lot of things ranging from relays to the CPS. At any rate it's going to be a very fixable electronic issue. If the price is right and it runs well (aside from cutting out, of course) then go for it and we'll get ya fixed up
