Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.
Old Sep 21, 2015, 03:49 PM
How-Tos on this Topic
Last edit by: IB Advertising
See related guides and technical advice from our community experts:

Browse all: General Overview
Print Wikipost

XJ Ask the Question Thread

Thread Tools

Search this Thread

Old Oct 22, 2012 | 09:13 PM
  #15676
ThatPurpleXJ's Avatar
CF Veteran

Joined: Sep 2012
Posts: 1,289
Likes: 0
From: Springfield Virginia
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Excuse me for asking a most likely stupid question.. But why the hell does the horn have only one electrical connector? I'm no electrical genius but I think I'm pretty sure for something to be powered it has to have a ground and power. Is the mount for the horn a ground?
Old Oct 22, 2012 | 09:15 PM
  #15677
Houston Kid's Avatar
Senior Member

Joined: Aug 2012
Posts: 583
Likes: 0
From: Clear Lake, TX
Year: 1999 Jeep Cherokee
Model: Cherokee
Engine: 4.0
Default

Originally Posted by ThatPurpleXJ
Excuse me for asking a most likely stupid question.. But why the hell does the horn have only one electrical connector? I'm no electrical genius but I think I'm pretty sure for something to be powered it has to have a ground and power. Is the mount for the horn a ground?
Yes. Your ground is the mount to the frame.
Old Oct 22, 2012 | 09:21 PM
  #15678
ThatPurpleXJ's Avatar
CF Veteran

Joined: Sep 2012
Posts: 1,289
Likes: 0
From: Springfield Virginia
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Houston Kid
Yes. Your ground is the mount to the frame.
Appreciate it thanks
Old Oct 22, 2012 | 09:50 PM
  #15679
zombie jeep101's Avatar
CF Veteran

Joined: Oct 2011
Posts: 2,613
Likes: 0
From: Summerville, South Carolina
Year: 99
Model: Cherokee
Engine: 4.0
Default

What do y'all think of lining my rear panels like this:
XJ Ask the Question Thread-image-1217635598.jpg
Heres mine:
Attached Thumbnails XJ Ask the Question Thread-image-586112548.jpg   XJ Ask the Question Thread-image-416748327.jpg
Old Oct 22, 2012 | 10:02 PM
  #15680
I Leak Oil's Avatar
CF Veteran

Joined: Nov 2010
Posts: 3,251
Likes: 0
From: Frisco, Tx
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Looks like paint.
Old Oct 22, 2012 | 10:07 PM
  #15681
zombie jeep101's Avatar
CF Veteran

Joined: Oct 2011
Posts: 2,613
Likes: 0
From: Summerville, South Carolina
Year: 99
Model: Cherokee
Engine: 4.0
Default

It's liner. I'm debating on whether to do it to mine or not
Old Oct 22, 2012 | 10:24 PM
  #15682
I Leak Oil's Avatar
CF Veteran

Joined: Nov 2010
Posts: 3,251
Likes: 0
From: Frisco, Tx
Year: 1994
Model: Cherokee
Engine: 4.0
Default

I wouldn't.
Old Oct 23, 2012 | 12:50 AM
  #15683
XJtlk789's Avatar
Member

Joined: Sep 2009
Posts: 238
Likes: 0
Year: 2001
Model: Cherokee
Engine: 4.0l I6
Default

Ok. Heres my question. I wanna hook up a set of hella square lights to where they come on when i put my headlights on, i have the putco harness already so i know the "extra power" is going thru that n not to my headlight switch. Do you think i should hook up an additional relay and splice into the putco power source/headlight switch? Or new relay-> switch wire to headlight "power wire" and such?
Let me know if any of this sounds dumb, its fluent in my head but as far as typing it i dont know lol. Thnx
Old Oct 23, 2012 | 04:46 AM
  #15684
RSWiser's Avatar
Member

Joined: Dec 2011
Posts: 226
Likes: 2
From: Utah
Year: 1999
Model: Cherokee
Engine: 4.0
Default

On my 99 Cherokee, my radiator leaks when cold. When warm no leaks ans holds pressure. Temp runs right at 210 when rock crawling.

Do I need a new radiator, and if I replace it I was an all aluminum one, no plastic. Who is the best source?
Old Oct 23, 2012 | 10:31 AM
  #15685
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Easy one:
Renix pressure bottle is in the back passenger corner of the engine bay.
97+ overflow bottle is in the driver fender.
Where's the overflow bottle for pre-97 HOs?
Old Oct 23, 2012 | 10:34 AM
  #15686
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by NewKindOfClown
Easy one:
Renix pressure bottle is in the back passenger corner of the engine bay.
97+ overflow bottle is in the driver fender.
Where's the overflow bottle for pre-97 HOs?

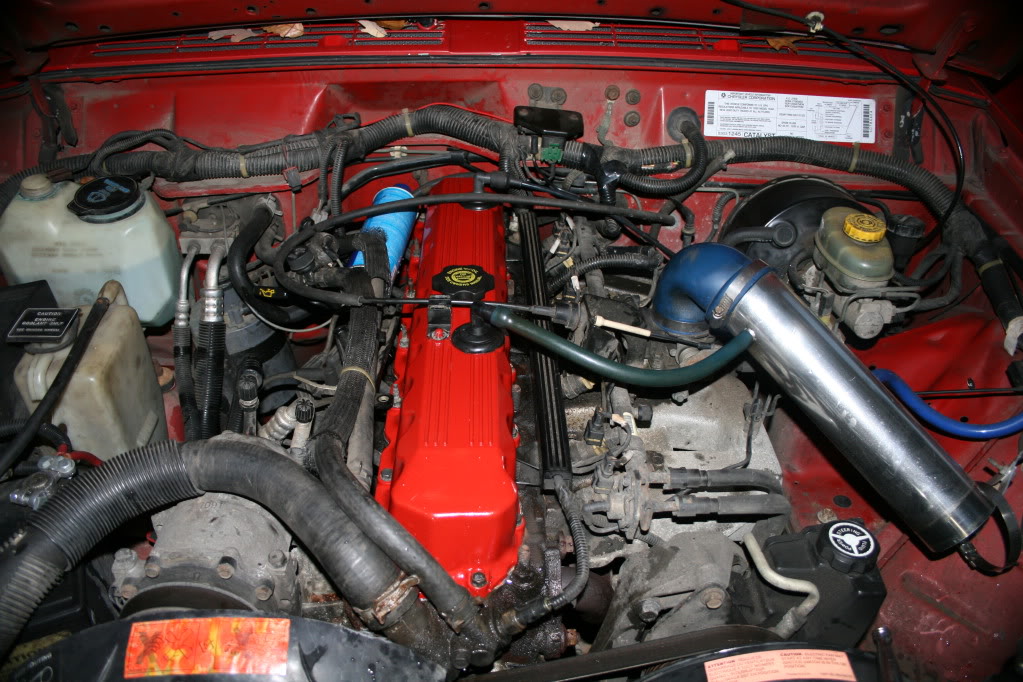

Name:  IMG_3857.jpg
Views: 55
Size:  174.5 KB
Old Oct 23, 2012 | 10:36 AM
  #15687
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Originally Posted by dukie564
Thought so. Thank you, sir.
Old Oct 23, 2012 | 11:00 AM
  #15688
DieselD's Avatar
CF Veteran

Joined: Apr 2011
Posts: 4,825
Likes: 2
From: Indianapolis
Year: '99 and '91
Model: Cherokee
Default

I want to flush out and check my 784s.

If I use a car battery, 12v , to open them will that hurt the injectors? Or should I just get a 9v battery?
Old Oct 23, 2012 | 11:04 AM
  #15689
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by DieselD
I want to flush out and check my 784s.

If I use a car battery, 12v , to open them will that hurt the injectors? Or should I just get a 9v battery?
12V is fine. You can also use a 9V wall adapter
Old Oct 23, 2012 | 11:17 AM
  #15690
DieselD's Avatar
CF Veteran

Joined: Apr 2011
Posts: 4,825
Likes: 2
From: Indianapolis
Year: '99 and '91
Model: Cherokee
Default

Ah, I think I got about 20 of those in a box somewhere... lol.
