Please help me!!!!
So here's the scoop. I'm new to this forum thing. Funny because I do IT for a living. Anyways I have a 1989 Jeep Cherokee, no engine or electronic mods as far as I now. I have a diode (Seems to be heavy duty) that keeps burning up. I can't find out what circuit it runs. I know this seems pretty vague, but ask me any questions for information and I'll tell you. Any help is greatly appreciated.
PLEASE HELP ME!!!!!!!
PLEASE HELP ME!!!!!!!
#3
Newbie
Thread Starter
Join Date: Jun 2016
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
The problem area is circled in red. It's diode "C826". I can't find a diagram for what it runs. Nor can I trace it to the pin. Or maybe I can and I don't know what I'm looking for. Does this help at all?
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

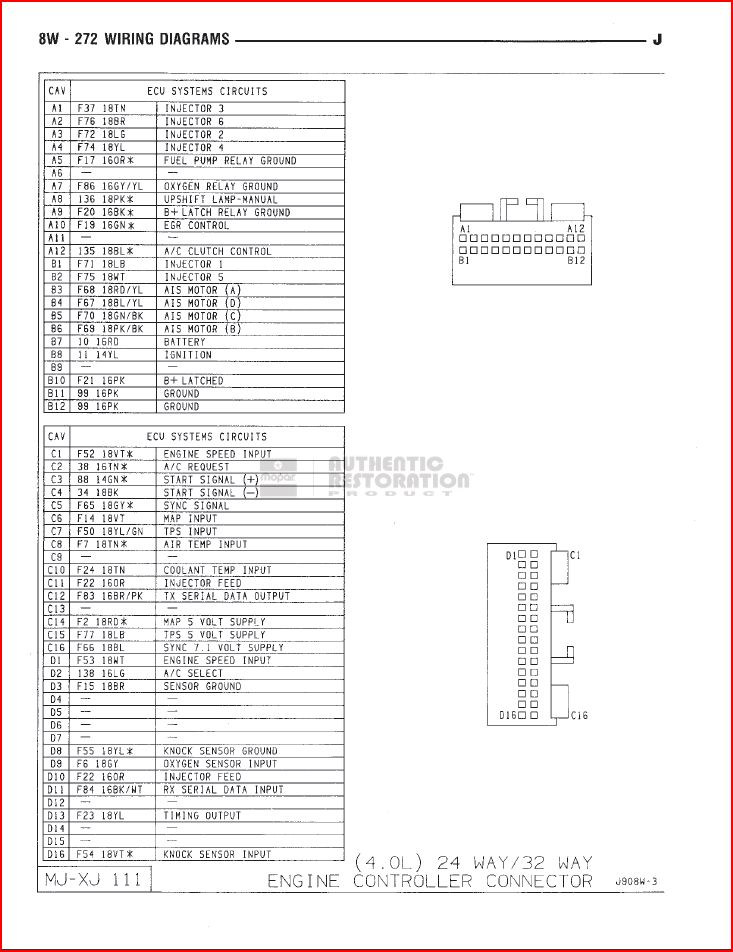

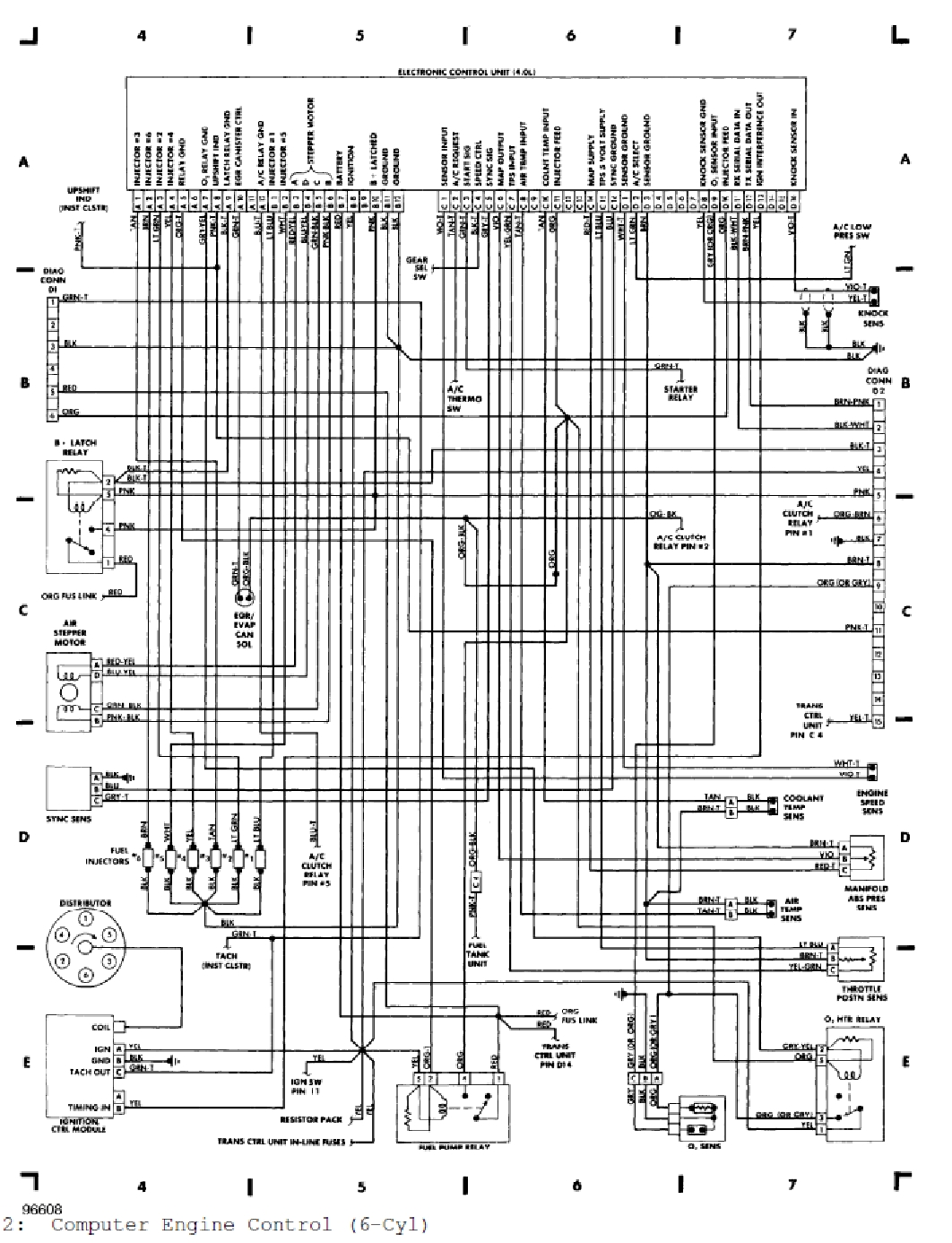

I have no idea what that's for. The closest I can get to the functions of the ECU is this diagram of the ECU external components. If you could trace what connector pin number that diode is connected to you could try and rectify the issue.
What issues are you having with the Jeep? Not running correctly, not starting, etc.?
Poor pic of the diagram. Depress and hold the Ctrl key while tapping the + key to make the image larger.
What issues are you having with the Jeep? Not running correctly, not starting, etc.?
Poor pic of the diagram. Depress and hold the Ctrl key while tapping the + key to make the image larger.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
What pin numbers does that diode coincide with.
What issue are you having?
What issue are you having?
#6
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Good one Bob. I've heard of the Renix ECU considered "aircraft grade". Guess there are "power transistors" for the injectors that might fail, (6, one each).
Bonehead here is just ringing in, you already have about the best help imaginable here. (wonder what that other toasted looking brown transistor? does)
A wise man once said " If you're going to the JY, get one out of a 1989 or 1990 with the part number ending in 428."
Bonehead here is just ringing in, you already have about the best help imaginable here. (wonder what that other toasted looking brown transistor? does)
A wise man once said " If you're going to the JY, get one out of a 1989 or 1990 with the part number ending in 428."
Last edited by DFlintstone; 06-04-2016 at 12:01 AM.
#7
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
What is that that makes you think it"s "heavy duty" ? You say "keeps burning up". Is it open? What readings do you get testing the burnt up heavy duty diode? Open? or open , one way or the other, closed? More could help us greenhorns! I do happen to know how they normally fail.
Last edited by DFlintstone; 06-04-2016 at 12:41 AM.
Trending Topics
#8
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
So what isn't working? If it's a protection diode (meant to protect an output device like a transistor from reverse current), you may have to lift the diode to open the circuit and see what stops working.
My money is on the A/C clutch relay driver. Just a hunch.
