2003 jeep Cherokee transmission problems!!!

Old 03-23-2016, 08:59 PM
  #1
Newbie
Thread Starter

Join Date: Mar 2016
Posts: 1
Model: Cherokee
Default 2003 jeep Cherokee transmission problems!!!

hi. I have a 2003 Jeep Grand Cherokee Laredo with about 200,000 miles on it. Today my jeep started up fine. I put it in reverse to leave and it went smoothly but when I shifted to drive it didn't do anything? Some advice would be great, so I could know what I'm looking for or any common troubleshooting I could before I take it to the shop! Please help!
jackson1714 is offline
Old 05-25-2017, 06:33 AM
  #2
Newbie

Join Date: May 2017
Location: Kansas City
Posts: 11
Year: 2000
Model: Cherokee
Engine: 4.0
Default Transmission problem

I know what the problem is. You have a 2003 Grand Cherokee!!!
Lol, just some good ol' fashioned ribbon' bro
2kdarkgreenxj is offline
Old 05-25-2017, 06:57 AM
  #3
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,111
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

I would not recommend a transmission shop yet. They will only want to replace or rebuild it for about $2,000.
Check the level of transmission fluid according to directions in owners manual. Healthy fluid will be red in color.
What engine/transmission? 4.0 Liter 6-cylinder/ 42re. Or 4.7Liter 8-cylinder /46
When reverse is lost on the 42re it is usually just a snap ring that has broken or come off.

Last edited by SteveMongr; 05-25-2017 at 07:39 AM.
SteveMongr is offline
Old 05-29-2017, 02:09 AM
  #4
CF Veteran

1tonxj's Avatar

Join Date: Dec 2010
Location: Colorado...BAILEY,CO...BYATCH !
Posts: 1,871
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Name:  IMG_20170526_20793.jpg
Views: 14840
Size:  54.5 KB

2003 jeep Cherokee transmission problems!!!-img_20170529_11616.jpg

2003 jeep Cherokee transmission problems!!!-img_20170529_14690.jpg

2003 jeep Cherokee transmission problems!!!-img_20170529_39654.jpg

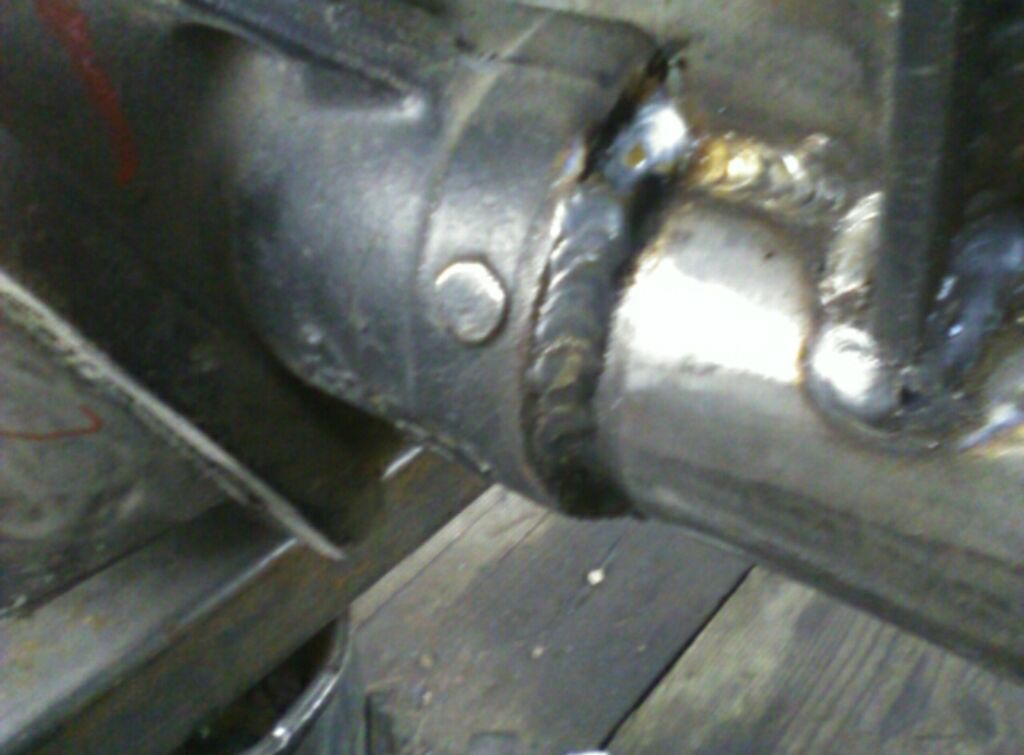

Ripped off the Claytons link bridge/truss ...replaced with Artec 14 bolt and made a link bracket and increased vertical separation from under 8 to about 10 then cut some steel and made a link bridge tie to the diff cover the tube us 1.5 .250 wall the mounting tabs are a500 .500 thick plate with a grade 8 1 inch bolt in double shear...single shear rating is 94,000 ;-).
And made about 4 passes around the tubes this plus the diff and pinion ties should prevent spinning a tube. Will be finishing the back brace and pinion tie in next week .
1tonxj is offline
Old 05-29-2017, 06:58 AM
  #5
CF Veteran

bubbarules1958's Avatar

Join Date: Sep 2013
Location: California
Posts: 1,551
Year: 91
Model: Cherokee
Engine: 4.0
Default

^think you got rolled into "related thread"

Looks beefy btw
bubbarules1958 is offline
Old 05-29-2017, 05:34 PM
  #6
CF Veteran

1tonxj's Avatar

Join Date: Dec 2010
Location: Colorado...BAILEY,CO...BYATCH !
Posts: 1,871
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by bubbarules1958 View Post
^think you got rolled into "related thread"

Looks beefy btw

Yeah was supposed to be what did ya do today...lol...thanks for the props on the beef .
1tonxj is offline
Old 05-30-2017, 10:18 AM
  #7
CF Veteran

bubbarules1958's Avatar

Join Date: Sep 2013
Location: California
Posts: 1,551
Year: 91
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 1tonxj View Post
Yeah was supposed to be what did ya do today...lol...thanks for the props on the beef .
That's the thread I rolled in from.

If you look at word association I've rolled into the thread that follows more than once.
bubbarules1958 is offline
Old 08-25-2018, 08:43 PM
  #8
CF Veteran

XJlimitedx99's Avatar

Join Date: Jul 2012
Location: Milford, NH
Posts: 2,410
Year: 1999
Model: Cherokee
Engine: 4.0l
Default

EDIT: I literally did the same thing the guy above me did. Sorry, disregard!


I've spent the past couple days tinkering around with adding circuits to my PDC with varying amounts of success. Check the build for full details: https://www.cherokeeforum.com/f46/pr...5/#post3511351

Last edited by XJlimitedx99; 08-25-2018 at 08:45 PM.
XJlimitedx99 is offline
Old 10-27-2018, 03:56 PM
  #9
Senior Member

downs's Avatar

Join Date: Oct 2018
Location: Hunt County Texas
Posts: 558
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L
Default

Sorry wrong thread

Last edited by downs; 10-27-2018 at 04:01 PM. Reason: Wrong thread.
downs is online now
Old 01-22-2019, 10:19 PM
  #10
Member

Elivnitup's Avatar

Join Date: Jan 2019
Location: Ely, Nevada
Posts: 106
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0L I6
Default

We got mud in the linkage of the work truck the other day and could not shift out of reverse. This issue can usually be solved by removing the mud with a long screwdriver.
Elivnitup is offline
Old 01-26-2019, 07:36 AM
  #11
CF Veteran

peep's Avatar

Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,137
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Default

Shifted to drive, it wouldn't do anything. Check the underside linkage 1st. Don't run yourself over!
There are internal solenoid packs, ($440 Cdn + install labour at dealership). Check your electrical plug connections onto the trans prior.
As above, insure fluid level (ATF4).
Filter and fluid change can't hurt a running trans. If the rubber gasket on pan is in place, it can be cleaned and reused if not torn or cracked.
peep is offline
Old 01-26-2019, 07:37 AM
  #12
CF Veteran

peep's Avatar

Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,137
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Default

That is a wicked truss!
peep is offline
Old 03-09-2019, 08:25 PM
  #13
Newbie

Join Date: Feb 2019
Posts: 28
Model: Cherokee (XJ)
Default

I washed mine....Haha..👍🏻
Justcruzin is offline
Old 03-09-2019, 09:49 PM
  #14
Junior Member

Join Date: Mar 2019
Posts: 36
Model: Cherokee (XJ)
Default

Turn the key on-off-on-off-on, then wait for the gauges to do their self check and the warning lights to go out. the digital odometer will display any codes in the computer, There's a fair chance there is a code.
Also check the shift cable as mentioned, and try shifting it all the way to first and see if it goes into gear. Automagic"s are complex things, and the more complex something is, the more there is to go wrong.
kody24 is offline
Old 03-13-2019, 08:33 PM
  #15
Junior Member

Join Date: Feb 2019
Location: Fort lauderdale, FL
Posts: 33
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L
Default New headliner

Oops. Wrong thread sorry.

Last edited by Gcelevator; 03-13-2019 at 09:29 PM.
Gcelevator is offline
