Question Need help distinguishing between axles

Im about to order a lift kit for my 2wd 98' xj sport, but Im not sure which axle I have. Im pretty sure its the D35 or the 8.25 but I cant say for sure and I want to be positive. Is there something I can do to help myself here?
Reply
Old Jan 8, 2014 | 03:33 PM
  #2
Roler's Avatar
CF Veteran

Joined: Jan 2012
Posts: 3,170
Likes: 312
From: Australia
Year: 1997 (RHD)
Model: Cherokee (XJ)
Engine: 4.0 ltr
Default

Yes: post a pic of your axle and we will be able to tell you. Not at my laptop atm, otherwise I could post an overview of the axles.

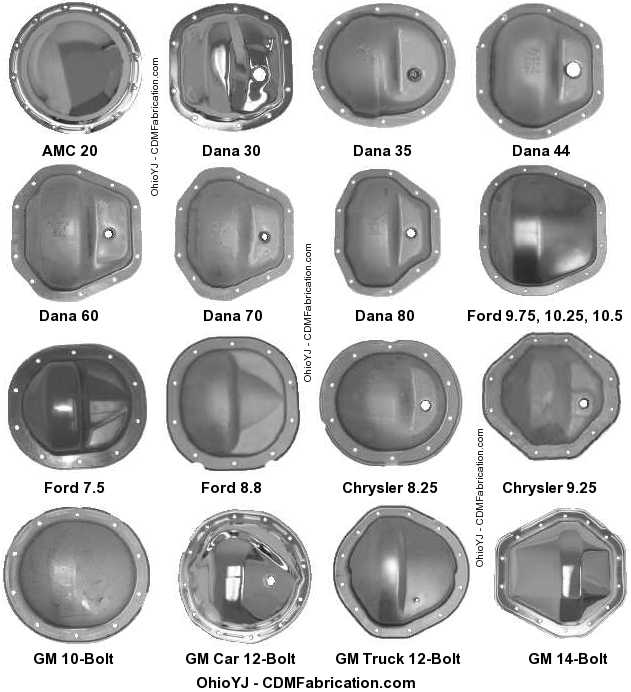

The 8.25 has a 'flat' lower border/rim, whereas the D35 is more round. Pretty sure someone will post a pic soon of both

EDit: Here you go
Attached Images

Last edited by Roler; Jan 8, 2014 at 03:37 PM.
Reply
Old Jan 8, 2014 | 03:36 PM
  #3
XJriot's Avatar
CF Veteran

Joined: Feb 2013
Posts: 1,267
Likes: 1
From: Franksville, Wi
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Google 'Jeep Cherokee axle types' then click on images. There should be plenty of comparisons.
Reply
Old Jan 8, 2014 | 04:58 PM
  #4
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

This:
Attached Images
Reply
Old Jan 9, 2014 | 10:51 AM
  #5
Roler's Avatar
CF Veteran

Joined: Jan 2012
Posts: 3,170
Likes: 312
From: Australia
Year: 1997 (RHD)
Model: Cherokee (XJ)
Engine: 4.0 ltr
Default

Cruiser beat me to it.
In fact: it is actually a STICKY!

https://www.cherokeeforum.com/f2/axle-info-148057/
Reply
Old Jan 9, 2014 | 01:44 PM
  #6
Ol' Green's Avatar
Thread Starter
Member

Joined: Dec 2013
Posts: 100
Likes: 0
From: New Orleans, Louisiana
Year: 98'
Model: Cherokee
Engine: 4.0L I6
Default

Thanks to everyone for helping me out, I gave it a look this morning and mine seems to be a 8.25. Now Ive heard the 8.25 is a bit stronger than the d35, making it a better axle. Is this true?

Last edited by Ol' Green; Jan 9, 2014 at 01:54 PM.
Reply
Old Jan 9, 2014 | 02:19 PM
  #7
Roler's Avatar
CF Veteran

Joined: Jan 2012
Posts: 3,170
Likes: 312
From: Australia
Year: 1997 (RHD)
Model: Cherokee (XJ)
Engine: 4.0 ltr
Default

8.25 could be considered an upgrade from the D35
Reply
Old Feb 8, 2014 | 12:39 PM
  #8
Ol' Green's Avatar
Thread Starter
Member

Joined: Dec 2013
Posts: 100
Likes: 0
From: New Orleans, Louisiana
Year: 98'
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by Roler
8.25 could be considered an upgrade from the D35
Its about a quarter inch thicker right?
Reply
Old Feb 8, 2014 | 01:33 PM
  #9
Rock Toy's Avatar
CF Veteran

Joined: Feb 2010
Posts: 2,095
Likes: 3
From: Cove, OR
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Yes the C/8.25 is an up grade over the D/35. The C/8.25 is closer to the D/44 in strength, with a larger ring gear than the D/35, your C/8.25 should have 29 spline shafts which are about 25% stronger than the 27 spline D/35 shafts, plus the C/8.25 has a pinion bearing that is about 1/4 inch larger in diameter than the D/35, the C/8.25 also has larger diameter axle tubes.
So yes it is an upgrade over the Dana 35 axle.
