What kind of axles for a 2001 - Jeep Cherokee Forum

Go Back  Jeep Cherokee Forum > General > Cherokee Chat
What kind of axles for a 2001 >

What kind of axles for a 2001

Cherokee Chat General non-tech Cherokee chat
XJ/MJ/ZJ/WJ

What kind of axles for a 2001

Old 09-28-2015, 09:29 AM
  #1
Senior Member
Thread Starter

BlvdKreeper's Avatar

Join Date: Jan 2011
Location: northside chicago
Posts: 586
Year: 1997
Model: Cherokee
Default What kind of axles for a 2001

What kind of factory axles comes on a 2001 jeep Cherokee sport 4x4? Looking to buy new leaf springs but they always ask for the type of axles
BlvdKreeper is offline
Old 09-28-2015, 12:13 PM
  #2
Member

HunterGatherer00's Avatar

Join Date: Sep 2015
Location: AZ
Posts: 125
Year: 00'
Model: Cherokee
Engine: I6 4.0 w/ 784 swap/ new connector tails
Default

Originally Posted by BlvdKreeper View Post
What kind of factory axles comes on a 2001 jeep Cherokee sport 4x4? Looking to buy new leaf springs but they always ask for the type of axles
Google, stock axles 2001 cherokee and it will bring up a bunch of threads for the forum to look at, Google is king for this forum, check it out
HunterGatherer00 is offline
Old 09-28-2015, 12:23 PM
  #3
CF Veteran

jay_sco's Avatar

Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,079
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

jay_sco is offline
Old 09-28-2015, 12:25 PM
  #4
CF Veteran

XJlimitedx99's Avatar

Join Date: Jul 2012
Location: Milford, NH
Posts: 2,382
Year: 1999
Model: Cherokee
Engine: 4.0l
Default

Low pinion Dana 30 in the front. Either a c8.25 or Dana 35 in the rear. XJ's with ABS have 35s and non-ABS have 8.25s.
XJlimitedx99 is offline
Old 09-28-2015, 06:26 PM
  #5
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,971
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

A Dana 35 rear axle have the diameter of 2.75 inches on the axle tube. The Chrysler 8.25 axle is 3" in diameter on the axle tube.

Hope that helps too.
XJwonders is offline
Old 09-28-2015, 06:29 PM
  #6
Banned

Join Date: Feb 2014
Location: Florida
Posts: 2,379
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
Default

Originally Posted by XJlimitedx99 View Post
XJ's with ABS have 35s and non-ABS have 8.25s.
XJs without ABS can have either axle, so you still have to visually check.

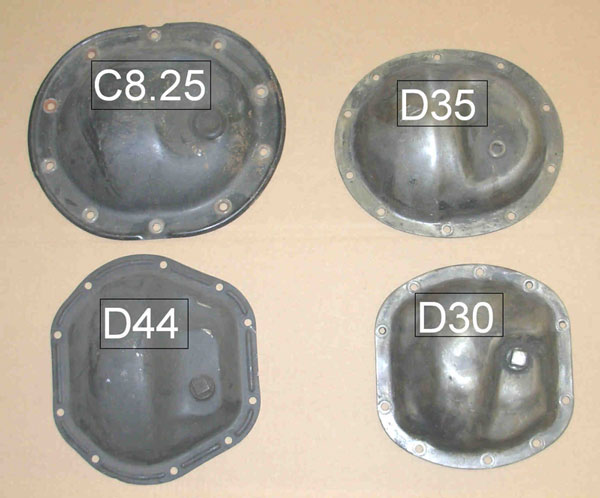

OP, look up under the back. Ignore the pics of the covers, because they're confusing. Instead, look to see if there's a flat area on the bottom of the pumpkin. If it's flat like this, it's a Chrysler 8.25:



If the bottom is rounded off like this, it's a Dana 35:



As was noted above, the front axle will be a low pinion Dana 30. Be aware you can also retrieve your build sheet from the Jeep website that will tell you what equipment your XJ came with.
extrashaky is offline
Old 09-28-2015, 07:39 PM
  #7
Member

HunterGatherer00's Avatar

Join Date: Sep 2015
Location: AZ
Posts: 125
Year: 00'
Model: Cherokee
Engine: I6 4.0 w/ 784 swap/ new connector tails
Default

Originally Posted by HunterGatherer00 View Post
Google, stock axles 2001 cherokee and it will bring up a bunch of threads for the forum to look at, Google is king for this forum, check it out
just to clarify i wasnt trying to be a PITA, was just trying to help you out on ways to search the forum. plus thats how i figured out which axles i had.
HunterGatherer00 is offline
Old 09-29-2015, 03:16 PM
  #8
Newbie

Gilfilan's Avatar

Join Date: Aug 2012
Location: Fairchild AFB
Posts: 31
Year: 1996
Model: Cherokee
Default

Good ones
Gilfilan is offline
Old 01-30-2016, 04:28 PM
  #9
Member

rockosocko's Avatar

Join Date: Jan 2015
Location: NW, MS 'Yall
Posts: 148
Year: 96
Model: Cherokee
Engine: 2.5
Default

As was noted above, the front axle will be a low pinion Dana 30. Be aware you can also retrieve your build sheet from the Jeep website that will tell you what equipment your XJ came with.[/QUOTE]

?? I've heard this before but took what seemed to be almost an hour and didn't find anything on my jeeps..

If you could give a link or directions (like if you HAVE TO REGISTER and give all your info just to ask) that would greatly help.

Thanks.
Errol
rockosocko is offline
Old 01-31-2016, 02:12 AM
  #10
Banned

Join Date: Feb 2014
Location: Florida
Posts: 2,379
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
Default

Originally Posted by rockosocko View Post
?? I've heard this before but took what seemed to be almost an hour and didn't find anything on my jeeps..

If you could give a link or directions (like if you HAVE TO REGISTER and give all your info just to ask) that would greatly help.
First, go to this website:

http://www.jeep.com/webselfservice/jeep/index.html

Once there, click on "Equipment Listing" in the menu on the left side of the page.

If you have a Jeep that was made in 1998 or later, you can simply put your VIN in the box, and it will give you your build sheet immediately.

If you have a Jeep that was made in 1997 or earlier, the system may or may not give you a build sheet. Apparently some people have gotten build sheets through the self service app despite the fact that it states on the page that pre-1998 vehicles are not eligible for the service. So try it anyway.

If it doesn't work, you can still get a build sheet by emailing Jeep customer service and requesting it. There's an "Email" link directly below the VIN app. Click it and fill in the relevant information in the form, and be sure to include your entire VIN in the message body. You'll get your build sheet via email in a day or two.
extrashaky is offline
Old 01-31-2016, 08:33 AM
  #11
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,508
Year: 1990
Model: Comanche
Engine: 4.0
Default

Here.
Attached Images
cruiser54 is offline
Old 12-31-2018, 10:55 PM
  #12
Junior Member

Join Date: Dec 2018
Posts: 31
Model: Cherokee (XJ)
Default What axle is this


What type of axle is this?
Hellz is offline
Old 12-31-2018, 11:03 PM
  #13
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,508
Year: 1990
Model: Comanche
Engine: 4.0
Default

8.25
cruiser54 is offline
Old 01-05-2019, 06:20 PM
  #14
Junior Member

MotoBoss's Avatar

Join Date: Jan 2017
Location: Indiana
Posts: 84
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Thanks extrashaky for the actual pictures. Now I'm certain which rear axle I have.

BTW link for build sheets is down.
MotoBoss is offline
