Default The same old 95XJ build.

So last fall I got rid of a '12 JK for a Focus but still wanted to have something to play with. I found a 95 XJ in County trim, 4.0 auto with 230k miles for 3500. It had lunchbox lockers frt. & rear(D30/8.25), 3" lift, frt winch bumper & rear Warn w/carrier bumper, riding on 33's.

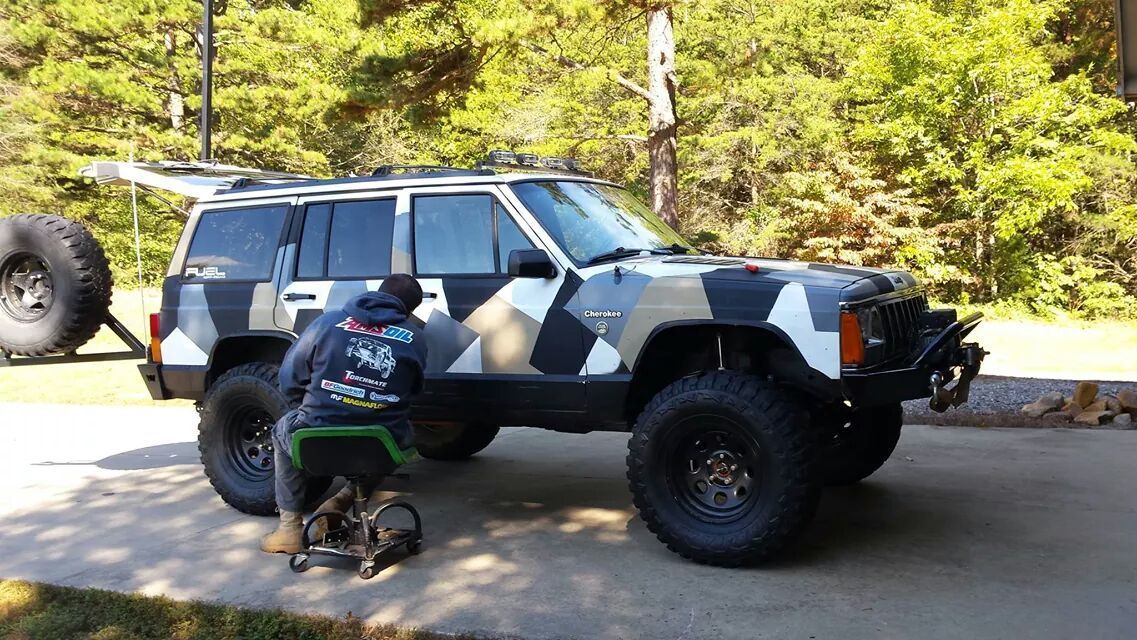

Here it is after I picked it up.


I found a little more rust than I originally thought it had, so during the Christmas break I repaired the pass floor and did a 2x6 rocker.









Finished product.


So after a couple of broken frt axle shaft, I've decided to make it a little more Mike proof.
The plan.
6.0 LS /6L80E
14" coilovers all around
3-link frt
Double tri 4-link rear
37's w/beadlocks.
Full interior cage w/frt tube doors.
As far as axles go I haven't quite finalized those yet (waiting on a buddy on what he wants for a Hi-9 setup )




Picked up a new welder.





Reperposed a tool cart to hold the Mig & Tig welders.





Everyone needs to have a fab table.

Last edited by DynoGuy; 02-20-2016 at 08:48 PM.
DynoGuy is offline
Old 09-28-2015, 08:25 PM
  #2
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

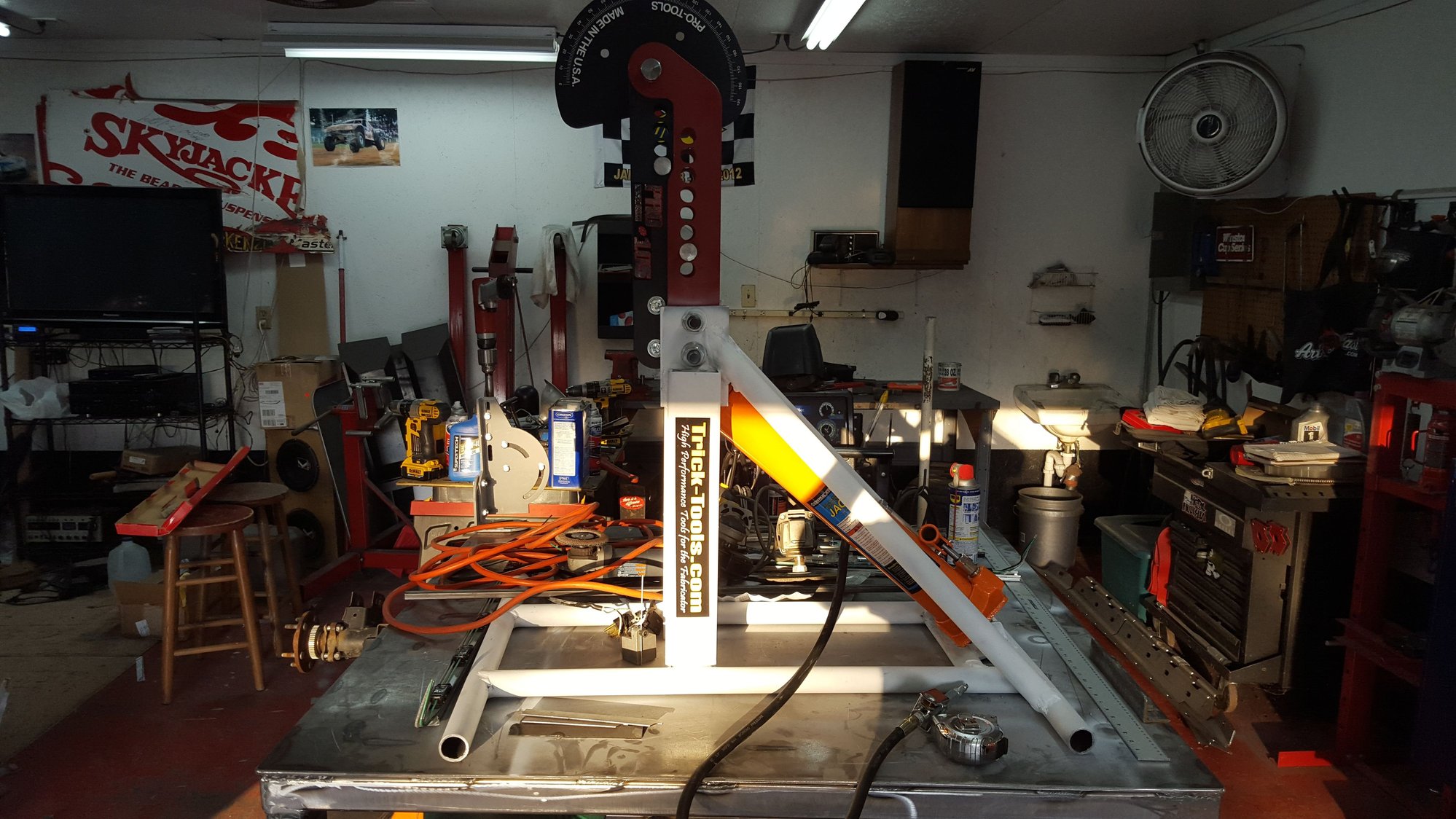

Bought a MB105 bender and did a air over hydraulic conversion.






Got a copy of Bend Tech software.





Gut the interior.





Cleaning out the engine compartment.





A & B pillar started.





As tight as I could get it with my limited ability (I'm an engine guy by trade ).
DynoGuy is offline
Old 09-28-2015, 08:34 PM
  #3
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default




Oh no something fell off.





Set up a D30 JK housing I had laying around. Set for a 3" stretch and for ride height.

Looking for 4" of up travel. The width of JK axles will be the minimum I will install so that should be good. I should have a bare mock up LS block later this week.
DynoGuy is offline
Old 09-28-2015, 08:54 PM
  #4
Member

guinelle1's Avatar

Join Date: Jul 2012
Location: LaGrange Il
Posts: 138
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default

bends are good!! way better then mine.. how big is that table top? i need to build one real bad..
guinelle1 is offline
Old 09-28-2015, 09:00 PM
  #5
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

4'4'x.250" (32" high). 2x3 box tube with casters on all corners.




DynoGuy is offline
Old 10-19-2015, 06:54 PM
  #6
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

Getting some prep work done on the main frame rails & RuffStuff frame stiffeners. Found a 6.0 LS & 4L60 out of 2000 Chevy with wiring harness & ECU. Now to sell a couple of things and get it here.

Last edited by DynoGuy; 10-19-2015 at 06:59 PM.
DynoGuy is offline
Old 10-20-2015, 02:39 PM
  #7
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

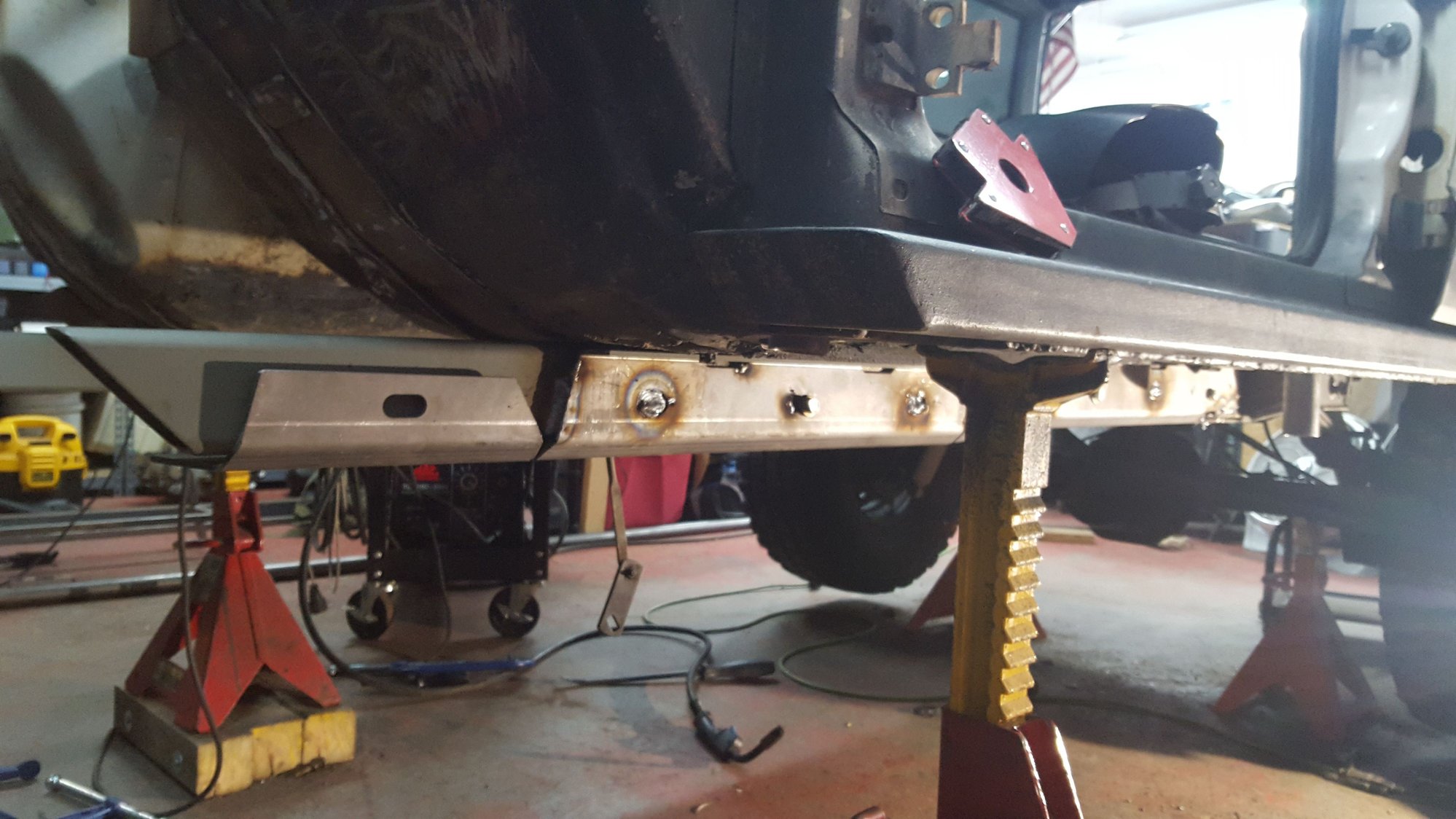

RuffStuff frame stiffeners.




2"3"0.188"74 1/2" main frame rails, these will slide into the existing stock uni-rails & form the basis for the chassis.
DynoGuy is offline
Old 10-20-2015, 08:45 PM
  #8
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

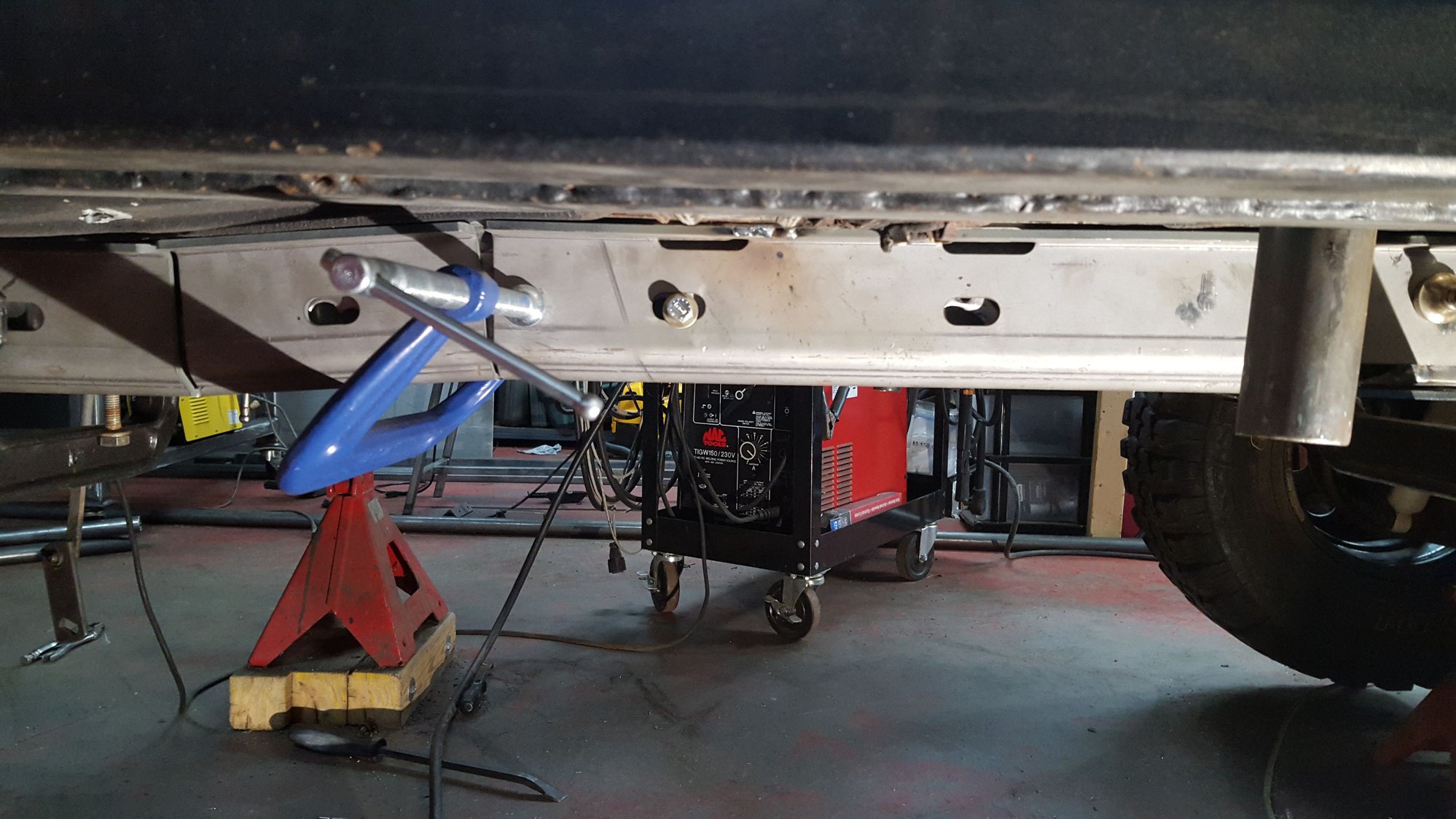

Got drivers side frame rail tacked in. Moving on to the other side tomorrow. Then I think I'm going to build a set of hi-stands to be able to finish weld the rails in a more comfortable position, my core isn't what it once was.
DynoGuy is offline
Old 10-21-2015, 08:43 PM
  #9
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

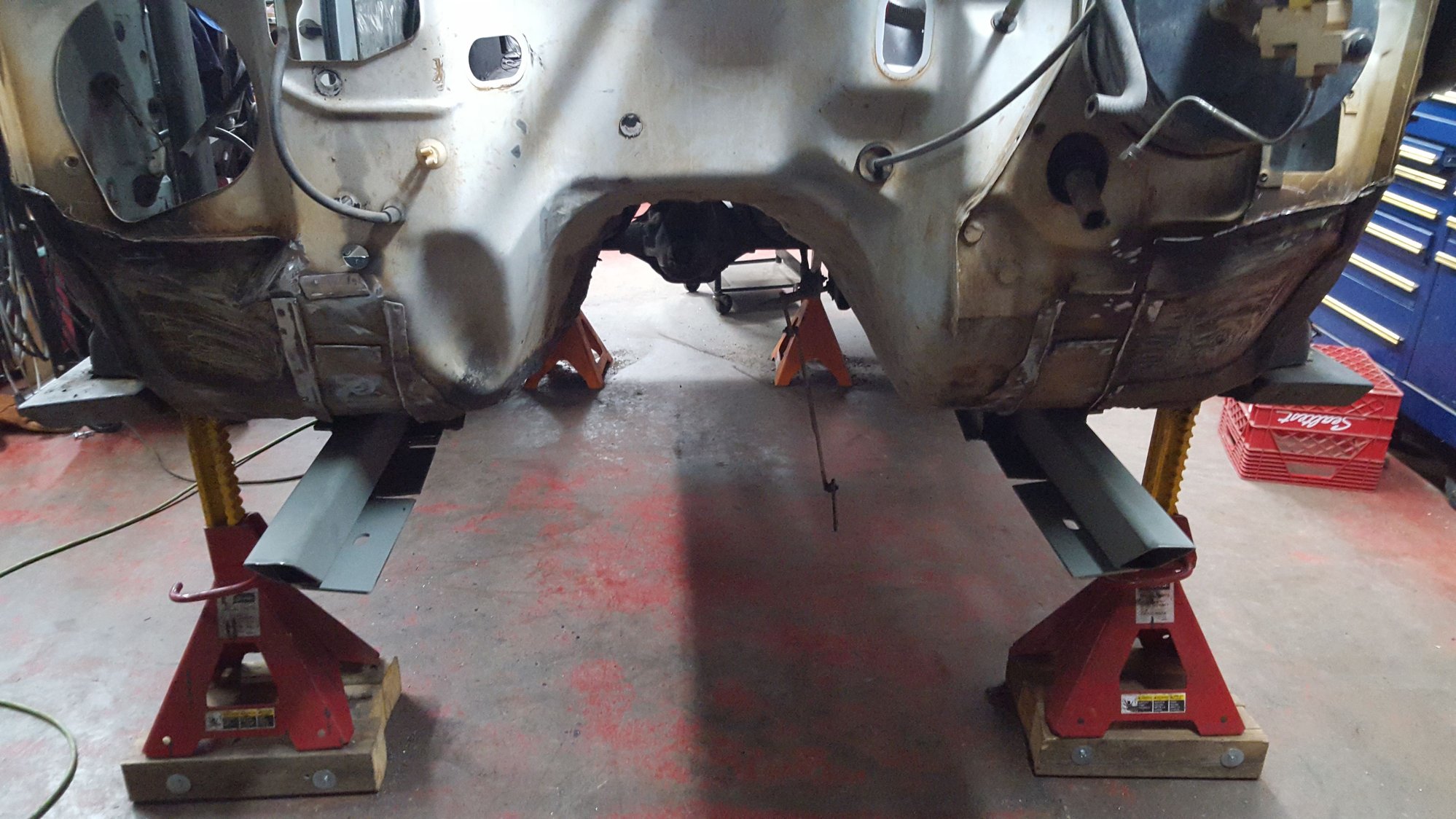

Main frame rails in.
DynoGuy is offline
Old 10-22-2015, 03:28 PM
  #10
Senior Member

dans98xj's Avatar

Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Awesome build so far. Are you going to graft the nose back on after the engine and trans install or are you going to leave it more of an buggy style.
dans98xj is offline
Old 10-23-2015, 04:07 AM
  #11
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

Dan, I will have the fenders & hood back on but it'll be just a tube front end.
DynoGuy is offline
Old 10-23-2015, 07:36 AM
  #12
Senior Member

dans98xj's Avatar

Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by DynoGuy View Post
Dan, I will have the fenders & hood back on but it'll be just a tube front end.
Sweet can't wait to see it done. Thanks

sub'd
dans98xj is offline
Old 11-08-2015, 07:28 PM
  #13
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

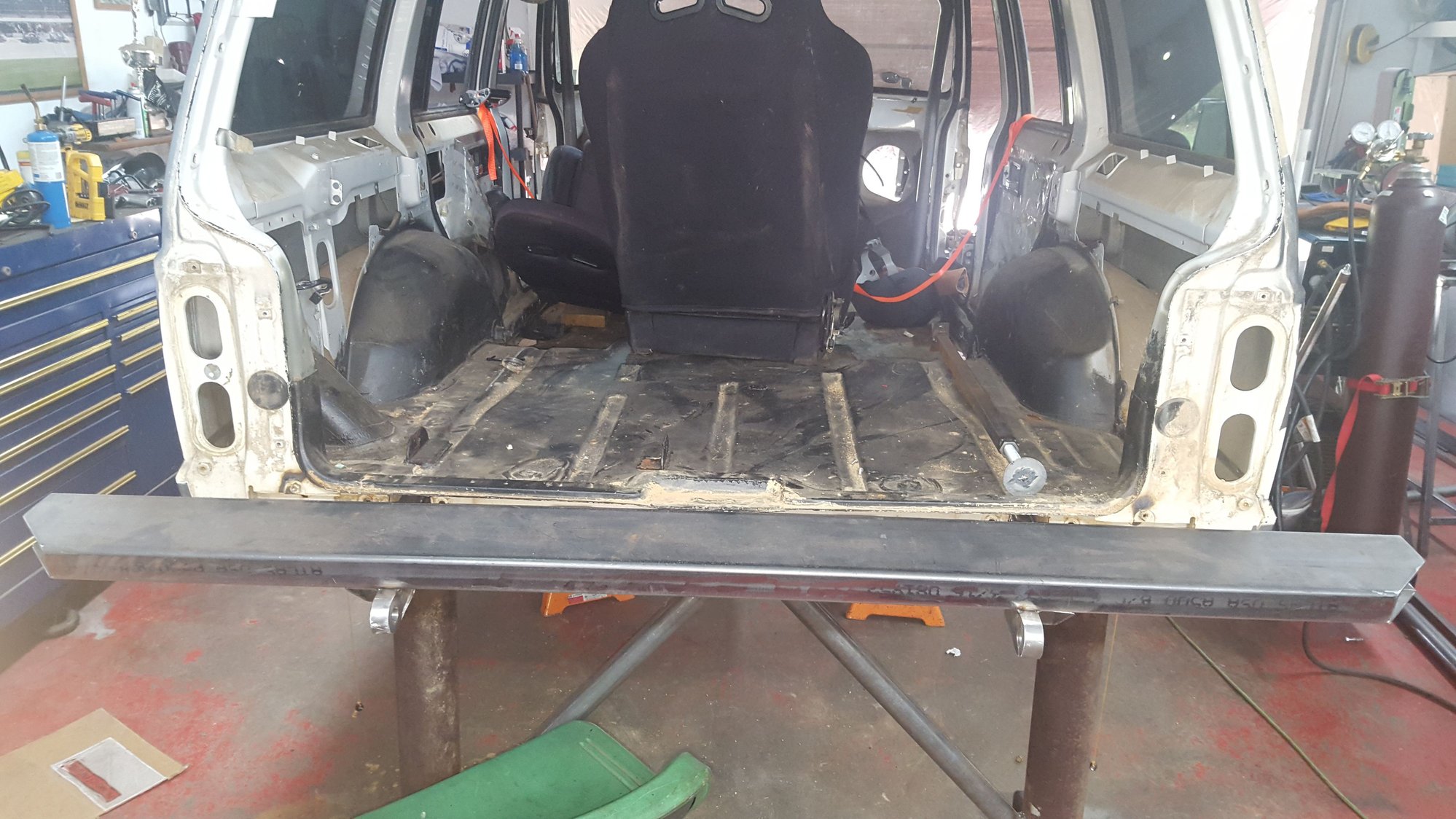

Starting the rear bumper.


Laying it all out.


Test fitting.



Waiting on UPS to deliver the RuffStuff 2"receiver to finish it up. The reason it's so wide is I plan on having rear tube fenders attach to it.
DynoGuy is offline
Old 11-13-2015, 07:45 PM
  #14
Member
Thread Starter

DynoGuy's Avatar

Join Date: Oct 2014
Location: Statesville, NC
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 6.0l LS
Default

Little more work on the rear bumper.


I'll try & finish it up tomorrow.
DynoGuy is offline
Old 11-13-2015, 08:17 PM
  #15
Seasoned Member

zrace's Avatar

Join Date: Jul 2015
Location: York County, PA
Posts: 264
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

This is awesome
