1995 Jeep cherokee gas tank leak
#1
Newbie
Thread Starter
Join Date: May 2013
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
1995 Jeep cherokee gas tank leak

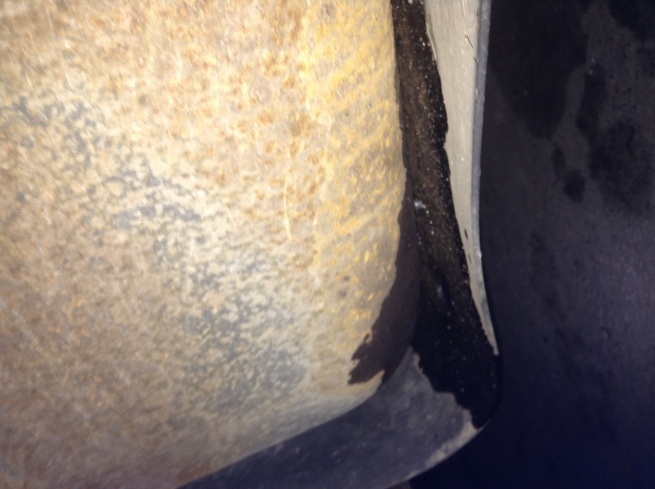

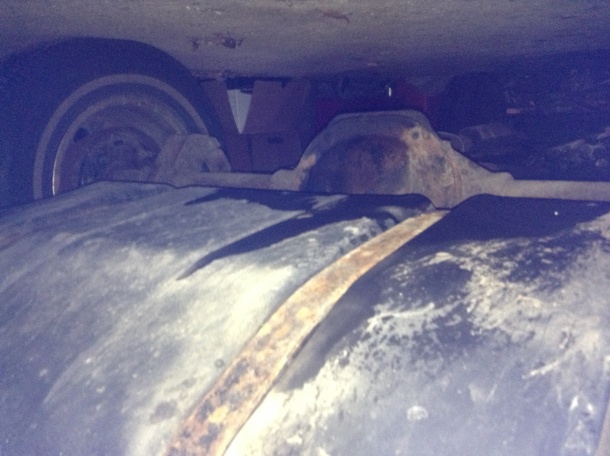

I've looked through other forums but haven't really found what I was looking for. This morning I saw a small puddle of gas in my garage right in the center of my gas tank. I'm not sure what exactly is leaking but I have some pictures attached. I only see gas at the bottom of the tank and I don't see any other wet areas. I checked the filler tubes and everywhere around the tank but nothing. The first one is upside down for some reason.. the second one is sideways. I dont know how it happened, sorry! Any ideas?
Last edited by Timebinder12; 05-12-2013 at 12:29 PM.
#4
CF Veteran
Join Date: Aug 2012
Location: Bentonville, AR
Posts: 1,281
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1990
Model: Cherokee
Engine: I6 4.0
Go to a parts store and get a JB weld kit. It'll work for awhile. Then start looking for a new tank. There's a company that makes a 30 gallon tank for XJs.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
100% sure it isn't leaking from the sending unit/fuel pump area?
Ever tried the bar of soap trick?
Ever tried the bar of soap trick?
#6
Newbie
Thread Starter
Join Date: May 2013
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#7
Senior Member
Join Date: Mar 2013
Location: Texas
Posts: 691
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0L
You can do a patch with two-part liquid epoxy and fiberglass cloth that will be permanent for most practical purposes. I keep this stuff for marine purposes but it used to be available in the Home Depot paint dept. The epoxy isn't particularly cheap so you might try something else for a patch that's only for a couple of weeks.
The tank on my '85 developed a bunch of holes on the bottom years ago and I patched until I could get around to ordering a tank. I ultimately got the tank but never got around to installing it. (Still have it if anyone in the general Houston area needs a 20 gal tank for a carbureted XJ.)
The tank on my '85 developed a bunch of holes on the bottom years ago and I patched until I could get around to ordering a tank. I ultimately got the tank but never got around to installing it. (Still have it if anyone in the general Houston area needs a 20 gal tank for a carbureted XJ.)
Trending Topics
#8
CF Veteran
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
What's the bar of soap trick? Is it really a trick, is this a trick, or is it a trick question?
A good lye based soap, Irish Spring, or would Dove be best in application? Can I use my brother in laws soap bar and then slip it back in his travel kit?
All jokes aside,what is the application??
A good lye based soap, Irish Spring, or would Dove be best in application? Can I use my brother in laws soap bar and then slip it back in his travel kit?
All jokes aside,what is the application??
#9
CF Veteran
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
OK, so google is our friend.
Looks like rubbing a leaky metal tank with a bar of soap can seal weepage and or small holes. Worth giving a try till a replacement tank can be acquired.
Looks like rubbing a leaky metal tank with a bar of soap can seal weepage and or small holes. Worth giving a try till a replacement tank can be acquired.
#10
CF Veteran
Join Date: Jan 2009
Location: Baltimore, Maryland
Posts: 1,964
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1994 1993
Model: Cherokee
Engine: 4.0
I sell this stuff where I work. Never used it myself but a bunch of the repair shops come back and buy it repeatedly so it must be alright.
http://www.permatex.com/products/pro...air-kit-detail
http://www.permatex.com/products/pro...air-kit-detail
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Clean the whole aread around the crack of all rust and dirt. Use the soap trick to stop the leak/seep. Apply "magic stuff" over it to seal the leak.
