idiot lights to gauge cluster swap need help
#1
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Tucson, AZ
Posts: 979
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
idiot lights to gauge cluster swap need help

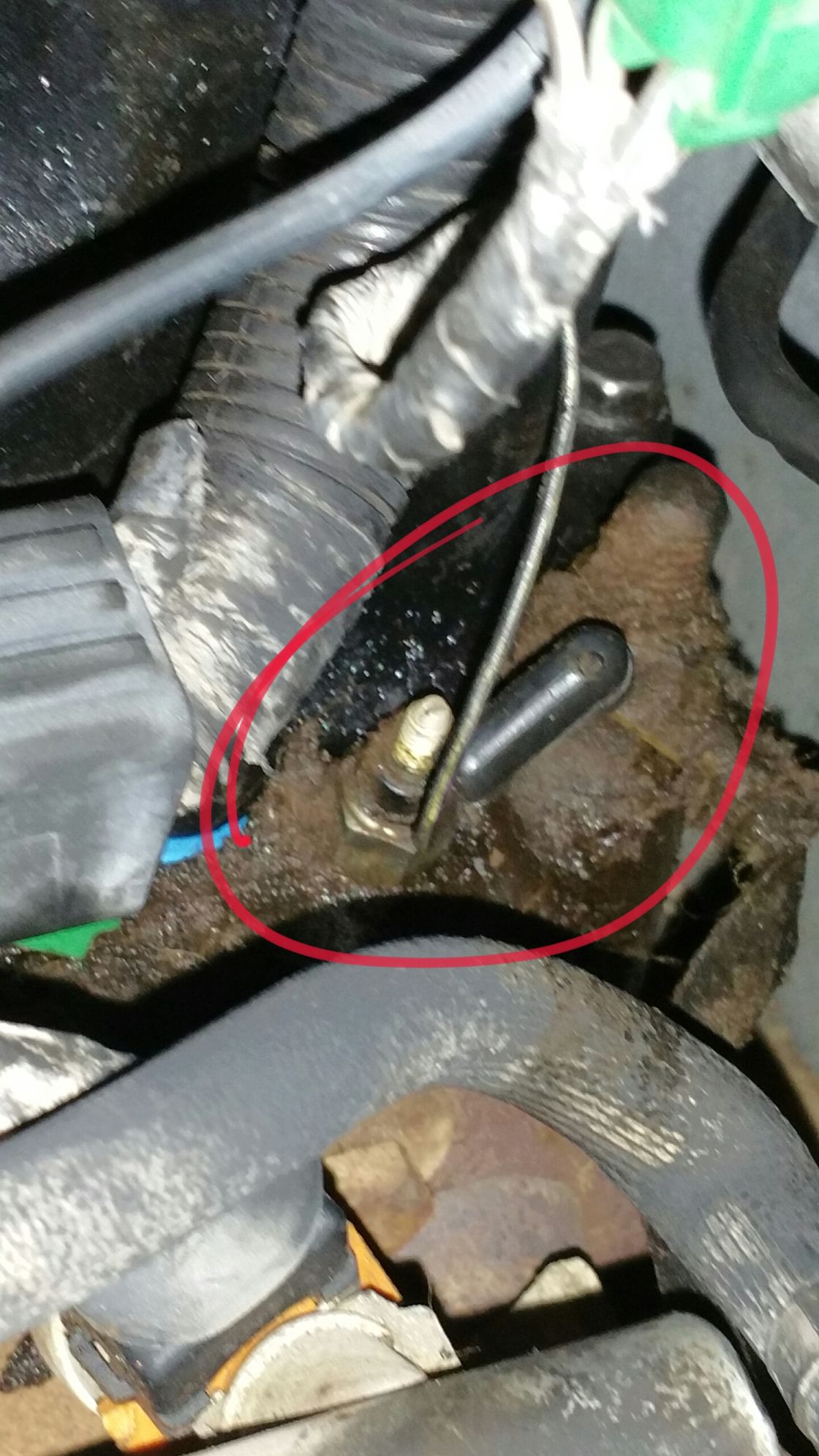

I'm swapping the idiot lights cluster for a gauge cluster. 91-96 xj I have a 91. I have located the 2 senders which I believe are these two:
Oil pressure
Air temp sender
Went to autozone and this is the sender I bought but I think it's the wrong part.
After doing a bit of research I think what it's supposed to look like is this right here
There's so many parts that say they are the right sender but look different. Can somebody please clarify.
Oil pressure
Air temp sender
Went to autozone and this is the sender I bought but I think it's the wrong part.
After doing a bit of research I think what it's supposed to look like is this right here
There's so many parts that say they are the right sender but look different. Can somebody please clarify.
Last edited by studmuffin; 06-16-2015 at 12:23 AM.
#2
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

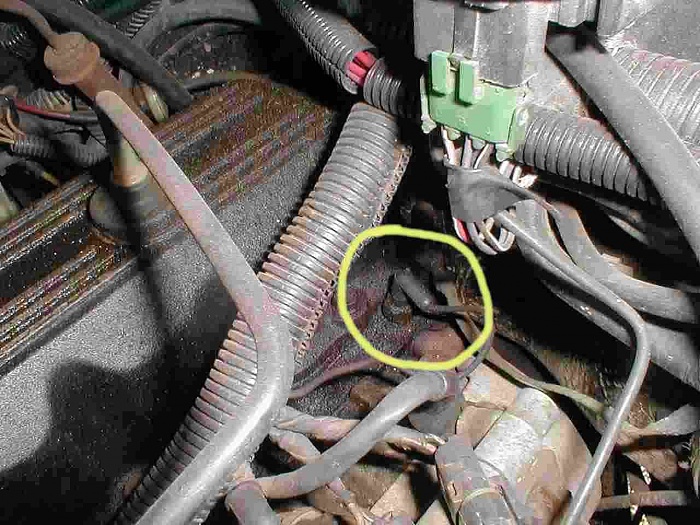

One by oil filters correct. Coolant should be in area of green circle. As for there look as long as its for a gauge your good to go.
Last edited by freegdr; 06-16-2015 at 07:12 AM.
#3
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Tucson, AZ
Posts: 979
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0

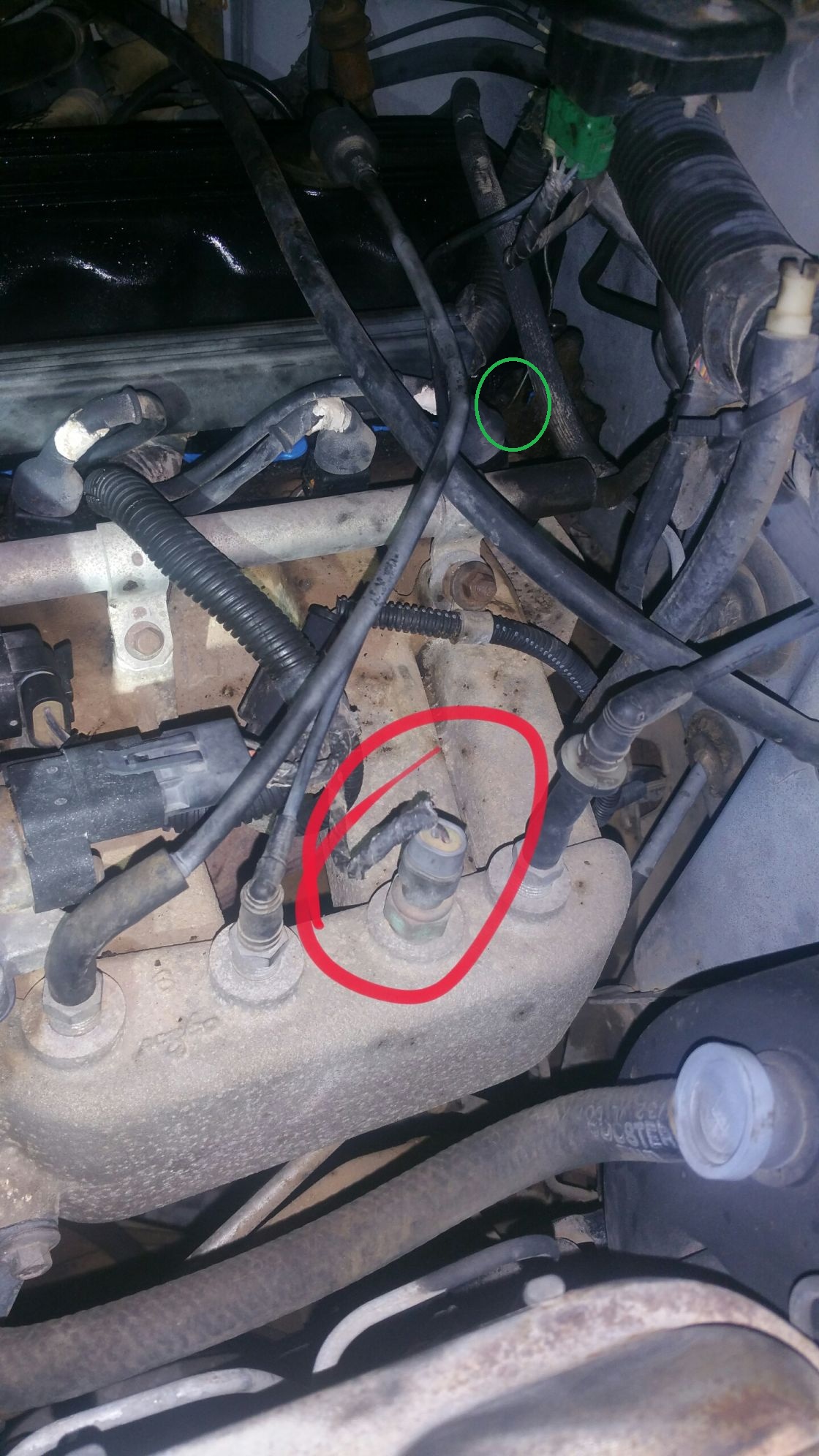

I located the temp sensor here but this one only has 1 wire to it as you can see in the picture below. In all the write ups I've seen the sensor that guys have used to replace the light one has multiple wires and appears to be the same sensor used for the cpu that is in front of the engine. Not the case here. This is the temp sensor I have right now with my dummy gauge.
I went to autozone and originally got a sensor that looked exactly the same as the one I have right now. The guy told me it was for a gauge cluster however does that seem right? Do the light and gauge temp sensors both look the same?
I'm starting to lose my mind here trying to find the right damn sensor for this project.
On the write ups I have seen this appears to be the sensor I should be using:
BUT this can't be right as the threads on this sensor are way too big and this does not connect to the single wire I have by my valve cover.
I went to autozone and originally got a sensor that looked exactly the same as the one I have right now. The guy told me it was for a gauge cluster however does that seem right? Do the light and gauge temp sensors both look the same?
I'm starting to lose my mind here trying to find the right damn sensor for this project.
On the write ups I have seen this appears to be the sensor I should be using:
BUT this can't be right as the threads on this sensor are way too big and this does not connect to the single wire I have by my valve cover.
Last edited by studmuffin; 06-16-2015 at 10:14 PM.
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
I located the temp sensor here but this one only has 1 wire to it as you can see in the picture below. In all the write ups I've seen the sensor that guys have used to replace the light one has multiple wires and appears to be the same sensor used for the cpu that is in front of the engine. Not the case here. This is the temp sensor I have right now with my dummy gauge.
I went to autozone and originally got a sensor that looked exactly the same as the one I have right now. The guy told me it was for a gauge cluster however does that seem right? Do the light and gauge temp sensors both look the same?
I'm starting to lose my mind here trying to find the right damn sensor for this project.
On the write ups I have seen this appears to be the sensor I should be using:
BUT this can't be right as the threads on this sensor are way too big and this does not connect to the single wire I have by my valve cover.
I went to autozone and originally got a sensor that looked exactly the same as the one I have right now. The guy told me it was for a gauge cluster however does that seem right? Do the light and gauge temp sensors both look the same?
I'm starting to lose my mind here trying to find the right damn sensor for this project.
On the write ups I have seen this appears to be the sensor I should be using:
BUT this can't be right as the threads on this sensor are way too big and this does not connect to the single wire I have by my valve cover.
Do the light and gauge temp sensors both look the same?
YES...
#6
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Tucson, AZ
Posts: 979
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
My temp sensor looks nothing like that. Did they change after 91 or something? My fuel pressure sensor also doesn't connect to a pigtail like that it hooks to a male connector as seen in one of my first pictures
Also thanks for the replies guys
Also thanks for the replies guys
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Tucson, AZ
Posts: 979
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
#9
Senior Member
Join Date: Feb 2015
Location: South Georgia
Posts: 514
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0l
I've found this it says it for a 91 with temp guage
http://www.omix-ada.com/temp-sending...angler-yj.html
http://www.omix-ada.com/temp-sending...angler-yj.html
Last edited by peligro113; 06-17-2015 at 01:14 PM.
#10
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Just replace the sensor no plugs/connectors are needed. Wire should just stab down onto top. Yours is not connected in your pick the other one is. Jeep sensors change thru the years ....
Last edited by freegdr; 06-17-2015 at 01:46 PM.
