Fender flares with snorkel

Subscribe
Mar 16, 2015 | 08:34 AM
  #1
Anybody on here running fender flares with a snorkel with cut fenders I'm just looking for what kind how high did you cut the fender and how does it all worki'm running 35 12.50 on 8 inch wide wheels with 2 inch backspacingso there's a lot of tire stick it out and I was just wondering if it's worth trying to do a fender flare or just let the mud go everywhere and just wash it off after
Reply 0
Mar 16, 2015 | 12:45 PM
  #2
That is a loooong sentence.... Have any pics of your rig??? Any lift???
Reply 0
Mar 16, 2015 | 12:58 PM
  #3
Quote: That is a loooong sentence....
Reply 0
Mar 16, 2015 | 01:47 PM
  #4
If it's not cut up already you could probably do the Bushwacker flat flares with no problem. If it's already cut for pockets you can't run them though.

http://www.rocksolidor.com/Bushwacke...bw10922-07.htm

They don't require you to cut out as much as a pocket flare and only cover about as much body as stock. Width wise you may still stick out a couple inches.

I'm running them with 285/75 R16s, which are only about an inch shorter than a 35" and 4.5" of lift and would easily clear 35's. I don't have a snorkel but since it doesn't cover much more than a stock flare it should be safe I would think.

If you go with cut out flares these cover 5". That should catch most of it.

http://www.rocksolidor.com/Bushwacke...bw10911-07.htm

I also ran a quick Google search and looked at images. There are plenty with pocket/cut out flares with snorkels if you look around.

As was mentioned/asked above it would also depend on how much lift you have as to how much you need to cut out too.
Reply 0
Mar 16, 2015 | 02:46 PM
  #5
i have bushwacker cut outs and a snorkel. i had to trim a bit off the top of the bushwacker, but if you're good with a blade or grinder, it doesn't look too bad when together.
Reply 0
Mar 17, 2015 | 12:45 AM
  #6
If you don't have abs airflow makes a thinner snorkel that mounts a little higher on the fender.Or the arb one will fit if you cut a little but on the flare and not use one bolt you can't see anyways.
Reply 0
Mar 17, 2015 | 10:24 AM
  #7
Or you could use a cowl setup, unless you plan on having the hood under water.
Reply 0
Mar 17, 2015 | 02:57 PM
  #8
Quote: Or you could use a cowl setup, unless you plan on having the hood under water.
Agreed. I just finished making my cowl intake and love it. I don't plan on having the hood under water so it was more than enough for my needs.
Reply 0
Mar 18, 2015 | 01:57 AM
  #9
For most people off road a cowl intake is good enough,If you need a snorkel then you need to raise the breathers for a lot of stuff like http://jeep-xj.info/HowtoBreatherExtensions.htm
Reply 0
Mar 23, 2015 | 05:41 AM
  #10



They are cut but only to the top of the flare bump
Reply 0
Mar 23, 2015 | 05:44 AM
  #11
I've got a 6.5" long arm and yea I've had the hood under on my other rigs and I'm in the process of extending all the breathers even Tranz and xfer case
Reply 0
Mar 23, 2015 | 10:58 AM
  #12
Here is how I did mine, two are just for reference on how I did the whole process.

I eliminated the hose going through the fenderwell and up into the airbox...

Name:  20130814_180439_zps3d9d6060.jpg
Views: 1114
Size:  94.3 KB

I capped off the old inlet...

Name:  20130814_180505_zps1b7f5dbe.jpg
Views: 1122
Size:  97.7 KB

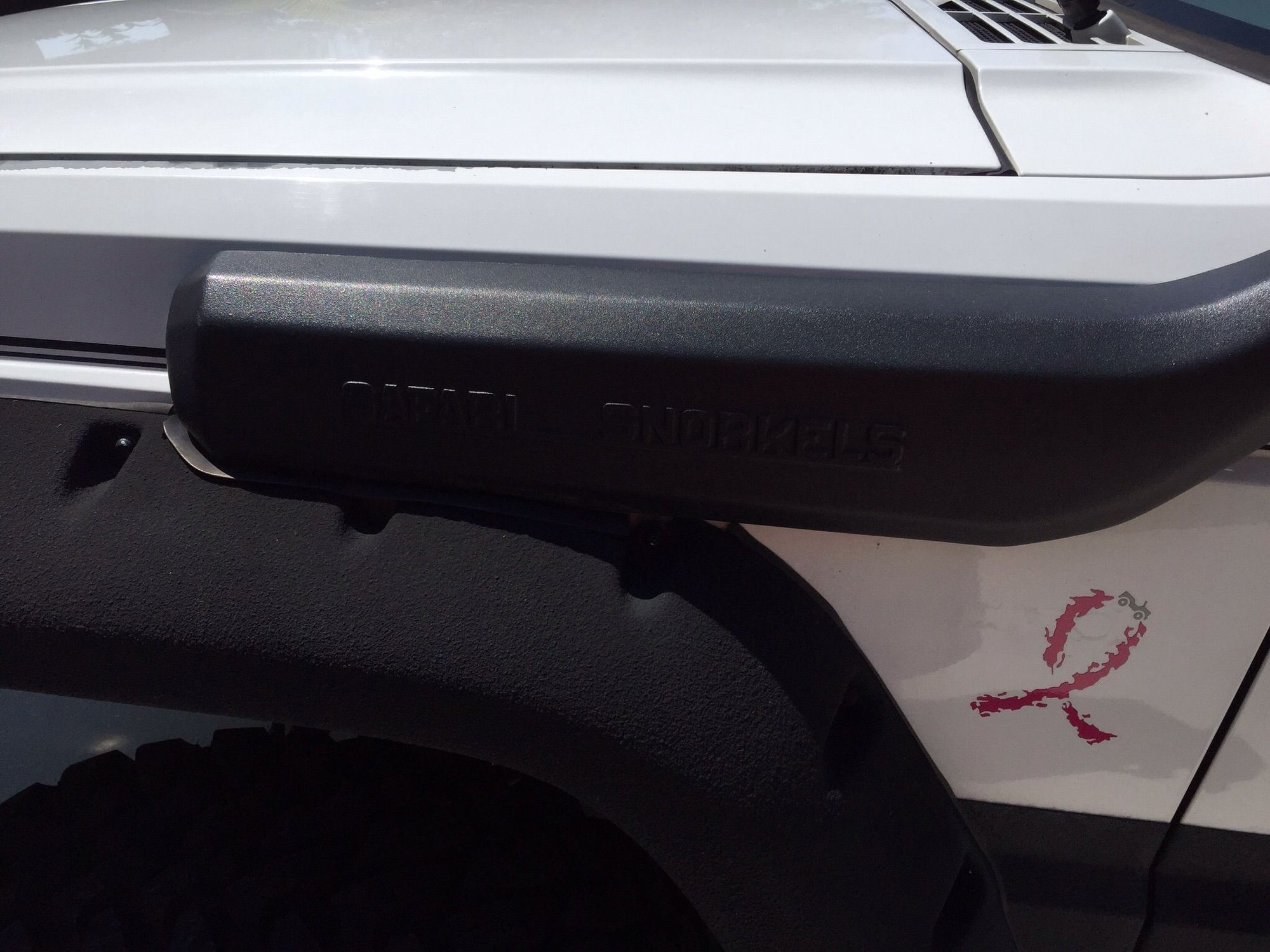

Here is how I trimmed the flares to mold around the snorkel...

Name:  20150323_114759_zpsvylfksma.jpg
Views: 1819
Size:  172.4 KB

Yes, I actually do use it!
Hope this helps you some.


Reply 0
Mar 23, 2015 | 11:12 AM
  #13
Quote: Here is how I did mine, two are just for reference on how I did the whole process. I eliminated the hose going through the fenderwell and up into the airbox... I capped off the old inlet... Here is how I trimmed the flares to mold around the snorkel... Yes, I actually do use it! Hope this helps you some.
looks good!!
Reply 0
Mar 23, 2015 | 11:22 AM
  #14
Thanks!

Quote: looks good!!
Reply 0
Mar 29, 2015 | 01:21 PM
  #15
Cutout Bushwhakers that are speedlined
