A challenge for those more electrically inclined...
So I've got a 1990 4.0, 5 speed. I've been doing a lot of camping lately and ending up out in the woods long after dark, finding the headlights to be grossly inadequate. So what have done its ordered a 50 inch light bar and a couple of pods to light things up a little bit.
I wanted the main light bar on its own switch, and the pods on their own switch. I also wanted a quick and easy way to later on easily add more things, such as a winch, and on board air. That being the case, I snagged an old fuse box out of a Cherokee at the junkyard. With the drawbacks to the stock alternator I decided to go with an auxiliary battery setup as well, with an isolator, to run my electrical components without having to worry about killing the battery miles out of town.
So this is my personal little wiring diagram I came up with. As you can see all of the electrical components run off of the auxiliary side the isolator. The power for the switch comes directly from the auxiliary post on the isolator, it's then chassis grounded, with a lead then going back to the fuse box to a relay to provide power for the lights.

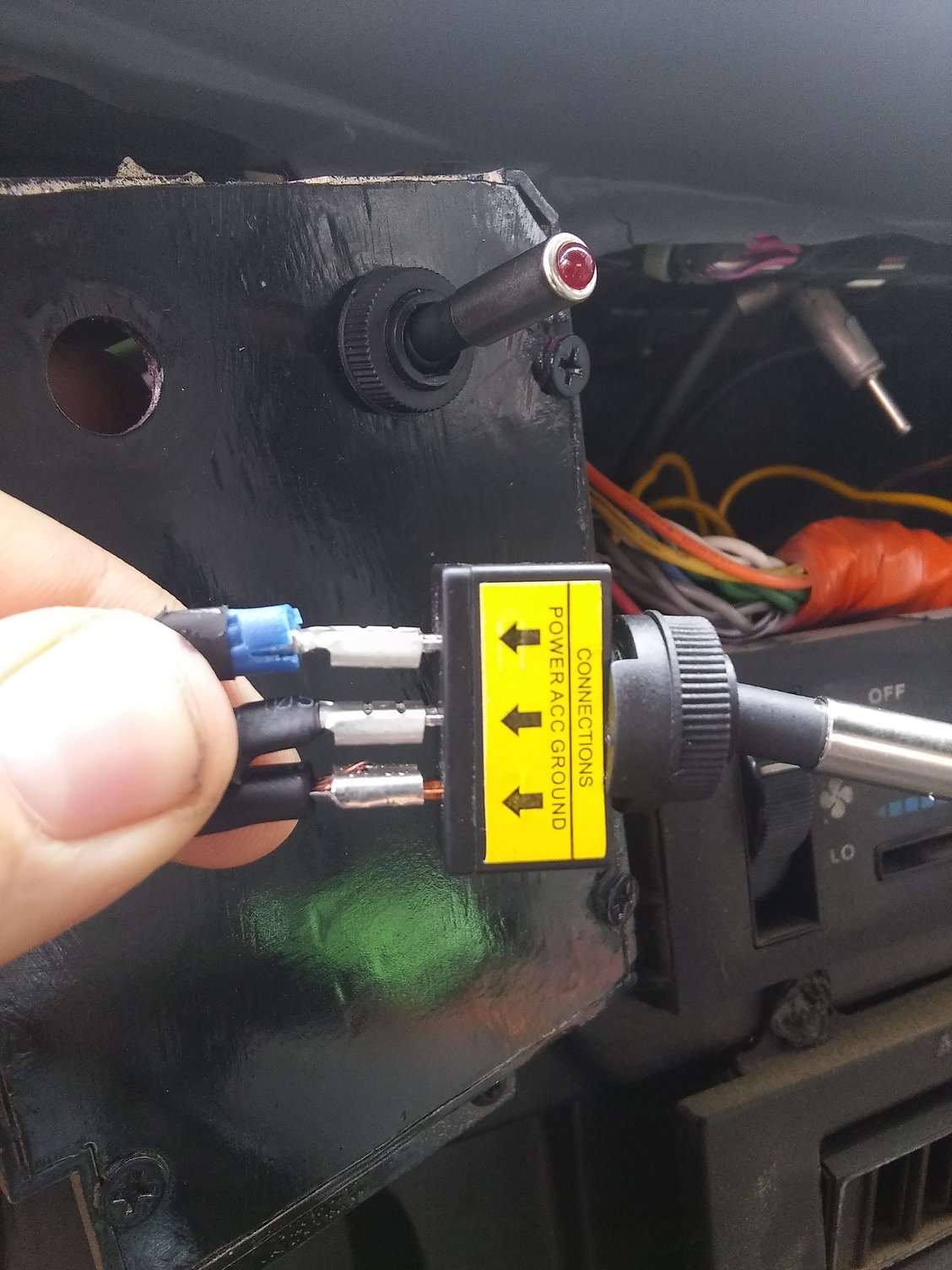

The switch I'm using.

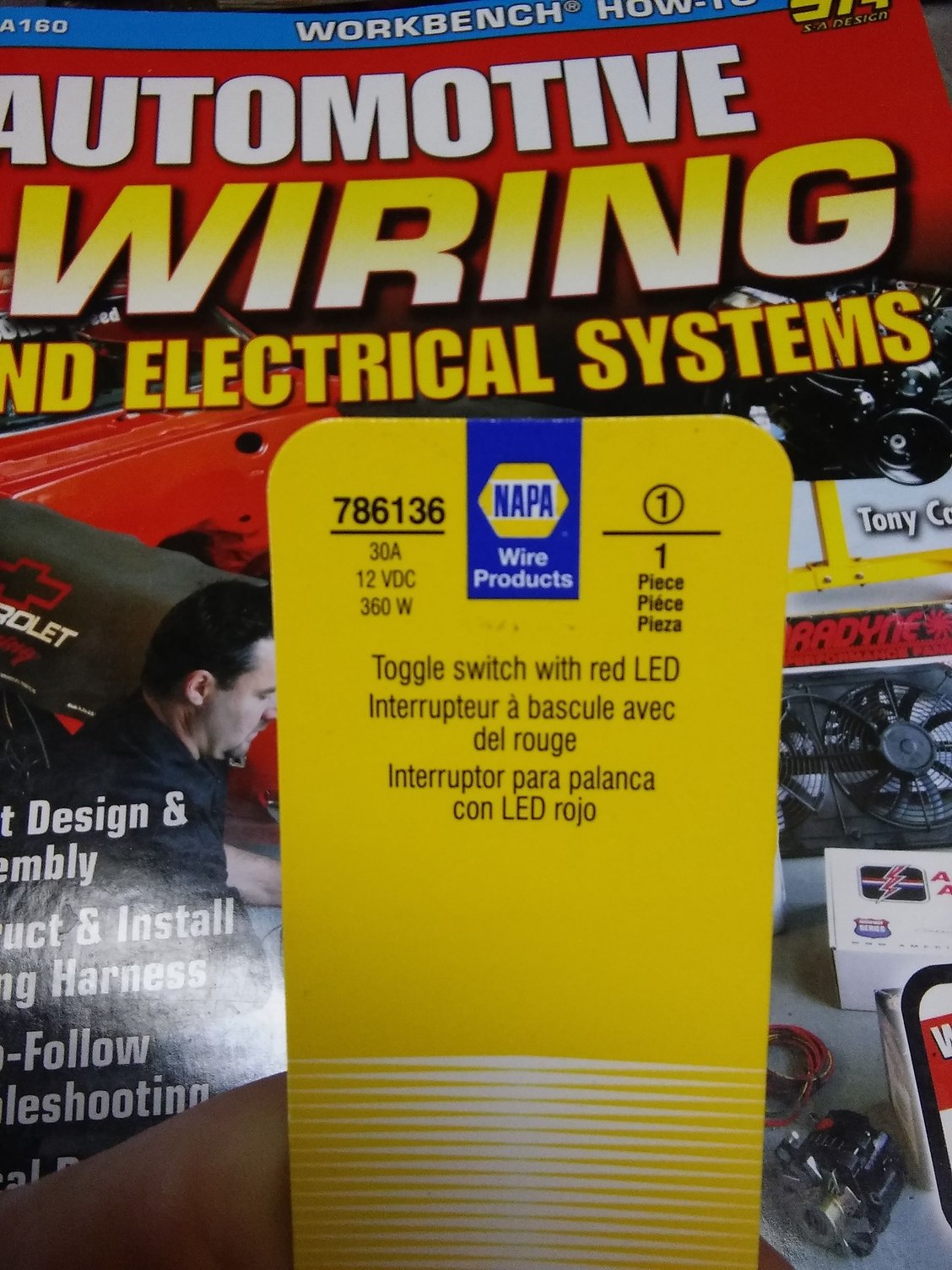

NAPA part number for the switch

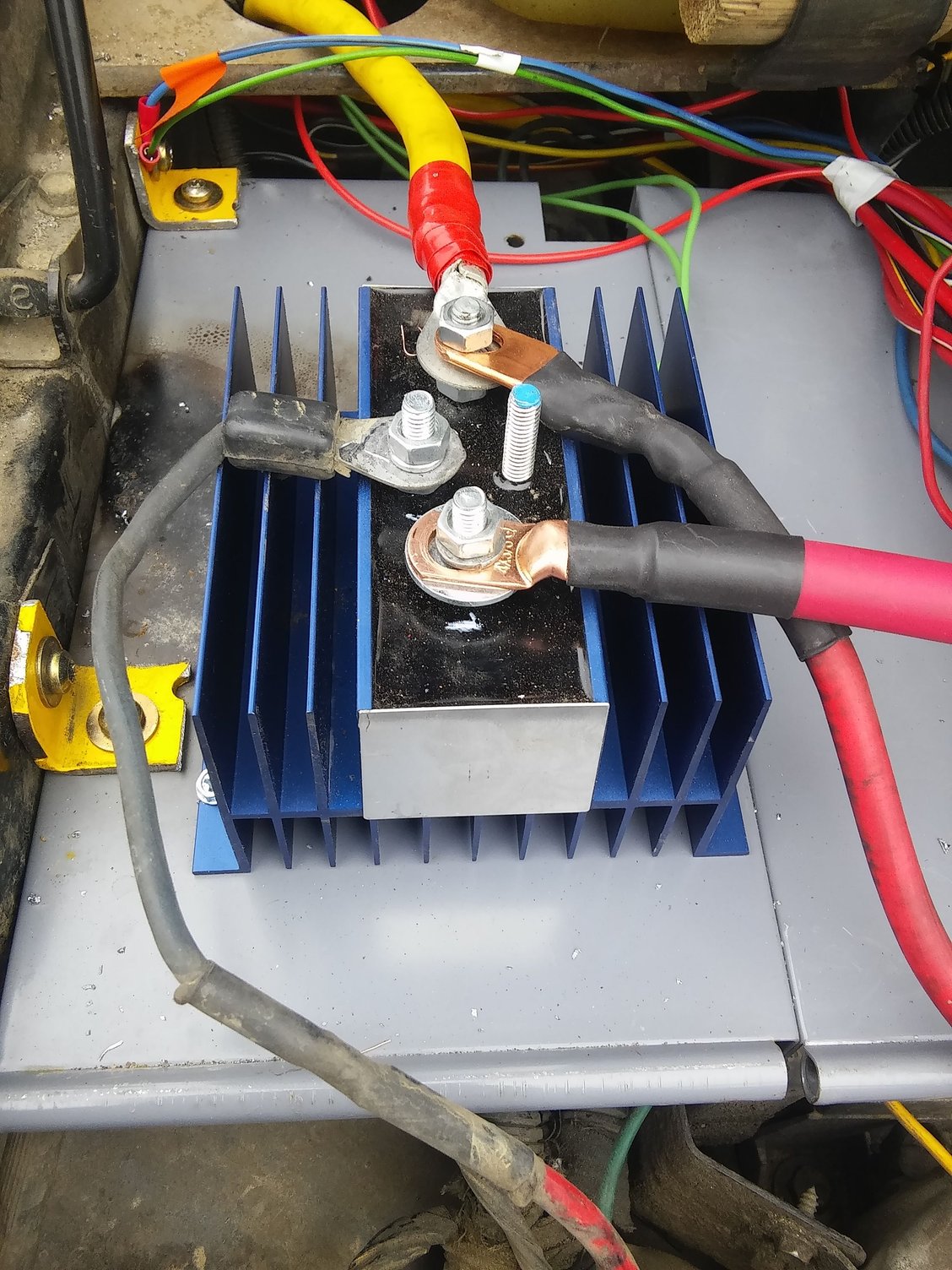

My isolator setup. Rear post is aux side. Leftward is the alternator input. Forward post is starting battery.
So the problem I'm having is that I'm finding I have power to the switch but it's not opening the relay when the switch is thrown. I can manually jump the relay to fire up the lights, so I know that works, but I'm thinking I screwed up somehow with the pin-out on the relay somehow.

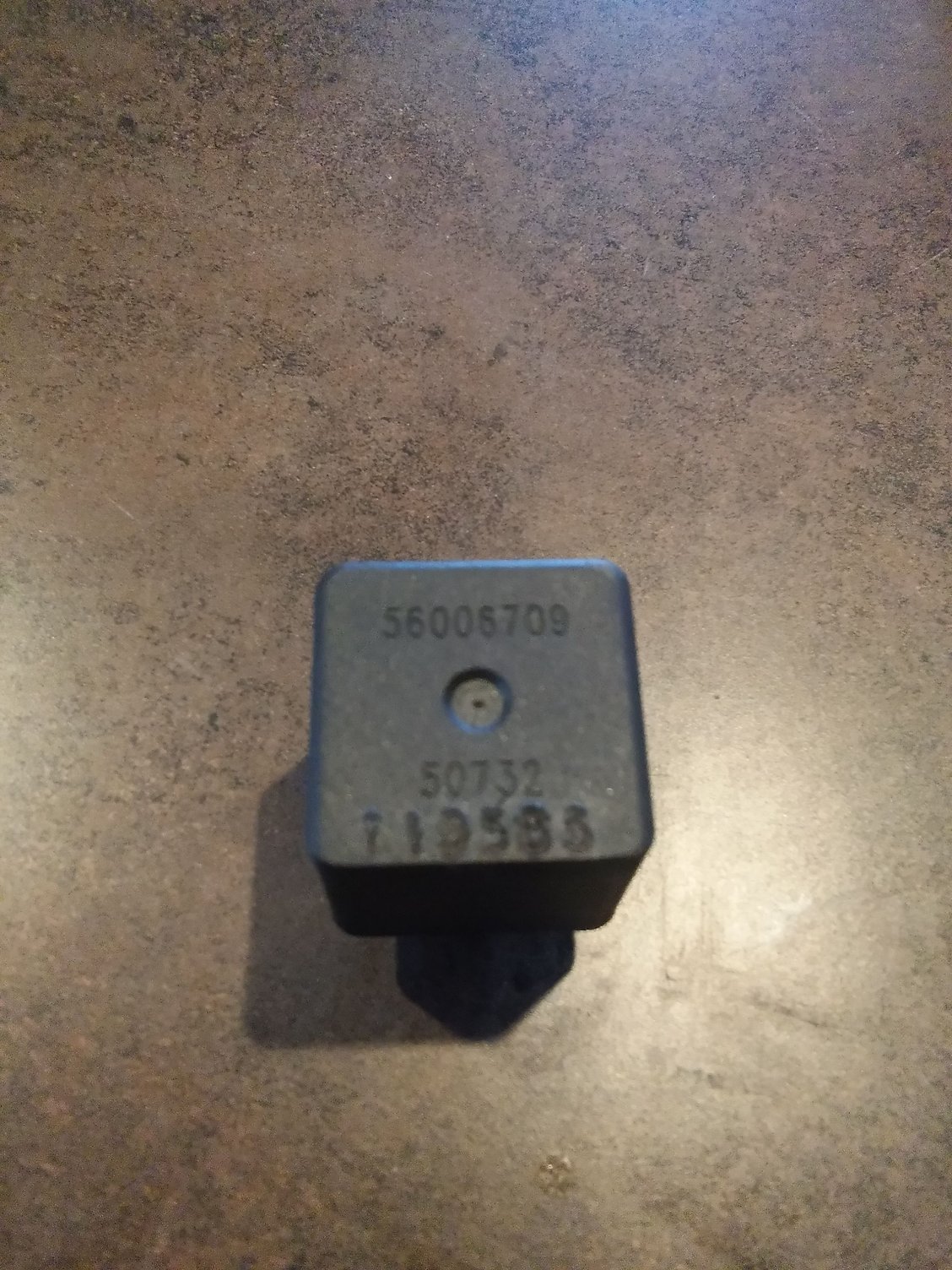

Chrysler relay from the cherokee fuse box
The beast.
What I'm hoping is that one of you guys can spot my screw up. Any help is appreciated. Thanks!
I wanted the main light bar on its own switch, and the pods on their own switch. I also wanted a quick and easy way to later on easily add more things, such as a winch, and on board air. That being the case, I snagged an old fuse box out of a Cherokee at the junkyard. With the drawbacks to the stock alternator I decided to go with an auxiliary battery setup as well, with an isolator, to run my electrical components without having to worry about killing the battery miles out of town.
So this is my personal little wiring diagram I came up with. As you can see all of the electrical components run off of the auxiliary side the isolator. The power for the switch comes directly from the auxiliary post on the isolator, it's then chassis grounded, with a lead then going back to the fuse box to a relay to provide power for the lights.
The switch I'm using.
NAPA part number for the switch
My isolator setup. Rear post is aux side. Leftward is the alternator input. Forward post is starting battery.
So the problem I'm having is that I'm finding I have power to the switch but it's not opening the relay when the switch is thrown. I can manually jump the relay to fire up the lights, so I know that works, but I'm thinking I screwed up somehow with the pin-out on the relay somehow.
Chrysler relay from the cherokee fuse box
The beast.
What I'm hoping is that one of you guys can spot my screw up. Any help is appreciated. Thanks!
#2
Senior Member
Join Date: Sep 2014
Location: A.A. Co. Maryland
Posts: 738
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 Inline
Check the coil of the relay using an meter set to ohms, depending on the one you have if it reads OL (digital) the coil is open and won't work.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#6
Senior Member
Join Date: Mar 2012
Location: Racine, WI
Posts: 974
Likes: 0
Received 8 Likes
on
7 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
#7
Seasoned Member
Join Date: Dec 2013
Location: Eastern Michigan
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Did you check all the wiring between the switch and the relay? If you have power at the switch but not at the relay, it has to be something in between those two. Check power out of the switch, and then check at the relay too to see if its getting current. I really doubt it's anything to do with the relay since you can manually jump it. Those things really don't require much current to power up the coil.
Trending Topics
#8
Did you check all the wiring between the switch and the relay? If you have power at the switch but not at the relay, it has to be something in between those two. Check power out of the switch, and then check at the relay too to see if its getting current. I really doubt it's anything to do with the relay since you can manually jump it. Those things really don't require much current to power up the coil.
#10
Seasoned Member
Join Date: Dec 2013
Location: Eastern Michigan
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Relays are always diodes. Sending current through a relay in reverse switches the polarity on the coil and the circuit won't close.
