09-21-2015, 02:17 PM
Last edit by: IB Advertising
See related guides and technical advice from our community experts:
Browse all: Wheels and Tires
- Jeep Grand Cherokee ZJ 1993 to 1998 Tires General Information and Specs
Important information to help you understand your Jeep Grand Cherokee.
Browse all: Wheels and Tires
All Lift & Tire questions go here!!!
05-18-2016, 09:59 PM
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
well it's a 3" rough country lift with new control arms and shocks. Maybe since you still have stock control arms it pulls on the axle some? If you want to you can drive down here and compare but it's a cheap crappy 3" lift that rides like crap haha. Can't wait to upgrade but the price is going to suck.
05-18-2016, 10:42 PM
CF Veteran
SatiricalHen, I have a brand spankin new set of JKS shackles (no, I'm not a dealer). Not sure if it's what you're looking for, but thought I'd put it out there. PM me if you're interested.
Steve, I'm currently finishing up install of my HD No Lift SRB's, and it's looking like I'll be around 40° with they way I have it now. I'm pretty sure it'll end up being less than 45°. So what characteristics are expected depending on if you're above or below 45°?
Steve, I'm currently finishing up install of my HD No Lift SRB's, and it's looking like I'll be around 40° with they way I have it now. I'm pretty sure it'll end up being less than 45°. So what characteristics are expected depending on if you're above or below 45°?
05-18-2016, 10:53 PM
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
SatiricalHen, I have a brand spankin new set of JKS shackles (no, I'm not a dealer). Not sure if it's what you're looking for, but thought I'd put it out there. PM me if you're interested. Steve, I'm currently finishing up install of my HD No Lift SRB's, and it's looking like I'll be around 40° with they way I have it now. I'm pretty sure it'll end up being less than 45°. So what characteristics are expected depending on if you're above or below 45°?
05-19-2016, 07:09 AM
Beach Bum
Shackle angle is somewhat dependent on leaf spring arch. If leaf pack is flat it will not get any longer, only shorter on both compression and droop, shackle can be 60* off of vertical (40* angle).
An arched leaf pack will get longer as it compresses, shorter as it droops. If shackle is at 45* and suspension fully compresses, shackle can bottom out on chassis (where bumper attaches).
45* shackle increases droop of suspension.
A more vertical angle will offer a firmer ride and less body roll around corners and off-camber terrain.
05-19-2016, 08:06 AM
CF Veteran
^^^Good info. I think I may move the upper shackle bolt back a hole. I think this will put me a little bit above 45°. I don't want it to be "boaty" out back.
What angle have you liked the most? Or have you not played with it enough to know yet?
What angle have you liked the most? Or have you not played with it enough to know yet?
05-19-2016, 08:08 AM
Senior Member
Join Date: Jun 2015
Location: Michigan
Posts: 551
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
well it's a 3" rough country lift with new control arms and shocks. Maybe since you still have stock control arms it pulls on the axle some? If you want to you can drive down here and compare but it's a cheap crappy 3" lift that rides like crap haha. Can't wait to upgrade but the price is going to suck.
05-19-2016, 08:10 AM
Senior Member
Join Date: Jun 2015
Location: Michigan
Posts: 551
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
05-19-2016, 11:19 AM
No, I don't lick fish.
Yup.... the POS parts jeep I have had a set of these up front. The ride was CUSH! But sketchy as all get out. Wouldn't put 'em on my rig, that's for sure.
Little visual for ya in conjunction with that....
My current shackle angle at ride height (I've since gotten extended shackles, but the ANGLE is still the same):
My current ride height:
Plenty of downtravel:
Plenty of uptravel:
On road ride.... well... yeah.... not so cush. It's a little stiff in the rear... you'll know it when you hit bumps at highway speeds, and you don't wanna go fast over speed bumps, but it's not "dumptruck" stiff. It's kinda more along the lines of "pickup truck without a load" stiff.
I'm still experimenting with shackle angles but have learned a few things.
Shackle angle is somewhat dependent on leaf spring arch. If leaf pack is flat it will not get any longer, only shorter on both compression and droop, shackle can be 60* off of vertical (40* angle).
An arched leaf pack will get longer as it compresses, shorter as it droops. If shackle is at 45* and suspension fully compresses, shackle can bottom out on chassis (where bumper attaches).
45* shackle increases droop of suspension.
A more vertical angle will offer a firmer ride and less body roll around corners and off-camber terrain.
Shackle angle is somewhat dependent on leaf spring arch. If leaf pack is flat it will not get any longer, only shorter on both compression and droop, shackle can be 60* off of vertical (40* angle).
An arched leaf pack will get longer as it compresses, shorter as it droops. If shackle is at 45* and suspension fully compresses, shackle can bottom out on chassis (where bumper attaches).
45* shackle increases droop of suspension.
A more vertical angle will offer a firmer ride and less body roll around corners and off-camber terrain.
My current shackle angle at ride height (I've since gotten extended shackles, but the ANGLE is still the same):
My current ride height:
Plenty of downtravel:
Plenty of uptravel:
On road ride.... well... yeah.... not so cush. It's a little stiff in the rear... you'll know it when you hit bumps at highway speeds, and you don't wanna go fast over speed bumps, but it's not "dumptruck" stiff. It's kinda more along the lines of "pickup truck without a load" stiff.
05-19-2016, 02:13 PM
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Yup.... the POS parts jeep I have had a set of these up front. The ride was CUSH! But sketchy as all get out. Wouldn't put 'em on my rig, that's for sure. Little visual for ya in conjunction with that.... My current shackle angle at ride height (I've since gotten extended shackles, but the ANGLE is still the same): My current ride height: Plenty of downtravel: Plenty of uptravel: On road ride.... well... yeah.... not so cush. It's a little stiff in the rear... you'll know it when you hit bumps at highway speeds, and you don't wanna go fast over speed bumps, but it's not "dumptruck" stiff. It's kinda more along the lines of "pickup truck without a load" stiff.
05-19-2016, 02:57 PM
No, I don't lick fish.

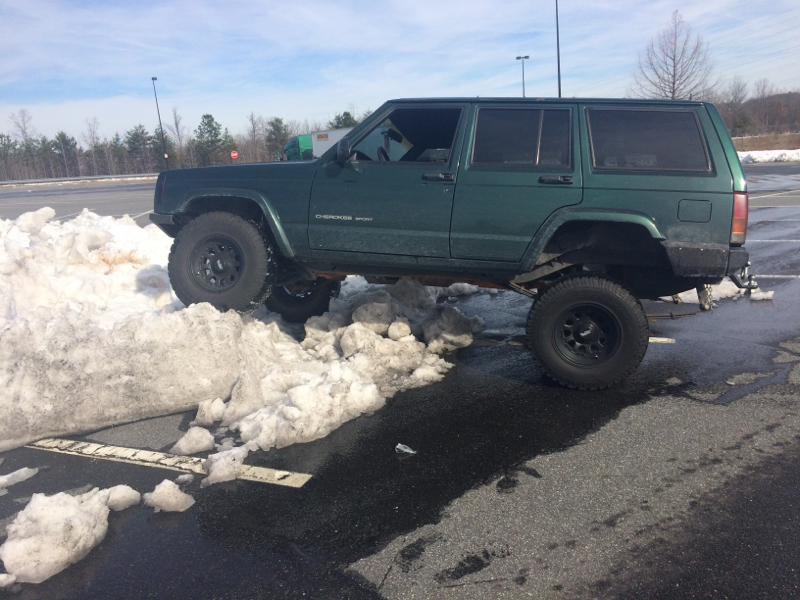

lol you call that down travel. I need longer shocks but still good. My shackles are at the angle yours are with weight sitting on the jeep

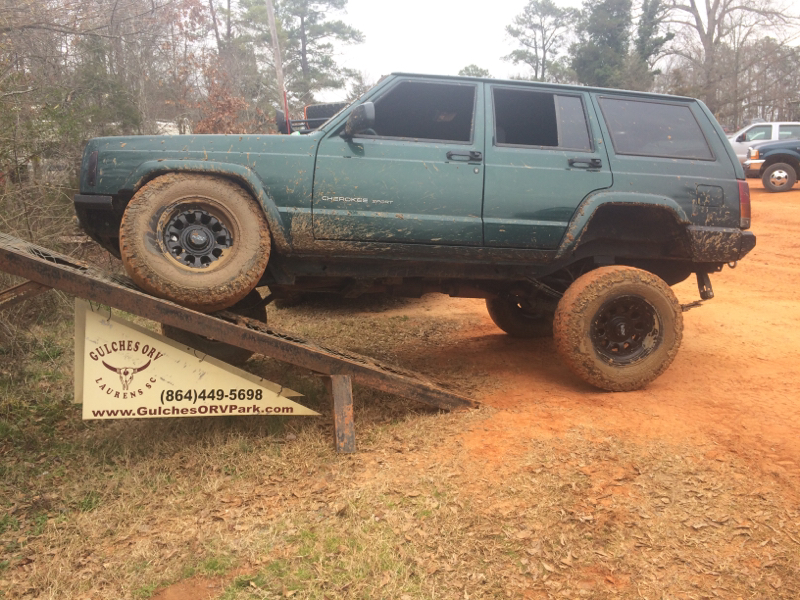

Attachment 288534
Attachment 288534
05-19-2016, 03:51 PM
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
05-19-2016, 04:39 PM
No, I don't lick fish.

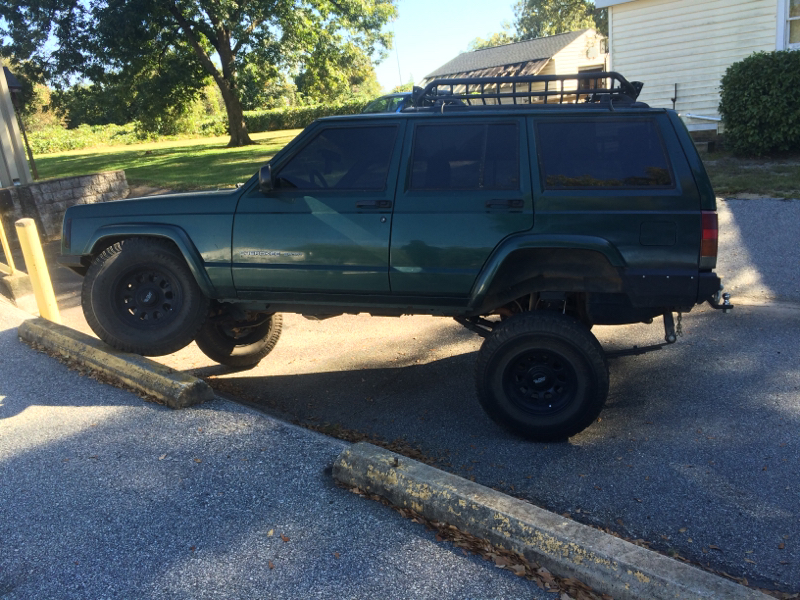

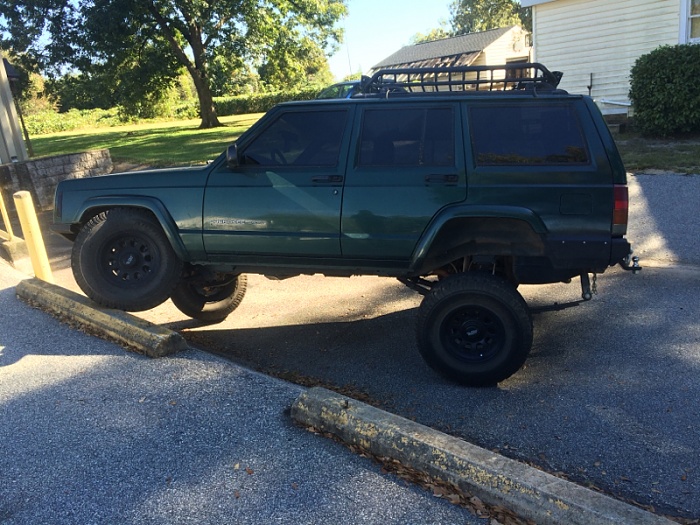

but the angle of my shackles flexed out is the same angle as yours with weight on is it not? Attachment 288541 Attachment 288542

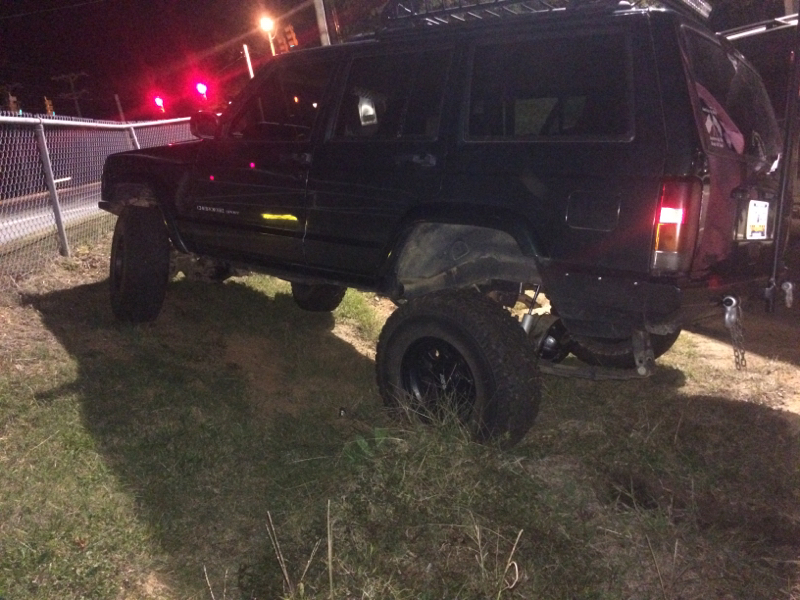

Attachment 288543
Attachment 288543
