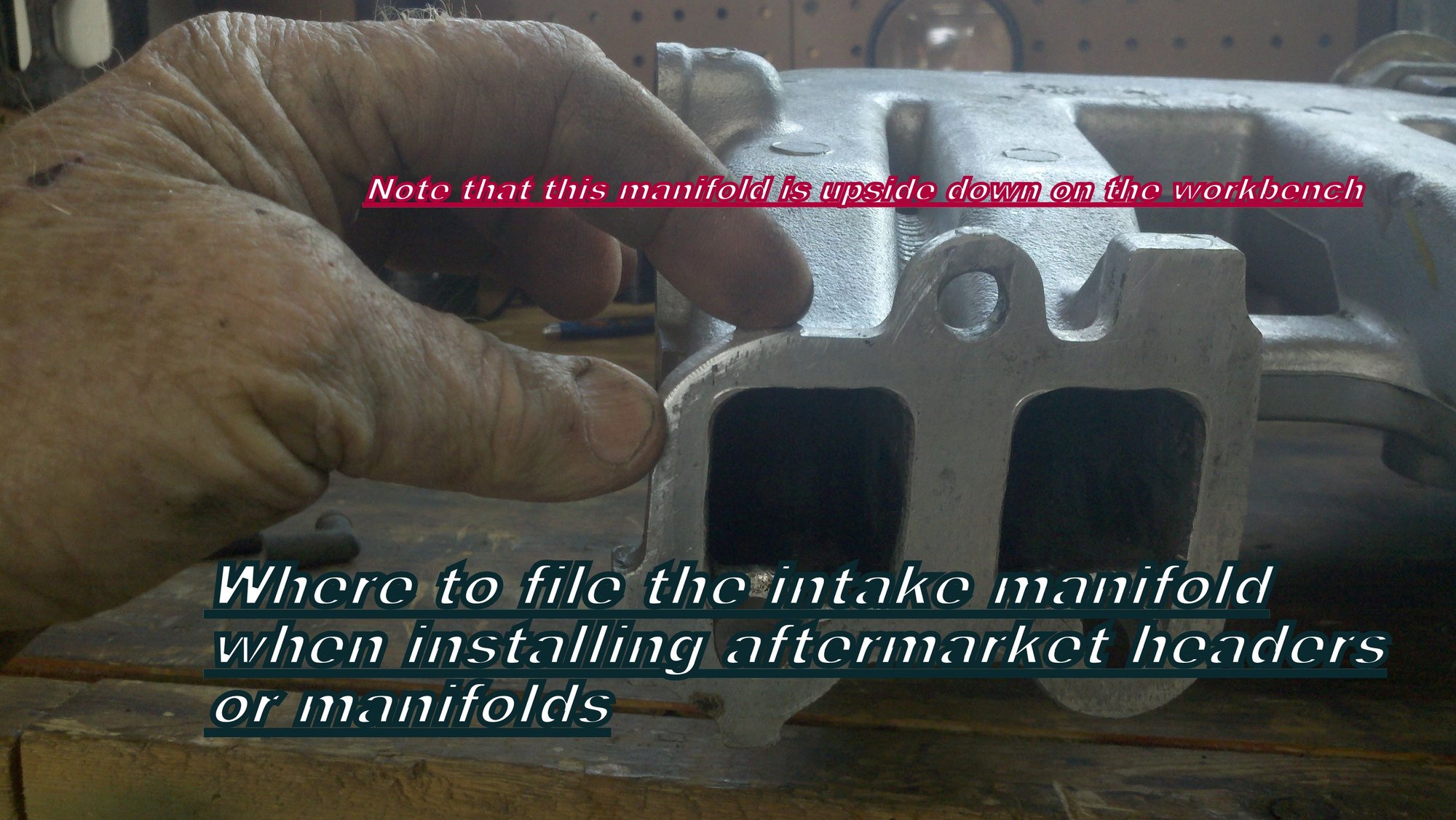

The head on my 1988 block warped and instead of replacing it i was given a stroked out 1996 motor, I was planning on just swapping the intakes but the 88 intake won't fit with the 96 headers, would putting on the 88 intake and headers on the new engine be suggested, or do i need to figure out how to make the 96 intake manifold work with the rest of my components. Whats would be the best thing to do?
This swap is easier than some will lead you to believe. And generally Pooh-poohed by those who have never done it. Those of us who have done it, like myself, will share with you the things that need to be done for a successful swap. Just think of it as swapping in a long block.
XJ Cherokee and ZJ Grand Cherokee 4.0L engine blocks interchange.
2000+ TJ Wrangler and WJ Grand Cherokee 4.0L engine blocks interchange.
YJ and 1997-1999 4.0L TJ blocks will interchange in XJ/ZJ
XJ/ZJ blocks, and the 2000+ TJ/WJ blocks do not interchange without significant modifications.
TJ/WJ 4.0L Engine blocks underwent clean sheet design changes effective in the 1999 WJ Grand and 2000 TJ Wrangler. These blocks are not interchangeable with XJ/ZJ engine blocks. The reason is motor mount bolt holes and belt driven accessory mounting bolt holes are in different locations, or not present at all, TJ/WJ vs. XJ/ZJ.
Now that we know which engines we can use, let’s get down to business.
The HO and Renix have some differences but none that can’t be overcome very easily.
One running change was that the rear of the head was no longer drilled and tapped for the temperature gauge sender beginning in the 96 model year. The sender can be relocated to the threaded hole in the thermostat housing taken from an HO engine. You’ll have to extend the wire to that location. Some brave souls even drill and tap the HO head at the rear for the sender.
You will be using the intake and exhaust manifolds from your Renix, along with all your sensors and wiring. Since the intake ports of the HO are slightly different, you use a new Renix gasket. Exhaust ports are identical.
An alternative on exhaust manifolds:
As far as exhaust, you can use the Renix exhaust manifold and be fine.
If you want to use the HO exhaust manifold, you must go with an HO headpipe and screw your O2 sensor into that headpipe. Standard Renix harness is plenty long to do so.
A bung can be welded into the HO manifold to accept the EGR tube.
The flywheel or flexplate from the Renix must be used so your CPS gets the correct signals. The valve cover from the Renix allows you to keep your CCV system intact and requires no modifications.
The HO block will have a plug in the coolant galley on the driver’s side of the block, closest to the front, which needs to be removed so your Coolant Temp Sensor can be installed in it’s place just as it is on the Renix. It requires a 5/16” square drive or a modified 3/8” drive that has been ground down to fit. Do this before installing the engine.
As for the knock sensor, which is located just above the oil pan on the driver’s side of the engine about mid way, all the blocks I’ve seen are threaded for it. If not, I’ve heard they may be drilled but not tapped. Tap the hole if that’s the case.
JANUARY 3, 2016CRUISER549 COMMENTSEDITTired of having a poor selection of oil filters for your Renix Jeep? Limited availabilty a pain for you? 20mm threads? We don’t need mumblemeter threads on our oil filters.
Here’s a simple mod that allows you to use the very popular SAE threaded oil filters which are more readily available. The old standard 3/4″ SAE thread.
You can purchase a new oil filter nipple from the dealer for under $10 and never be bothered again. Part number 53007563AB. It’s the one on the left.
Or, grab one off a 91 and later XJ at the junkyard. Be forewarned though. You need a 7/8 wrench to remove a Renix nipple, but a 15/16 wrench for the later style.
And just in case you need to replace your oil filter adapter o-rings, here’s a handy guide.
Oil Filter Adapter O-Ring Sizes
87-90 Renix Model O-rings
0.799 x 0.103 AS568 size -117
1.296 x 0.139 AS568 size -219
2.484 x 0.139 AS568 size –230
Dealer Part Numbers for Renix. Sold individually:
33002970, 33002971, 33002972
Renix kit from Crown Automotive-33002970K
91-01 HO Model Orings
0.676 x 0.070 AS568 size -017
0.859 x 0.139 AS568 size -212
2.484 x 0.139 AS568 size -230
