4hi slips out

Thread Tools

Search this Thread

Old 01-27-2016, 04:44 AM
  #1
Junior Member
Thread Starter

1992-Cherokee's Avatar

Join Date: Jan 2016
Location: Oregon city, Oregon
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO straight 6
Default 4hi slips out

My guess is linkage. Has a 4 inch lift. No idea other than linkage. If so, is it a transfer case linkage?
Old 01-27-2016, 06:48 AM
  #2
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,527 Likes on 1,239 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Motor and trans mounts bad?
Old 01-27-2016, 06:56 AM
  #3
Junior Member
Thread Starter

1992-Cherokee's Avatar

Join Date: Jan 2016
Location: Oregon city, Oregon
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO straight 6
Default

Nope they're good
Old 01-27-2016, 07:01 AM
  #4
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,527 Likes on 1,239 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Try this then:

Old 01-27-2016, 08:07 AM
  #5
Banned

2000CHERO's Avatar

Join Date: Oct 2013
Location: WNY
Posts: 933
Likes: 0
Received 45 Likes on 45 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Or just get the Boostwerks linkage, cheap and much better than OEM. I've done the install on 3 jeeps, all had bent linkage from DD.

But I second mounts as well, especially tranny.
Old 01-27-2016, 08:08 AM
  #6
Banned

2000CHERO's Avatar

Join Date: Oct 2013
Location: WNY
Posts: 933
Likes: 0
Received 45 Likes on 45 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Oops didn't see you said they're good. I would just replace the crappy OEM linkage then.
Old 01-27-2016, 09:47 AM
  #7
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes on 14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

There are 2 types of aftermarket linkages a cable type and a metal linkage type both are very good but the price is higher on the cable type.
Old 01-27-2016, 06:15 PM
  #8
Junior Member
Thread Starter

1992-Cherokee's Avatar

Join Date: Jan 2016
Location: Oregon city, Oregon
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO straight 6
Default

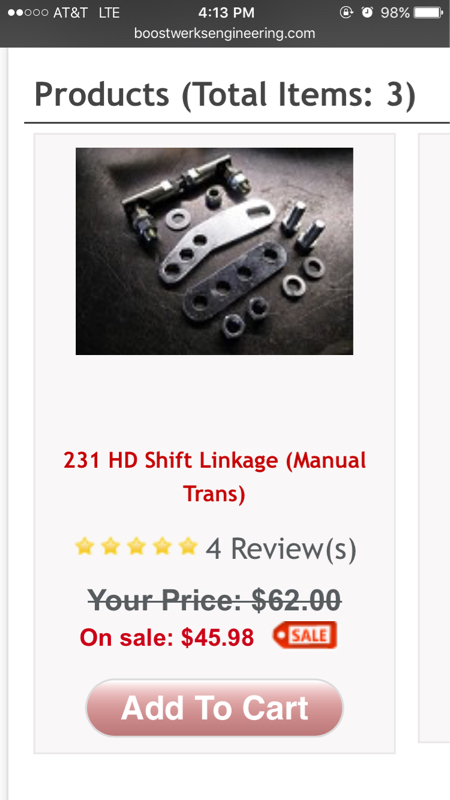

Would this be what I need? Transfer case linkage? I have a manual transmission too

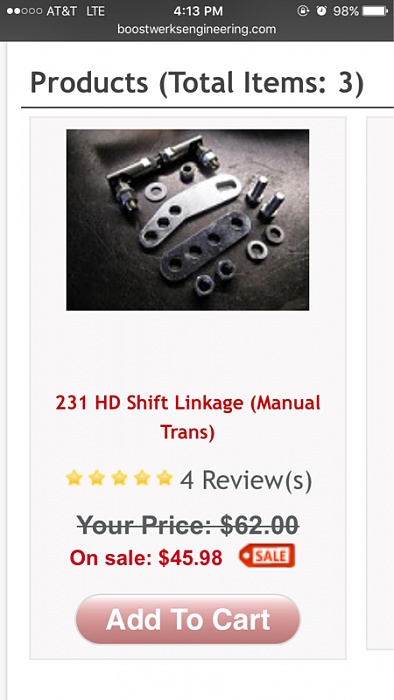

4hi slips out-image-396358572.jpg
Old 01-28-2016, 10:21 AM
  #9
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes on 14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Yes that's it and for a manual trans read to see if anything else is needed.
Old 01-28-2016, 01:17 PM
  #10
CF Veteran

toasterknight's Avatar

Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by Fred/N0AZZ
Yes that's it and for a manual trans read to see if anything else is needed.
He chose the manual version that has a second arm. That one has everything except tools.
Old 01-28-2016, 04:05 PM
  #11
Junior Member
Thread Starter

1992-Cherokee's Avatar

Join Date: Jan 2016
Location: Oregon city, Oregon
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO straight 6
Default

What tools are needed?
Old 01-29-2016, 03:00 AM
  #12
CF Veteran

Photojared's Avatar

Join Date: Feb 2011
Location: Henderson, NV
Posts: 1,944
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Engine: 4.0L
Default

Originally Posted by Fred/N0AZZ
There are 2 types of aftermarket linkages a cable type and a metal linkage type both are very good but the price is higher on the cable type.
I've used both. They both do the same function. One is WAY cheaper than the other.

I preferred direct linkage, but I'm currently running cable.
Old 02-02-2016, 07:07 PM
  #13
CF Veteran

investinwaffles's Avatar

Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes on 7 Posts
Year: '98
Engine: 4.0 I6
Default

Buy the boostwerks linkage. Great kit. Novak is probably better, but not as strong and more than 2x the price.

Edit:
Tools needed for install ;
* Spanner/Socket set
* ratcheting wrench
* small pry bar and/or flat head screwdriver
* Drill + random bits
* BFH (not specifically necessary, but it's a Jeep so it always helps to have a big F-ing hammer)

Last edited by investinwaffles; 02-02-2016 at 07:11 PM.
Old 02-02-2016, 08:36 PM
  #14
Seasoned Member

LAF1269's Avatar

Join Date: Dec 2012
Location: Indiana
Posts: 340
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

X2 on the Boostwerks linkage. I replaced my rust bucket factory linkage, and now it shifts smooth as silk. Highly recommended.
Old 02-09-2016, 12:16 PM
  #15
Seasoned Member

Boostwerks.com's Avatar

Join Date: Nov 2011
Location: Co
Posts: 343
Likes: 0
Received 2 Likes on 2 Posts
Year: 1999
Model: Cherokee
Default

I'm also a member of CF, so if you have any questions just let me know!

Thanks fellas!
