right hitch?
#1
Newbie
Thread Starter
Join Date: Nov 2013
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
right hitch?

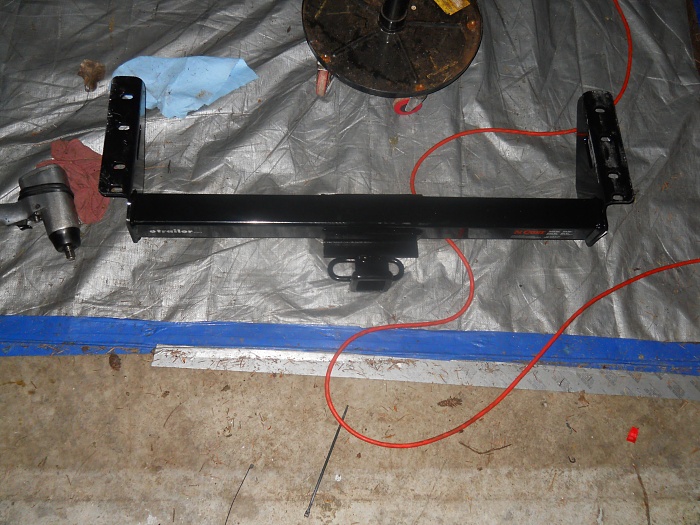

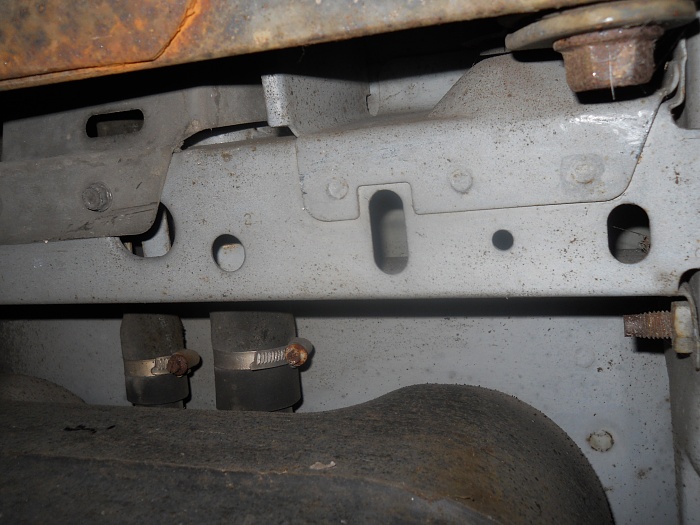

Hi folks I got my hitch yesterday now im wondering if I got the correct one, seems only the front and rear holes line up.
Can I get away with only the bolts on the 4 corners?
ps,( this beast came with a small 1'' reciever but i dont think it was original)
thanks
Tk
Can I get away with only the bolts on the 4 corners?
ps,( this beast came with a small 1'' reciever but i dont think it was original)
thanks
Tk
Last edited by Topkat; 04-01-2014 at 08:48 AM.
#2
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
If it's one of those universal hitches, likely not. Is it possible to drill an extra hole in the hitch?
Also, you'll need to have nut strips for a successful and strong installation. Do you have those? JcrOffroad makes them.
Also, you'll need to have nut strips for a successful and strong installation. Do you have those? JcrOffroad makes them.
#3
CF Veteran
Join Date: Mar 2009
Location: Visalia, Kalifornia, ussa
Posts: 2,750
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Sounds like you got a ZJ or WJ hitch.. If you drill the required holes it should be able to be fitted. Set of nut strips would make things easier and more secure, but you can do without. You want a MINIMUM of 6 bolts all 8 would be best. FWI the OEM hitch mounts with 5 bolts each side.
#4
Newbie
Thread Starter
Join Date: Nov 2013
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
Thanks you guys. Yes I have the nut strips that came with the install kit but I think there are only 4 of them, not really sure.
On the video it show that the passenger side holes are threaded.....
Nothing's ever simple.lol
On the video it show that the passenger side holes are threaded.....
Nothing's ever simple.lol
#5
CF Veteran
Join Date: Mar 2010
Location: Georgia
Posts: 1,438
Likes: 0
Received 7 Likes
on
7 Posts
Year: 99 94
Model: Cherokee (XJ)
Engine: I6
Some people prefer to get the nutstrips to use instead of the plates. I am cheap so I just use the universal plates.
Trending Topics
#9
Newbie
Thread Starter
Join Date: Nov 2013
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
it fits

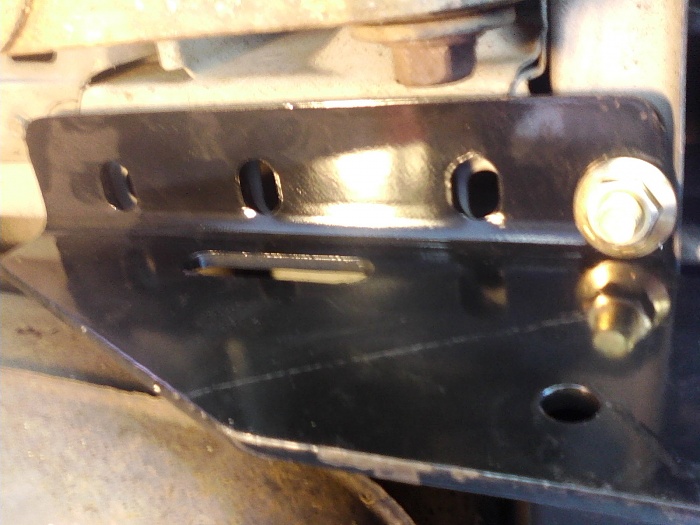

I'll be darned. I was looking at the wrong for holes. Won't even have to drill! Did have to grind off a small corner of the hitch that was hitting the lip of the bumper. Amazing!
#11
Newbie
Thread Starter
Join Date: Nov 2013
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 HO
Hi folks , finally got my hitch mounted and 7 out of 8 bolts torqued down... except for the rear one on the drivers side. This one is 'supposed to not be a carriage bolt like the others on the passenger side and there is no room to get the bigger spacers up there. the directions call for a regular bold and the smaller spacer.
How can I torque this bold down when it's impossible to get a wrench up there?
I tightened it up as tight as my impact wrench goes but it aint the 110 ft/lbs called for.
thanks as awlays
Tk
How can I torque this bold down when it's impossible to get a wrench up there?
I tightened it up as tight as my impact wrench goes but it aint the 110 ft/lbs called for.
thanks as awlays
Tk
#12
I just got the same hitch from Etrailer and I couldn't be happier. The Curt hitch is very well made and also made in the USA! It took me longer to remove the old factory nut plate on one side that was too rusted to use but once it was out the hitch bolted right up. I removed my rear bumper to make the install easier.
Last edited by rnmcguire; 04-03-2014 at 08:02 AM. Reason: spelling
#13
Member
Join Date: Aug 2009
Location: Macomb, Mi
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
http://www.jcroffroad.com/product/XJMISC/NTSTRP.html
