Hows my shackle angle???

4x4cherokeexj · 2011-08-03 12:43:14

Here's a pic of my shackle am I good??? https://www.cherokeeforum.com/members/4x4cherokeexj-36554/albums/1994-jeep-cherokee-build/52324-img-20110803-054644.jpg

Reply Subscribe

Thread Tools

Search this Thread

08-03-2011, 07:43 AM

4x4cherokeexj

CF Veteran

Thread Starter

Join Date: Apr 2011

Location: Oregon

Posts: 2,120

Likes: 0

Received 1 Like on 1 Post

Year: 1994

Model: Cherokee

Engine: i6 HO

Pics added

Here's a pic of my shackle am I good???

Last edited by 4x4cherokeexj; 08-03-2011 at 10:18 AM.

Reply Like

08-03-2011, 07:47 AM

Zj heep

Seasoned Member

Join Date: Apr 2011

Location: muskogee ok

Posts: 460

Likes: 0

Received 0 Likes on 0 Posts

Model: Grand Cherokee

Engine: 5.2

No pic?

Reply Like

08-03-2011, 07:56 AM

4x4cherokeexj

CF Veteran

Thread Starter

Join Date: Apr 2011

Location: Oregon

Posts: 2,120

Likes: 0

Received 1 Like on 1 Post

Year: 1994

Model: Cherokee

Engine: i6 HO

Damn phone 1 sec. I'm pretty close to straight vertical. Phone won't let me upload says there's an error and it has been reported.

Last edited by 4x4cherokeexj; 08-03-2011 at 08:05 AM.

Reply Like

08-03-2011, 08:18 AM

_StationWagon_

CF Veteran

Join Date: Mar 2009

Location: Virginia

Posts: 1,988

Likes: 11

Received 2 Likes on 2 Posts

Year: 1999

Model: Cherokee

Engine: l6 4.0, K&N FIPK & 62mm bored TB

Quote:

Originally Posted by 4x4cherokeexj

Damn phone 1 sec. I'm pretty close to straight vertical. Phone won't let me upload says there's an error and it has been reported.

Ideally it should be at a 45 degree angle - not vertical

Reply Like

08-03-2011, 08:36 AM

jcwclm

CF Veteran

Join Date: Sep 2010

Location: Warsaw, IN

Posts: 2,844

Likes: 0

Received 0 Likes on 0 Posts

Year: 2000,1990,1999

Model: Cherokee

Engine: 4.0

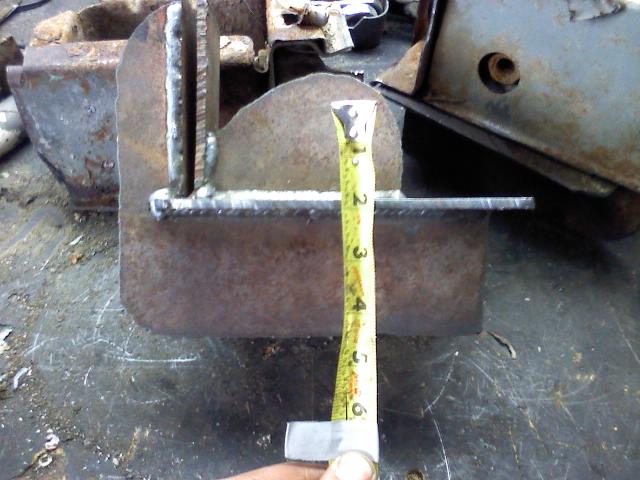

It's not like this is it? Did you say horizontal or vertical? Haha.

Reply Like

08-03-2011, 08:54 AM

4x4cherokeexj

CF Veteran

Thread Starter

Join Date: Apr 2011

Location: Oregon

Posts: 2,120

Likes: 0

Received 1 Like on 1 Post

Year: 1994

Model: Cherokee

Engine: i6 HO

Damn. I'm pointed straight to the ground. Well 45 to the front or the rear? Does this matter?

Reply Like

08-03-2011, 09:20 AM

_StationWagon_

CF Veteran

Join Date: Mar 2009

Location: Virginia

Posts: 1,988

Likes: 11

Received 2 Likes on 2 Posts

Year: 1999

Model: Cherokee

Engine: l6 4.0, K&N FIPK & 62mm bored TB

45 to the rear. And yes, it matters if you're running lift shackles.

Reply Like

Trending Topics

99 XJ 4.0 - Yet another no crank thread - specifics for NSS bypass

10

650
22

1.8k
Electric Fan not working

21

3.8k
99 Cheokee keeps blowing O2 heater fuse

16

801
Leakdown issue? Golen 4.6 at 15k miles

2

149

08-03-2011, 09:34 AM

4x4cherokeexj

CF Veteran

Thread Starter

Join Date: Apr 2011

Location: Oregon

Posts: 2,120

Likes: 0

Received 1 Like on 1 Post

Year: 1994

Model: Cherokee

Engine: i6 HO

Anything I can do to correct this???

Reply Like

08-03-2011, 10:58 AM

jeep bandit

CF Veteran

Join Date: Aug 2010

Location: conn.

Posts: 1,541

Likes: 0

Received 2 Likes on 2 Posts

Year: 1990

Model: Cherokee

Engine: 4.0 litre

Adjustable shackle boxes or slider boxes.

Sent from my mind using the rusty stock leafs off my xj.

Reply Like

08-03-2011, 10:58 AM

#10

_StationWagon_

CF Veteran

Join Date: Mar 2009

Location: Virginia

Posts: 1,988

Likes: 11

Received 2 Likes on 2 Posts

Year: 1999

Model: Cherokee

Engine: l6 4.0, K&N FIPK & 62mm bored TB

What most people I know have done (including myself) is purchase this item. I have the set on my XJ & the angles are adjustable until you get what you're looking for. They might add a small amount of lift (about .75") which isn't much.
Edit: what he said above. I was searching for the link.
