10" lift steering and track bar help - Jeep Cherokee Forum

Go Back  Jeep Cherokee Forum > Technical Discussion > Modified XJ Cherokee Tech
10" lift steering and track bar help >

10" lift steering and track bar help

Modified XJ Cherokee Tech XJ (84-01)
All modified tech questions. If it modifies your XJ beyond stock parts ask it here.

10" lift steering and track bar help

Reply




Old 09-02-2015, 09:59 AM
  #1
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default 10" lift steering and track bar help

Trying to track down a few problems
1.my track bar is shot and need input on what to do next... build a new one or buy one for 8+ inches of lift
2. My steering is all over the road....everything is brand new steering wise drag link,pitman arm is super dropped,tie rod ends and new heavy duty stableizer thinking I might have to go with high steer to get a better angle

Any help is greatly appreciated thanks
southfloridajeeps is offline
Reply With Quote
Old 09-02-2015, 10:10 AM
  #2
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Trade for a "Swamp Buggy" ??? 8>)


Don't know most don't quite that high with a lift, what size tires are you running 38, 40's? I guess you have at least I ton steering don't you, IDK so will shut up and refer to a crawler for info. I'm lost here more info would help on what pieces you are using in the steering now.

Last edited by Fred/N0AZZ; 09-02-2015 at 10:17 AM.
Fred/N0AZZ is offline
Reply With Quote
Old 09-02-2015, 10:12 AM
  #3
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Fred/N0AZZ View Post
Trade for a "Swamp Buggy" ???
It's my dd so no swap buggy for me
southfloridajeeps is offline
Reply With Quote
Old 09-02-2015, 11:25 AM
  #4
Junior Member

RedJeepster1's Avatar

Join Date: Sep 2014
Location: CT
Posts: 58
Year: 2000
Engine: 4.0
Default

Got any pictures of it? IDEK what a cherokee would look like that high up...
RedJeepster1 is offline
Reply With Quote
Old 09-02-2015, 12:17 PM
  #5
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default


Originally Posted by RedJeepster1 View Post
Got any pictures of it? IDEK what a cherokee would look like that high up...
I will get pictures up at some point tonight as for what Im running for sterring and tiers I have stock tie rod
And brand new "stock" drag link with rough country stabilizer and beefed up track bar with 35" mud tires

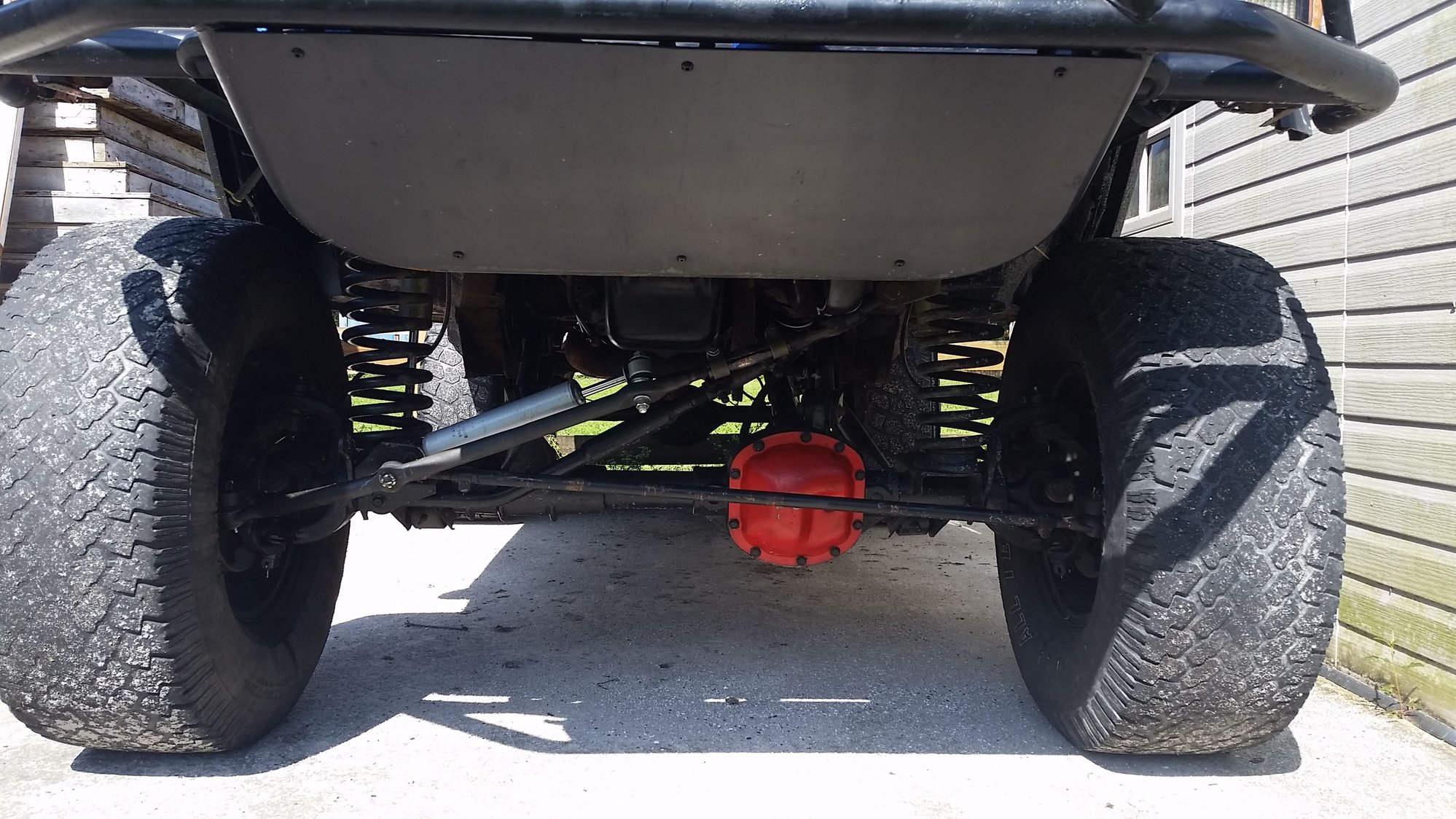

This is with 36" tsl super swampers 10 inch lift

Last edited by southfloridajeeps; 09-02-2015 at 12:22 PM.
southfloridajeeps is offline
Reply With Quote
Old 09-02-2015, 11:16 PM
  #6
CF Veteran

Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,012
Model: Cherokee
Default

If you cut the fenders you can lower it do to 6 inches and have a lot less problems.
andrewmp6 is offline
Reply With Quote
Old 09-03-2015, 09:14 AM
  #7
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

^ That for starters^


Lowering it at least much will help you a lot in steering, MPG's and general driving with roll over chances.


Then at the "Very Least a tie rod setup from a mid 90's V-8 GC much stronger than stock, direct bolt-in and under a $100 at AutoZone. Or a 1 ton setup but a lot more money.


Are you running 4.56 or 4.88 gears in it now to turn those tires with lockers in both?


I think you have the same bumper that I have on mine.
Name:  Jeep3-29-14026_zpsb3d98b62.jpg
Views: 26599
Size:  77.1 KB
Fred/N0AZZ is offline
Reply With Quote
Old 09-03-2015, 10:00 AM
  #8
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default

Originally Posted by RedJeepster1 View Post
Got any pictures of it? IDEK what a cherokee would look like that high up...













southfloridajeeps is offline
Reply With Quote
Old 09-03-2015, 10:03 AM
  #9
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Fred/N0AZZ View Post
^ That for starters^


Lowering it at least much will help you a lot in steering, MPG's and general driving with roll over chances.


Then at the "Very Least a tie rod setup from a mid 90's V-8 GC much stronger than stock, direct bolt-in and under a $100 at AutoZone. Or a 1 ton setup but a lot more money.


Are you running 4.56 or 4.88 gears in it now to turn those tires with lockers in both?


I think you have the same bumper that I have on mine.
It definitely does look like the same bumper! As for gears 4.10s front and rear no lockers and 2 piece axles eliminated the vacuum line
southfloridajeeps is offline
Reply With Quote
Old 09-03-2015, 11:09 AM
  #10
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Christ on a cracker, did you buy it with the steering that jacked up. Either you lower her to a more acceptable range or you go with 1 ton OTK steering. There should be nothing stock steering on a jeep lifted like that
sycoglitch is offline
Reply With Quote
Old 09-03-2015, 11:19 AM
  #11
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default

Originally Posted by sycoglitch View Post
Christ on a cracker, did you buy it with the steering that jacked up. Either you lower her to a more acceptable range or you go with 1 ton OTK steering. There should be nothing stock steering on a jeep lifted like that
Bought it a month ago as is I changed all the fluids and ball joints what should I do with a track bar should I build one? And have been looking at this OKT would that help?http://www.ironrockoffroad.com/11060.html
southfloridajeeps is offline
Reply With Quote
Old 09-03-2015, 11:23 AM
  #12
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 14,947
Year: 1993
Engine: 4.0
Default

Wow!

That's... scary.

You drive this thing?

1. Your steering needs a serious makeover.

2. Your caster angle is way off and is most likely the largest contributing factor to the wandering. Not to mention the bald tires, insane steering angles and height to width ratio.
Lowrange2 is offline
Reply With Quote
Old 09-03-2015, 11:26 AM
  #13
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Lowrange2 View Post
Wow!

That's... scary.

You drive this thing?

1. Your steering needs a serious makeover.

2. Your caster angle is way off and is most likely the largest contributing factor to the wandering. Not to mention the bald tires, insane steering angles and height to width ratio.
Right now I'm driving a different vehicle until I figure out steering and order new tires I know the caster angle is way off that's why I need to figure out something over the knuckle or something
southfloridajeeps is offline
Reply With Quote
Old 09-03-2015, 02:46 PM
  #14
Member

mrshaft696's Avatar

Join Date: Jun 2014
Posts: 178
Model: Cherokee
Default

the short arms are killing you too, even if the steering was tight, it would still ride like ****....

grab a dust boot while you are at it....

mrshaft696 is offline
Reply With Quote
Old 09-03-2015, 02:49 PM
  #15
Junior Member
Thread Starter

Join Date: Feb 2015
Location: south Florida
Posts: 31
Year: 90
Model: Cherokee
Engine: 4.0
Default

Originally Posted by mrshaft696 View Post
the short arms are killing you too, even if the steering was tight, it would still ride like ****....

grab a dust boot while you are at it....

I have 4 link front suspension
southfloridajeeps is offline
