Default Help Me!!

I am in desperate need of a 1990, 4wd 6cyl, vacuum hose diagram. None of my hoses are hooked up!! 😱😱
Thanks in advance!
Old 01-20-2016, 07:11 AM
  #2
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes on 1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

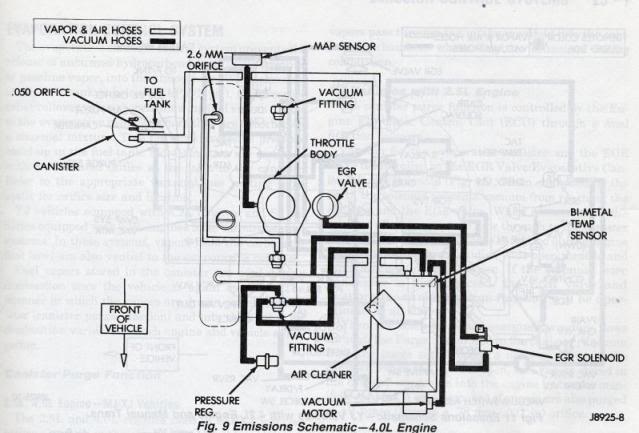

That's easy.
Attached Images
Old 01-20-2016, 09:32 AM
  #3
Newbie
Thread Starter

Lily Gettings's Avatar

Join Date: Jan 2016
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Thank you!
Old 01-20-2016, 09:42 AM
  #4
Newbie
Thread Starter

Lily Gettings's Avatar

Join Date: Jan 2016
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

I was at Autozone a while back & my jeep was over heating. So this older guy walks up & asked if I needed help, he gave me his mechanic card & everything. But he cut my heater valve off!! ��
So I purchased a new one & can't figure out which way it goes.
& also I replaced my fuel injectors, o2 sensor, & a few other things but I still some how have gas in my oil. What things could be causing it??
Old 01-20-2016, 09:49 AM
  #5
Moderator CF K9-unit

Dumajones's Avatar

Join Date: Apr 2012
Location: Alaska
Posts: 5,842
Likes: 0
Received 9 Likes on 8 Posts
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
Default

Originally Posted by Lily Gettings
I was at Autozone a while back & my jeep was over heating. So this older guy walks up & asked if I needed help, he gave me his mechanic card & everything. But he cut my heater valve off!! ��
So I purchased a new one & can't figure out which way it goes.
& also I replaced my fuel injectors, o2 sensor, & a few other things but I still some how have gas in my oil. What things could be causing it??
You dont need the valve,, I took mine out of the 95 few years ago.. Taking the heater valve out is a mod most guys do that have it.. My 2000 didn't have one from the factory came OEM that way. So keep what the other mech did.

Last edited by Dumajones; 01-20-2016 at 10:59 AM.
Old 01-20-2016, 10:15 AM
  #6
Banned

93_xjcherokee's Avatar

Join Date: Oct 2014
Location: tucson
Posts: 17
Likes: 0
Received 9 Likes on 9 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Default

The heater valve should have an arrow indicating which way is up. But I bypassed mine. They are known to fail so I would recommend bypassing it. Easy job
Old 01-21-2016, 07:56 AM
  #7
Seasoned Member

Nick-B's Avatar

Join Date: Jun 2011
Location: Key Peninsula, WA
Posts: 319
Likes: 0
Received 3 Likes on 2 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Default

If the gas in the oil problem is from running too rich, the MAP sensor is a primary suspect. The vacuum hose to the MAP must be secure and solid, no cracks.
Best of luck!
Old 01-21-2016, 07:09 PM
  #8
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes on 1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Ditch the heater control valve. That's not the problem.

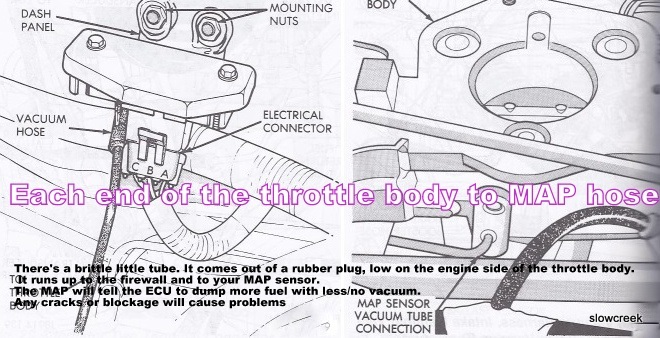

Check this out:
Attached Images
