Default 2000 Jeep Cherokee cyl 3 misfire.

Trying to figure out what this issue is.
I replaced the plugs, new coil pack. Yes I have the foil heat shield for injectors.

I guess replace the injectors?? Or what else could it be?

Last edited by Warren Dwight Page; Dec 28, 2015 at 11:21 AM.
Reply
Old Dec 28, 2015 | 11:21 AM
  #2
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Inspect the wiring harness that feed the injectors for any rubbing or chafing
Reply
Old Dec 28, 2015 | 11:45 AM
  #3
thebyus's Avatar
Seasoned Member

Joined: Jul 2014
Posts: 389
Likes: 0
From: Albuquerque
Year: 2001
Model: Cherokee
Engine: 4.0L Inline 6
Default

I had the same problem when I first picked mine up. After searching the threads, the overwhelming consensus was that it was probably the spark plugs. I pulled the old ones - turns out the PO had installed Bosch platinum. For some reason, the cylinder 3 misfires on these. I replaced them with NGK copper plugs and haven't had the issue since -

Check out this thread

It might NOT be the plugs, but it is worth $10 to find out, before you start replacing injectors!
Reply
Old Dec 28, 2015 | 02:35 PM
  #4
Warren Dwight Page's Avatar
Thread Starter
Newbie

Joined: Dec 2015
Posts: 5
Likes: 0
Model: Cherokee
Default

Yeah, my buddy suggested different plugs. I pulled them out and they looked fine. I forget now what kind they are.
Your right, for 10 bucks it doesn't hurt.
Reply
Old Dec 28, 2015 | 02:41 PM
  #5
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Originally Posted by Warren Dwight Page
Yeah, my buddy suggested different plugs. I pulled them out and they looked fine. I forget now what kind they are. Your right, for 10 bucks it doesn't hurt.

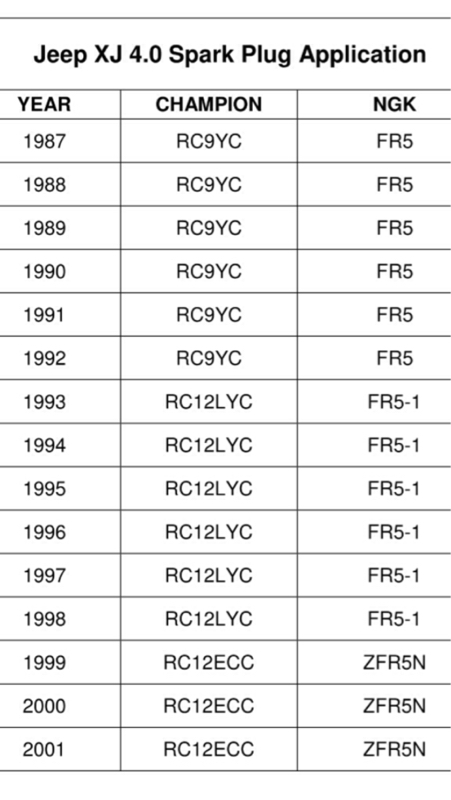

2000 Jeep Cherokee cyl 3 misfire.-image-2935990256.jpg
Reply
Old Dec 28, 2015 | 03:06 PM
  #6
BlvdKreeper's Avatar
Senior Member

Joined: Jan 2011
Posts: 586
Likes: 0
From: northside chicago
Year: 1997
Model: Cherokee
Default

I have something similar except its a p0302 code.
Reply
Old Dec 28, 2015 | 03:53 PM
  #7
Warren Dwight Page's Avatar
Thread Starter
Newbie

Joined: Dec 2015
Posts: 5
Likes: 0
Model: Cherokee
Default

What is p0302 code???
Reply
Old Dec 28, 2015 | 04:08 PM
  #8
Heap'99's Avatar
Junior Member

Joined: Dec 2015
Posts: 43
Likes: 1
From: W.Michigan
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Cylinder 2 misfire.
Reply
Old Dec 28, 2015 | 05:14 PM
  #9
winston427's Avatar
CF Veteran

Joined: Feb 2009
Posts: 5,900
Likes: 10
Model: Cherokee
Default

The 00-01 4.0s have a problem with the very back bolt on the intake/exhaust manifold backing out. It doesn't come out far, just enough to cause a leak in the gasket. When letting off of the accelerator it sucks air in and causes a misfire code. The tell tale symptom is a whistle when letting off of the gas.

My 01 was throwing random misfire codes constantly. I changed the plugs, wires, and coil pack twice. All with top quality parts and keep getting codes. Changed the injectors with no change. Finally after months of research I heard about the bolt issue. Tightened the bolt to the proper torque and it stopped for a while but the gasket had warped and would eventually repeat the issue. Finally got around to replacing the gasket and never had the problem again.
Reply
Old Dec 28, 2015 | 06:34 PM
  #10
thebyus's Avatar
Seasoned Member

Joined: Jul 2014
Posts: 389
Likes: 0
From: Albuquerque
Year: 2001
Model: Cherokee
Engine: 4.0L Inline 6
Default

Originally Posted by winston427
The 00-01 4.0s have a problem with the very back bolt on the intake/exhaust manifold backing out. It doesn't come out far, just enough to cause a leak in the gasket. When letting off of the accelerator it sucks air in and causes a misfire code. The tell tale symptom is a whistle when letting off of the gas.

My 01 was throwing random misfire codes constantly. I changed the plugs, wires, and coil pack twice. All with top quality parts and keep getting codes. Changed the injectors with no change. Finally after months of research I heard about the bolt issue. Tightened the bolt to the proper torque and it stopped for a while but the gasket had warped and would eventually repeat the issue. Finally got around to replacing the gasket and never had the problem again.
Good information to know. Wonder if my issue was really a bolt problem. Haven't had the problem come back, but if it does, I will have to keep this in mind.
Reply
Old Dec 28, 2015 | 07:04 PM
  #11
Warren Dwight Page's Avatar
Thread Starter
Newbie

Joined: Dec 2015
Posts: 5
Likes: 0
Model: Cherokee
Default

Well, I'll be dammed!
Yes, that whistle just started a couple days ago!
I thought it had something to do with the intake. So I went through and tightened the clamps.
That just started though. A couple days ago. I have had the misfire code for a while.
Reply
Old Dec 28, 2015 | 07:16 PM
  #12
winston427's Avatar
CF Veteran

Joined: Feb 2009
Posts: 5,900
Likes: 10
Model: Cherokee
Default

Another issue mine had to go along with the whistle and the misfire codes was a heat soak vapor lock. After driving the Jeep for 30 minutes or more if I parked it for about 10-15 minutes the exhaust heat would migrate up into the injectors and vapor lock them. When I restarted the Jeep it would run fine for just a few minutes and then fall flat on its ****, as if only firing on 3 cylinders and would slow to about 20 mph. It would throw every code on the laundry list. Usually took a few minutes to clear up and then run fine. Replacing the gasket cured that issue as well. If the whistle just started on yours it may progress to this point or it may not.
Reply
Old Dec 28, 2015 | 07:38 PM
  #13
BlvdKreeper's Avatar
Senior Member

Joined: Jan 2011
Posts: 586
Likes: 0
From: northside chicago
Year: 1997
Model: Cherokee
Default

Originally Posted by winston427
The 00-01 4.0s have a problem with the very back bolt on the intake/exhaust manifold backing out. It doesn't come out far, just enough to cause a leak in the gasket. When letting off of the accelerator it sucks air in and causes a misfire code. The tell tale symptom is a whistle when letting off of the gas. My 01 was throwing random misfire codes constantly. I changed the plugs, wires, and coil pack twice. All with top quality parts and keep getting codes. Changed the injectors with no change. Finally after months of research I heard about the bolt issue. Tightened the bolt to the proper torque and it stopped for a while but the gasket had warped and would eventually repeat the issue. Finally got around to replacing the gasket and never had the problem again.
Mines has been whistling for months now. It only whistles when I drive and when it's cold. If I stop to look for the whistle I stop hearing it. I'll check the bolt tomorrow. Thanks for the tip!
Reply
Old Jan 10, 2016 | 05:37 PM
  #14
Warren Dwight Page's Avatar
Thread Starter
Newbie

Joined: Dec 2015
Posts: 5
Likes: 0
Model: Cherokee
Default

Ok, I put some champion plugs in, I cleard the code.
Seemed to run fine for a few days.
Now the engine light is back on.
Reply
