Coil hitting coil guid tower. Causes?

Old 12-22-2015, 03:28 PM
  #1
Member
Thread Starter

Join Date: Sep 2013
Location: Marshfield, Missouri
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default Coil hitting coil guid tower. Causes?

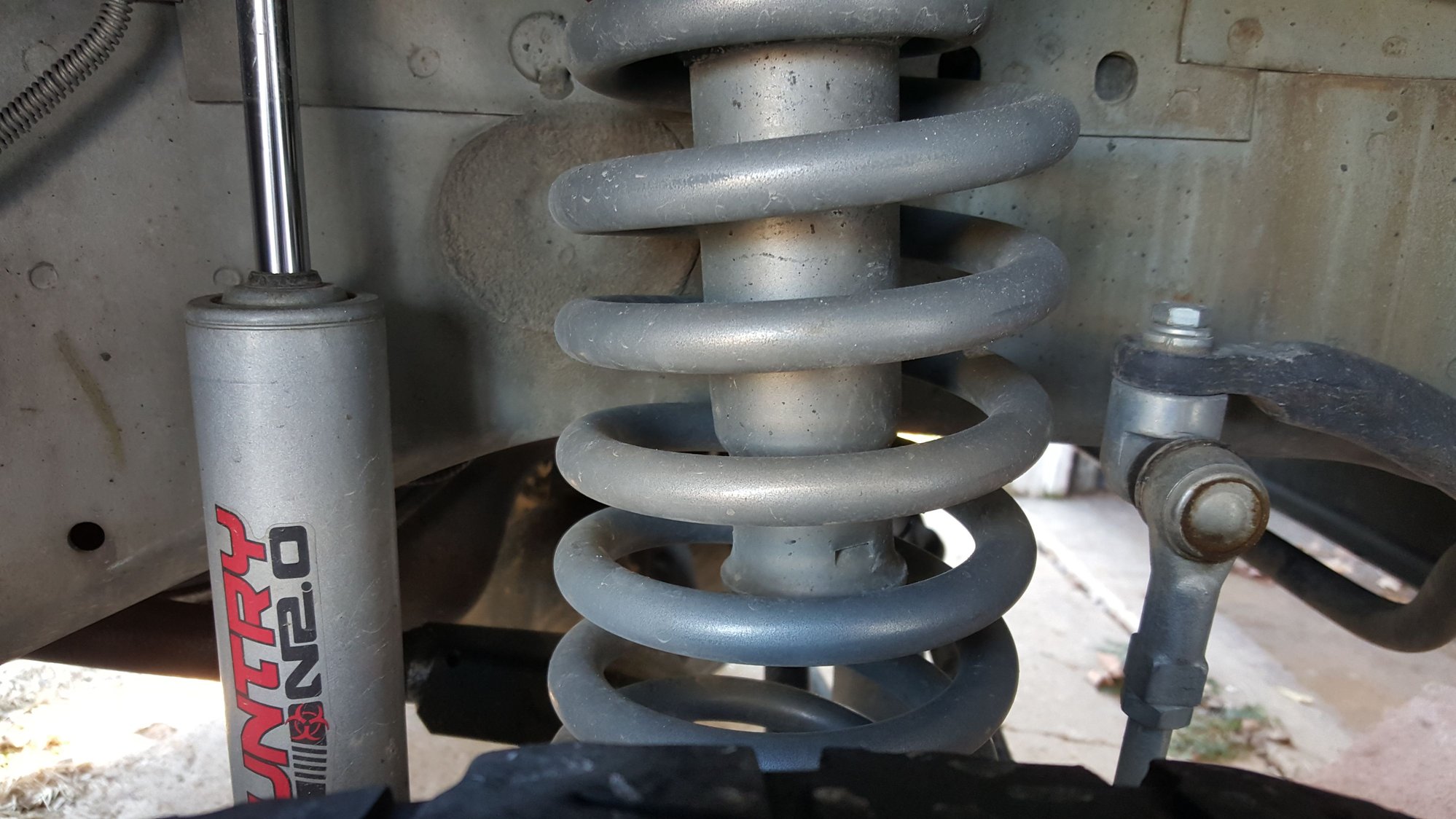

This is the driver side. Note the coil relation to the coil tower.
codykrr is offline
Old 12-22-2015, 03:31 PM
  #2
Member
Thread Starter

Join Date: Sep 2013
Location: Marshfield, Missouri
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Here is the passenger side. Its fine. I am getting a rattle on the driver side when turning left. I did have this jeep aligned at a 4x4 shop as soon as lift was put on. Its on my 01 xj with a 4.5 rc lift. Adjustable upper and lower control arms and adjustable trac bar. I dont remember it being like this before but i am not 100 sure it wasnt either.
codykrr is offline
Old 12-22-2015, 05:54 PM
  #3
CF Veteran

Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default

The axle is not straight under the front end. It is farther back on the drivers side.
toasterknight is offline
Old 12-22-2015, 06:05 PM
  #4
Banned

Join Date: Jan 2014
Posts: 1,054
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Wow, that's pretty bad.........how'd you come up with that?
Jeep Driver is offline
Old 12-22-2015, 06:20 PM
  #5
CF Veteran

Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by Jeep Driver View Post
Wow, that's pretty bad.........how'd you come up with that?
We're you asking me or OP?
toasterknight is offline
Old 12-22-2015, 06:27 PM
  #6
Member
Thread Starter

Join Date: Sep 2013
Location: Marshfield, Missouri
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

if it was directed at me. i followed the recommended rc lengths for adjusting control arms. the 4x4 shop said not to fret them to bad as they would be adjusted anyway. so i assumed all was good. ive wheeled it about 5 or six times since then(lift was put on in april of this year) nothing hardcore... but still wheeled it. not sure if maybe that caused the issue... or if alighment was way off to begin with... it was taken to a reputable shop here in SW mo. literally all they do is install lifts...and 4x4 stuff... its drives pretty good believe it or not.. i did measure from center of my wheel on both sides and i got 101 and 3/4 inches. on both sides.. not sure whats going on... hence the reason im asking potential causes... first assumption is front axle isnt straight. but whats the best places to measure from?
codykrr is offline
Old 12-22-2015, 07:20 PM
  #7
Banned

Join Date: Jan 2014
Posts: 1,054
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Directed at OP..........

Wrong pinion angle or something...........

Don't know without looking at the entire set up.
Jeep Driver is offline
Old 12-22-2015, 10:37 PM
  #8
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,633
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

How are your caster shoe adjustments? Maybe you are missing the shims on one side and pushed the axle back?
unidentifiedbomb is offline
Old 12-22-2015, 10:53 PM
  #9
Seasoned Member

Join Date: Feb 2013
Location: Seattle
Posts: 257
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

I've had the same problem except on the passenger side. No adjustable arms or anything. Finally had to use a bottle jack & tweek the guide back a bit just to keep the spring from rubbing. Drives great, just weird! I'd like to figure it out tho, any other suggestions?
Baddad is offline
Old 12-25-2015, 02:50 AM
  #10
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,925
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Arms adjusted to same length as passenger ?
freegdr is offline
Old 12-25-2015, 02:52 AM
  #11
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,925
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by unidentifiedbomb View Post
How are your caster shoe adjustments? Maybe you are missing the shims on one side and pushed the axle back?
Remove all shims not needed with adjustabe arms. Axles deff back on both sides spring should be on same angle as bump stop tower

Last edited by freegdr; 12-28-2015 at 04:53 AM.
freegdr is offline
Old 12-25-2015, 07:37 AM
  #12
CF Veteran

caged's Avatar

Join Date: Nov 2008
Location: Northern Ontario, Canada
Posts: 7,508
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

is the coil bowing? i mean, it is a coil spring. they tend to do that.
caged is offline
Old 12-28-2015, 03:13 AM
  #13
Newbie

IsomRonA's Avatar

Join Date: Feb 2014
Location: Astoria, Or.
Posts: 12
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

I think you have it right caged, a coil spring won't always rest "centered". Once it starts to sag, it may do it uneven. On one vehicle (not 4wd), I had to swap driver for passenger springs to stop the rubbing I was getting on the shock (mounted in the center of spring on said car). I doubt my fix will work in all cases, but it might be worth a try.
IsomRonA is offline
Old 12-28-2015, 09:10 AM
  #14
Senior Member

Rockhead's Avatar

Join Date: Mar 2011
Location: VA
Posts: 769
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4L, 6 cylinder, 190 hp, 225 ft lp torque
Default

The spring doesn't look right in the pic like caged pointed out. It almost looks like the springs top seat coil is not centered on the rest of the coils. Send the pics to Rough Country and ask them what they think. They are very good at product support and will probably send you new ones. Good luck.
Rockhead is offline
Old 12-28-2015, 08:22 PM
  #15
Senior Member

Join Date: Feb 2011
Location: orrville ohio
Posts: 822
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default

its the jeep thing now you understand
