Weld critique

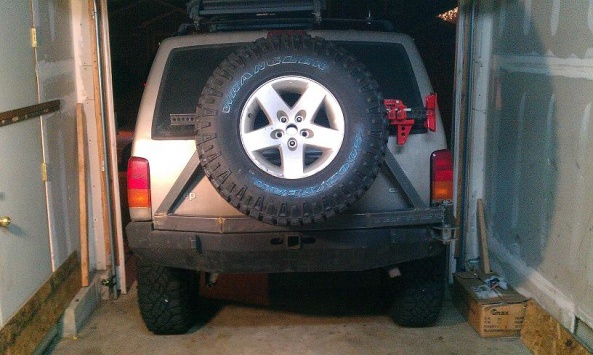

Hello everyone. Recently I built my self a bumper and tire carrier. And after reading another persons post on their tire carrier and some discussion on the strength and quality their welds. I started thinking about my own in the same light. I am every bit of a novice in the world of metal and welding fabrication and this is my first such project. So I was looking for some feed back from some of the more seasoned members on the welds below. Certainly dont want my tire falling off while driving down the hwy. I understand its pretty hard to tell with certainty how good these welds are by a picture, but any feedback would be great.

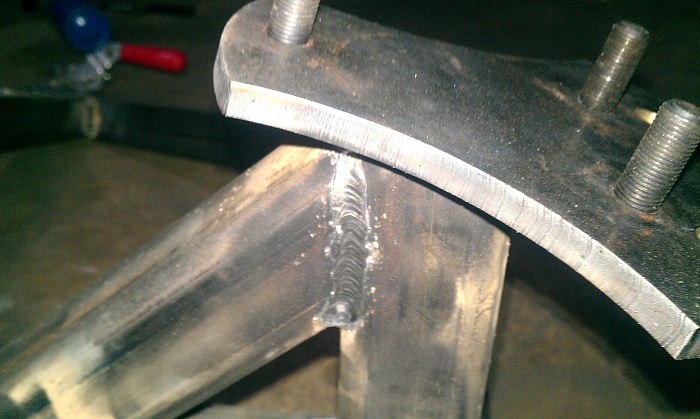

All done with a Harbor Freight 210 mig, with .35 lincoln flux core wire.

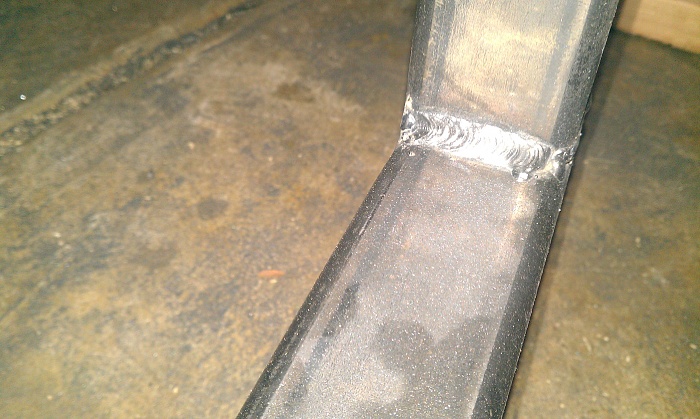

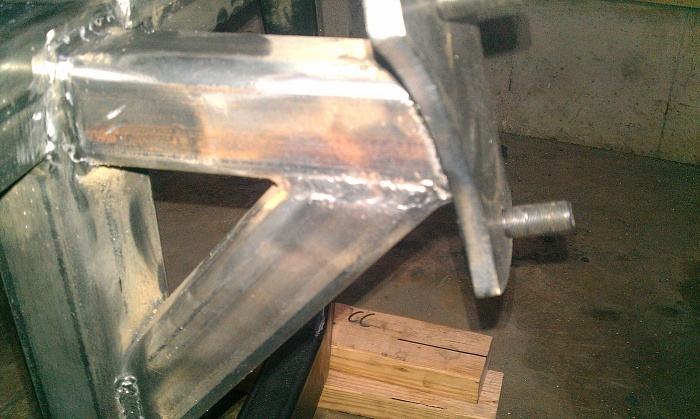

The majority are looking about like this, some worse.
All done with a Harbor Freight 210 mig, with .35 lincoln flux core wire.
The majority are looking about like this, some worse.
#4
CF Veteran
Join Date: Jan 2009
Posts: 2,740
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
Welds look good..
My only comment would be to do some weld prep. Grind the mill scale off. I also dont see a heat affected zone in the pics. That is a good way to tell if you have good penetration on your weld
My only comment would be to do some weld prep. Grind the mill scale off. I also dont see a heat affected zone in the pics. That is a good way to tell if you have good penetration on your weld
#5
CF Veteran
#6
CF Veteran
Join Date: Mar 2012
Location: Richmond, VA
Posts: 1,369
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Technique is good, coverage is ok, but you need to slow down and turn your amps up some. Go a bit wider and slower so you actually penetrate rather than just layer welds on the surface. The welds shouldn't be flat, you should have to grind them flat.
Take a grinder to them with a flap disk and lets see how they look ground even with the steel. Ability is definitely there.
Take a grinder to them with a flap disk and lets see how they look ground even with the steel. Ability is definitely there.
#7
CF Veteran
Join Date: Jan 2011
Location: Rochester
Posts: 1,021
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Technique is good, coverage is ok, but you need to slow down and turn your amps up some. Go a bit wider and slower so you actually penetrate rather than just layer welds on the surface. The welds shouldn't be flat, you should have to grind them flat.
Take a grinder to them with a flap disk and lets see how they look ground even with the steel. Ability is definitely there.
Take a grinder to them with a flap disk and lets see how they look ground even with the steel. Ability is definitely there.
Trending Topics
#8
CF Veteran
Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 7 Likes
on
7 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
Or you can weld some stuff together, cut it in half perpendicular to the weld and try and see how much you got. Whenever I weld I like to take a sample of the material and weld it, then try and break it with a vise and a monkey wrench or hammer. If you can stand on the end of a monkey wrench holding onto a 2"x1/4"section of flat stock butt welded to another then you'll probably be ok
#9
Senior Member
Join Date: Nov 2010
Location: Cloquet, MN
Posts: 976
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6
I would second the comment about not seeing much of a heat affected zone. Welds can look great, but with no penetration, they are a ticking time bomb (speaking generally, not to your pics). I would like to see some more pics of your tire carrier and bumper.
#10
Junior Member
Thread Starter
Join Date: Nov 2010
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Thanks Guys for the feed back! Much appreciated!
I do know that most of my welds on this project have/had a fair amount of heat stain, although you don't see it in these pics... And unfortunately this project is 95% complete now, ive already preped the carrier and bumper for paint. I was just waiting on some warmer weather to be able to thrown down some bed liner. But after some of the fee back here, I may go back, grind off a few of the welds that I am not as confident in and hit them again, as hot as I can with out blowing out.
Heres links to some more pics I took during the build... Unfortnately I didnt take a lot.
https://www.cherokeeforum.com/f58/ho...20988/index22/
https://www.cherokeeforum.com/f58/ho...20988/index19/
I do know that most of my welds on this project have/had a fair amount of heat stain, although you don't see it in these pics... And unfortunately this project is 95% complete now, ive already preped the carrier and bumper for paint. I was just waiting on some warmer weather to be able to thrown down some bed liner. But after some of the fee back here, I may go back, grind off a few of the welds that I am not as confident in and hit them again, as hot as I can with out blowing out.
Heres links to some more pics I took during the build... Unfortnately I didnt take a lot.
https://www.cherokeeforum.com/f58/ho...20988/index22/
https://www.cherokeeforum.com/f58/ho...20988/index19/
#11
CF Veteran
Join Date: Jan 2009
Posts: 2,740
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
Depending on what I am welding I always look for the blueing. Normally it is a 1/4-1/2" away, but on some of the thicker stuff I have welded it has been as much as a 1" + away.
