Walter

alright so I have a box height of 11.5 inches and 29.5 inch length. I used to have it in (if looking from back) it is in there depth wise. I want to rotate it lengthwise so I get some more useable space. Thing is it doesn't quite fit, i don't want to cut up the box to much but think I could kinda angle cut the corner and slide it in there? Idea's or suggestions? Also was thinking making a faulse floor over the top to kinda hide it. How much higher should I put the floor in order to allow an 1800watt amp with fans on top can vent. It's mounted to the box. Thanks guys, any ideas welcome

96rokee

link
read the bolded / italicized line...

and here ya go
link

adamk

leftfootmoe

Why such a large box? Does the sub require that much cubic air space?

adamk

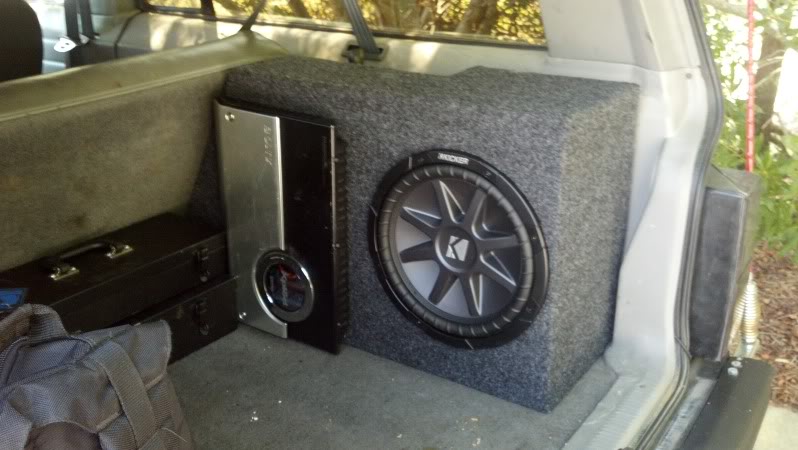

It's 1.52 cubic feet inside the box. I had a Kicker CVT 10" in a .75 cu ft box that didn't stick out any farther than the wheel well. This box was originally designed for a Boston Acoustic sub that needed 1.5 cu ft for a sealed box. I can redo this design to cover over the wheel well and it will cut back on the space used in the cargo area. Also, the woofer in the picture is not shallow mount so it needed that much room just to mount it.

All in all, everything could be made smaller. But, with the way it is now, it sounds fantastic and takes up less than 1/3 of the space my previous dual sub box did and puts out the same sound

leftfootmoe

I gotcha, I hate giving up space but love the sound, I don't have anything in my xj yet but built this when I had my wrangler

96rokee

this still isnt fab...
and i keep falling for it..

adamk

You are correct and it needs to be moved but I figured that since it was here and since I looked at it, I would add my input.

1ABrian

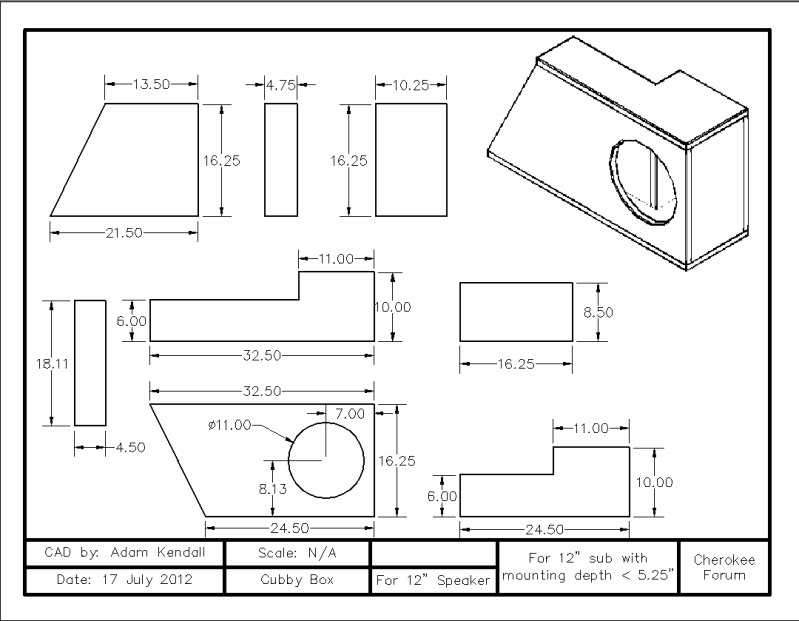

great schematic for that box build.

adamk

Thank you. If anyone wants one of a different size or for a different sized speaker, I can make those up too.

striper698

hey adamk. Do you have any of those CAD designs for a 10" cubby sub enclosure? Thanks

offroad bandit

How did that work out for you? Interesting design, I thought of doing something similar to that.

leftfootmoe

I don't think the Cherokee seat is sturdy enough to do it but it sounded great in the wrangler, even with the top off.

unidentifiedbomb

I enjoy mine, got mine from subthump.com

F1Addict

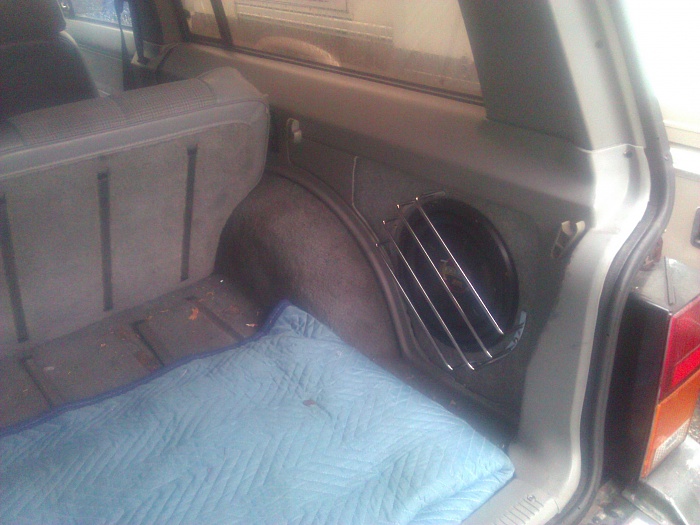

I built this one last year, it's held up pretty well. It's for a 10. Maybe you'll get some ideas?





Lid open

Storage lid closed.
