Angle iron flares

Old 03-29-2014, 02:00 PM
  #1
Member
Thread Starter

SpacedOutXj's Avatar

Join Date: Feb 2010
Location: Williamsport PA
Posts: 212
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 Liter H.O
Default Angle iron flares

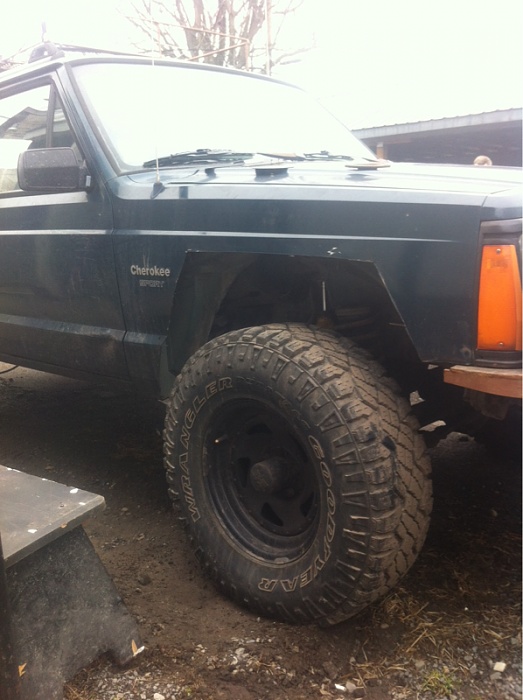

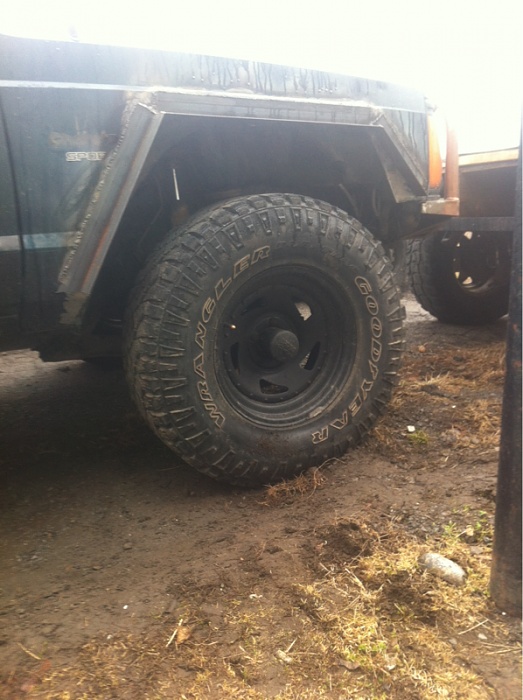

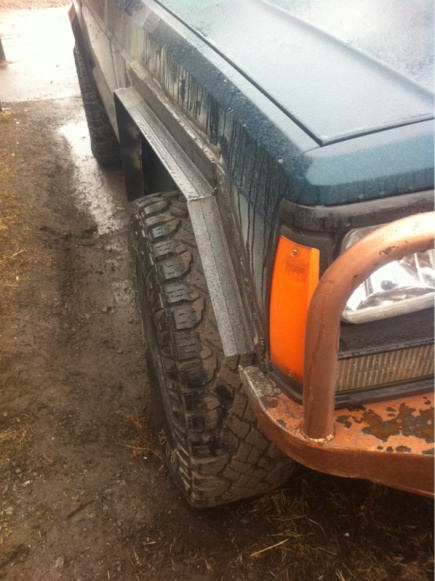

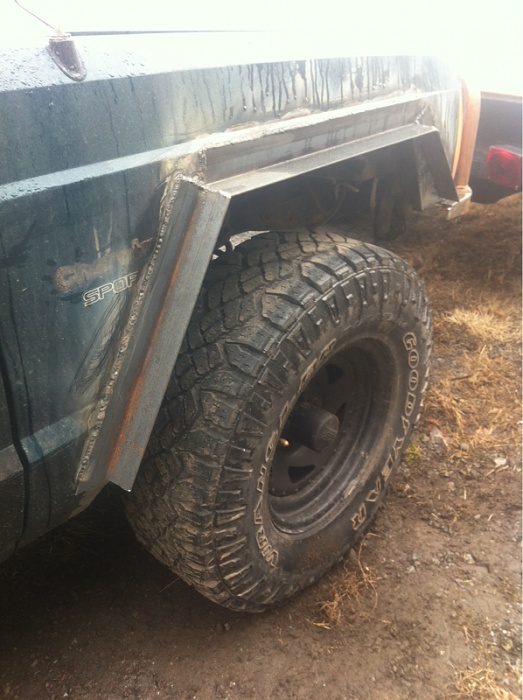

Decided to finally make some room for my tires. I started by trimming the fender following the exactly lines as the stock flares. Grabbed some 2x2 angle iron and welded into place. Tomorrow a 1.5inch piece of flat stock will be butt welded to the out edge at a downward angle to the top piece. Then blend into the lower pieces. Once that's done I'm gonna do sheet metal from the butt weld up to the next body line to give the appearance of a bulged fender. Thoughts so far?
Attached Thumbnails Angle iron flares-image-3533015708.jpg   Angle iron flares-image-321620778.jpg   Angle iron flares-image-1560788708.jpg   Angle iron flares-image-2836839979.jpg
SpacedOutXj is offline
Old 03-29-2014, 02:11 PM
  #2
Member

Join Date: Dec 2010
Posts: 116
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Subscribed...
Rollincoal420 is offline
Old 03-29-2014, 03:34 PM
  #3
Seasoned Member

2WDUnderachiever's Avatar

Join Date: Jul 2013
Location: Atlanta
Posts: 362
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

I think right now it looks a little strange, but I can picture what you're describing, and if you get the angles right, it should look pretty badass, I think.
2WDUnderachiever is offline
Old 03-29-2014, 03:57 PM
  #4
Junior Member

wickedwelder's Avatar

Join Date: Nov 2010
Location: Casper Wyoming
Posts: 91
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default

How bad did your fenders warp welding the angle iron?
Definetly looks like an interesting route, I am looking forward to seeing more. Keep up the good work
wickedwelder is offline
Old 03-29-2014, 04:11 PM
  #5
Member
Thread Starter

SpacedOutXj's Avatar

Join Date: Feb 2010
Location: Williamsport PA
Posts: 212
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 Liter H.O
Default

Originally Posted by wickedwelder View Post
How bad did your fenders warp welding the angle iron?
Definetly looks like an interesting route, I am looking forward to seeing more. Keep up the good work
Didn't warp at all. I used the first bent body line as a weld point for the top piece. Gained some strength there plus it helps preserve the natural lines. I did each piece completely separately and clamped it every 6 inches or so. I tacked about every 4 inches working at different spots to allow time to cool. then went back and burned the pieces in. Hardest part was the lower portion in front of the door where the upper rocker dog legs a bit. For that I just went inch by inch pulling the sheet metal to the angle iron. All said and done no warpage at all.
SpacedOutXj is offline
Old 04-01-2014, 11:24 AM
  #6
Member
Thread Starter

SpacedOutXj's Avatar

Join Date: Feb 2010
Location: Williamsport PA
Posts: 212
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 Liter H.O
Default

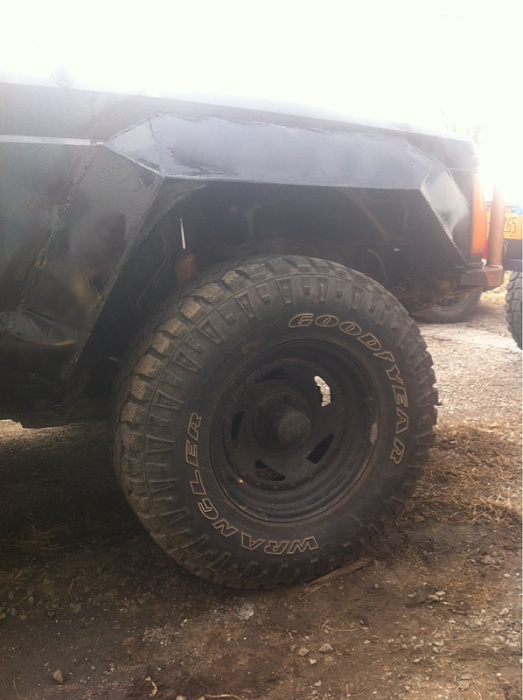

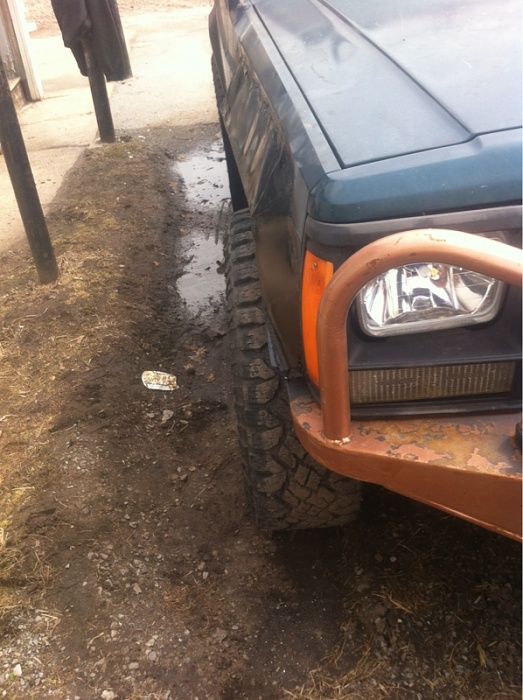

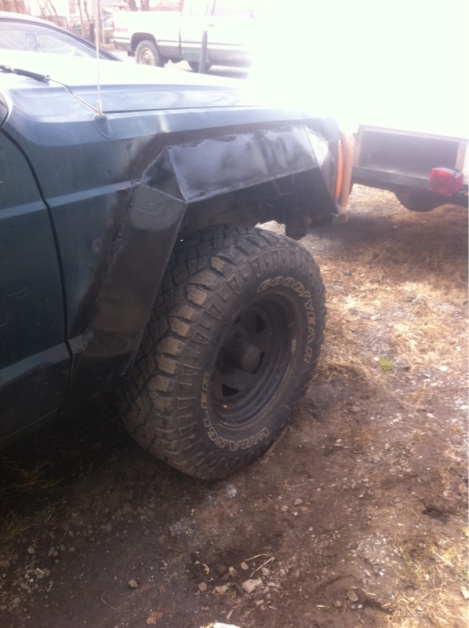

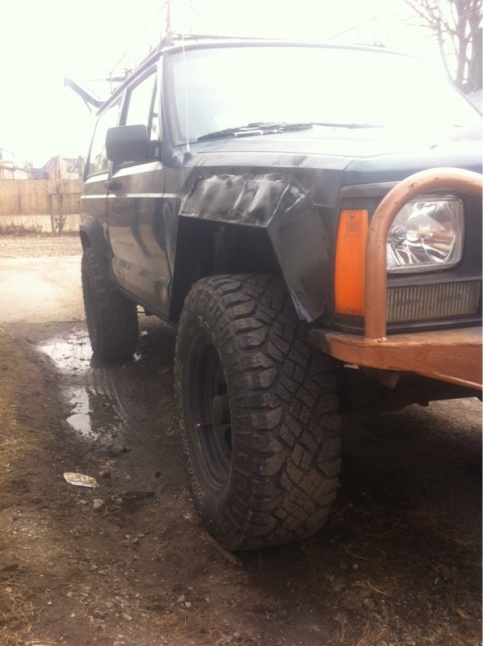

UPDATE: I got the upper pieces burned in. Hard to tell how much warpage there actually was. I think 7 years of wheeling and abuse they started out warped haha. It's about as much time as I can throw at them for about a week or so. Just had to cover them w/crap paint to prevent rust until I can get back on it with a flap disc and some bondo. I know they aren't perfect but they are mine and I feel they are fairly different than most home brew approaches. Thanks for all the feed back!
Attached Thumbnails Angle iron flares-image-1773549761.jpg   Angle iron flares-image-3590203226.jpg   Angle iron flares-image-704406065.jpg   Angle iron flares-image-2683881255.jpg
SpacedOutXj is offline
Old 04-10-2014, 11:08 PM
  #7
Member
Thread Starter

SpacedOutXj's Avatar

Join Date: Feb 2010
Location: Williamsport PA
Posts: 212
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 Liter H.O
Default

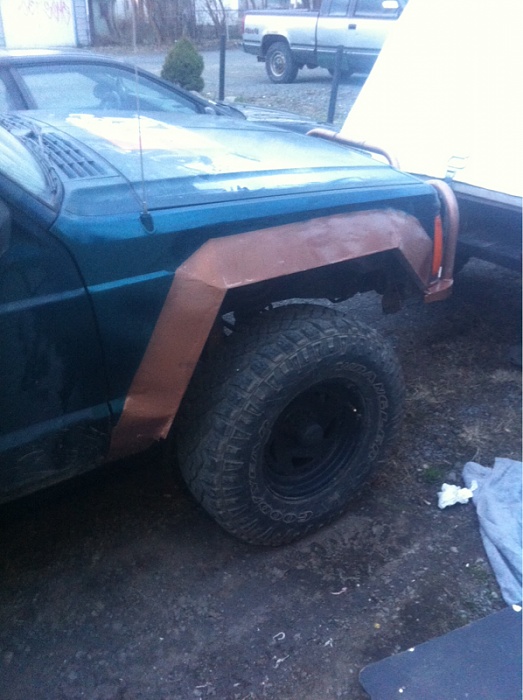

More updates: finally got the chance to get back in the flares and purtty them up a bit. I know the color scheme isn't for everyone but it's what I'm known for around these parts.
Attached Thumbnails Angle iron flares-image-1547023596.jpg   Angle iron flares-image-3696725154.jpg
SpacedOutXj is offline
Old 04-21-2014, 10:14 PM
  #8
Newbie

Join Date: Apr 2014
Location: cincinnati
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

They look awesome. I would have gone out a little farther if I had any skills with a welder. I like the hard triangle at the back top corner as opposed to the soft rounded corner at the front.
power5 is offline
Old 04-21-2014, 10:23 PM
  #9
Member

mcgeex88's Avatar

Join Date: Aug 2011
Location: jackson,nj
Posts: 142
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by SpacedOutXj View Post
More updates: finally got the chance to get back in the flares and purtty them up a bit. I know the color scheme isn't for everyone but it's what I'm known for around these parts.
looks cool i see your jeep all the time at penn college
mcgeex88 is offline
Old 04-21-2014, 10:26 PM
  #10
Member
Thread Starter

SpacedOutXj's Avatar

Join Date: Feb 2010
Location: Williamsport PA
Posts: 212
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 Liter H.O
Default

Thanks man. That'll happen when you've lived here for 4 years with it as your dd haha
SpacedOutXj is offline
