Overkill Front Winch Bumper

Old 01-17-2014, 12:16 PM
  #1
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default Overkill Front Winch Bumper

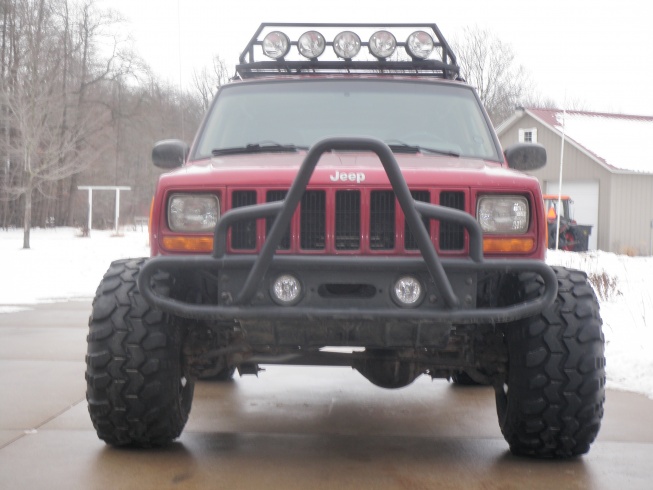

So I've been running a boa extreme front bumper for the past 2 years or so
Overkill Front Winch Bumper-002.jpg
Just got a winch though so its time to fab a new one
Overkill Front Winch Bumper-1230131803.jpg
Here's what I want to do:
- Stinger bar
- Use the fog lights from the last bumper
- Accept a winch obviously
- D-ring mounts
- I'm going to try to keep it as low profile as I can

Last edited by EagleXJ; 01-17-2014 at 12:25 PM.
EagleXJ is offline
Old 01-17-2014, 12:21 PM
  #2
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

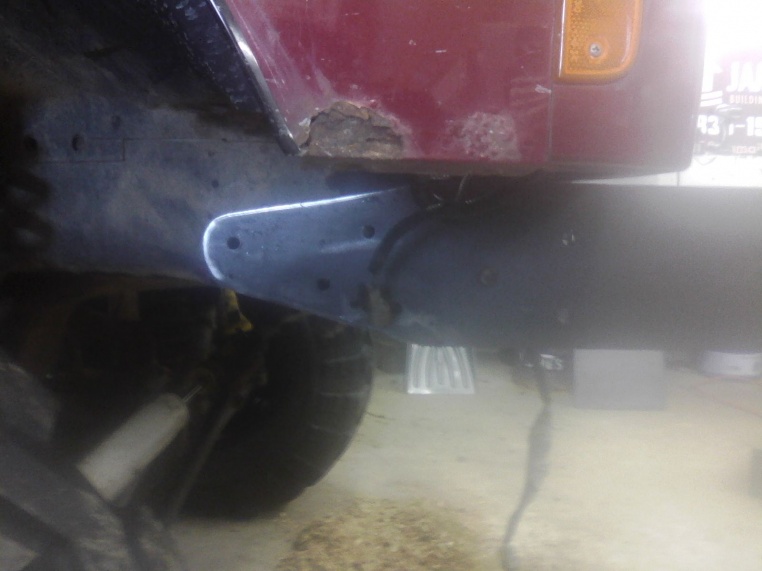

So here's what I have so far: The winch plate and mounts are 3/8" and the sides are going to be 3/16. Here's a very blury cell picture of one of the mounts
Overkill Front Winch Bumper-0103141144.jpg
Here's the winch plate with the winch and one fog light
Overkill Front Winch Bumper-0106141940.jpg
And after some cutting and welding last night this is where its at

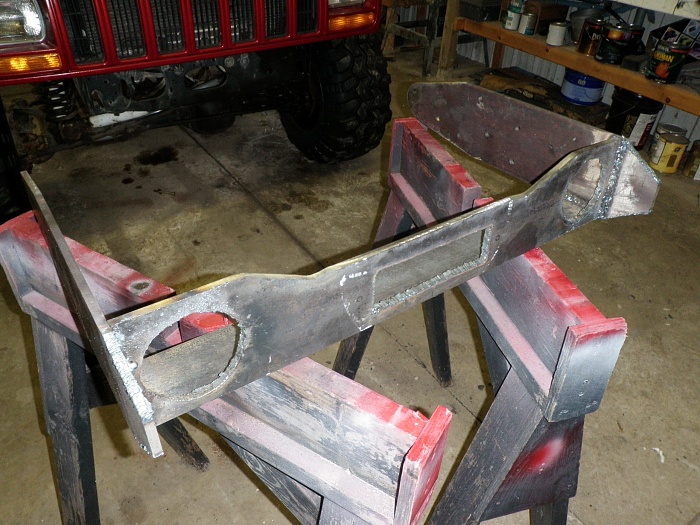

Overkill Front Winch Bumper-002-2-.jpg

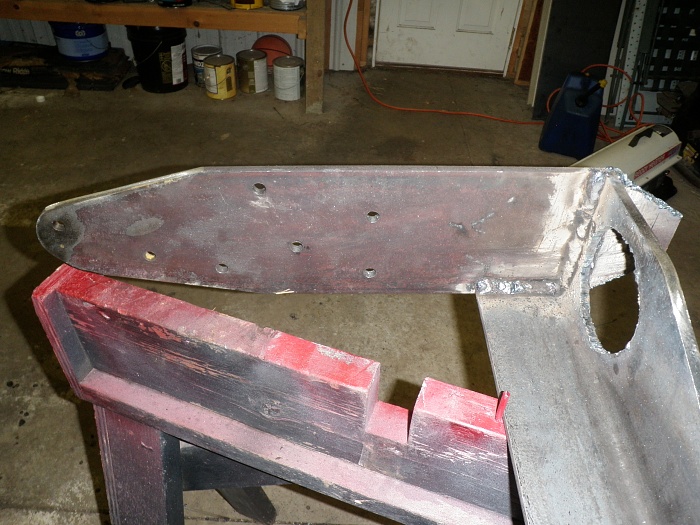

Overkill Front Winch Bumper-003-2-.jpg

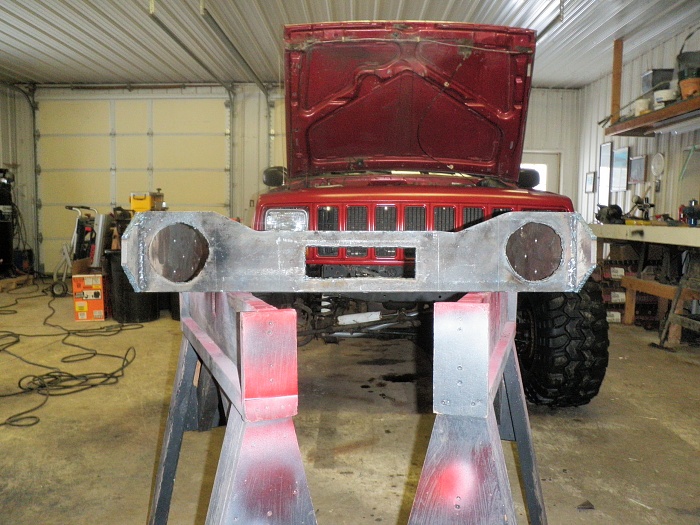

Overkill Front Winch Bumper-001-2-.jpg
EagleXJ is offline
Old 01-18-2014, 05:58 AM
  #3
Seasoned Member

Join Date: May 2012
Location: Ware Shoals, SC
Posts: 436
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

Looks good.

Just wondering why a new bumper? Already had a winch bumper on it.
bulrid8 is offline
Old 01-18-2014, 08:11 AM
  #4
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

The first bumper was a wrangle bumper. In order to use a winch with it I would have had to mount the winch behind the x-member and build stronger mounting brackets and besides, I wanted a new one :P
EagleXJ is offline
Old 01-18-2014, 09:28 AM
  #5
Seasoned Member

Join Date: May 2012
Location: Ware Shoals, SC
Posts: 436
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

Well that makes sense! Haha. Just seen it was a winch bumper, so just wondered.
bulrid8 is offline
Old 01-18-2014, 07:08 PM
  #6
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

I got the sides mostly welded on tonight

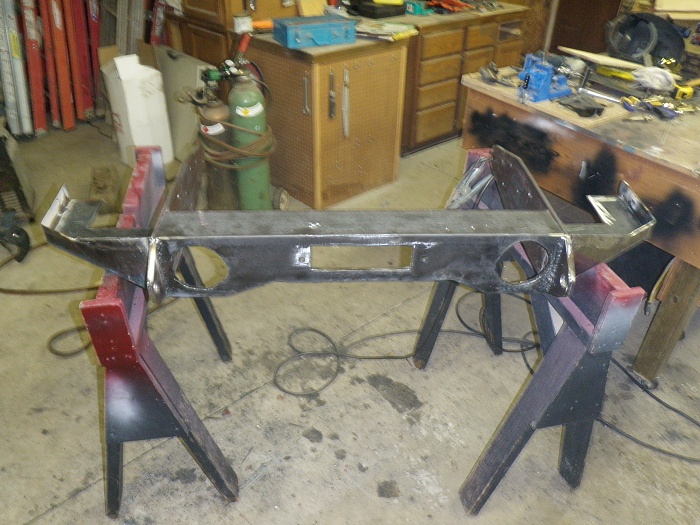

Overkill Front Winch Bumper-001-3-.jpg

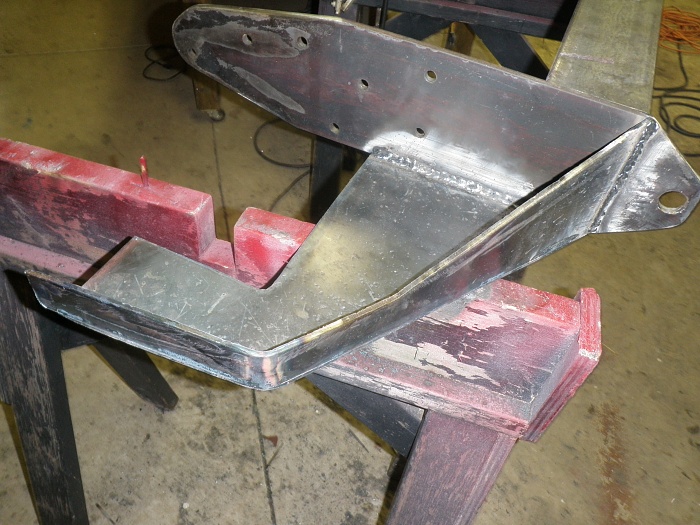

Overkill Front Winch Bumper-002-3-.jpg

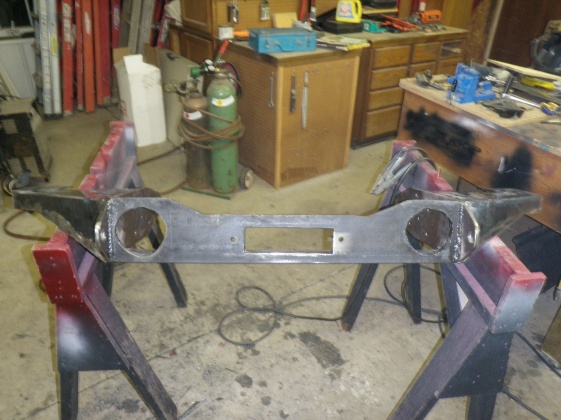

Overkill Front Winch Bumper-003-3-.jpg
EagleXJ is offline
Old 01-19-2014, 08:15 PM
  #7
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

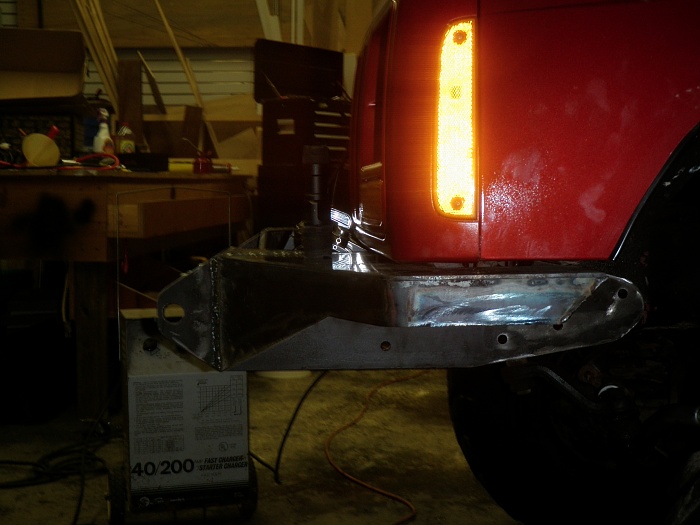

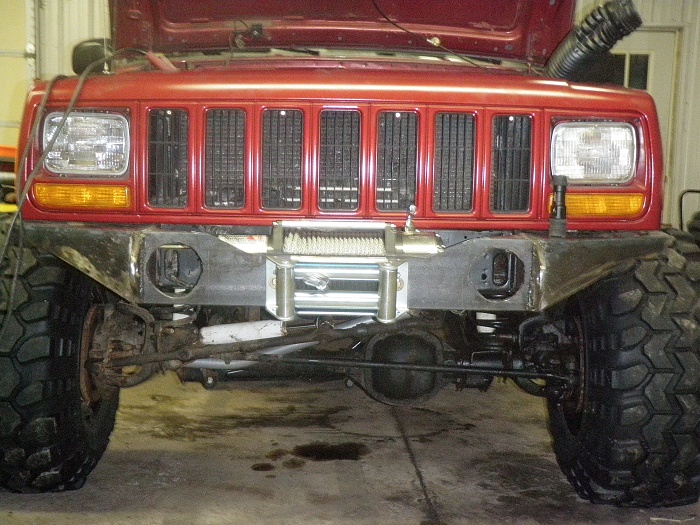

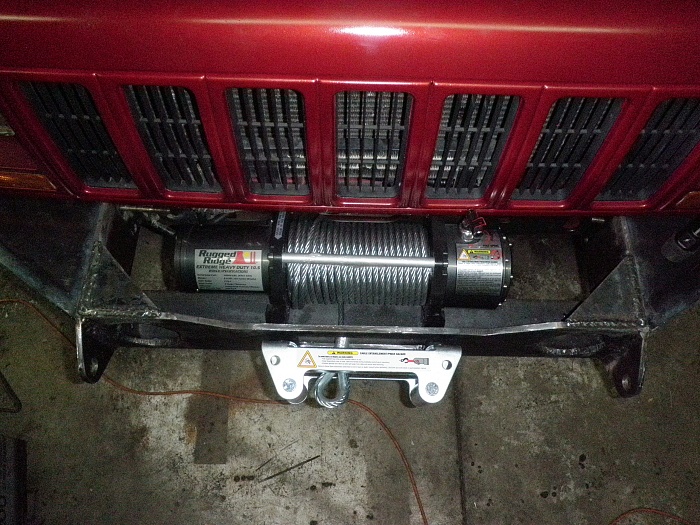

Got the rest welded. Hopefully I'll get the metal for the stinger and rest of the winch plate tomorrow. Here it is on the jeep
Overkill Front Winch Bumper-040.jpg
Overkill Front Winch Bumper-044.jpg

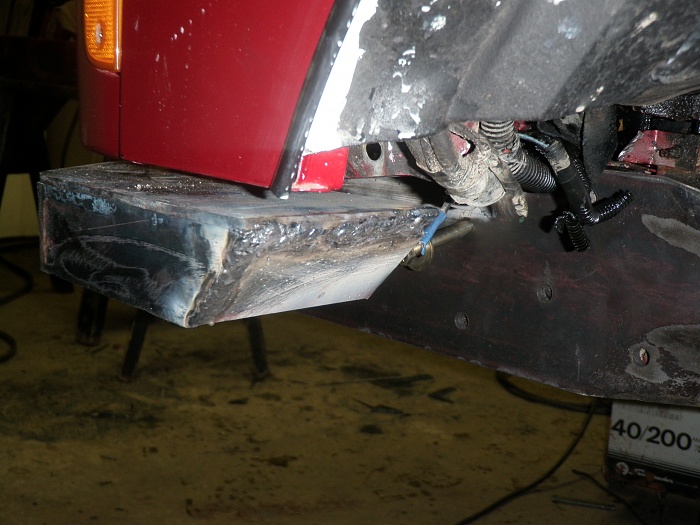

Overkill Front Winch Bumper-043.jpg
Overkill Front Winch Bumper-041.jpg
EagleXJ is offline
Old 01-19-2014, 08:23 PM
  #8
Junior Member

Mountainelk's Avatar

Join Date: Jan 2011
Location: Carson City
Posts: 81
Year: 96
Model: Cherokee
Engine: 4.0
Default

it's looking good.
Mountainelk is offline
Old 01-19-2014, 08:32 PM
  #9
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Thanks man! It'll look better with the stinger
EagleXJ is offline
Old 01-23-2014, 11:26 AM
  #10
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

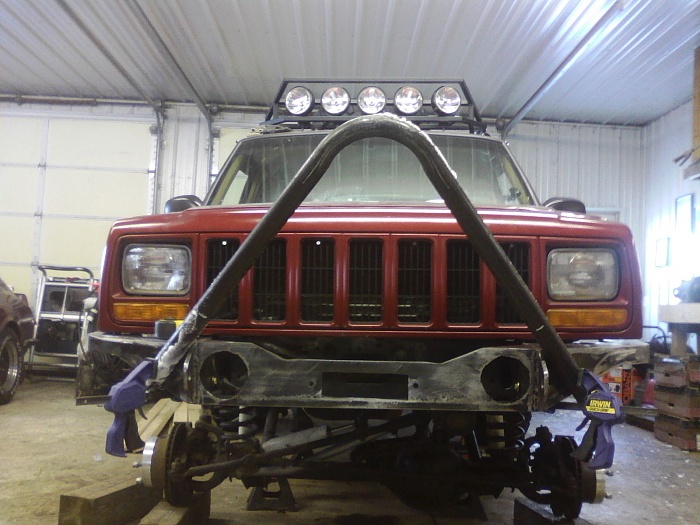

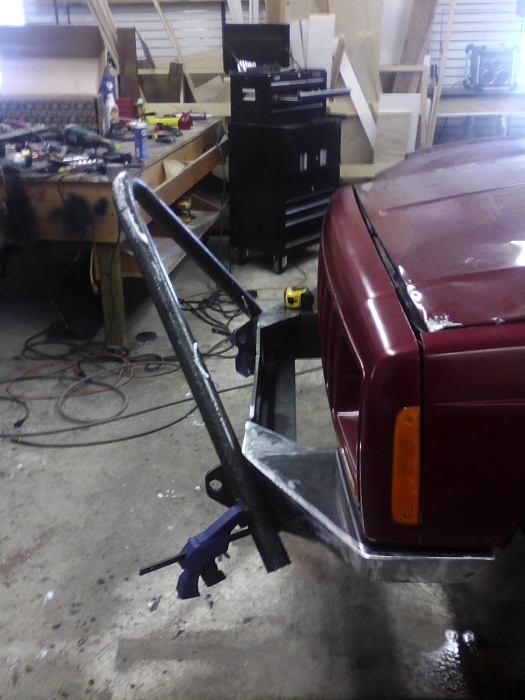

Picked up the stinger today from a friend who bent it for me. Its 2" tube, 3/16" wall Couldn't weld it on right now but clamped it on to see how it looked
Overkill Front Winch Bumper-0123141158.jpg
Overkill Front Winch Bumper-0123141158a.jpg
EagleXJ is offline
Old 01-23-2014, 08:24 PM
  #11
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Looks good im cutting my brakets tomorrow.
HS00XJ is offline
Old 01-23-2014, 09:25 PM
  #12
Junior Member

Tarenrack's Avatar

Join Date: Mar 2013
Location: Damascus, OR
Posts: 67
Year: 1992
Model: Cherokee
Engine: 4.0 HO I6
Default

looks nice. What kind of welder did you use?
Tarenrack is offline
Old 01-23-2014, 10:31 PM
  #13
Member

Join Date: Jan 2011
Location: St. Louis, MO
Posts: 138
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Looks great. Question for you and any other bumper gurus on here.

I'm going to build one this year and I've always wondered why winches are always bolted to the bottom plate instead of on the front vertical member?

For example, why not secure the winch to the vertical section of this L instead of the lower section of the L?

Wouldn't the later put more strain on the mounting hardware?
hidperf is offline
Old 01-24-2014, 04:45 AM
  #14
Senior Member

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by hidperf View Post
Looks great. Question for you and any other bumper gurus on here.

I'm going to build one this year and I've always wondered why winches are always bolted to the bottom plate instead of on the front vertical member?

For example, why not secure the winch to the vertical section of this L instead of the lower section of the L?

Wouldn't the later put more strain on the mounting hardware?
when it comes down to it I don't think it really matters. I'm not 100% sure, though. Only real reasons I can think of is looks and closer to the grill area.
Now that I think about it, the closer it is the least amount of strain on the hardware. Think leverage like in a downward pulling situation
Michael952 is offline
Old 01-24-2014, 10:16 AM
  #15
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by HS00XJ View Post
Looks good im cutting my brakets tomorrow.
Thanks!

Originally Posted by Tarenrack View Post
looks nice. What kind of welder did you use?
This old thing
Overkill Front Winch Bumper-0124141101.jpg

Originally Posted by hidperf View Post
Looks great. Question for you and any other bumper gurus on here.

I'm going to build one this year and I've always wondered why winches are always bolted to the bottom plate instead of on the front vertical member?

For example, why not secure the winch to the vertical section of this L instead of the lower section of the L?

Wouldn't the later put more strain on the mounting hardware?
Umm, Id pretty much agree with Michael.
EagleXJ is offline
