Got the stinger welded on last night. Couldn't find the camera though so i'll take some tomorrow.
Reply
0
Old Jan 26, 2014 | 08:00 PM
Share
  #17
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

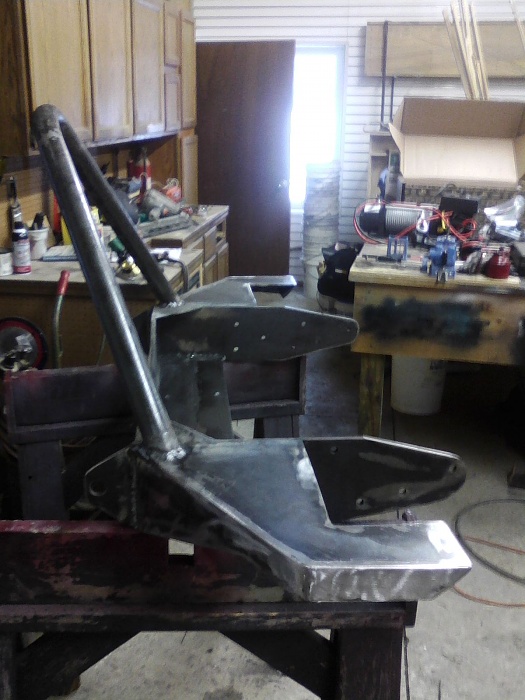

Here's some pics
Overkill Front Winch Bumper-0126141624.jpg
Overkill Front Winch Bumper-0126141624a.jpg
Overkill Front Winch Bumper-0126141625.jpg
Reply
0
Old Jan 26, 2014 | 08:29 PM
Share
  #18
young33's Avatar
young33
Member

Joined: Oct 2013
Posts: 229
Likes: 0
From: Sylvania, Ohio
Model: Cherokee
Engine: 4.0L I6
Default
Beaut.
Reply
0
Old Jan 27, 2014 | 09:29 AM
Share
  #19
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Got to get a new tank of oxygen for the torch today so I can hopefully get the rest of the welding done tonight.
Reply
0
Old Jan 27, 2014 | 10:37 AM
Share
  #20
HS00XJ's Avatar
HS00XJ
CF Veteran
10 Year Member

Joined: Apr 2012
Posts: 1,843
Likes: 2
From: Ross Vegas, Ga
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default
did you make a inner passenger side plate to bolt to so it don't crush the frame rail?
Reply
0
Old Jan 27, 2014 | 12:25 PM
Share
  #21
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
I haven't yet.
Reply
0
Old Jan 29, 2014 | 11:38 PM
Share
  #22
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

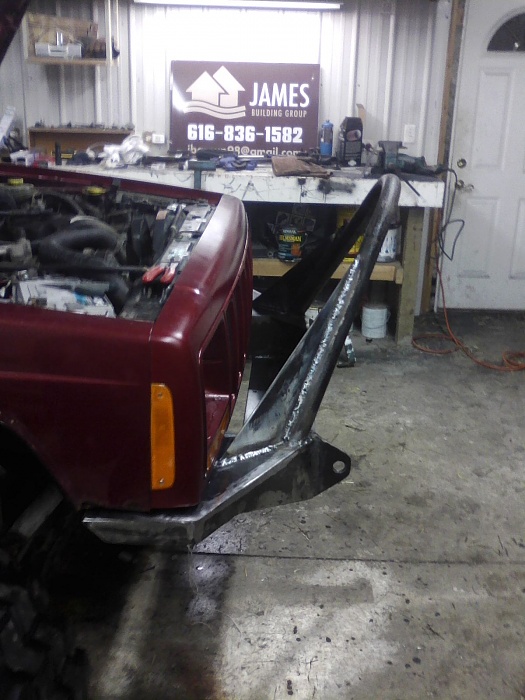

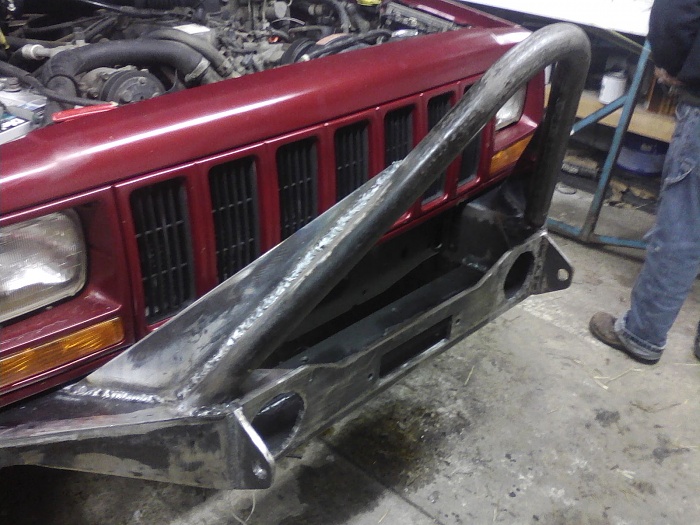

Stinger support plates burned on. I'm liking how its turning out!
Overkill Front Winch Bumper-0129142106a.jpg
Overkill Front Winch Bumper-0129142106.jpg
Reply
0
Old Jan 30, 2014 | 07:59 AM
Share
  #23
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

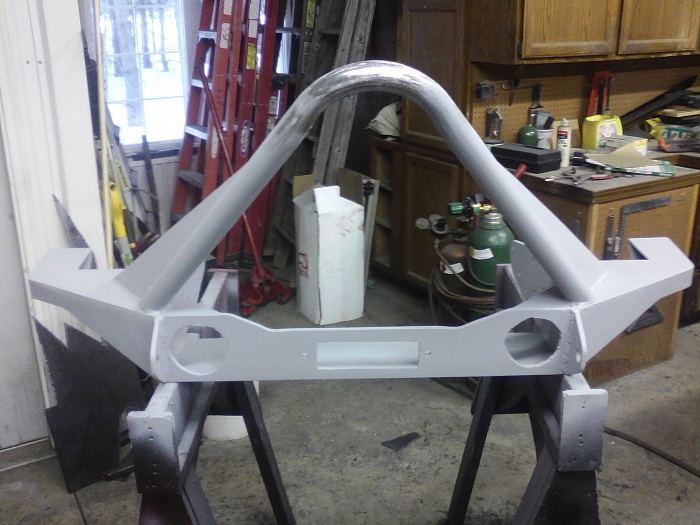

Primed
Overkill Front Winch Bumper-0130140847.jpg
Reply
0
Old Jan 30, 2014 | 08:23 AM
Share
  #24
HS00XJ's Avatar
HS00XJ
CF Veteran
10 Year Member

Joined: Apr 2012
Posts: 1,843
Likes: 2
From: Ross Vegas, Ga
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default
looks bada$$ im in the middle of building a front stubby . Can you give me a list of hardware sizes you had to buy to mount yours . thanks
Reply
0
Old Jan 30, 2014 | 10:02 AM
Share
  #25
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Overkill Front Winch Bumper-0130141054.jpg

So I have seven bolts on each side including the two factory bolts for the two threaded holes. All 7/16 grade 8 with lock nuts. The long ones are like 7" long.
Reply
0
Old Jan 30, 2014 | 10:17 AM
Share
  #26
PurpleToxin505's Avatar
PurpleToxin505
CF Veteran

Joined: Sep 2013
Posts: 2,820
Likes: 5
From: Albuquerque, NM
Year: 1999
Model: Cherokee
Engine: 4.0
Default
you gonna widen the d ring tabs? youll bent the crap out of them if you have to get pulled at a weird angle, just add a plate both sides
Reply
0
Old Jan 30, 2014 | 10:21 AM
Share
  #27
HS00XJ's Avatar
HS00XJ
CF Veteran
10 Year Member

Joined: Apr 2012
Posts: 1,843
Likes: 2
From: Ross Vegas, Ga
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default
Originally Posted by EagleXJ

So I have seven bolts on each side including the two factory bolts for the two threaded holes. All 7/16 grade 8 with lock nuts. The long ones are like 7" long.
Thanks
Reply
0
Old Jan 30, 2014 | 11:57 AM
Share
  #28
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by PurpleToxin505
you gonna widen the d ring tabs? youll bent the crap out of them if you have to get pulled at a weird angle, just add a plate both sides
Yea I forgot about that and was going to do it tonight, I think, with one other minor thing I forgot.
Reply
0
Old Jan 30, 2014 | 12:03 PM
Share
  #29
PurpleToxin505's Avatar
PurpleToxin505
CF Veteran

Joined: Sep 2013
Posts: 2,820
Likes: 5
From: Albuquerque, NM
Year: 1999
Model: Cherokee
Engine: 4.0
Default
Originally Posted by EagleXJ
Yea I forgot about that and was going to do it tonight, I think, with one other minor thing I forgot.
what else?
Reply
0
Old Jan 30, 2014 | 12:08 PM
Share
  #30
EagleXJ's Avatar
EagleXJ
Thread Starter
CF Veteran

Joined: Feb 2013
Posts: 1,185
Likes: 1
From: Colorado
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
A rod across the top of the stinger to attach the winch hook to. Kind of like this
Overkill Front Winch Bumper-stinger.jpg
