Default XJ Trailer Camper

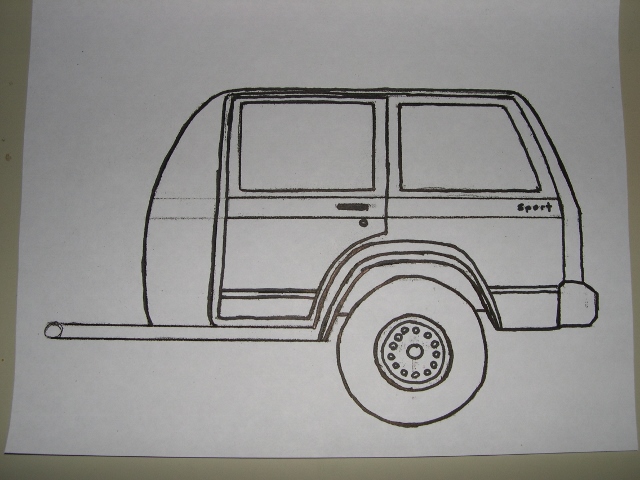

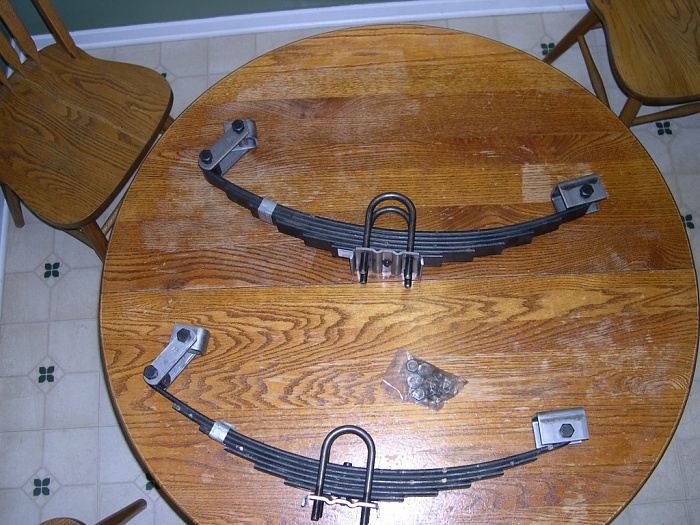

I am really not sure if this would be the right place to start this (the mods can move it if nec.), but here we go. I am finally going to start on my camper. I have posted my concept drawing in other threads, but I will post it here too. I ordered these from E-trailer and will be getting all the stuff I'll need from them also as I go. I also bought a 2,800 lb. trailer axle w/e-brakes from someone on C.L. for $30 a while back. I should be able get started on it this weekend. I will try to take as many pics. as possible.
Attached Thumbnails XJ Trailer Camper-trailer-drawing-001-640x480-.jpg   XJ Trailer Camper-trailer-springs-005-1024x768-.jpg

Last edited by JandDGreens; 05-18-2015 at 07:52 PM.
JandDGreens is offline
Old 05-18-2015, 08:37 PM
  #2
Member

kmk523's Avatar

Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Really looking forward to this!!
kmk523 is offline
Old 05-19-2015, 08:52 AM
  #3
::Regional Moderator::

89limited_hero's Avatar

Join Date: Jun 2012
Location: clackamas,or
Posts: 422
Year: 1992
Model: Cherokee(XJ)
Engine: h.o. 4.0l
Default

You should pm odgreenon35s he made one from a zj from the A-pillars back. It turned out clean.
89limited_hero is offline
Old 05-19-2015, 11:40 AM
  #4
Member

chademinent's Avatar

Join Date: Aug 2013
Location: Missoula MT
Posts: 179
Year: 1998
Model: Cherokee
Engine: 4.0, K&N, 99 Intake, MSD Coil, Accel plugs, wires rotor and cap.
Default

Like
chademinent is offline
Old 05-19-2015, 03:06 PM
  #5
Member

kmk523's Avatar

Join Date: Jun 2014
Location: Columbia, KY
Posts: 136
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Are you planning on building a frame to sit the body on or just tying the a-frame into the unibody rails?
kmk523 is offline
Old 05-19-2015, 10:24 PM
  #6
Senior Member
Thread Starter

JandDGreens's Avatar

Join Date: Jan 2013
Location: Colorado
Posts: 938
Year: 1991 2-Door
Model: Cherokee
Engine: 4.0 liter
Default

I plan on removing the whole floor, taking the frame and cut out the back part where it starts up to go over the axle and make it a straight frame all the way back to the bumper and brace it to keep the integrity of the body intact so that I can tub the whole bottom. That is how I hope to make it so I can lay a small mattress from the front to the back. It should be quit a bit lower than the bumper enough for our feet to have room under the cargo area. One reason why I want to go with the trailer axle, using stiff springs under the straightened out frame will give it the right stance. it should tow nicely.

I plan on taking the front roofline and moving it back to just in front of the rear door and use the fire wall frame to re-establish its integrity in the front and use the windshield frame to create the front shape. I want to make it both arrow dynamic and give us more head room in the front. I would like to figure a way to keep the body lines clean like this thing was design to be purchased with an xj. I have a buddy that did something like this for his late model panel truck.

One thing that will be tricky but interesting to see if I can pull off is taking the front key locks and get them to work in the rear doors. They don't always work well in the front doors as it is?

Last edited by JandDGreens; 05-19-2015 at 10:27 PM.
JandDGreens is offline
Old 05-20-2015, 06:57 PM
  #7
CF Veteran

caronaxtr's Avatar

Join Date: Feb 2012
Location: Hamburg, NY
Posts: 1,258
Year: 2001
Model: Cherokee
Default

Sub'd, would like to see this get built.
caronaxtr is offline
Old 05-23-2015, 12:10 AM
  #8
Senior Member
Thread Starter

JandDGreens's Avatar

Join Date: Jan 2013
Location: Colorado
Posts: 938
Year: 1991 2-Door
Model: Cherokee
Engine: 4.0 liter
Default Donor Trailer

So I want certain parts for my trailer That would probably cost quite a chunk of change. I was working next door to someone who was selling their old pop-up trailer (Make Offer) So I offered $75. So at the end of the month I'll pick it up. Dismantle it for as much parts as I can use.
JandDGreens is offline
Old 05-23-2015, 06:42 AM
  #9
Senior Member

abodyjoe's Avatar

Join Date: Mar 2012
Location: s.jersey
Posts: 642
Year: 2000
Model: Cherokee
Engine: 4.0
Default

can't wait to see the finished product.
abodyjoe is offline
Old 05-25-2015, 07:19 PM
  #10
Senior Member
Thread Starter

JandDGreens's Avatar

Join Date: Jan 2013
Location: Colorado
Posts: 938
Year: 1991 2-Door
Model: Cherokee
Engine: 4.0 liter
Default Shop clean-up

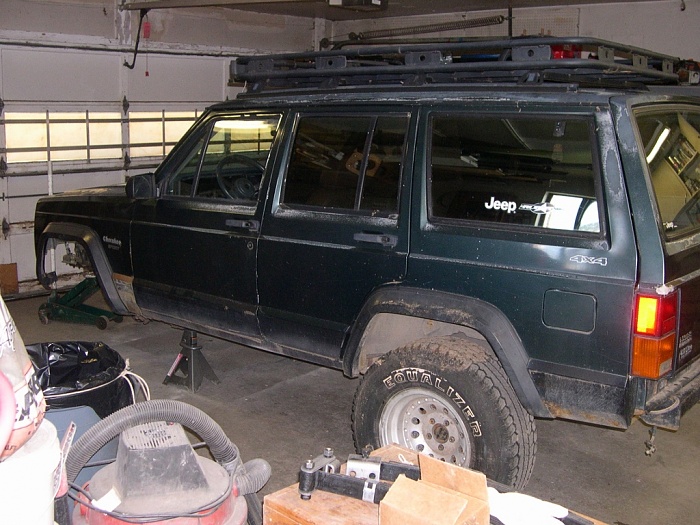

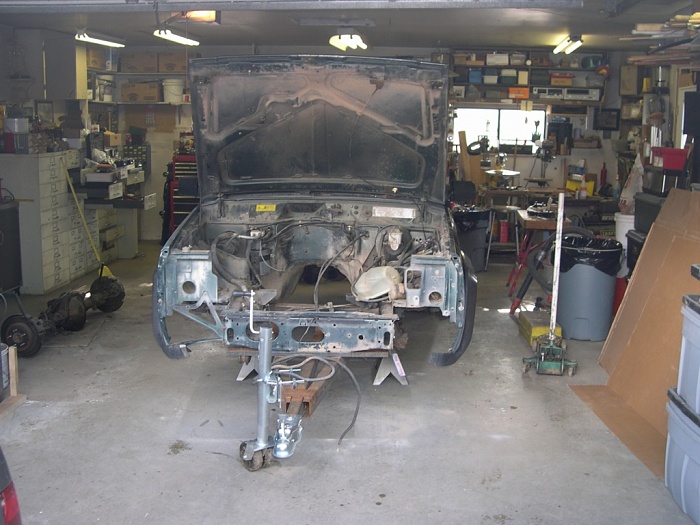

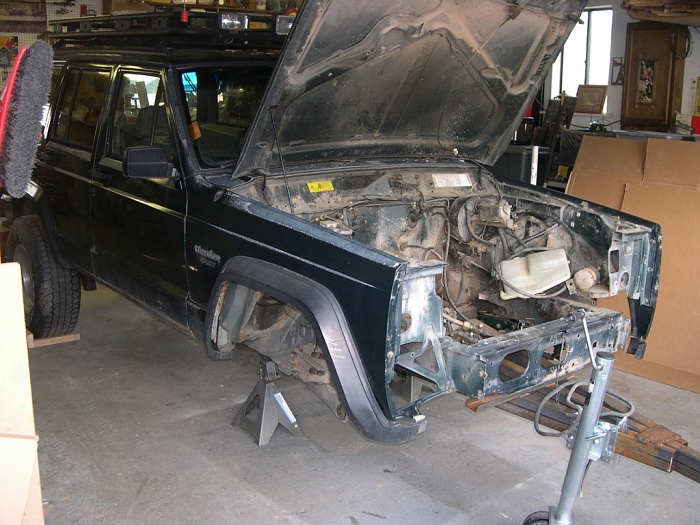

Took most of the day cleaning up the Garage/Shop. Organized things to make room for my project. I'll be stripping the front end off the XJ and clearing out the interior. So we can start chopping it up. The tongue that is on it was just so we could move it, we will be removing it and start with doing it the right way. (at least the right way in my mind).
Attached Thumbnails XJ Trailer Camper-trailer-project-001-1024x768-.jpg   XJ Trailer Camper-trailer-project-002-1024x768-.jpg   XJ Trailer Camper-trailer-project-003-1024x768-.jpg
JandDGreens is offline
Old 05-29-2015, 11:05 PM
  #11
Senior Member
Thread Starter

JandDGreens's Avatar

Join Date: Jan 2013
Location: Colorado
Posts: 938
Year: 1991 2-Door
Model: Cherokee
Engine: 4.0 liter
Default Donor trailer

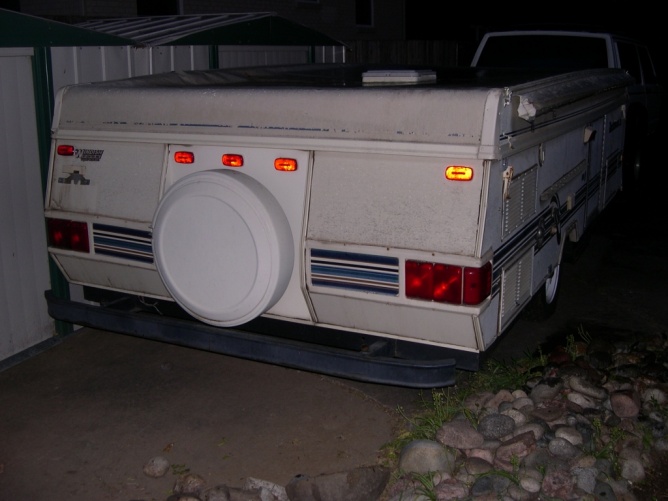

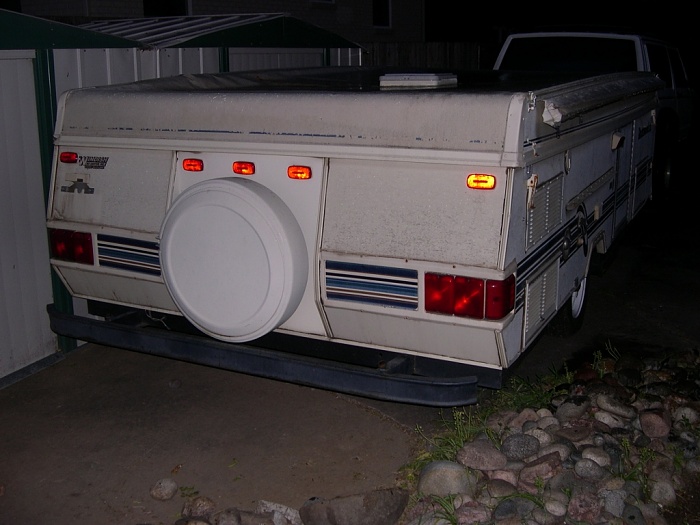

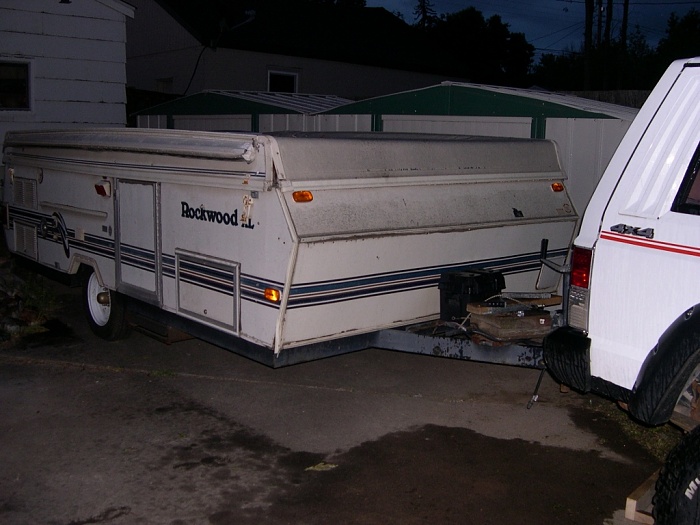

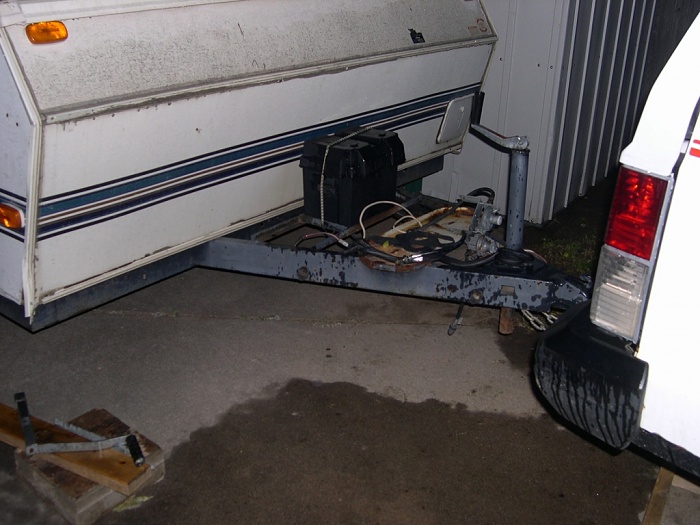

Here are some pics of the trailer I bought. I have not raised it yet but I know there are plenty of parts to salvage for my project.
Attached Thumbnails XJ Trailer Camper-trailer-find-001-1024x768-.jpg   XJ Trailer Camper-trailer-find-004-1024x768-.jpg   XJ Trailer Camper-trailer-find-007-1024x768-.jpg   XJ Trailer Camper-trailer-find-003-1024x768-.jpg
JandDGreens is offline
Old 05-29-2015, 11:10 PM
  #12
Senior Member
Thread Starter

JandDGreens's Avatar

Join Date: Jan 2013
Location: Colorado
Posts: 938
Year: 1991 2-Door
Model: Cherokee
Engine: 4.0 liter
Default Little prgress

I haven't had much time to work on this but here are a few pics of were I am.

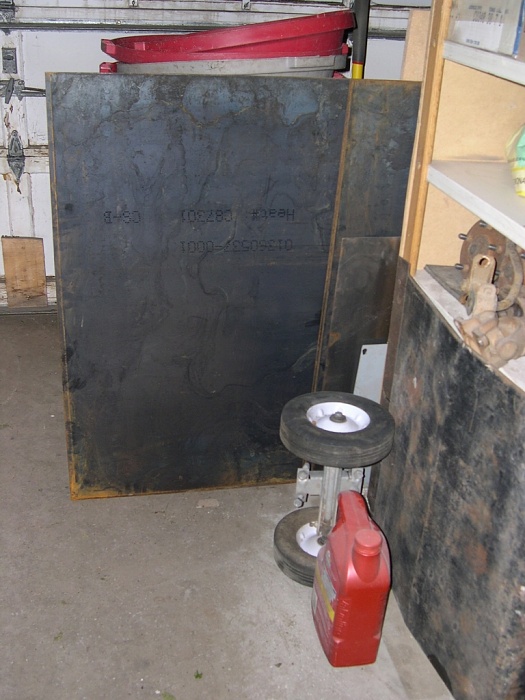

bought some heavy steel sheets from the scrap yard at C.M. metal. These are for when I tub it

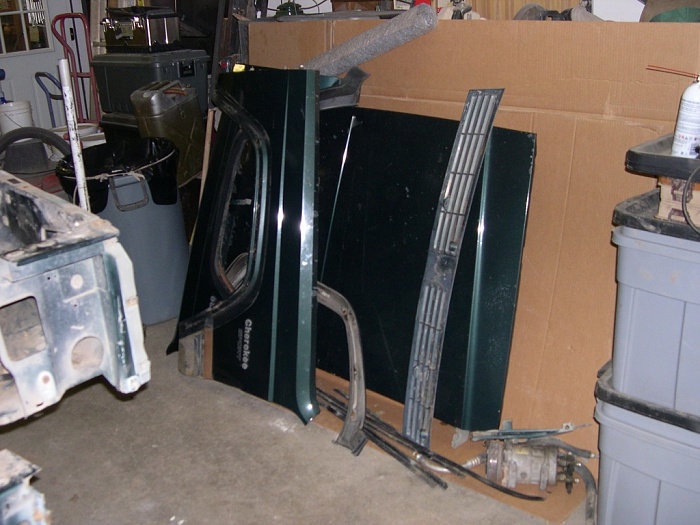

Carefully pulling the good parts in case some one can use them.
Attached Thumbnails XJ Trailer Camper-trailer-find-013-1024x768-.jpg   XJ Trailer Camper-trailer-find-010-1024x768-.jpg
JandDGreens is offline
Old 05-30-2015, 07:47 AM
  #13
Junior Member

Join Date: Dec 2012
Location: CT
Posts: 95
Year: 2000
Model: Cherokee
Engine: 4.0L
Default

Subscribed...this looks like a sweet project
turver is offline
Old 06-18-2015, 11:40 PM
  #14
CF Veteran

Ianf406's Avatar

Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
Default

It's been almost a month!
Ianf406 is offline
Old 06-19-2015, 09:06 PM
  #15
Senior Member
Thread Starter

JandDGreens's Avatar

Join Date: Jan 2013
Location: Colorado
Posts: 938
Year: 1991 2-Door
Model: Cherokee
Engine: 4.0 liter
Default

I know, work has been crazy and I found a bumper for my XJ and I need to fab something for it so I can get it installed. So I need to get that made before I get back to work on the camper.
