Project black sky

Old 06-25-2010, 09:37 PM
  #46
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

So today i picked up some RE superflex adjustable upper and lowers from bsflipfrontflip. installed them. and set them up so i pushed the front axle forward about 1.5"-2"

Last edited by 96_xj; 06-26-2010 at 07:21 PM.
96_xj is offline
Old 06-26-2010, 10:01 PM
  #47
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

so my photobucket account exceeded its bandwidth for the month =[ no photos until the 7th!!

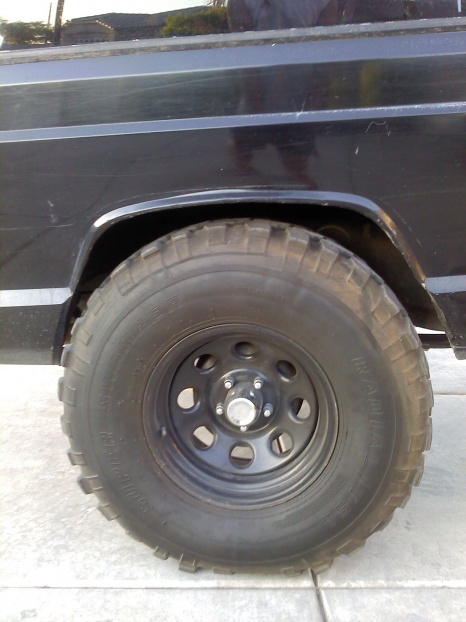

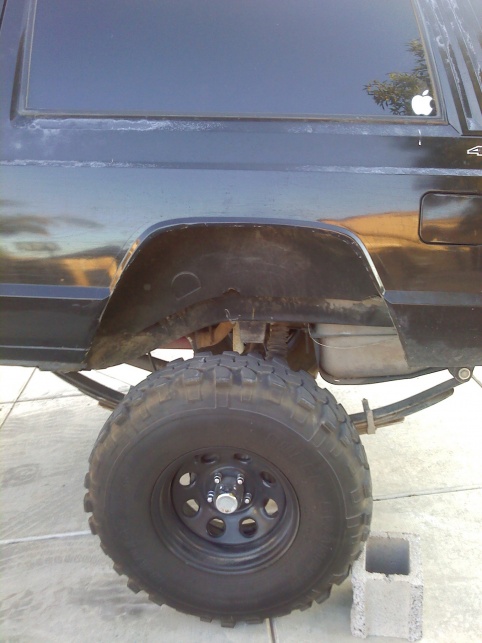

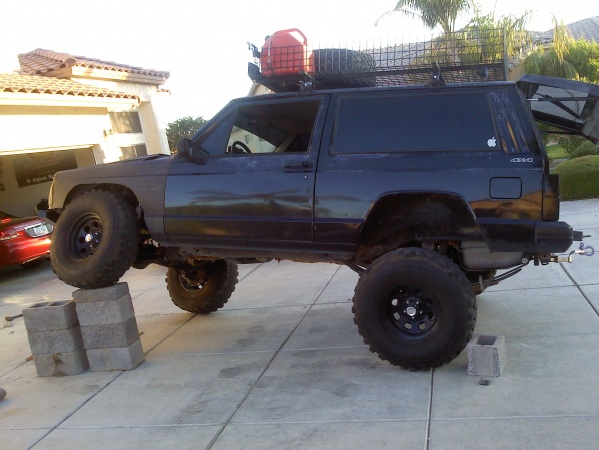

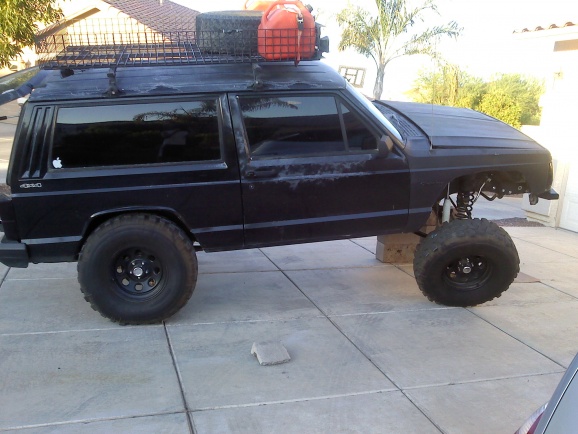

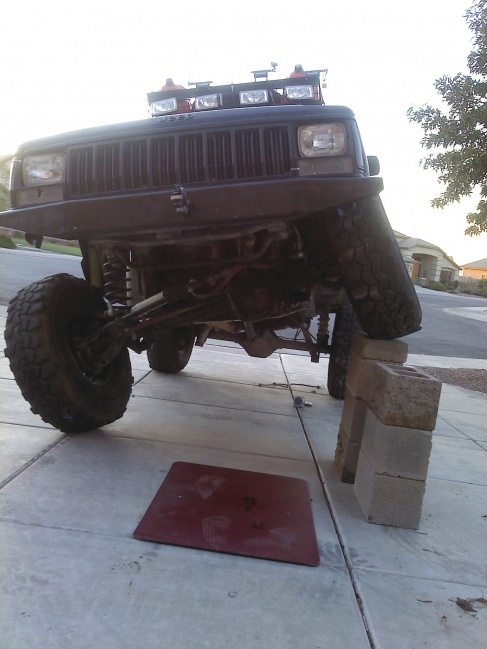

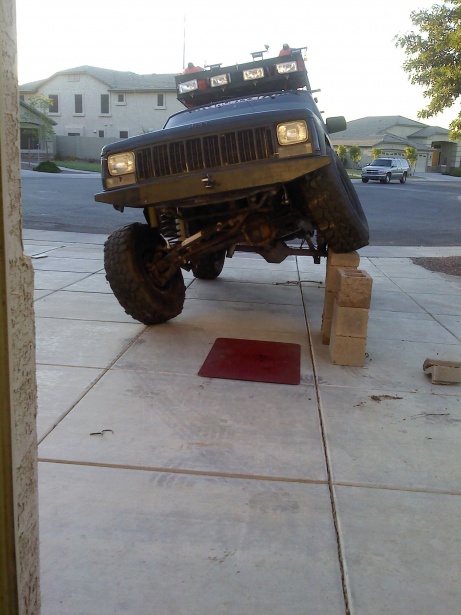

but today i went and and did a bit of flex test. I only had so many cinder blocks or i could have gone higher, the rear wheel was still firmly planted on the ground


either way i did score a 898 on a 20* ramp. not to bad i guess
Attached Images

Last edited by 96_xj; 06-26-2010 at 10:11 PM.
96_xj is offline
Old 06-26-2010, 10:04 PM
  #48
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

and some more

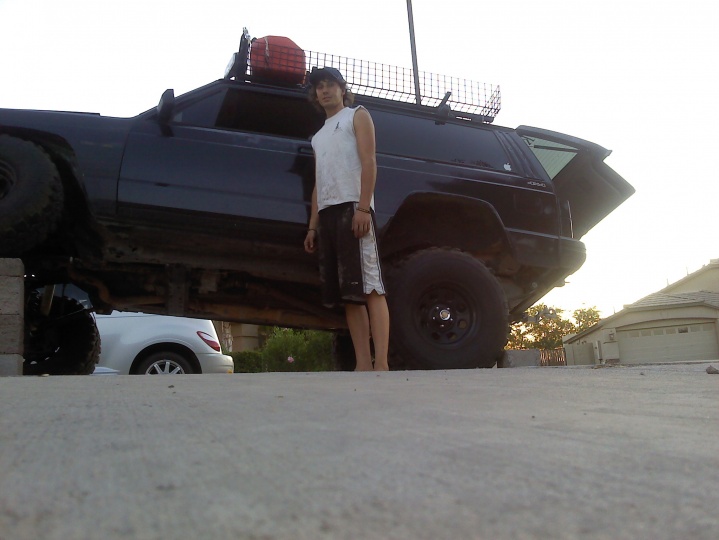

Attached Thumbnails Project black sky-0626001930.jpg
Attached Images
96_xj is offline
Old 06-29-2010, 11:23 PM
  #49
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

So today i got the smart idea to bore my throttle body!!



It went okay using a hand drill! NOT!

so i went and got a new one. Problem was i had a 96 and i got one off a 94(its all they had) the differences are the 94 does not have the provisions for the MAP sensor because it is mounted seperately




So to solve this i drilled out a zerk fitting so i could attach the MAP sensor






Then i got to work with the lath(after i got shown how to use it correctly)



62mm of nice bored smoothness



and everything mounted up




I did end up having to make a new butterfly disk... Other than that it works really awesome! a great improvement in throttle response. No whistle either.
96_xj is offline
Old 06-29-2010, 11:50 PM
  #50
Member

C.J.'s Avatar

Join Date: Dec 2009
Location: Lincoln, Nebraska
Posts: 231
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Are you on the stock length brake lines still?
C.J. is offline
Old 06-29-2010, 11:54 PM
  #51
CF Veteran

offroadnut36's Avatar

Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Nice job on the TB
offroadnut36 is offline
Old 06-30-2010, 12:04 AM
  #52
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

Originally Posted by C.J. View Post
Are you on the stock length brake lines still?

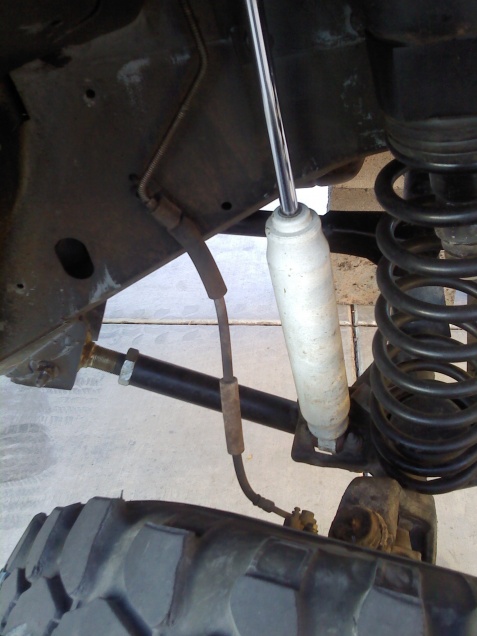

No i have yj/wrangler lines (3" longer)

I also have chevy 1500 v8 2wd lines (28" long total) sitting in the garage waiting to be put on. THose are 3" lift shocks so i bottomed those out there. I need new coils and shocks in the front still...

The rear has full packs and real 6"-7" lift shocks Also have the wrangler/yj lines in the rear. plenty of slack in them at full droop
96_xj is offline
Old 06-30-2010, 12:04 AM
  #53
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

Originally Posted by offroadnut36 View Post
Nice job on the TB
Thanks man. it was a hard lesson learned for sure....
96_xj is offline
Old 06-30-2010, 12:18 AM
  #54
Member

Deathwagon's Avatar

Join Date: Mar 2010
Location: Humboldt, Cali.
Posts: 135
Year: 1987
Model: Cherokee
Engine: I6 4.0
Default

Yea but ya got a good-un in there now!
Deathwagon is offline
Old 06-30-2010, 12:31 AM
  #55
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

Tonight i have been doing alot of research and have been convinced.....

Tomorrow will be my last day having rear quarters!!!!


found a good write up and i have another day off tomorrow where as all my friends will be working... so i am utilizing my free time!

Last edited by 96_xj; 06-30-2010 at 11:57 AM.
96_xj is offline
Old 06-30-2010, 12:36 AM
  #56
Member

Deathwagon's Avatar

Join Date: Mar 2010
Location: Humboldt, Cali.
Posts: 135
Year: 1987
Model: Cherokee
Engine: I6 4.0
Default

Dang, Thank you so much for finding that thread. I have been looking for it for like 2 weeks now. Can't wait to see how yours turns out.
Deathwagon is offline
Old 06-30-2010, 12:52 AM
  #57
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

no problem man! hope yours turns out great too!!
96_xj is offline
Old 06-30-2010, 11:57 AM
  #58
Honorary Moderator
Thread Starter

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

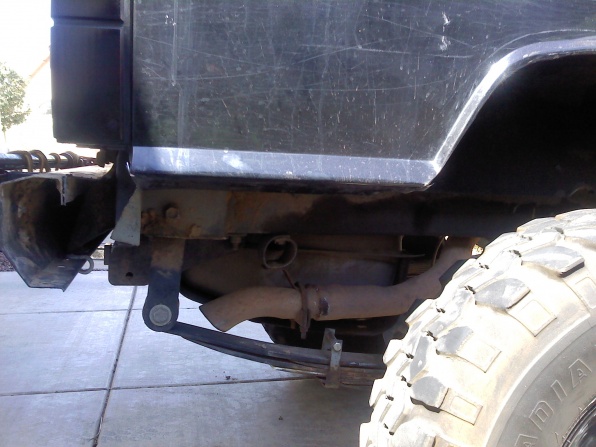

Teaser photo
Attached Images
96_xj is offline
Old 06-30-2010, 12:07 PM
  #59
Member

C.J.'s Avatar

Join Date: Dec 2009
Location: Lincoln, Nebraska
Posts: 231
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 96_xj View Post
No i have yj/wrangler lines (3" longer)

I also have chevy 1500 v8 2wd lines (28" long total) sitting in the garage waiting to be put on. THose are 3" lift shocks so i bottomed those out there. I need new coils and shocks in the front still...

The rear has full packs and real 6"-7" lift shocks Also have the wrangler/yj lines in the rear. plenty of slack in them at full droop
Decent the reason I asked is those lines look identical to the lines on my Jeep and look like a factory line. With my 5 inches of lift I figured there was no way I could still be on the factory cherokee brake lines and have slack in them when it is flexed out.
C.J. is offline
Old 06-30-2010, 12:49 PM
  #60
Member

Deathwagon's Avatar

Join Date: Mar 2010
Location: Humboldt, Cali.
Posts: 135
Year: 1987
Model: Cherokee
Engine: I6 4.0
Default

Originally Posted by 96_xj View Post
Teaser photo
Lookin wicked.
Deathwagon is offline
