Che's 1995 XJ prosjekt

Old 07-16-2012, 04:33 PM
  #1
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Cool Che's 1995 XJ prosjekt

Hi

Thought I would finaly share my build thread all the way from Norway (Europe)

I bought the car last summer. It is a 1995 mod., 4.0L automatic.
About 3 weeks after I bought the car and it got stolen, but with som suuper good work by the Norwegian police, the car was returned to be a week later


Pictures of upgrade parts can be viewed on my FB page:
http://www.facebook.com/media/set/?s...6670116&type=3

The following things are going to be done:

1. Remove all the rust under the car and all the rust on the body of the car.

2. Remove the front and back axel, and the steering nuckles, sand blaste everything and get it free for rust, treat it with an anti-rust paint

3. After all rust is removed from under the car , treat it with an anti-rust paint (black color, see attachment 2)

4. Take out the seats and carpet inside the car and remove rust on the floor and inside of the car. And also paint with anti-rust.

5. Re-paint the whole car in the same color as it is now (blue metallic)
3 layers of blue metallic paint, and 3 layers of clear paint.

6. Put sun-film/foli on the back windows (5 windows)

7. Changes all the polyutharane bushings on the front and back suspension.

8. Install new 3" lift kit. Skyjacker

9. Install new manifold to the engine. Borla

10. Install new head lights. Rampage

11. Install Warrior 3" tubular nerf bars.

12. Install new adjustable track bar to the front suspension.

13. Install new rust free break lines to front and back breaks.

14. Install 3 new black KC Rally 800 lights to the front bumper.

15. Install flexy flars on the existing flaers.

16. Install new steering stabilizer to front suspension.

17. Install transfer case lowering kit. Skyjacker

18. Install new 4 new IPF 968 lights to the Kargo Master roof rack.

19. Install new motor room lighting.

20. Install new throttle body. Hesco

21. Install new air filter. K/N

22. Install new back light guards.

23. Change the engine oil

24. Change the oil in both front and back axle.

25. Change fluid in the transfer case.

26. Change break fluid.

26. Install new coupe lights.

27. Install new Teraflex rear disc breaks

28. Install Hood louvers

29. New MT Classic lock wheel + New Black Rock rims for winter tires, 15x8

30. New 31" BFG Mud A/T tires

29. Do an all new black leather on the seats and door panels

Plus a lot of other small cosmetic things... I'll post pic.


The motor is getting the following upgrade:

Complete dissemblance of engine and cleaning.

Renewal of:

Overhaul Gasket & Seal Kit
Oil Filter
Ring Set
Push Rods
Timing Cover with Gasket
Vibration Damper - Harmonic Balancer
Engine Mounts
Standard Main Bearing Set
Bearing Set, Connecting Rod
Standard Camshaft Bearing Set
Water Pump
Cylinder Head Bolt
Oil pump
Thermometer
Timing chain+ sprocket

This is how the Jeep looked like when I bought it:

Name:  6e95ba50.jpg
Views: 90
Size:  189.4 KB

Last edited by Che Guevara; 07-26-2012 at 03:54 PM.
Che Guevara is offline
Old 07-16-2012, 04:35 PM
  #2
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Cool

The "new" MT's

[IMG][/IMG]
Che Guevara is offline
Old 07-16-2012, 04:37 PM
  #3
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Cool

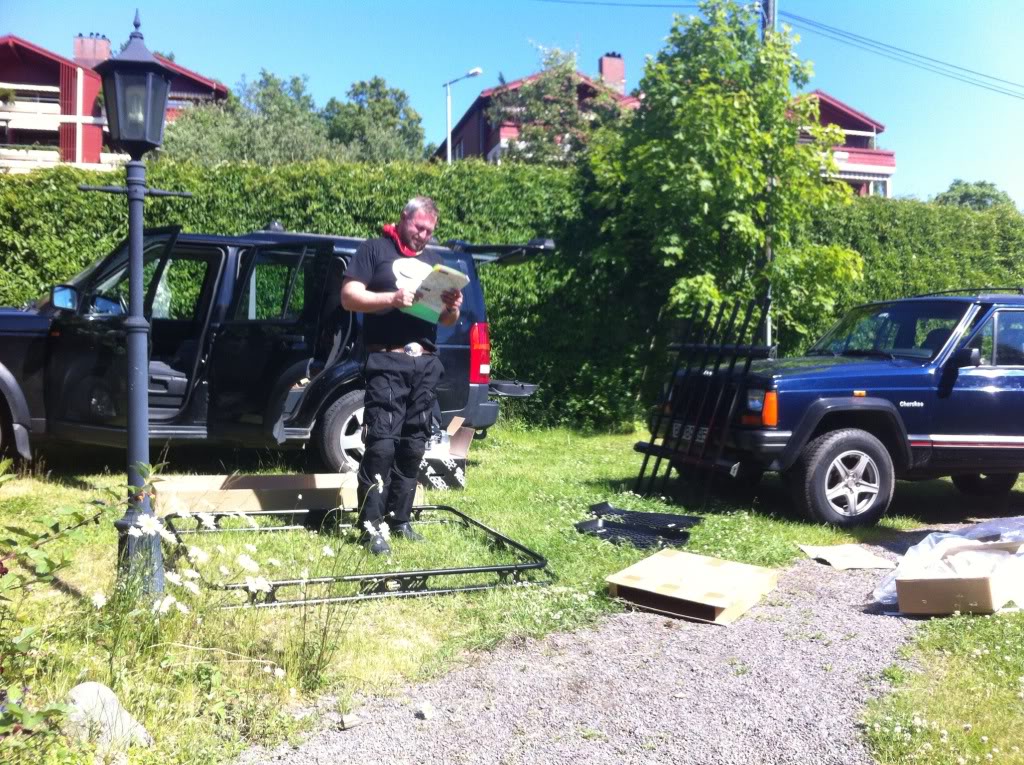

A buddy of mine helping out with the Kargo Master roof rack

Name:  mm.jpg
Views: 26
Size:  239.3 KB
Che Guevara is offline
Old 07-16-2012, 04:39 PM
  #4
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Cool

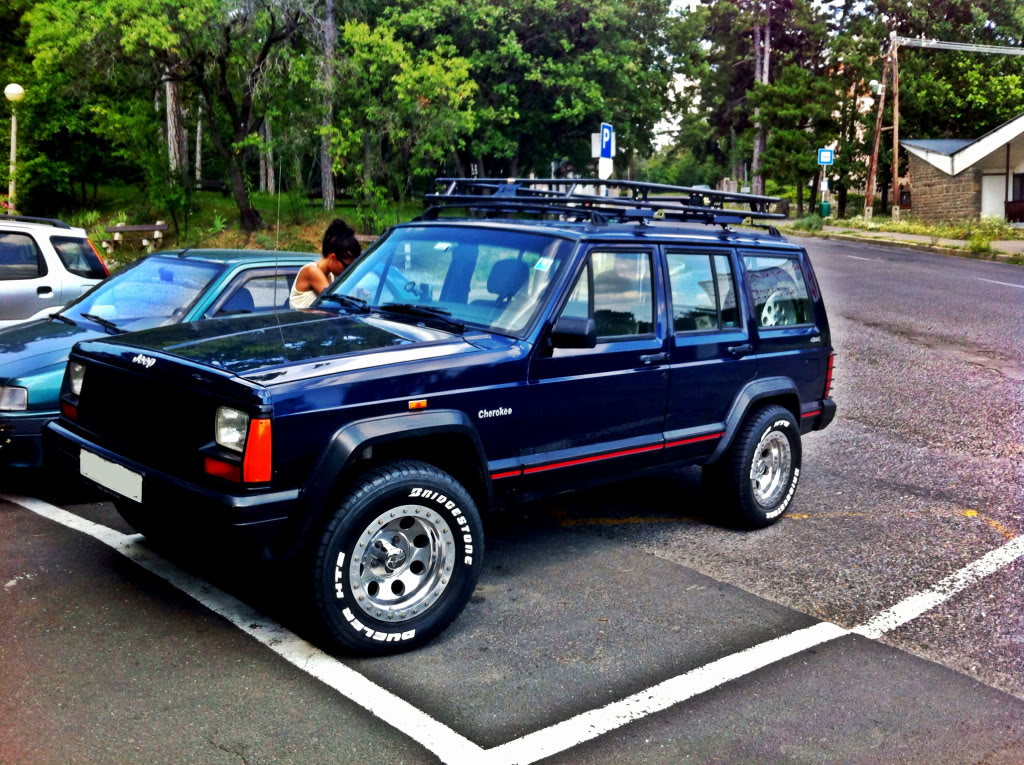

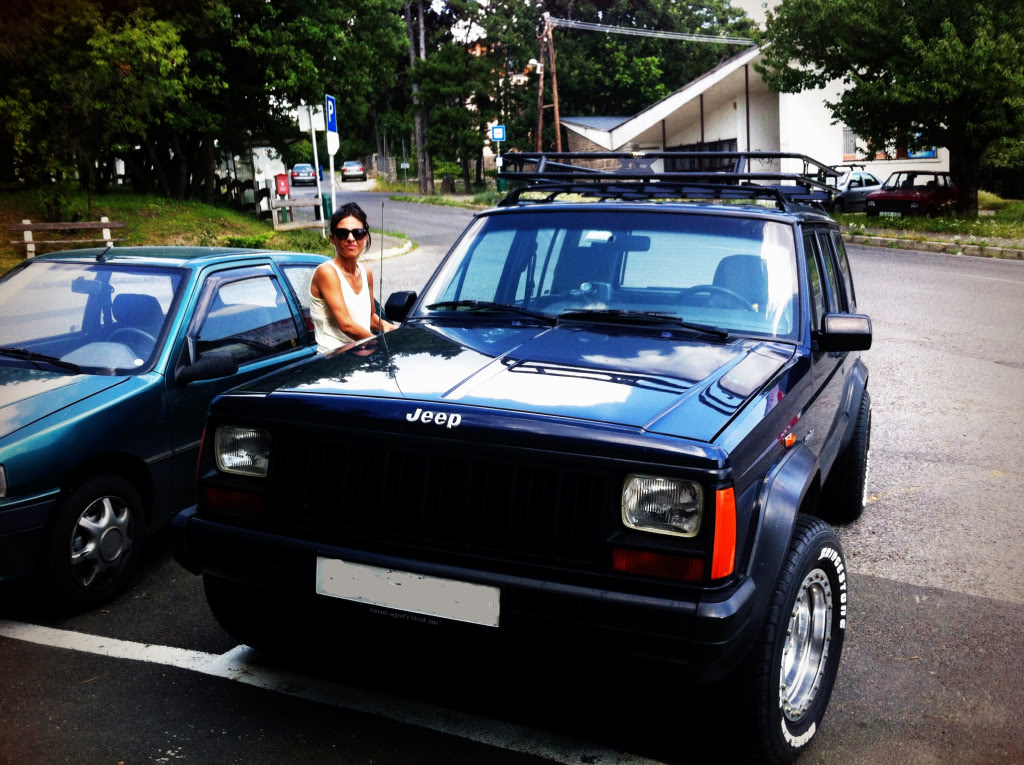

New rims and roof rack mounted

Name:  b636cf39.jpg
Views: 24
Size:  319.1 KB

Name:  4c5cc118.jpg
Views: 23
Size:  234.2 KB

Last edited by Che Guevara; 07-26-2012 at 03:55 PM.
Che Guevara is offline
Old 07-16-2012, 04:42 PM
  #5
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Cool

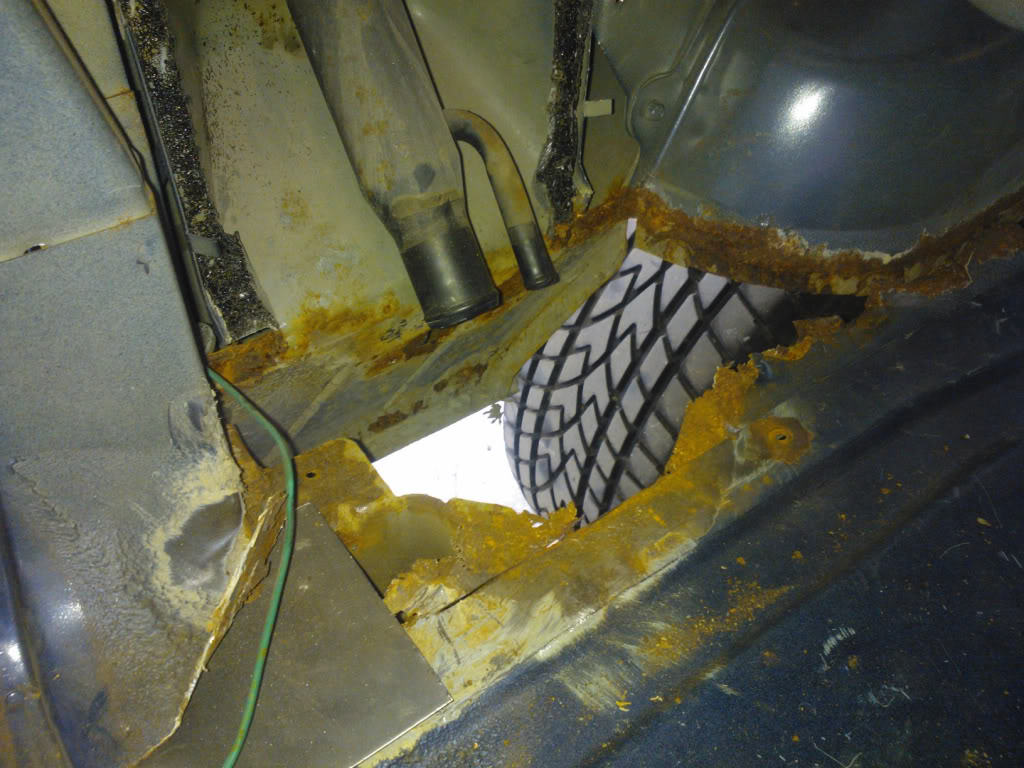

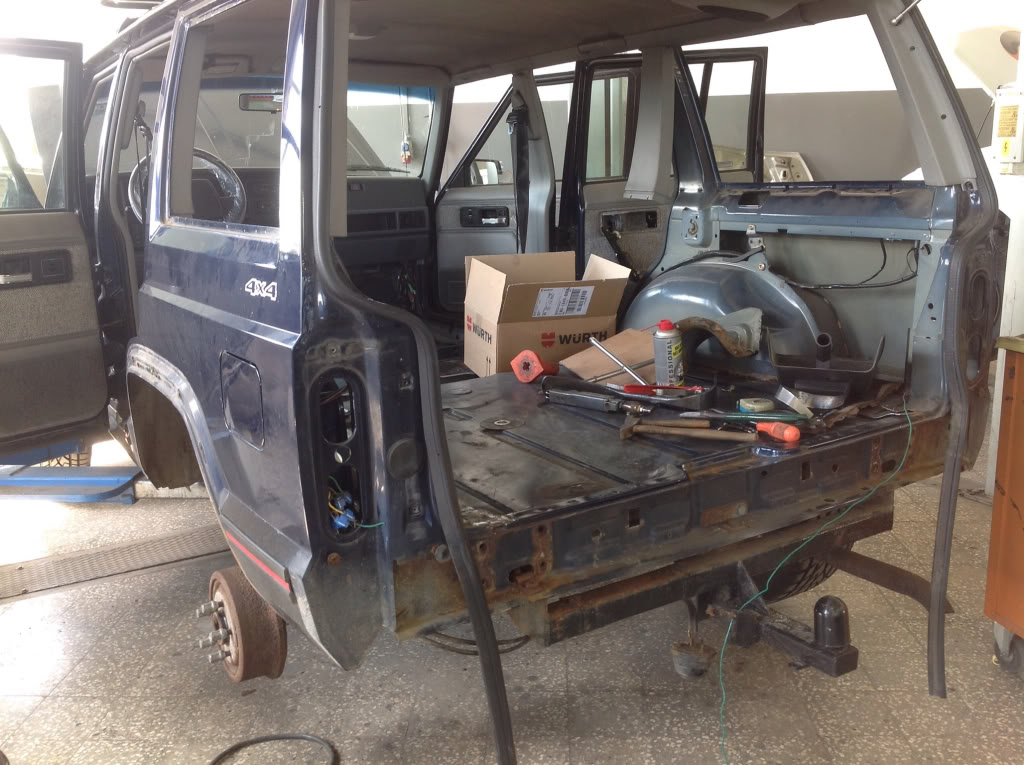

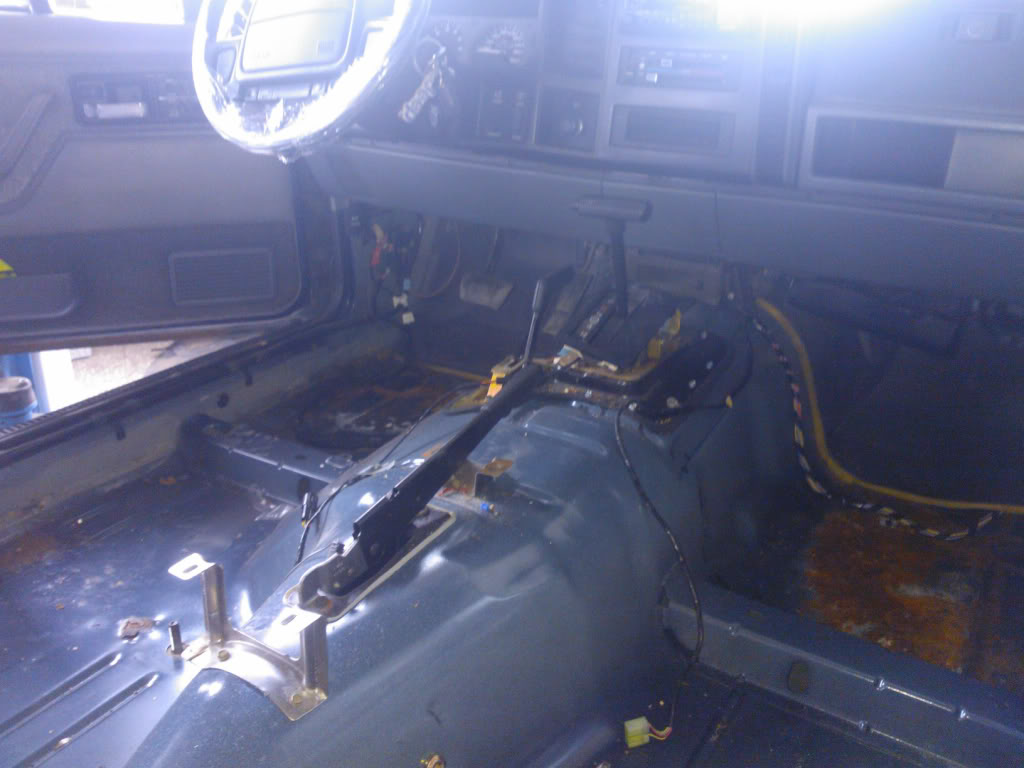

Started working on some realy bad rust inside the car

Name:  d2e101c1.jpg
Views: 20
Size:  145.9 KB

Name:  16567557.jpg
Views: 24
Size:  127.1 KB

Name:  5ae6e81f.jpg
Views: 28
Size:  79.9 KB
Che Guevara is offline
Old 07-26-2012, 02:27 PM
  #6
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

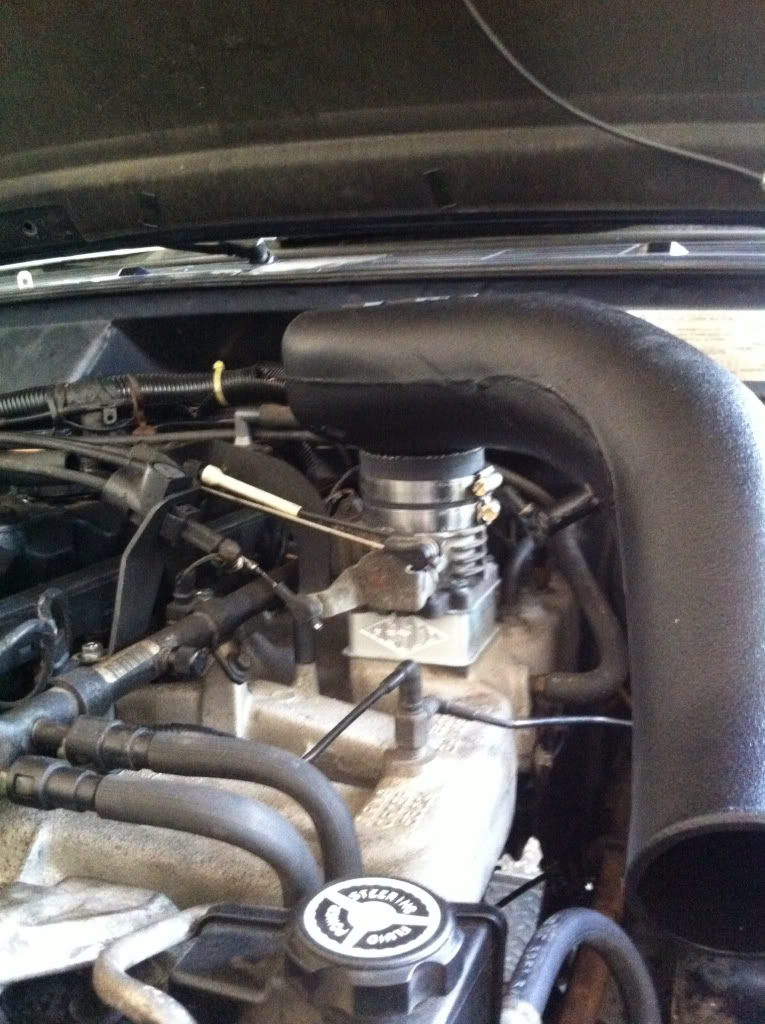

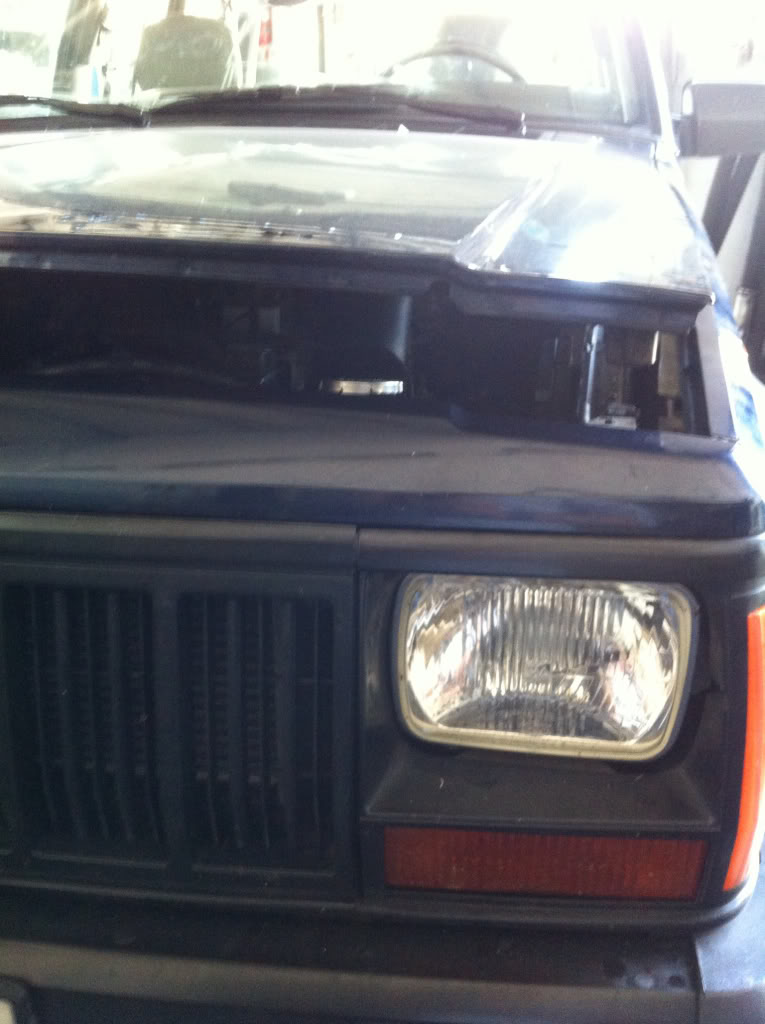

There was some problems when insatlling the K/N air filter and Hesco throttle body spacer...a little space issue..

Name:  4b3c4395.jpg
Views: 26
Size:  133.3 KB

Name:  64cdaa35.jpg
Views: 22
Size:  82.0 KB
Che Guevara is offline
Old 07-26-2012, 02:28 PM
  #7
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

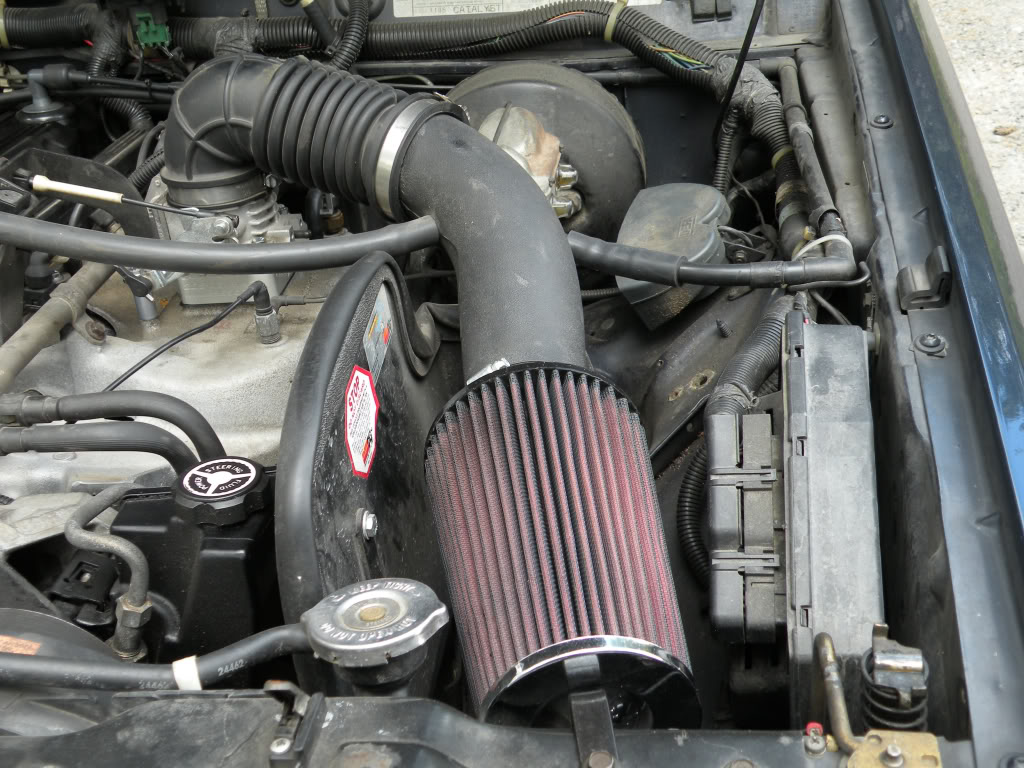

But problem solved!

Name:  2e512387.jpg
Views: 24
Size:  169.9 KB
Che Guevara is offline
Old 07-26-2012, 02:45 PM
  #8
Member

Join Date: Jul 2011
Location: Finland
Posts: 100
Year: 1990
Model: Cherokee
Engine: 4.0 RENIX
Default

Hello! That rust looks so familiar! Get rid of it
northern is offline
Old 07-26-2012, 02:49 PM
  #9
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

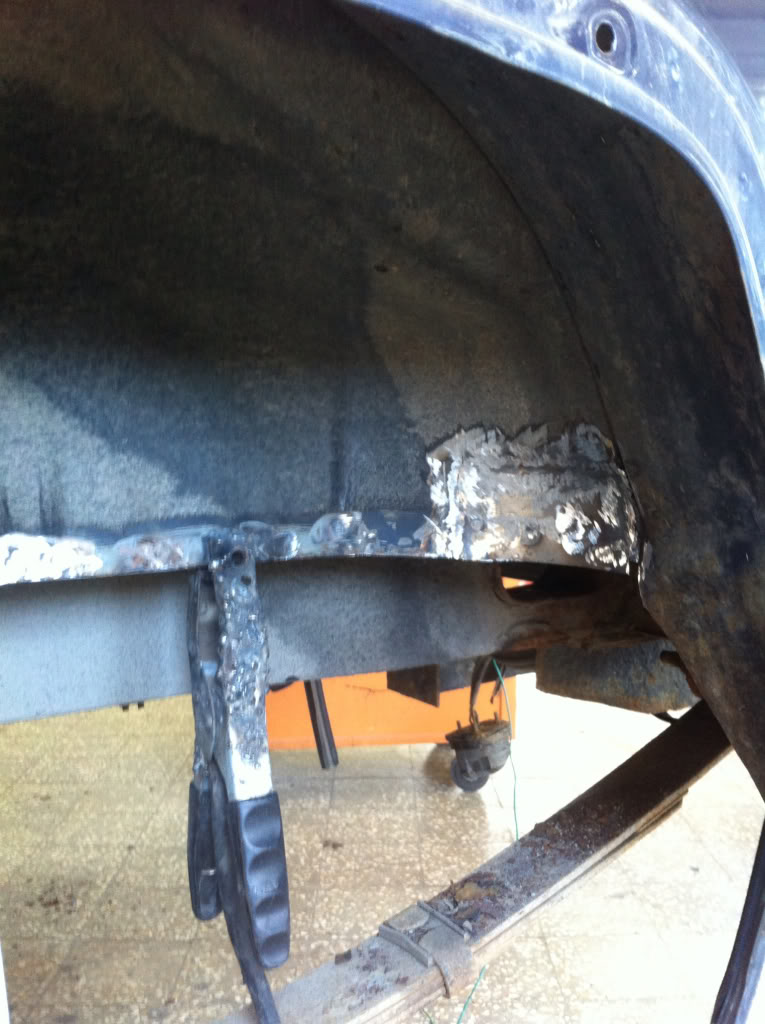

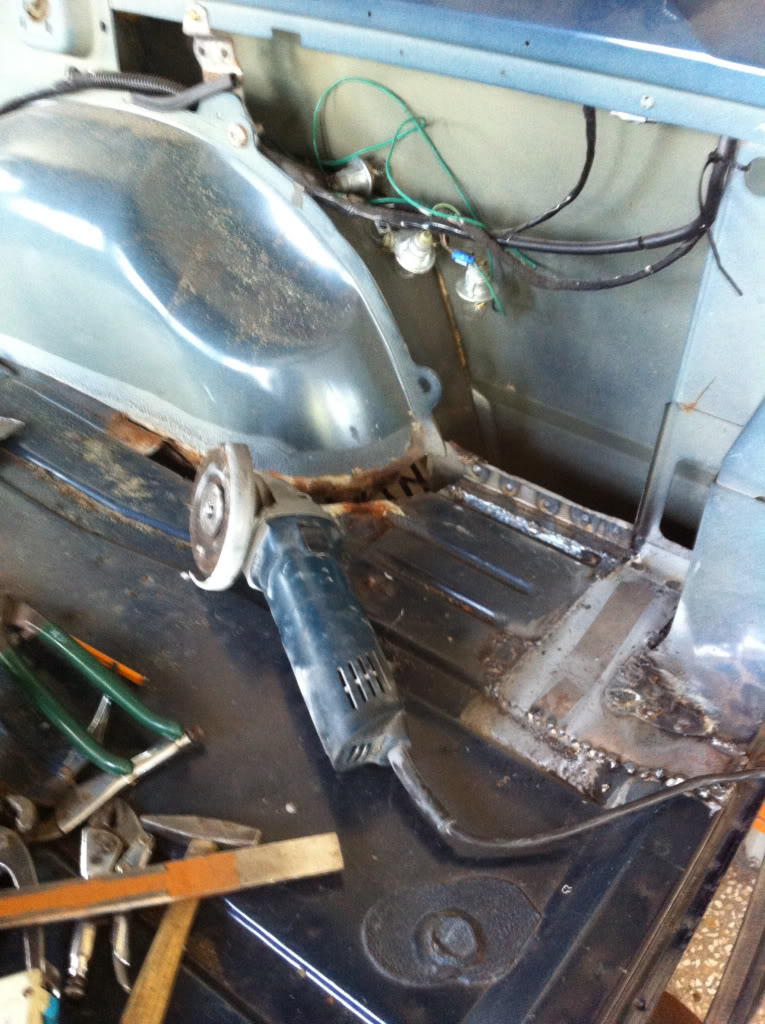

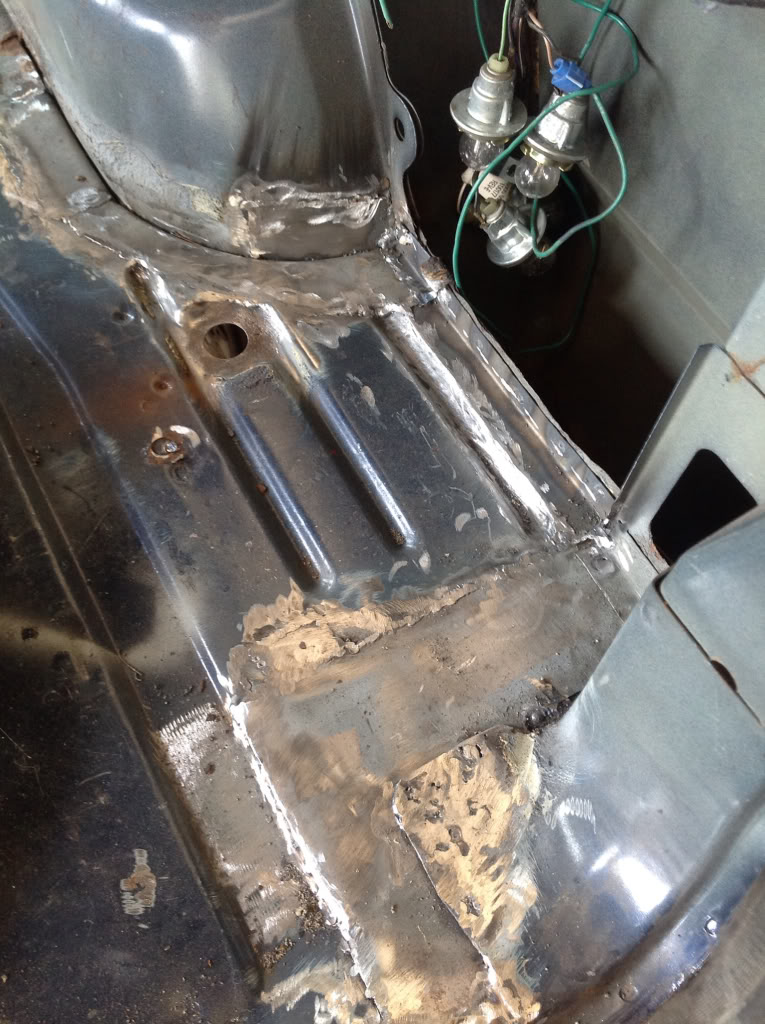

Slowly getting that rust away... Welded in some plates

Name:  006e9934.jpg
Views: 27
Size:  154.4 KB
Name:  c2ccdf18.jpg
Views: 25
Size:  135.3 KB
Name:  1f39e51e.jpg
Views: 25
Size:  106.4 KB

Last edited by Che Guevara; 07-26-2012 at 04:06 PM.
Che Guevara is offline
Old 07-26-2012, 02:56 PM
  #10
Member

Join Date: Jul 2011
Location: Finland
Posts: 100
Year: 1990
Model: Cherokee
Engine: 4.0 RENIX
Default

That will be good! Do you plan using polyurethane seam sealer?
northern is offline
Old 07-26-2012, 02:57 PM
  #11
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

The interior is also getting a makeover
All the seats will be built up again and custom made new covers in leather and textile. The inside door panels will get the same treatment, plus the two front door panels will get a Jeep logo
And of course new carpet!

Name:  63d03ae6.jpg
Views: 26
Size:  115.2 KB


Logo for door panels
Name:  5cb28494.jpg
Views: 27
Size:  15.4 KB

Last edited by Che Guevara; 07-26-2012 at 04:00 PM.
Che Guevara is offline
Old 07-26-2012, 02:59 PM
  #12
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

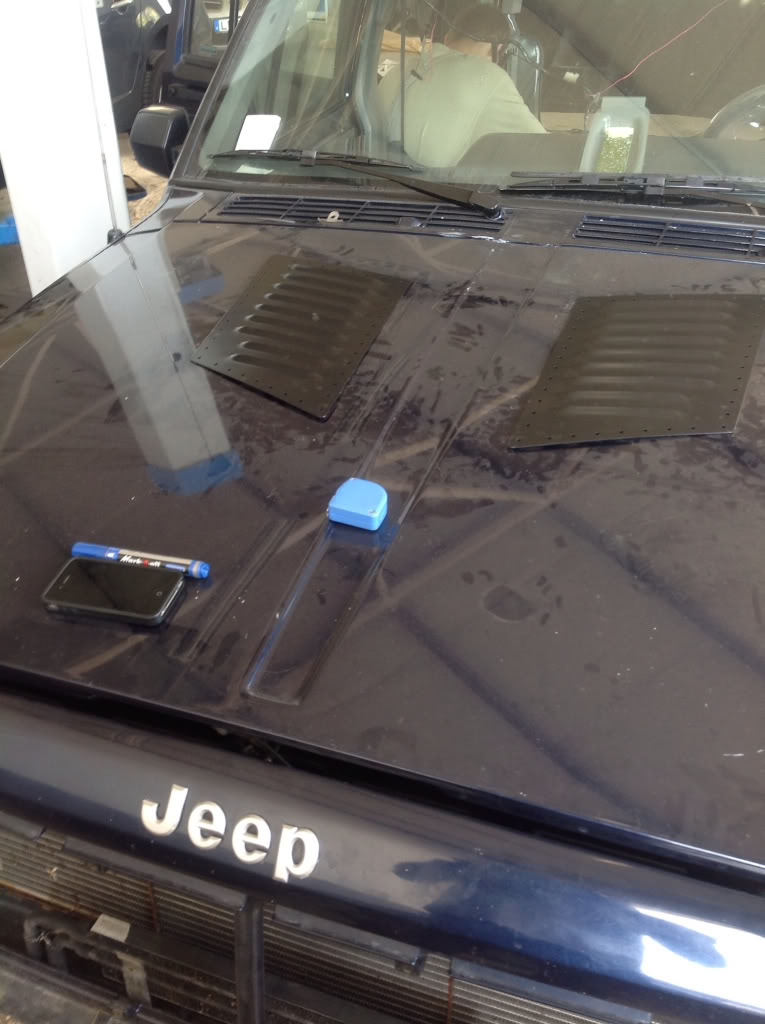

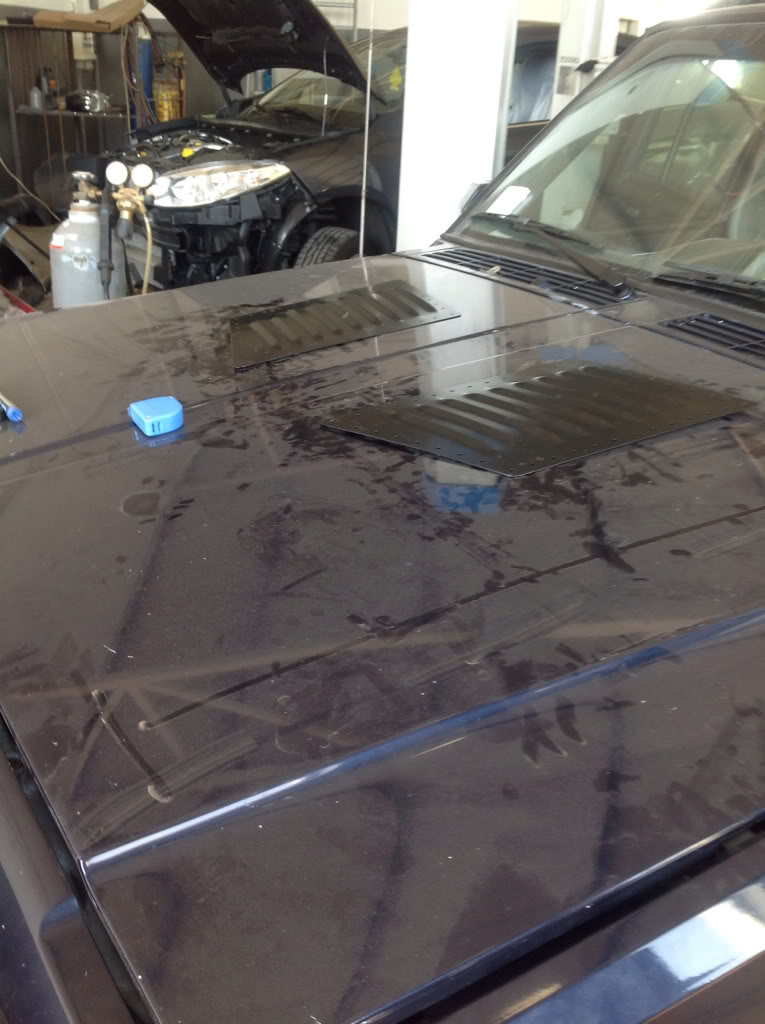

Installing new hood louvers, a real ***** to get these suckers in symmetric alignment

Name:  9d3452d3.jpg
Views: 25
Size:  89.9 KB
Name:  344a6019.jpg
Views: 20
Size:  94.3 KB
Che Guevara is offline
Old 07-26-2012, 03:01 PM
  #13
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

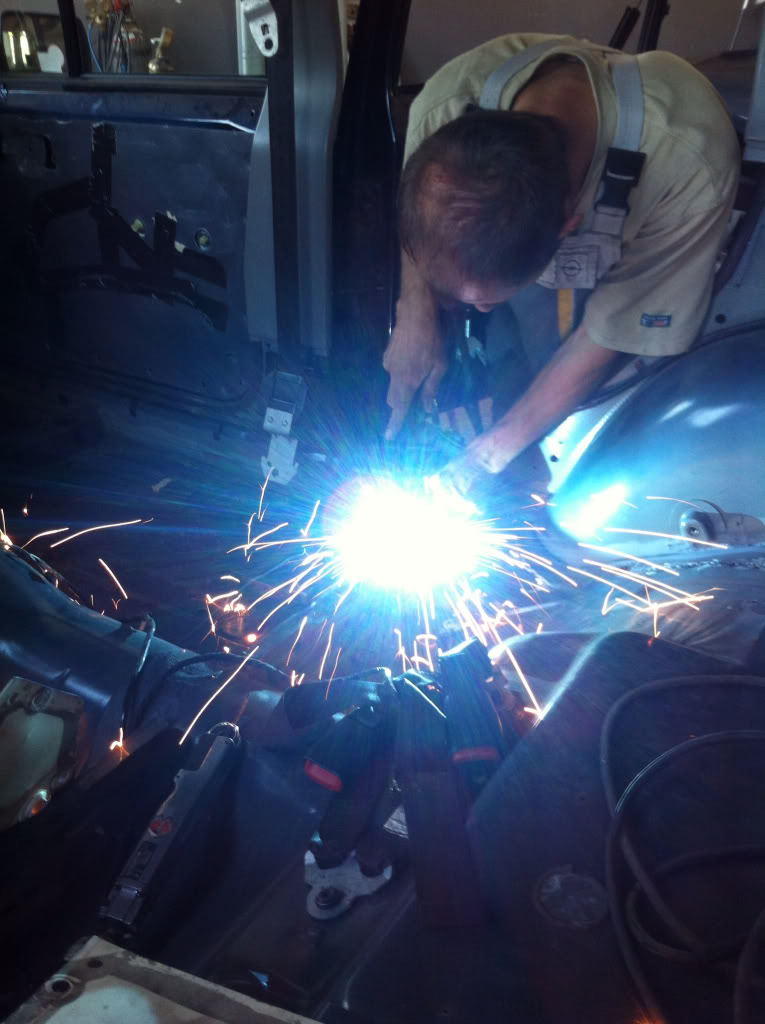

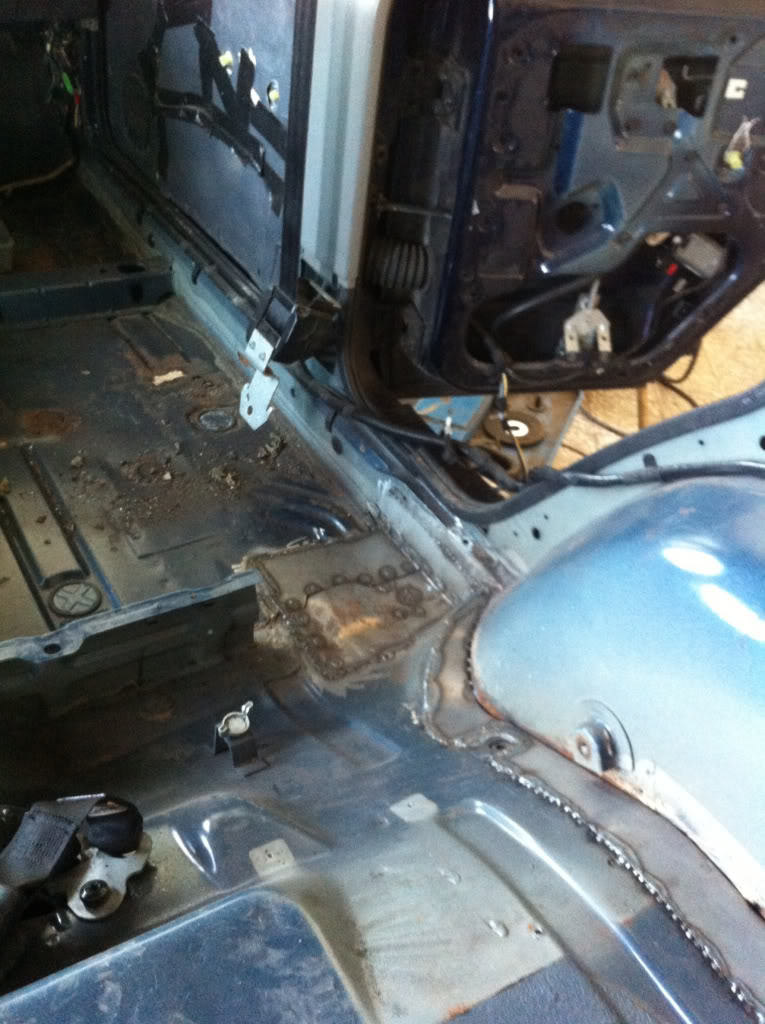

Getting done good work on the rust problem

Name:  caa383ff.jpg
Views: 43
Size:  90.8 KB
Name:  00bebb98.jpg
Views: 27
Size:  119.4 KB
Che Guevara is offline
Old 07-26-2012, 03:07 PM
  #14
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

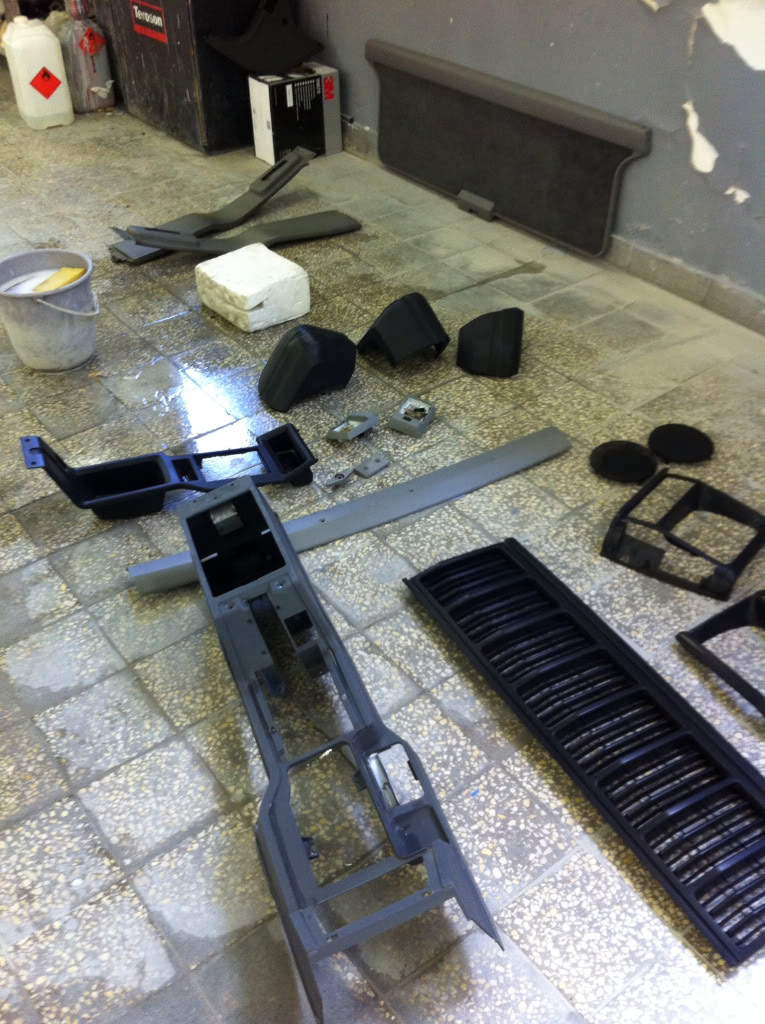

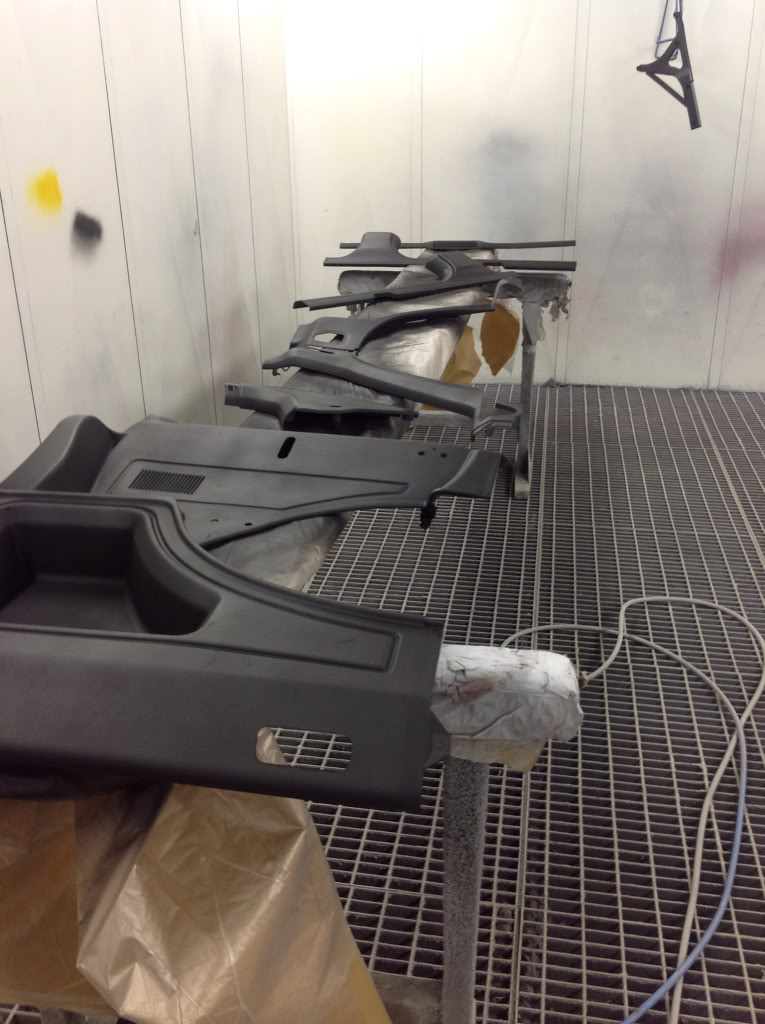

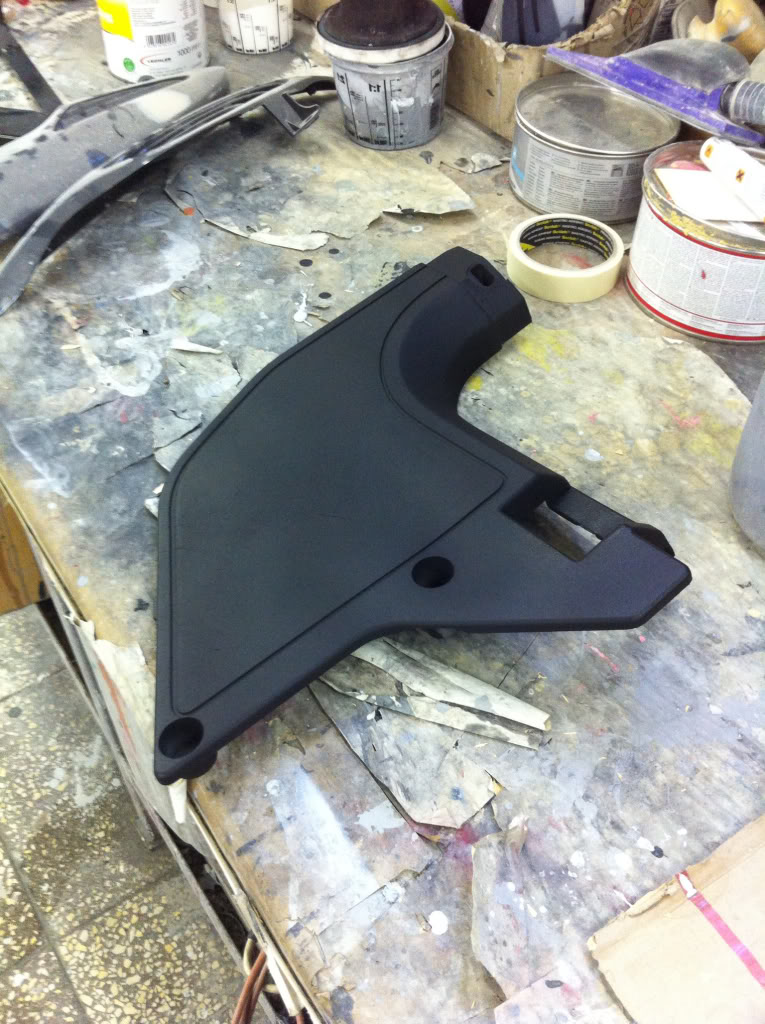

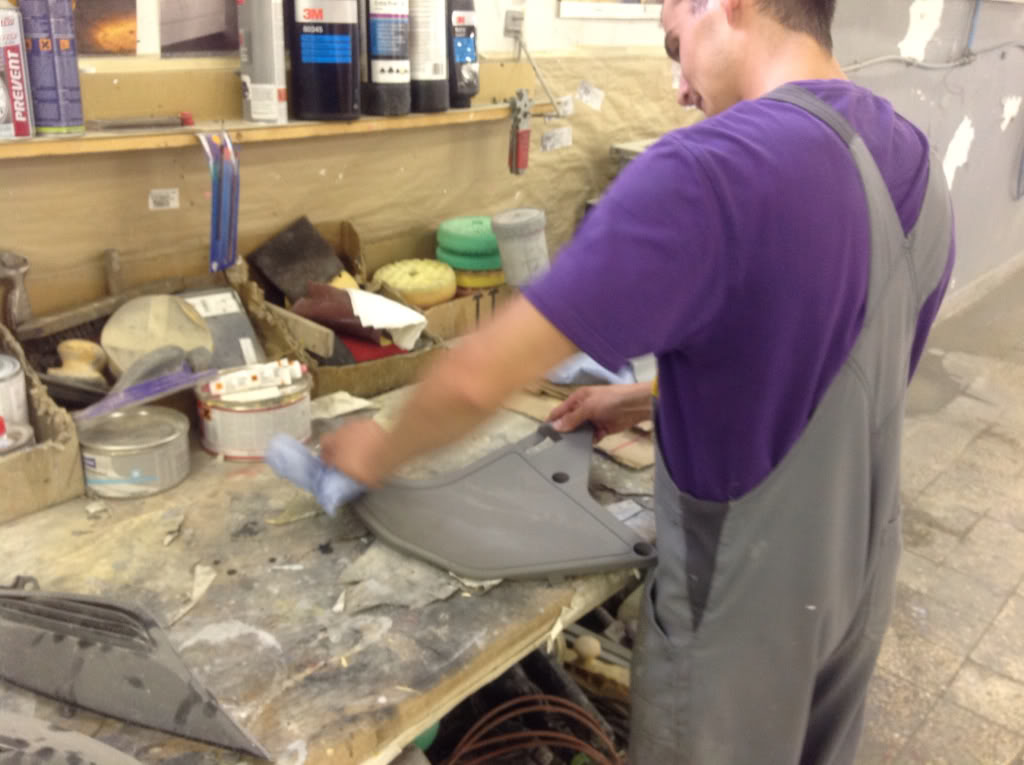

The plastic panels inside are getting painted in mat black

Name:  cf7c6123.jpg
Views: 26
Size:  89.9 KB
Name:  d2c73cb4.jpg
Views: 20
Size:  163.4 KB
Name:  34e22fa6.jpg
Views: 23
Size:  160.9 KB
Name:  de112341.jpg
Views: 19
Size:  114.2 KB
Che Guevara is offline
Old 07-26-2012, 03:09 PM
  #15
Junior Member
Thread Starter

Che Guevara's Avatar

Join Date: Aug 2011
Location: Norway
Posts: 37
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

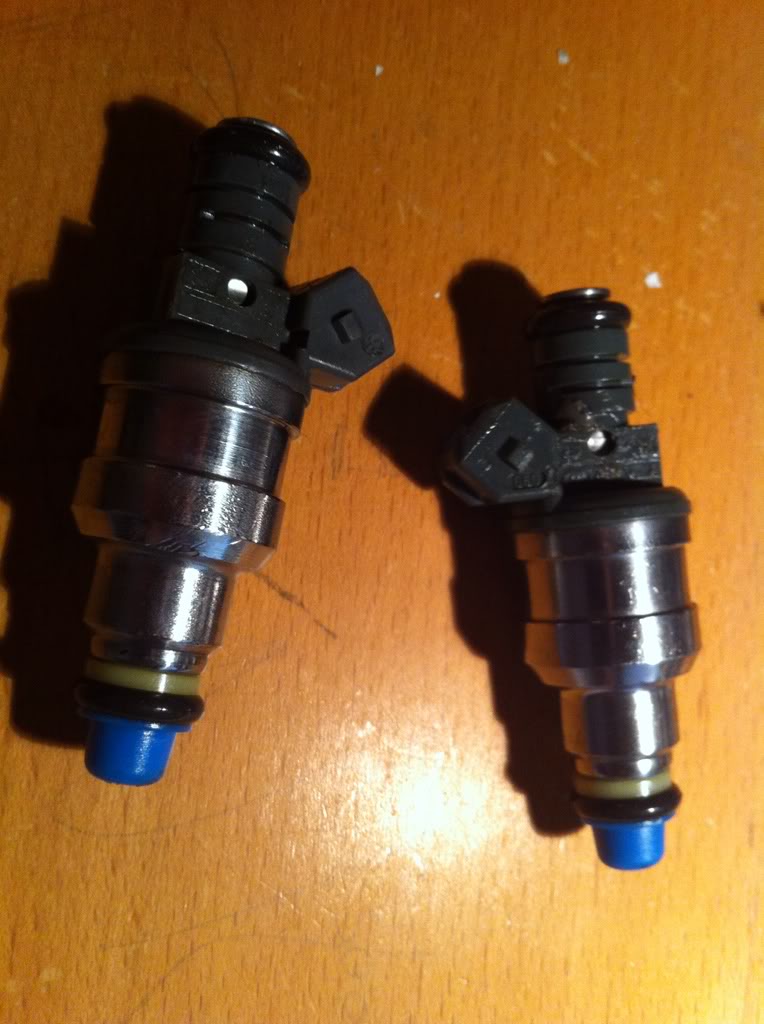

Got my new fuel injectors from Precision

Name:  2f8dcef2.jpg
Views: 22
Size:  85.6 KB
Che Guevara is offline
